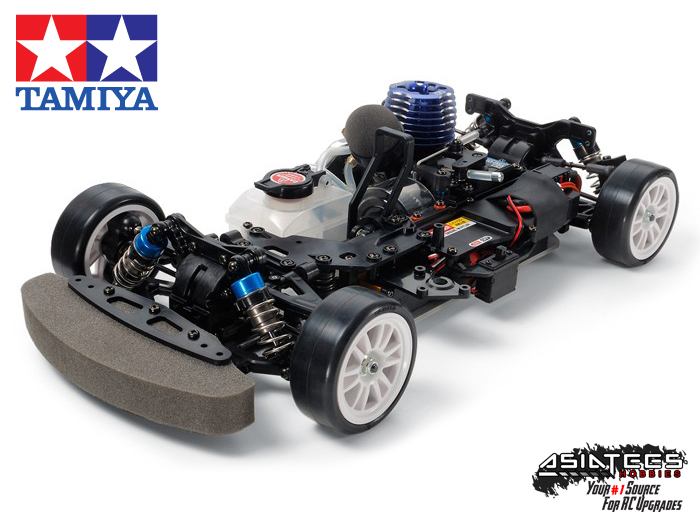

Tamiya Glow-Engine TG10-Mk.2FZ Chassis Kit

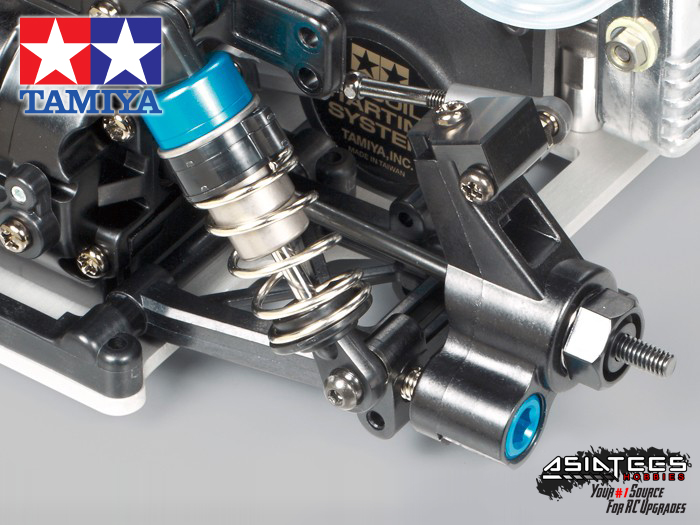

This glow-engine R/C car chassis provides great performance, and an engine sound to match! The shaft-driven 4WD TG10-Mk.2 Chassis is fitted with the new Tamiya FS-12FZ engine. 3mm-thick lower and upper decks are made from duralumin and resin respectively, while the resin R/C mechanism deck is compatible with the Tamiya LF Battery LF1100-6.6V Racing Pack (M-Size). 4-wheel double wishbone suspension features oil dampers with aluminum cylinders and a special fluorine-coated interior for impressively smooth movement, and geometry has been optimized for use with rubber tires. Likewise, full ball bearings offer smooth drivetrain movement. The 75cc fuel tank includes a special filter and offers up to 8 minutes of running time.

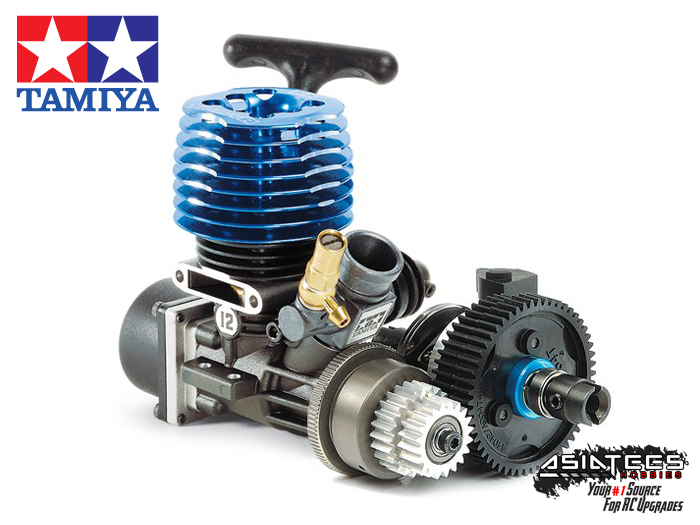

The Tamiya FS-12FZ engine has a capacity of 2.1cc and features tapered sliding carburetor, plus an efficient heat sink for heat dissipation. It offers an excellent combination of linear torque and high output, while being easy to setup and maintain. It features a 2-speed transmission. The 2.1cc Tamiya FS-12FZ engine is fitted with a 2-speed transmission, and can be started with minimum fuss using the handily-sized recoil starter unit. A durable polycarbonate cover is in place to protect the spur gears untilized in the 2-speed transmission.

Specifications:

Length: 377mm
Wheelbase: 257mm
Double Deck Chassis (3mm-Thick Aluminum Lower & 3mm-Thick Reinforced Nylon Resin Upper Decks)
Shaft-Driven 4WD
F/R Tread 172-176mm (adjustable)
Differentials: Front 4-Bevel, Rear 2-Bevel
Front & Rear Fluorine-Coated Aluminum Dampers
Gear Ratio = 7.02:1 (1st Gear), 5.42:1 (2nd Gear)
TM-8 Exhaust
FS-12FZ Engine (2.1cc)
75cc Fuel Tank
