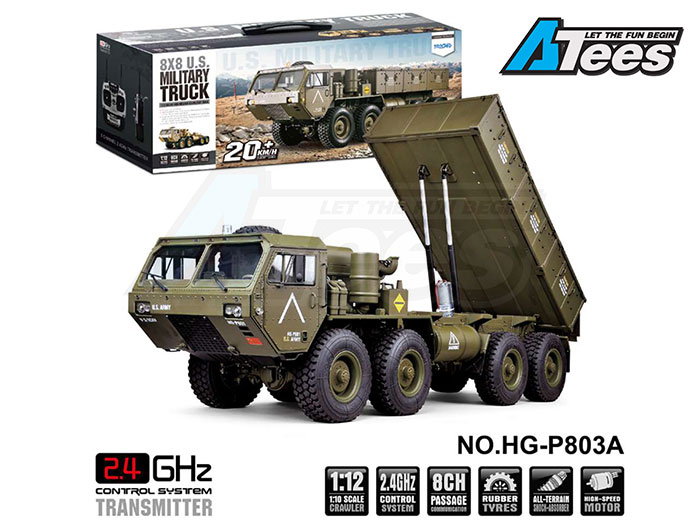

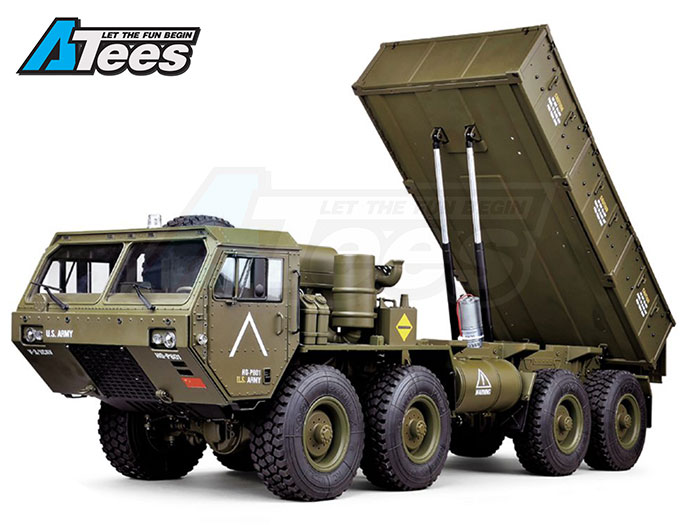

TRASPED HG-P803A 8x8 US Military Truck


SHOP THIS PRODUCT

Specification:

  • Scale: 1/12
  • Main function:
  • Forward,backward,turn left/right,brake,every doors can be opened,the dump can be remote lifting
  • Max speed : Low speed: 12km/h ; High speed: 18km/h
  • ESC: 320A
  • Motor: 550 brushed motor
  • Servo: 2 copper 9kg digital servo
  • Transmitter:  2.4G 8CH; Remote distance >100m


Telescopic rod parameter:

  • Gear reduction ratio: 34r:1mm
  • Service voltage: DC 6.0V
  • Max power output:1.6W
  • No-load currant:<100MA
  • Rated load:5.0Kg.CM
  • Rated speed: 13RLM/CM
  • Rated current:<0.5A
  • Locked-rotor load:7.0Kg.CM
  • Locked-rotor current:<2.6A
  • Retracting stroke : 88mm

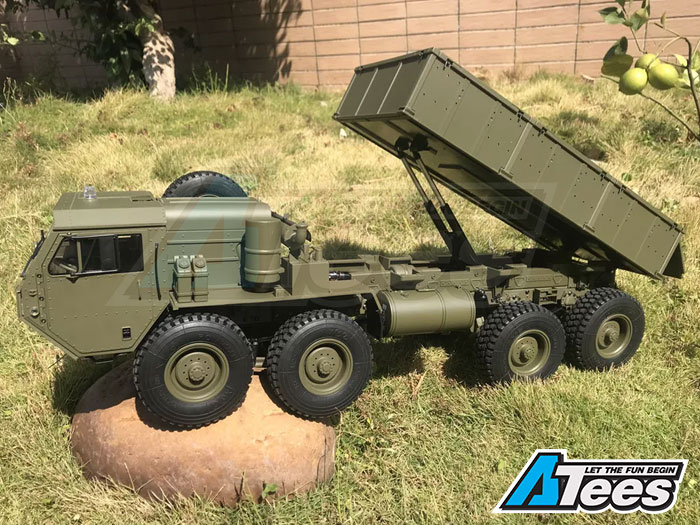

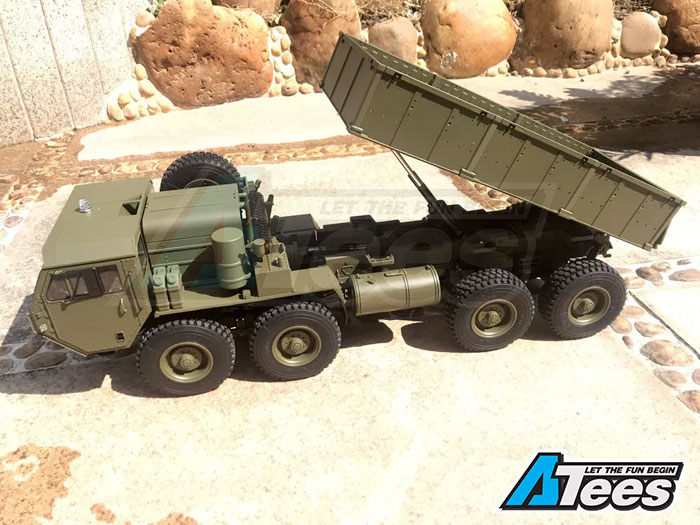

  • Maximum tipping angle of dump bucket: 40 degrees
  • Material: Hardware, Zinc, Alloy, Electronic and Plastic


Dimensions:

  • Truck size: 739.5x218.5x242.5mm
  • Wheelbase:(128mm)x258mmx(128mm)
  • Wheel margin: 218.5mm
  • Wheel diameter:R111MM

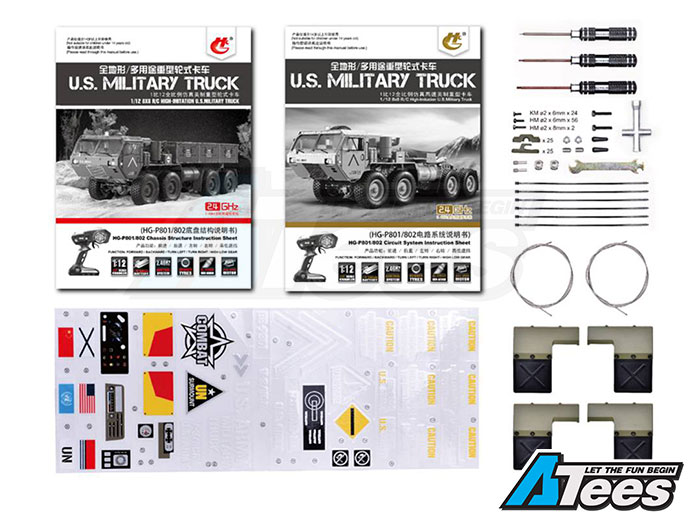

Includes:

  • RC Car (do not include the car battery)
  • 2.4GHz Radio Transmitter and Receiver
  • ESC
  • 550 Motor
  • Servo
  • Manual
  • Sticker
  • Hardware & tools

Required: Battery and charger for this truck (they are not included in the package).
