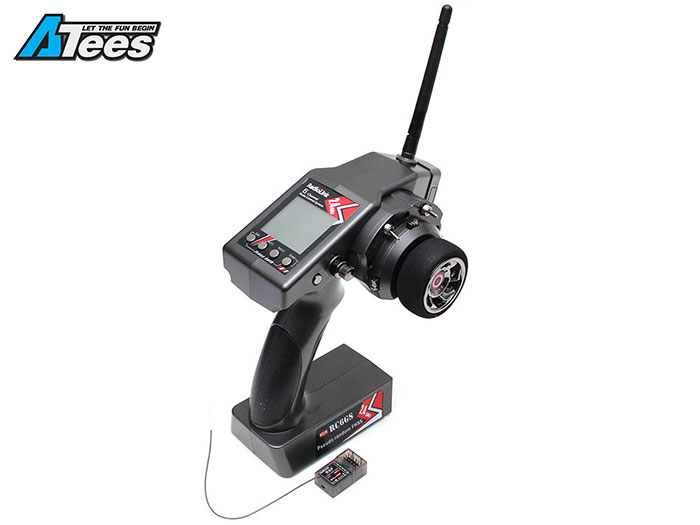

Specification:

Size: RC6GS - 213*117*115.5mm, R6FG/R6F - 35*20*13mm
Channel: 6
Model: cars, boats
Modulation mode: GFSK
Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)
Spread spectrum: FHSS 67 channels pseudo random frequency sequence hopping
10 modes memory storage
Antenna length: 106mm
Control distance: more than 400 meters ground
LCD screen: 128*64 resolution, LCD back light
Transmitter operating voltage: 4.8~15.0V DC, 4*1.5AA or 2S-4S Lithium battery
Transmitter operating current: 80~120mA
R6FG/R6F operating voltage: 3.3~10V
R6FG/R6F operating current: 30mA
RF power: <20dbm
Low voltage alert: Yes (lower than 4.6V), can be set when using 2S-4S Li-Po battery
Channel resolution: 4096, the regular jitter is 0.5us
Receiver: R6FG(sells with), R6F, R8EF, R8FM


Features:

6CH Mix Programmable

6 channels totally. CH1 is rudder, CH2 is throttle, CH3 can setup to control the transfer case, CH4 can setup to control the shift gear, CH5 can setup to control the front locker and CH6 can setup to control the rear. New choice for RC crawler. Every two channels can be mix programmed.


Top Configuration

Both transmitter and receiver use industrial chips to ensure superior and has anti-sparks interference ability, random sensitivity of gyro will not interfere with steering to make the RC6GS great for even 1/14 semi trucks.

Industrial grade anti-interference ability to ensure multiplayers compete at the same time.

12ms only from transmitter to the receiver, providing control synchronous and perfect performance.

400 Meters Ground Control Distance

With the same FHSS spread spectrum of AT9S and 67 channels pseudo random frequency sequence hopping makes RC6GS have superior anti-interference ability both at the same frequency band and different frequency bands.

Control distance is up to 400 meters.

Operating As You Want

Receiver with gyro integrated to hold the vehicle in a straight line during aggressive acceleration and braking or get bumped around by rough terrain.

Receiver with gyro integrated to keep the uni-direction and anti-slip.

Gyro Sensitivity Self-setting

Gyro sensitivity can be adjusted by CH3, which in default is controlled by VR switch to maximize or minimize the functions of gyro.

ABS Anti Lock Brake

ABS function keeps RC6GS stable in all conditions.

Unique Anti-polarity Connect Protection

RC6GS, with unique anti-polarity connect protection intelligent, will not damage transmitter or receiver even connect anti-polarity with a long time.

Universal JST battery connector supports multiple batteries, include 4pcs AA batteries or 2S-4S LiPo battery.

USB Upgrade

Upgrading firmware is possible with an android USB cable, keeling the RC6GS most up to date.

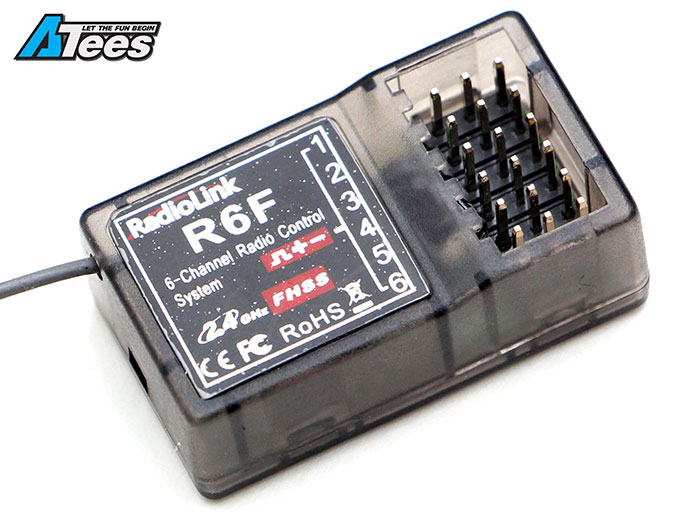

Receiver is available separately:

RL/R6F
