[Video] Comparing Hobbywing WP-1080 & WP-1060 ESC

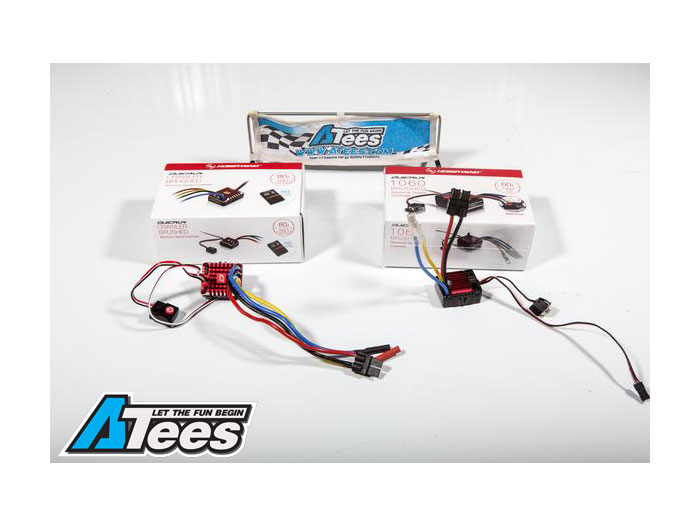

This video will show you what you will get in the new Hobbywing WP-1080. There is also an explanation of the different functions between the WP-1080 and the WP-1060 and size comparison.







WP-1080 ESC Specifications:

  • Higher cont. and peak current
  • BEC output can go up to 7.4V
  • 9 levels of drag brake mode
  • Adjustable PWM frequencies
  • Freewheeling capability
  • Adjustable neutral range (9 levels)
  • Adjustable reverse/drag brake
  • LED program box supported
  • Electronic switch
  • Aluminum case

Specs:

  • Brushed Motor Limit with 2S LiPo/6S NiMH: T≥12 or RPM
  • Brushed Motor Limit with 3S LiPo/9S NiMH: T ≥18 or RPM< 20000 @7.2V (540/550 size motor)
  • 2-3S LiPo/5-9S NiMH
  • Weight: 36.2mm*31.6mm*17.0mm/ 58.5g(W/Wires)
  • Size: 36.5 x 32 x 18mm (without fan)
  • Separate Programming Port
  • LED Program Box
  • 80A/400A
  • BEC Output 6V/7.4V @ 3A (switch mode)
  • Adjustable Reverse/Brake Force
  • LED program box supported
  • Brushed Motors (540/550/775 Series of Motors)

Features:

  • 100% Waterproof
  • PWM Frequency: 1K/2K/4K/8K/16K Adjustable
  • Freewheeling (DEO) capability
  • Drag brake rate in 9 levels (adjustable)
  • Electronic switch
  • Aluminum case
  • Great heat dissipation

LED Program Box included. Retail Price: $39.99





WP-1060 ESC Specifications:

  • Fwd. Cont. / Peak Current: 60A/360A
  • Rev. Cont. / Peak Current: 30A/180A
  • Voltage Range: 4-9 Cell NiMH / 2-3 Cell LiPo
  • Cars Applicable:1/10 Touring Car/Buggy/SCT/Monster/Crawler
  • Suitable Motor:540 or 550motor
  • Motor Limit: 2S - 12T 3S - 18T
  • BEC output: 5V/2A (Linear BEC)
  • Resistance: Fwd 0.001, Rev 0.002
  • PWM Frequency: 1KHz
  • Dimension(without fan)mm:35x28x18
  • Cooling Fan: Not Included
  • Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
  • Water-proof and dust-proof, suitable for all-weather condition races
  • Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection




ByRicky M

Tags :Hobbywing, ESC, Brushed
