Boom Racing Convertible Aluminum Front Or Rear Axle Review

ATees was my best friend here as they sell the CNC-machined Boom Racing BR233024 axles. A full aluminum axle that weighs a stunning 287 grams or 10.13 ounces, lowering your COG (Center-of-gravity) by quite a bit! It comes with some details highlighted (diff cover, steering link rod ends, etc) in a certain color. The axles are available in red, blue and black. It was my luck that with red as a theme color for the build, the red also was the most affordable.

First thing you will notice is the finish. They are almost too beautifull to use. Putting them in a display and just looking at them all day doesn't seem like such a bad idea. Am I really going to scratch these on the rocks?

Hell yeah!

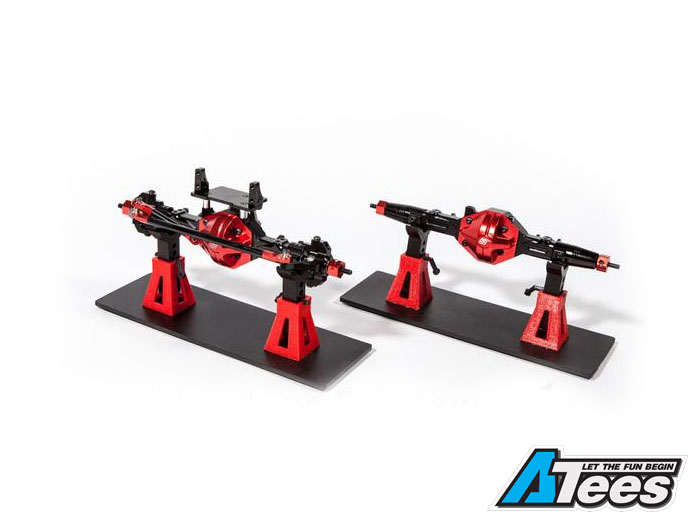

The axles come pre-assembled as a steering axle including a servo plate and steering link. They are a “plug and play” swap with the current axles and are fitted with the HD gears (a bonus!). They come prepared for a 3-link setup.

Perhaps “plug and play swap” is too much of a stretch. Keep in mind that they are not greased up yet. When you spin the axle you will notice that. Things need to break in after adding some grease, So I had to remove the diff cover (4 hex bolts), add some marine grease and spin it a bit. The difference was noticeable immediately.

I had to modify another axle to make it a rear axle. Boom Racing delivers all the components needed to do so. Axle lock out, little hex bolts, inner axles. It’s all there. Boom Racing doesn’t provide a manual on how to do it, but it really isn’t rocket science. It will show itself as it all is very logical.

So I removed the steering knuckle and c-hubs (castor blocks). In my case one C-hub was pretty tight and I had to tap it gently with a nylon hammer, but after that, it really was a 10 minute job including greasing the gears.

Now, the biggest change I made was to swap out the 3-link truss for a 4-link truss. I am that lucky having a friend with a high Quality 3D printer, so he made me a few custom-made 4-link trusses (though if you need a handy 4-link truss for SCX10 axles, check this out).
