Achieves high output that overturns the concept of 380 motors
We have condensed the technology we have cultivated so far into a compact case. We have overturned the concept of 380 motors, which are said to lack torque and rotation speed, and achieved high output comparable to that of a 540 motor.
Equipped with [MFCS] that allows changing motor characteristics with a rotor of the same diameter and weight
Equipped with the unique system [MFCS] used in AGILE and FLEDGE. Even with a 380 motor with limited internal space, the rotor diameter and weight remain the same, and the characteristics can be changed to a rotation type or torque type without spoiling the original performance of the motor.
*Optional parts include the LV45 torque rotor and a rotor replacement tool for MerV-ERA (scheduled for release around January 2025).
Equipped with variable advance system
This is the first time that a variable advance system has been installed in a 380 motor, which was previously difficult to install due to the small size of the housing. The characteristics can be easily changed to torque type or rotation type.
Equipped with Tri-Blade system
The rotor-equipped air-cooled fan "Tri-Blade" used in AGILE has been refined for this product, achieving high cooling performance.
Vibration-reducing structure with high heat dissipation plate
Like FLEDGE, a high-rigidity special alloy plate is installed on the top side of the inside of the housing. It reduces internal vibrations that occur when the motor is running and affects rotation efficiency.
Equipped with the industry's first direct power terminal system for FLEDGE
Equipped with the industry's first direct power terminal system, FLEDGE. The integration of the power plate that connects the motor connection terminal and the coil transmits power efficiently. Furthermore, the MerV-ERA has a horizontal terminal orientation, and a solder welding surface is secured on the top of the terminal. Direct cable attachment by soldering is also possible.
Compatible with "torque level/torque end mode" installed in our brushless ESC
Compatible with the "Torque Level/Torque End Mode" program installed in our brushless ESC. This program is exclusively for users of this product, FLEDGE, and AGILE, and allows you to vary the motor torque level according to road conditions and vehicle.
Can also be mounted on a motor mount compatible with 540 size (when using optional accessories)
By using the optional part [Multi-angle 540-380 conversion plate for MerV-ERA] , it can also be mounted on a motor mount compatible with 540 size.
Specifications:
Motor Turns: 10.5T
Input voltage (V): 4.2V–8.6V
KV (rpm/V): 5,260
Power (W): 250
Efficiency (%): 92
Rotor Type: Sintered (Neodymium Magnet) LV38
Coil winding method: Star Winding
Weight/Overall length: 92g / 52mm (between motor mount contact surface and end bell tip)
Package total weight: 126.00 grams (incl. packaging)
Package size: 8.50 x 12.50 x 6.00cm

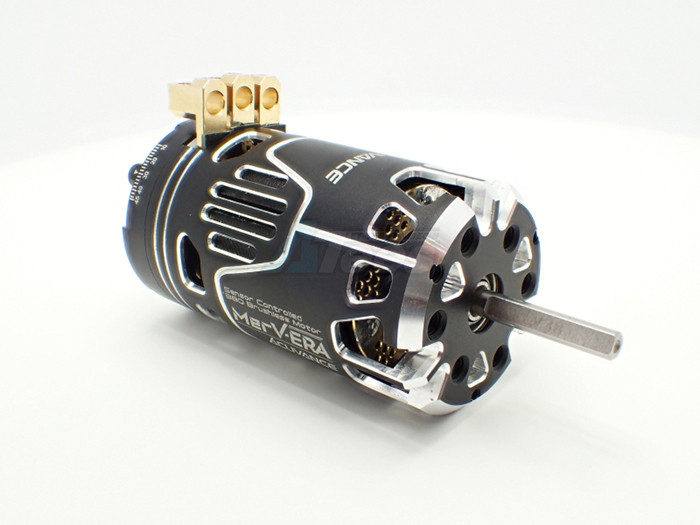

Factory description: ACUVANCE MerV-ERA 380 Brushless Motor 10.5T - Black
Achieves high output that overturns the concept of 380 motors
We have condensed the technology we have cultivated so far into a compact case. We have overturned the concept of 380 motors, which are said to lack torque and rotation speed, and achieved high output comparable to that of a 540 motor.
Equipped with [MFCS] that allows changing motor characteristics with a rotor of the same diameter and weight
Equipped with the unique system [MFCS] used in AGILE and FLEDGE. Even with a 380 motor with limited internal space, the rotor diameter and weight remain the same, and the characteristics can be changed to a rotation type or torque type without spoiling the original performance of the motor.
*Optional parts include the LV45 torque rotor and a rotor replacement tool for MerV-ERA (scheduled for release around January 2025).
Equipped with variable advance system
This is the first time that a variable advance system has been installed in a 380 motor, which was previously difficult to install due to the small size of the housing. The characteristics can be easily changed to torque type or rotation type.
Equipped with Tri-Blade system
The rotor-equipped air-cooled fan "Tri-Blade" used in AGILE has been refined for this product, achieving high cooling performance.
Vibration-reducing structure with high heat dissipation plate
Like FLEDGE, a high-rigidity special alloy plate is installed on the top side of the inside of the housing. It reduces internal vibrations that occur when the motor is running and affects rotation efficiency.
Equipped with the industry's first direct power terminal system for FLEDGE
Equipped with the industry's first direct power terminal system, FLEDGE. The integration of the power plate that connects the motor connection terminal and the coil transmits power efficiently. Furthermore, the MerV-ERA has a horizontal terminal orientation, and a solder welding surface is secured on the top of the terminal. Direct cable attachment by soldering is also possible.
Compatible with "torque level/torque end mode" installed in our brushless ESC
Compatible with the "Torque Level/Torque End Mode" program installed in our brushless ESC. This program is exclusively for users of this product, FLEDGE, and AGILE, and allows you to vary the motor torque level according to road conditions and vehicle.
Can also be mounted on a motor mount compatible with 540 size (when using optional accessories)
By using the optional part [Multi-angle 540-380 conversion plate for MerV-ERA] , it can also be mounted on a motor mount compatible with 540 size.
Specifications:
Motor Turns: 10.5T
Input voltage (V): 4.2V–8.6V
KV (rpm/V): 5,260
Power (W): 250
Efficiency (%): 92
Rotor Type: Sintered (Neodymium Magnet) LV38
Coil winding method: Star Winding
Weight/Overall length: 92g / 52mm (between motor mount contact surface and end bell tip)
Product weight: 126.00 grams
Package size: 8.50 x 12.50 x 6.00cm
Factory description: ACUVANCE MerV-ERA 380 Brushless Motor 10.5T - Black
