PART: #TWS/60200200
|
**Discount shipping applies to this item.
|
|
|||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
TAGGED CATEGORIES:
- The tws CTS chassis was designed for off-road terrains. The front motor placement is the same configuration as the full-scale vehicles. The torque is increased through the planetary gear reduction box, and then output to the front and rear axles by the transfer box. The strong bevel gears in the axles give the promising durability and instant power output. Steering system: AMS (SOA, an advanced configuration for further modification) The final transmission ratio ranging from 40 to 62.5 (default 50) corresponding to higher speed motors achieves an excellent throttle controllability.
Features:

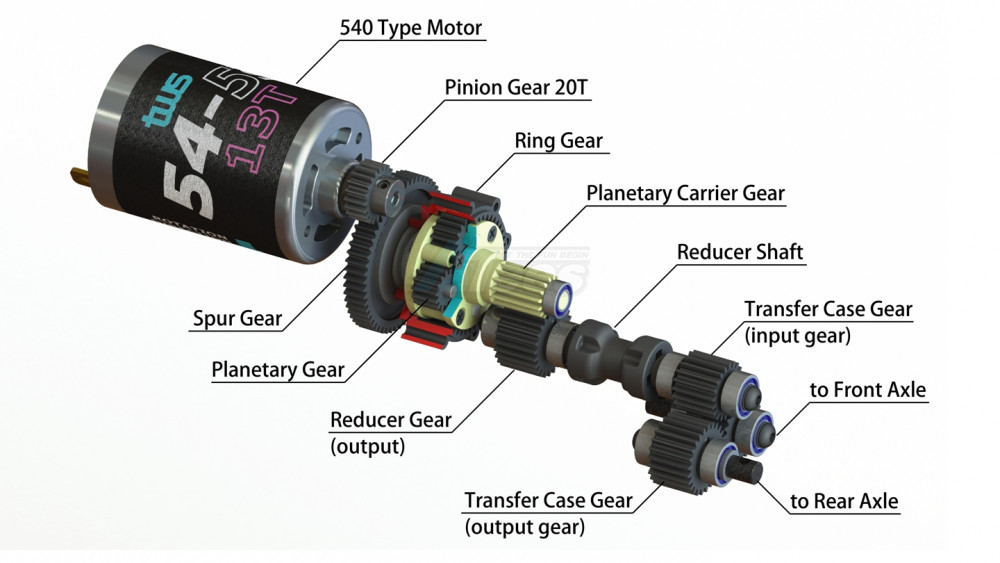

- High-efficiency planetary gearbox with metal gear (carrier & idler gear) set
- A compact and noise suppression design with high precision plastics maximizes the gearbox power density and operational smoothness.
- The reverse rotation transfer case with metal gear set
- It can improve the body tilt generated when the vehicle is traveling.
- A162 front and rear axle sets
- According to the needs of players, the transmission direction can be changed to increase the variability and flexibility of self-modification.
- High precision powder metallurgy bevel gear
- Surface hardening heat treatment strengthens the durability and fatigue life.

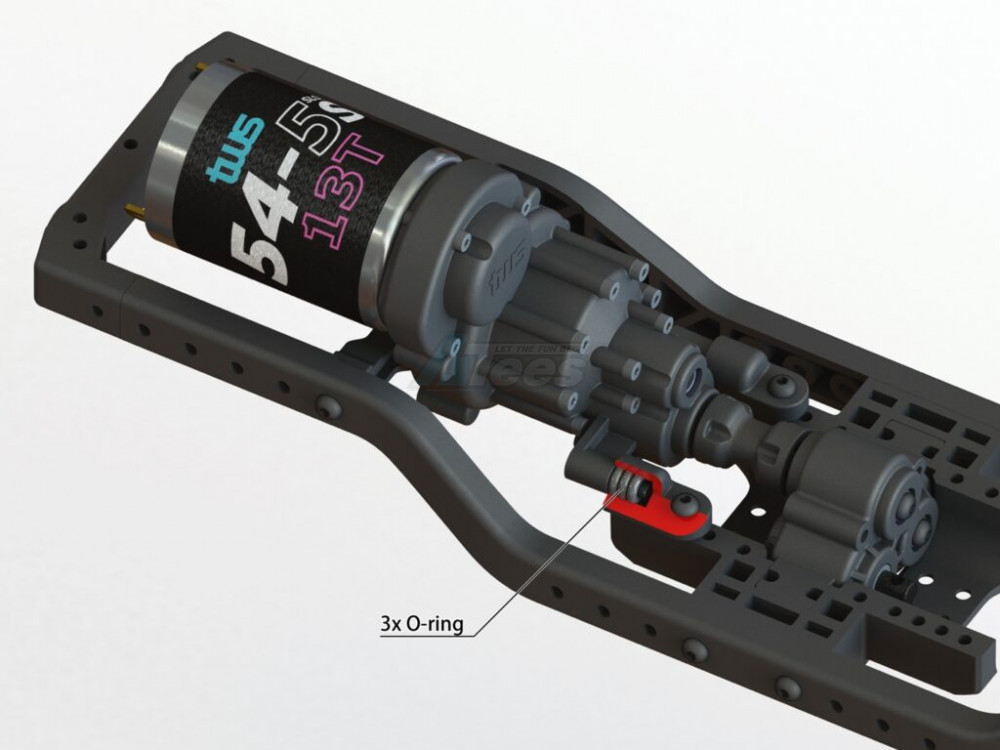

- Floating motor mount
- Obviate the unnecessary vibrations which have the potential to disturb the normal function of reducer system.
- Full ball bearing ready
- Results in efficient transmission and smooth operation.

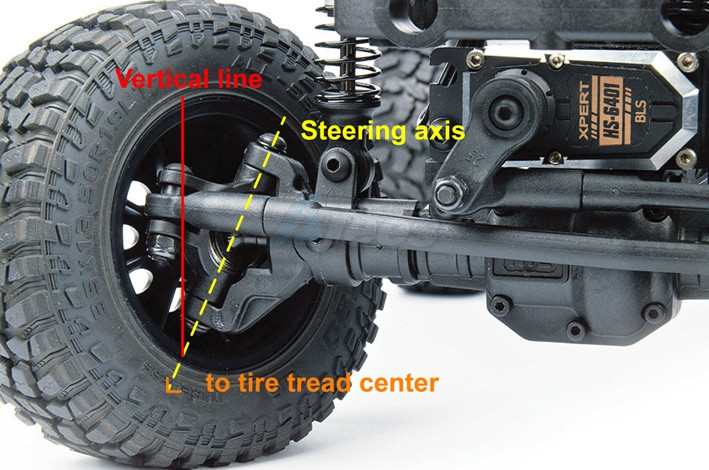

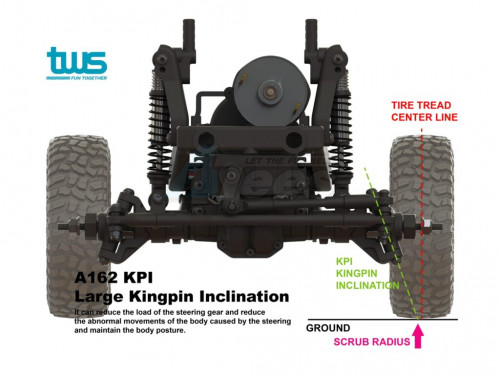

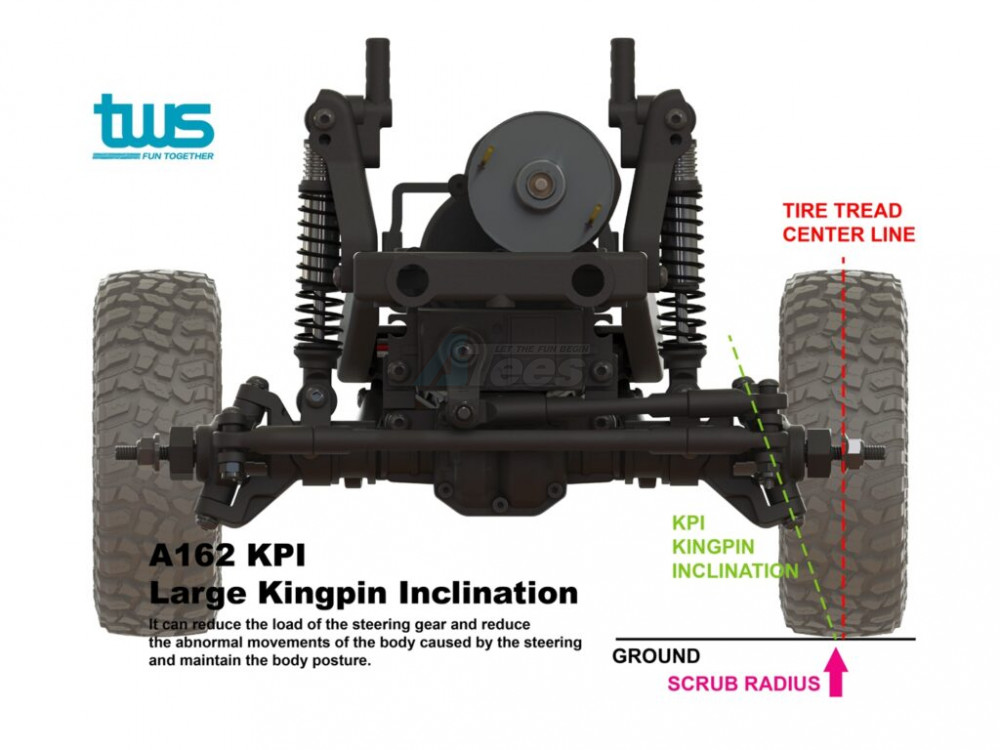

- Steering large kingpin inclination
- It can reduce the load of the steering gear and reduce the abnormal movements of the body caused by the steering and maintain the body posture.

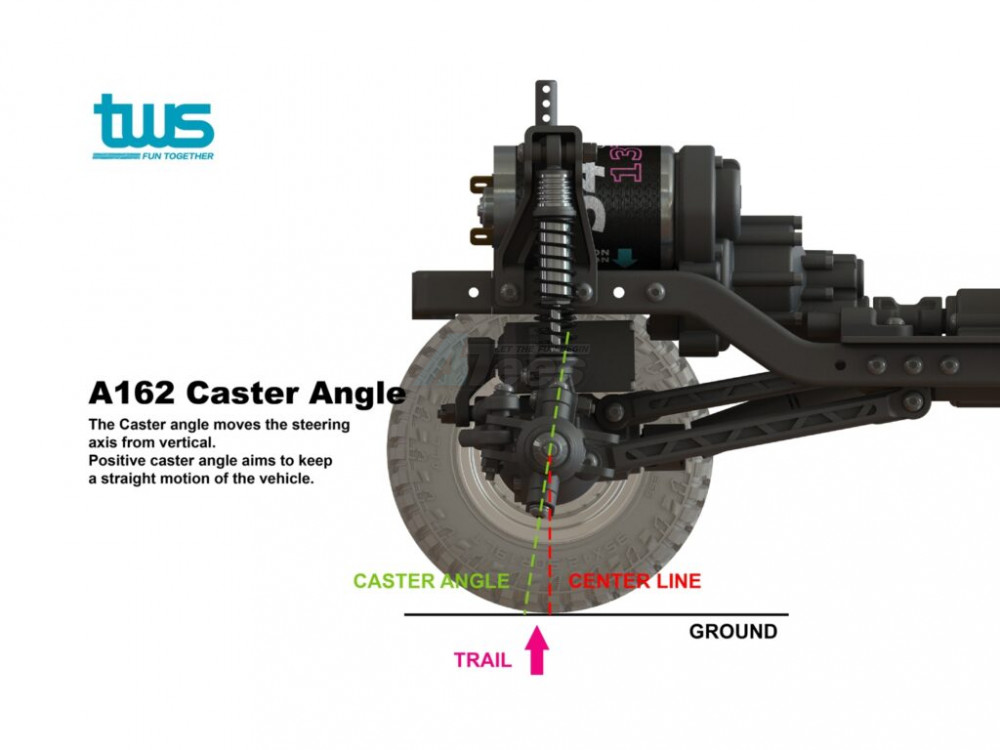

- The caster angle of the steering system
- Positive caster angle aims to keep a straight motion of the vehicle.
Specification:
- Chassis length 335mm
- Axle width (hex to hex) 162mm
- Wheelbase 242/252/267mm adjustable
- Full ball bearing
- Metal planetary gear carrier & idler gear
- Metal transfer case gear
- 4mm Stainless link rod (AMS/SOA)
- Aluminum shocks set
- Super soft shock spring
- Pre-built F&R Axle set
- Pre-built Reducer box set
- Pre-built Transfer box set
60200101 / 60200200 COMPARISON:
- CTS V2 60200101 / CTS Advanced ver. 60200200
- Original plastic gear in transfer box / Powder metallurgy gear in transfer box
- Powder metallurgy planetary gear carrier set / Powder metallurgy gear in reduce box
- Original reinforced plastic link rod / AMS Stainless link rod set
- Pre-built F&R Axle set / Pre-built F&R Axle set
- Pre-built Reducer box set / Pre-built Reducer box set
- Pre-built Transfer box set / Pre-built Transfer box set
- Included STT90 tires / Without tires
- High-efficiency planetary gearbox with metal gear (carrier & idler gear) set
- Package total weight: 1700.00 grams (incl. packaging)
- Package size: 23.00 x 42.00 x 12.00cm

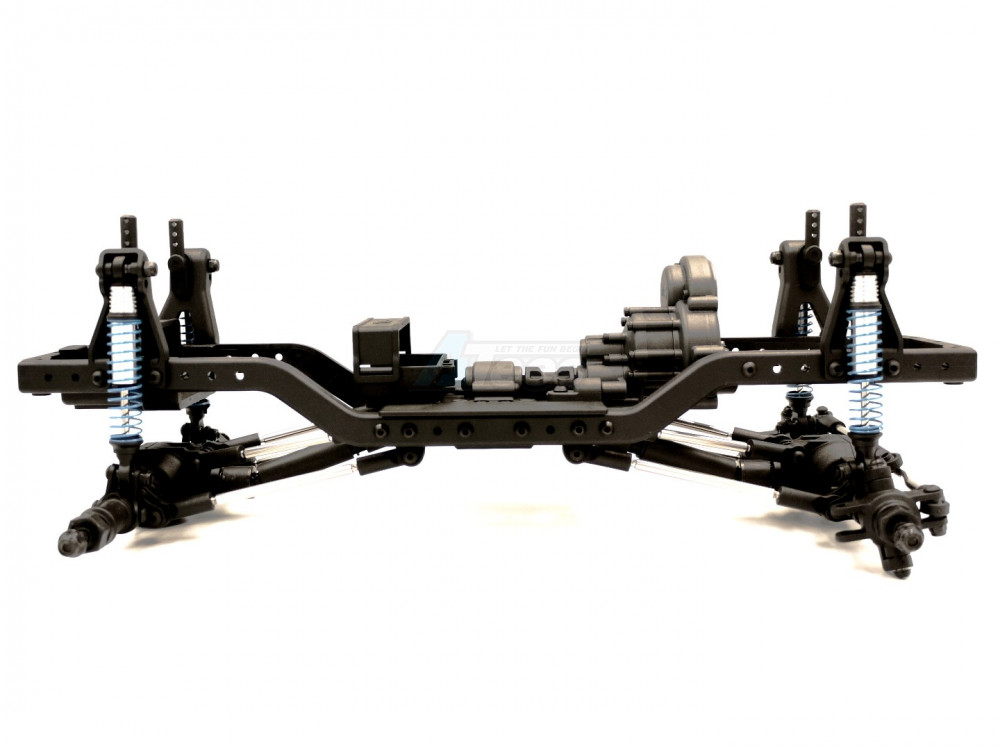

- Factory description: TWS CTS CTS Chassis Kit (Advanced Version)
- Manufactured by TWS
- Manufacturer number: TWS/60200200
- This item is not eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
