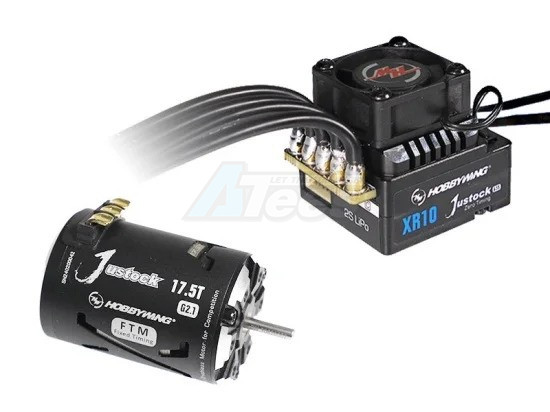

The XR10 Justock G3S has precise control and powerful performance. It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on. The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.
With the freewheeling function turned on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.
Built-in polarity protection. One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.
Multi RPM limit, select as needed. Supports 79 RPM Limits, (10000-88000RPM) RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.
The built-in capacitor module eliminates the need for external capacitors and unwanted space.
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.
The ESC has a built-in data recording function. Making it easy to obtain the operating status. The data includes the Minimum voltage, Maximum current, Maximum RPM, Maximum ESC temperature and Maximum motor temperature.
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real-time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions.
Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!
The number of parameters has been increased to 15. It is tailored and is more in line with competition needs.
Vehicles: 1/10th, 1/12th On-road and Off-road club competition and normal training
KV Rating/T Count: ≥10.5T 3650 Motor
Justock 3650 17.5T G2.1 Features:
The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision & strength bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
The aluminum case (different from the Justock3650 G1’s iron case) with a unique design not only creates a cool look but helps to dissipate heat.
The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
The end bell is easy to be removed for maintenance purposes and for the replacement of common wearing parts such as rotor and sensor module (Ex. bearings).
Copper solder tabs with super low impedance at the load end of the motor allows users to directly solder the ESC wires onto the tabs for solid connection and simple wiring.
This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands and is used in various 1/10th, 1/12th scale on-road & off-road vehicles. It is an ideal choice for Stock or Sport class racing but can also be a great choice for beginners or for the racers looking for a practice motor.
The motor design is in compliance with EFRA and ROAR specifications.
Type:
Scale: 1/10th, 1/12th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2
Relevant Parameters:
KV Rating: 2450
LiPo Cells: 2-3S
No-load Current(A): 3
Size & Weight:
O.D.(mm): 35.9(1.413in)
Length (mm): 52.5(2.067in)
Shaft Diameter (mm): 3.17(0.125in)
Weight (g): 176g(6.21oz)
Front Bearing: D9.525*D3.175*t3.967
Rear Bearing: D9.525*D3.175*t3.967
Other Parameters:
Timing: Fixed
Applications: STOCK/SPORT class (choose the motor as per competition rules) of 1/10th , 1/12th On-road (i.e. competition touring car or drift, F1, Mini car, and etc.) and Off-road (i.e. buggy, 2WD SCT & truck) racing, Normal Training, and Rock Crawlers (21.5T & 25.5T only).
Package total weight: 402.00 grams (incl. packaging)
The XR10 Justock G3S has precise control and powerful performance. It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on. The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.
With the freewheeling function turned on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.
Built-in polarity protection. One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.
Multi RPM limit, select as needed. Supports 79 RPM Limits, (10000-88000RPM) RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.
The built-in capacitor module eliminates the need for external capacitors and unwanted space.
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.
The ESC has a built-in data recording function. Making it easy to obtain the operating status. The data includes the Minimum voltage, Maximum current, Maximum RPM, Maximum ESC temperature and Maximum motor temperature.
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real-time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions.
Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!
The number of parameters has been increased to 15. It is tailored and is more in line with competition needs.
Vehicles: 1/10th, 1/12th On-road and Off-road club competition and normal training
KV Rating/T Count: ≥10.5T 3650 Motor
Justock 3650 17.5T G2.1 Features:
The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision & strength bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
The aluminum case (different from the Justock3650 G1’s iron case) with a unique design not only creates a cool look but helps to dissipate heat.
The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
The end bell is easy to be removed for maintenance purposes and for the replacement of common wearing parts such as rotor and sensor module (Ex. bearings).
Copper solder tabs with super low impedance at the load end of the motor allows users to directly solder the ESC wires onto the tabs for solid connection and simple wiring.
This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands and is used in various 1/10th, 1/12th scale on-road & off-road vehicles. It is an ideal choice for Stock or Sport class racing but can also be a great choice for beginners or for the racers looking for a practice motor.
The motor design is in compliance with EFRA and ROAR specifications.
Type:
Scale: 1/10th, 1/12th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2
Relevant Parameters:
KV Rating: 2450
LiPo Cells: 2-3S
No-load Current(A): 3
Size & Weight:
O.D.(mm): 35.9(1.413in)
Length (mm): 52.5(2.067in)
Shaft Diameter (mm): 3.17(0.125in)
Weight (g): 176g(6.21oz)
Front Bearing: D9.525*D3.175*t3.967
Rear Bearing: D9.525*D3.175*t3.967
Other Parameters:
Timing: Fixed
Applications: STOCK/SPORT class (choose the motor as per competition rules) of 1/10th , 1/12th On-road (i.e. competition touring car or drift, F1, Mini car, and etc.) and Off-road (i.e. buggy, 2WD SCT & truck) racing, Normal Training, and Rock Crawlers (21.5T & 25.5T only).
