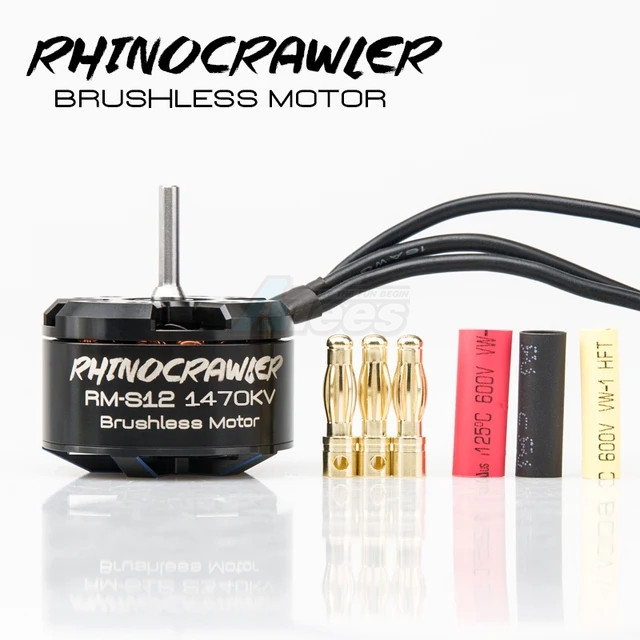

PART: #RH/RM-S12 1470KV
|
This item ships Free WORLDWIDE. Details
|
|
|||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
| Quantity Discount | |||
|---|---|---|---|
| Units at this Price | ATees' Low Price (Per Unit) |
You Save | Click To Order |
TAGGED CATEGORIES:
- Rhino Crawler RM-S12 is an extremely torque dense and lightweight choice with exceptional startup! It has more mounting positions, beefier wire retainer, and thicker back iron. RM-S12 is very difficult to produce, and it is currently the smallest size of the 2812 stator, the outer size of the RM-S12 stator 2812 is only 35x24mm! In addition, it adopts a specially customized dual tile strong magnetic design, which makes the motor lightweight and has stronger explosive power based on small size!
- Stable Power: Crawler Brushless Motor, 14 Pole 12 Slot Hi-torque rotor design.
- Suit For: Special made for RC 1/10 1/12 brushless crawler cars, for Axial SCX10, TRX-4, TRX-6, Tamiya and pair with Rhino ESC VE40A (ESC is suggested, not included). Multi-mounting system for M3 screws.
- Material: CNC Machined 7075 aluminum front and rear cover. High purity copper windings maximize efficiency. High toughness stainless steel shaft (Φ 3.175mm), high precision and high quality bearing make the motor super durable.
- Smallest Size of the Rhino Crawler 2812 stator, the outer size of the RM-S12 stator 2812 is only 35x24mm.
- High Efficiency: Crawler Motor specially customized dual tile strong magnetic design, which makes the motor 84g with wires lightweight, and has stronger explosive power based on small size.
Features:
- 1:10 rigs
- Competitive RC Rock Crawling
- 16ga silicon motor leads
- RM-S12 Motor works perfectly with Rhino ESC VE40A, the lightweight combo for an extremely torque dense and lightweight choice with an exceptional startup!
Specification:
- KV: 1470KV
- 14 pole 12 slot stator
- 8.4V-16.8V (2-4S) LiPo
- 1/8" D (3.17mm) shaft output
- 25mm Mounting holes for M3 screws
- 84g with wires, without connector
- 35mm diameter x 24mm long
- 28x12mm stator
- Package total weight: 117.00 grams (incl. packaging)
- Package size: 7.00 x 7.00 x 5.00cm
- Factory description: RhinoRC Rhino RM-S12 1470KV BLDC Motor
- Manufactured by RhinoRC
- Manufacturer number: RH/RM-S12 1470KV
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
