PART: #RH/RM-S20 2220KV
|
**Discount shipping applies to this item.
|
|
|||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
| Quantity Discount | |||
|---|---|---|---|
| Units at this Price | ATees' Low Price (Per Unit) |
You Save | Click To Order |
TAGGED CATEGORIES:

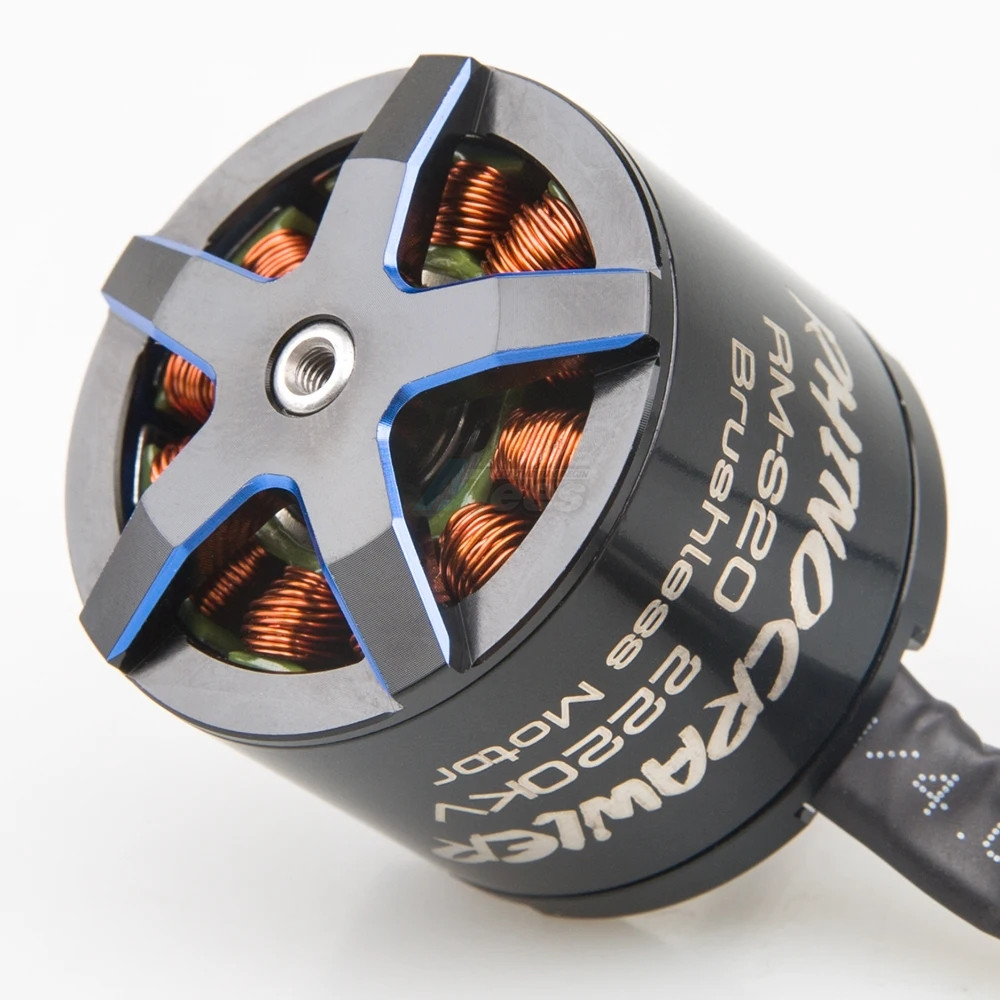

- Rhino Crawler RM-S20 is an extremely torque dense and lightweight choice with exceptional startup! It has more mounting positions, beefier wire retainer, and thicker back iron. RM-S20 is very difficult to produce, and it is currently the smallest size of the 2820 stator, the outer size of the RM-S20 stator 2820 is only 35x32mm! In addition, it adopts a specially customized dual tile strong magnetic design, which makes the motor lightweight and has stronger explosive power based on small size!
- Stable Power: Crawler Brushless Motor, 14 Pole 12 Slot Hi-torque rotor design.
- Suit For: Special made for RC 1/8 1/10 brushless crawler cars, for LCG Chassis, Axial SCX10, Traxxas TRX-4, MOA and pair with Rhino ESC VE80A (ESC is suggested, not included). Multi-mounting system for M3 screws.
- Material: CNC Machined 7075 aluminum front and rear cover. High purity copper windings maximize efficiency. High toughness stainless steel shaft (Φ 3.175mm), high precision and high quality bearing make the motor super durable.
- Smallest Size of the Rhino Crawler 2820 stator, the outer size of the RM-S20 stator 2820 is only 35x20mm.
- High Efficiency: Crawler Motor specially customized dual tile strong magnetic design, which makes the motor 120g with wires lightweight, and has stronger explosive power on the basis of small size.
Features:
- 1:10 rigs
- Competitive RC Rock Crawling
- 16ga silicon motor leads
- Hollow Shaft for lightweight
- RM-S20 Motor works perfectly with Rhino ESC VE80A, the lightweight combo for an extremely torque dense and lightweight choice with an exceptional startup!
Specifications:
- KV: 2220KV
- 14 pole 12 slot stator
- 8.4V-16.8V (2-4S) LiPo

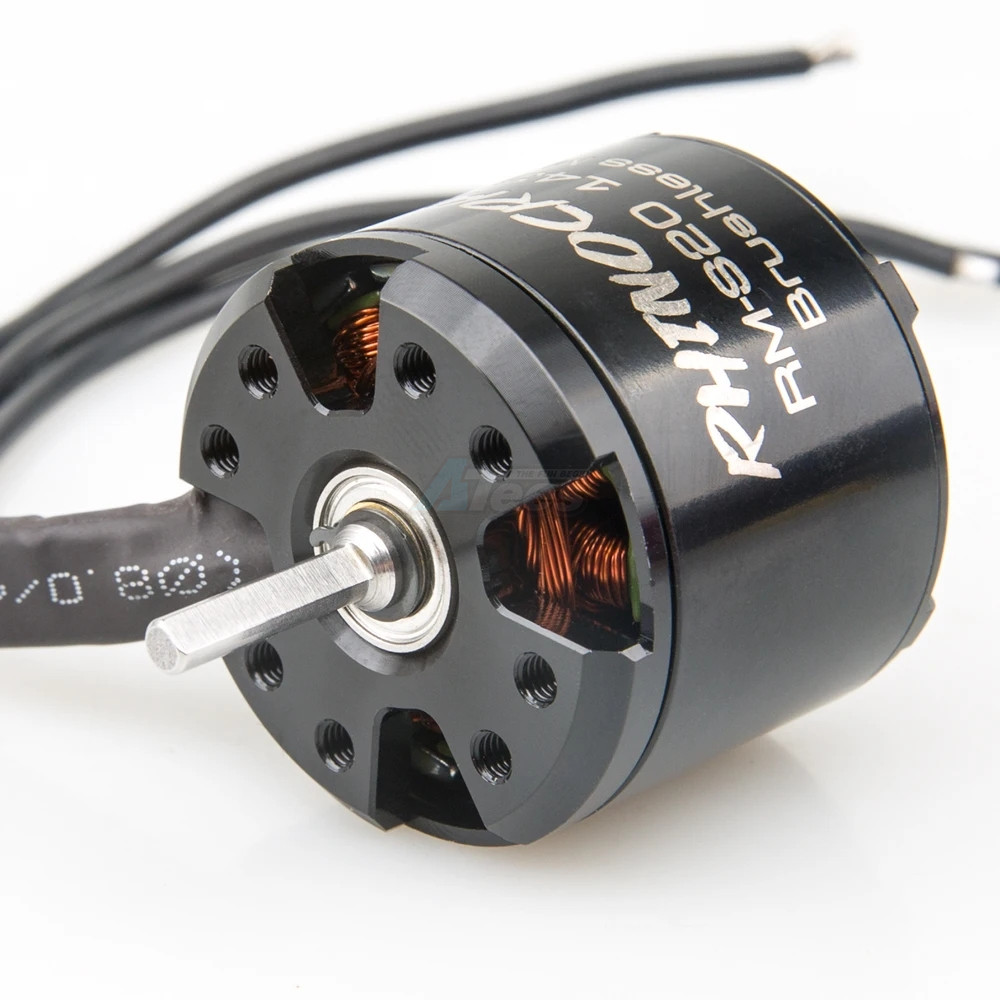

- 1/8" D (3.17mm) shaft output
- 25mm Mounting holes for M3 screws

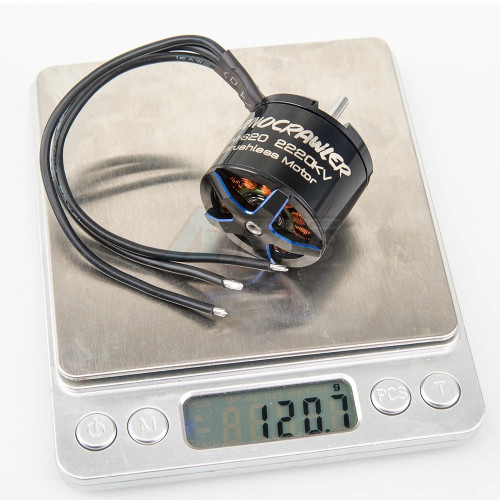

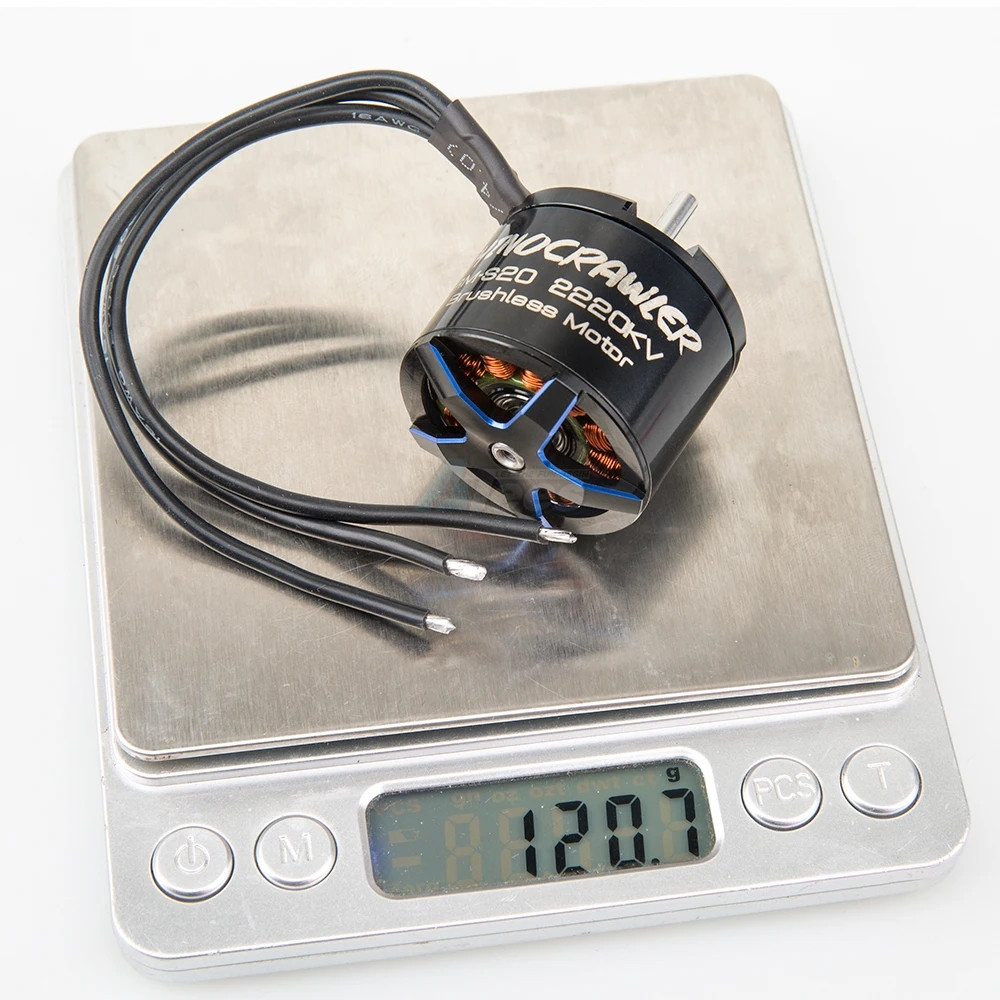

- 120g with wires, without connector
- 35mm diameter x 32mm long
- 28x20mm stator
- Package total weight: 153.00 grams (incl. packaging)
- Package size: 7.00 x 7.00 x 5.00cm

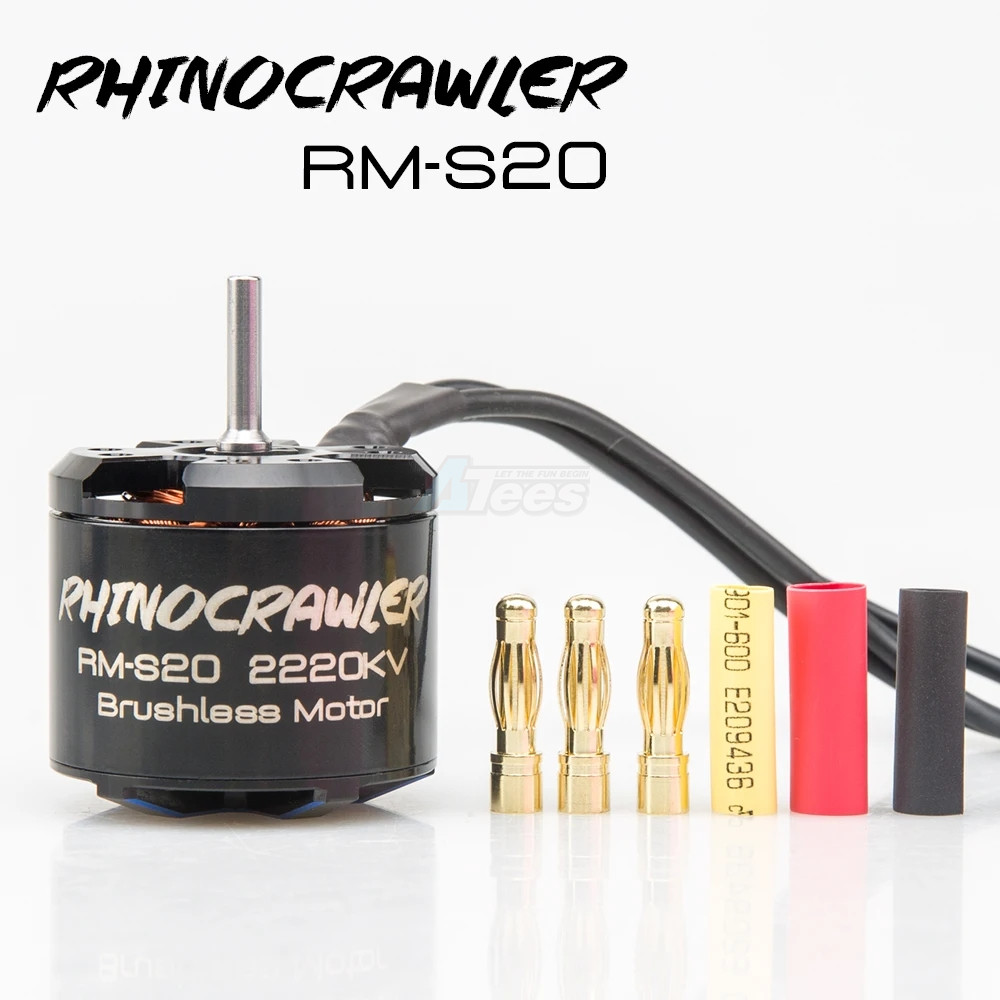

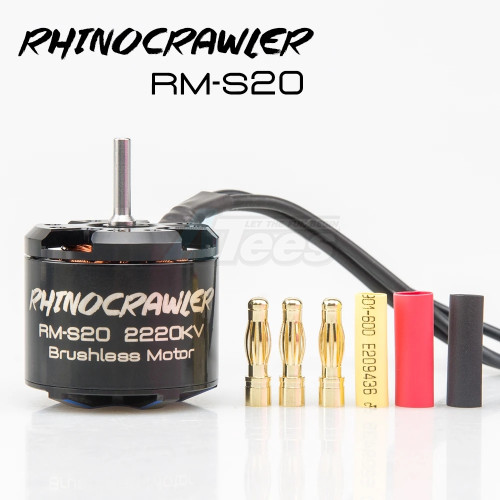

- Factory description: RhinoRC Rhino RM-S20 2220KV BLDC Motor
- Manufactured by RhinoRC
- Manufacturer number: RH/RM-S20 2220KV
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error
Rhino RM-S20 2220KV BLDC Motor by RhinoRC
