Note: The default mounting hole is 25.4mm. Please purchase the AXE 4274 motor conversion board if the mounting hole is 30mm.
AXE 4274 R3 is available in both 1700/2000KV options. It meets various application requirements for 1/8th, 1/7th, and 1/6th scale crawlers.
The AXE R3 motor is now IP67 protected. The motor has the proven HobbyWing waterproof sensor harness design to cope with complex and various climatic conditions.
Note: The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may decrease due to aging. Extended water exposure (submersion) may lead to damage.
The motor has a built-in magnetic encoding sensor. The accuracy is 60 times better compared to the traditional sensor commonly used in brushless motors. The three-phase signal has excellent consistency and it provides accurate signals from the rotor position.
The XeRun AXE R3 motor is built-in with 4 sets of 25.4mm mounting holes, and 4 for M3/M4 respectively. If the frame mounting holes are 30mm, an optional motor mounting conversion plate is available for purchase.
Note: The conversion plate is an optional accessory and needs to be purchased separately! (PN: 30850501)

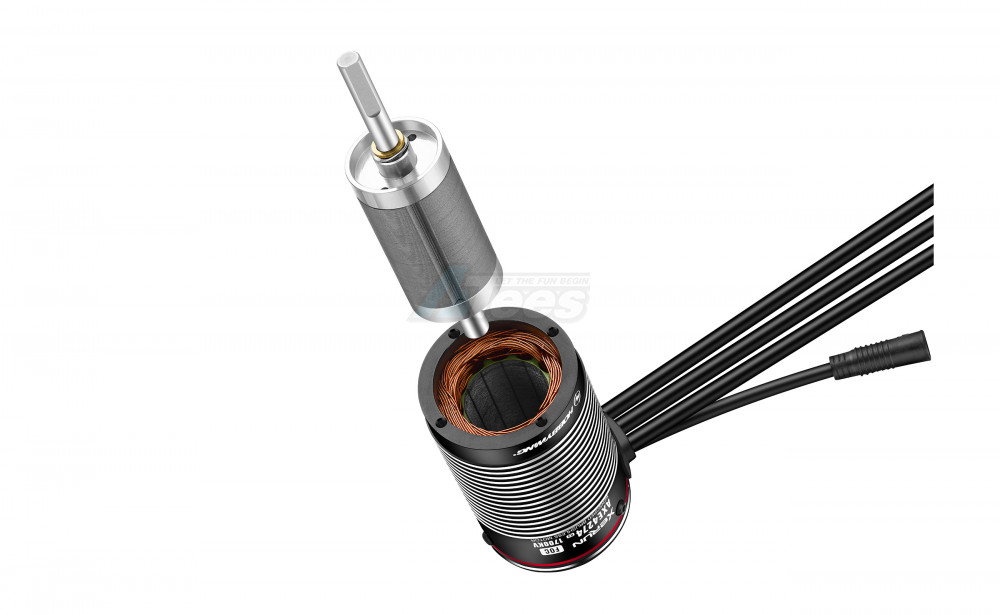

Premium Materials, Performance Upgrade: Crafted with high-quality aluminum CNC shell, top-tier brand bearings, ultra-thin silicon steel sheets, 200°C high-temperature-resistant enameled wire, and a high-toughness alloy output shaft. HobbyWing is dedicated to delivering exceptional performance to users worldwide. Elevate your crawler's performance to new heights with the XeRun AXE R3 motor.
Specification:
Scale: 1/8th, 1/6th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 4
Relevant Parameters:
KV Rating: 1700KV
LiPo Cells: 3-6S Lipo
No-load Current(A): 4A
Size & Weight:
O.D.(mm): 42
Length (mm): 74
Shaft Diameter (mm): 5
Plug: No
Wire: 12AWG*250MM*3
Weight (g): 405g
Other Parameters:
Recommended ESC: XERUN AXE PLUS R3
Vehicle Applications: 1/8th, 1/6th Rock Crawler
Package total weight: 469.00 grams (incl. packaging)
Package size: 11.00 x 15.00 x 7.00cm
Factory description: Hobbywing XERUN-AXE4274SD-1700KV-BLACK-R3 FOC Sensored Brushless Motor
Note: The default mounting hole is 25.4mm. Please purchase the AXE 4274 motor conversion board if the mounting hole is 30mm.
AXE 4274 R3 is available in both 1700/2000KV options. It meets various application requirements for 1/8th, 1/7th, and 1/6th scale crawlers.
The AXE R3 motor is now IP67 protected. The motor has the proven HobbyWing waterproof sensor harness design to cope with complex and various climatic conditions.
Note: The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may decrease due to aging. Extended water exposure (submersion) may lead to damage.
The motor has a built-in magnetic encoding sensor. The accuracy is 60 times better compared to the traditional sensor commonly used in brushless motors. The three-phase signal has excellent consistency and it provides accurate signals from the rotor position.
The XeRun AXE R3 motor is built-in with 4 sets of 25.4mm mounting holes, and 4 for M3/M4 respectively. If the frame mounting holes are 30mm, an optional motor mounting conversion plate is available for purchase.
Note: The conversion plate is an optional accessory and needs to be purchased separately! (PN: 30850501)
Premium Materials, Performance Upgrade: Crafted with high-quality aluminum CNC shell, top-tier brand bearings, ultra-thin silicon steel sheets, 200°C high-temperature-resistant enameled wire, and a high-toughness alloy output shaft. HobbyWing is dedicated to delivering exceptional performance to users worldwide. Elevate your crawler's performance to new heights with the XeRun AXE R3 motor.
Specification:
Scale: 1/8th, 1/6th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 4
Relevant Parameters:
KV Rating: 1700KV
LiPo Cells: 3-6S Lipo
No-load Current(A): 4A
Size & Weight:
O.D.(mm): 42
Length (mm): 74
Shaft Diameter (mm): 5
Plug: No
Wire: 12AWG*250MM*3
Weight (g): 405g
Other Parameters:
Recommended ESC: XERUN AXE PLUS R3
Vehicle Applications: 1/8th, 1/6th Rock Crawler
Product weight: 469.00 grams
Package size: 11.00 x 15.00 x 7.00cm
Factory description: Hobbywing XERUN-AXE4274SD-1700KV-BLACK-R3 FOC Sensored Brushless Motor
