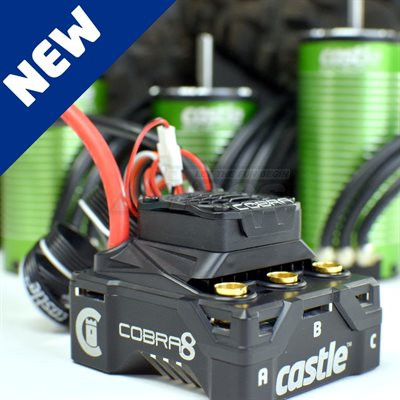

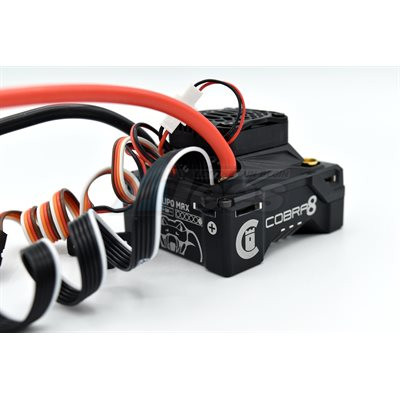

We're thrilled to introduce the Cobra 8, our next generation electronic speed controller (ESC) for surface applications. As the inaugural product in a new line, the Cobra 8 is engineered with cutting-edge technology tailored specifically for 1:8th scale vehicles weighing up to 15 lbs.
The Cobra 8 boasts a state-of-the-art 32-bit, dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.
Crafted with a CNC aluminum bottom case, the Cobra 8 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.
One of its defining features is our acclaimed CRYO-DRIVE™ technology, engineered to reduce operational temperatures, significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 8 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.
We’ve packaged the Cobra 8 with three different Castle 4 -POLE 12-SLOT motor options to overpower a wide range of 1:8th scale vehicles, this combo includes a Castle 1515-2200Kv Sensored Motor. The 1515-2200KV combo is incredible in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs.
FEATURES:
32-Bit Processing power for smoother motor control and improved response time.
Enhanced Data Logging includes:
Double the maximum sample frequency of older generations.
8x increased logging time of older generations.
Data point for ESC electrical motor timing.
Data point for acceleration via onboard accelerometer.
Looping feature prevents interruptions in data log recording.
Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
Mounting holes located in bottom of aluminum case for installation into vehicle.
Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo)
SmartSense™, Sensored Only and Brushed Motor Operation Modes
CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
Oversized factory equipped thermally controlled 30mm cooling fan
Waterproof design for all weather conditions
Data logging capability to capture and record performance data from your vehicle
Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter

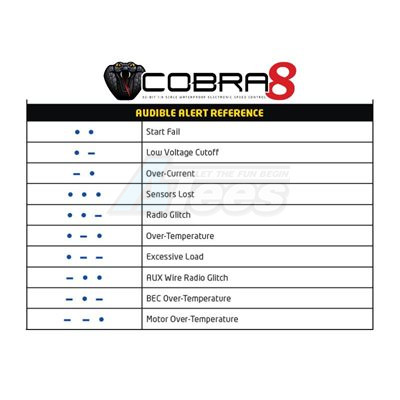

Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
Includes Castle Link V4 USB adapter for Windows.
Cobra 8 is proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
SPECIFICATIONS:
Waterproof: Yes
Telemetry Capable: No
Data Logging: Yes
Auxiliary Wire: Yes
Minimum Input Voltage: 2S
Maximum Input Voltage: 6S
Sensored Capable: Yes
Recon G6 Certified ESC: No
ROAR Certified ESC: No
CRYO-DRIVE: Yes
B-Link Compatible: No

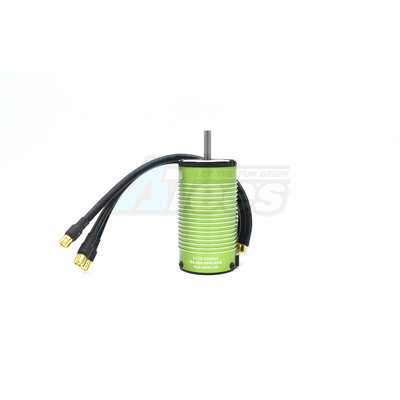

MOTOR FEATURES:
4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
Proprietary stator winding produces low internal resistance for a cooler running motor
Dual sensor ports to ensure optimal installation in your large-scale vehicle
Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
INCLUDES:
Cobra 8 ESC
1515-2200kv V2 Sensored Brushless motor
Castle Link V4 USB Adapter
300mm Direct Connect Sensor Wire
Cobra Decals
ESC Quick Start Guide
Package total weight: 743.00 grams (incl. packaging)
Package size: 16.50 x 17.00 x 10.00cm
Factory description: Castle Creations Cobra 8, 25.2v Esc With 1515-2200kv V2 Sensored Motor Combo
We're thrilled to introduce the Cobra 8, our next generation electronic speed controller (ESC) for surface applications. As the inaugural product in a new line, the Cobra 8 is engineered with cutting-edge technology tailored specifically for 1:8th scale vehicles weighing up to 15 lbs.
The Cobra 8 boasts a state-of-the-art 32-bit, dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.
Crafted with a CNC aluminum bottom case, the Cobra 8 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.
One of its defining features is our acclaimed CRYO-DRIVE™ technology, engineered to reduce operational temperatures, significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 8 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.
We’ve packaged the Cobra 8 with three different Castle 4 -POLE 12-SLOT motor options to overpower a wide range of 1:8th scale vehicles, this combo includes a Castle 1515-2200Kv Sensored Motor. The 1515-2200KV combo is incredible in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs.
FEATURES:
32-Bit Processing power for smoother motor control and improved response time.
Enhanced Data Logging includes:
Double the maximum sample frequency of older generations.
8x increased logging time of older generations.
Data point for ESC electrical motor timing.
Data point for acceleration via onboard accelerometer.
Looping feature prevents interruptions in data log recording.
Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
Mounting holes located in bottom of aluminum case for installation into vehicle.
Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo)
SmartSense™, Sensored Only and Brushed Motor Operation Modes
CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
Oversized factory equipped thermally controlled 30mm cooling fan
Waterproof design for all weather conditions
Data logging capability to capture and record performance data from your vehicle
Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
Includes Castle Link V4 USB adapter for Windows.
Cobra 8 is proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
SPECIFICATIONS:
Waterproof: Yes
Telemetry Capable: No
Data Logging: Yes
Auxiliary Wire: Yes
Minimum Input Voltage: 2S
Maximum Input Voltage: 6S
Sensored Capable: Yes
Recon G6 Certified ESC: No
ROAR Certified ESC: No
CRYO-DRIVE: Yes
B-Link Compatible: No
MOTOR FEATURES:
4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
Proprietary stator winding produces low internal resistance for a cooler running motor
Dual sensor ports to ensure optimal installation in your large-scale vehicle
Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
INCLUDES:
Cobra 8 ESC
1515-2200kv V2 Sensored Brushless motor
Castle Link V4 USB Adapter
300mm Direct Connect Sensor Wire
Cobra Decals
ESC Quick Start Guide
Product weight: 743.00 grams
Package size: 16.50 x 17.00 x 10.00cm
Factory description: Castle Creations Cobra 8, 25.2v Esc With 1515-2200kv V2 Sensored Motor Combo
