PART: #TWS/60200101
|
**Discount shipping applies to this item.
|
|
|||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
| Quantity Discount | |||
|---|---|---|---|
| Units at this Price | ATees' Low Price (Per Unit) |
You Save | Click To Order |
TAGGED CATEGORIES:

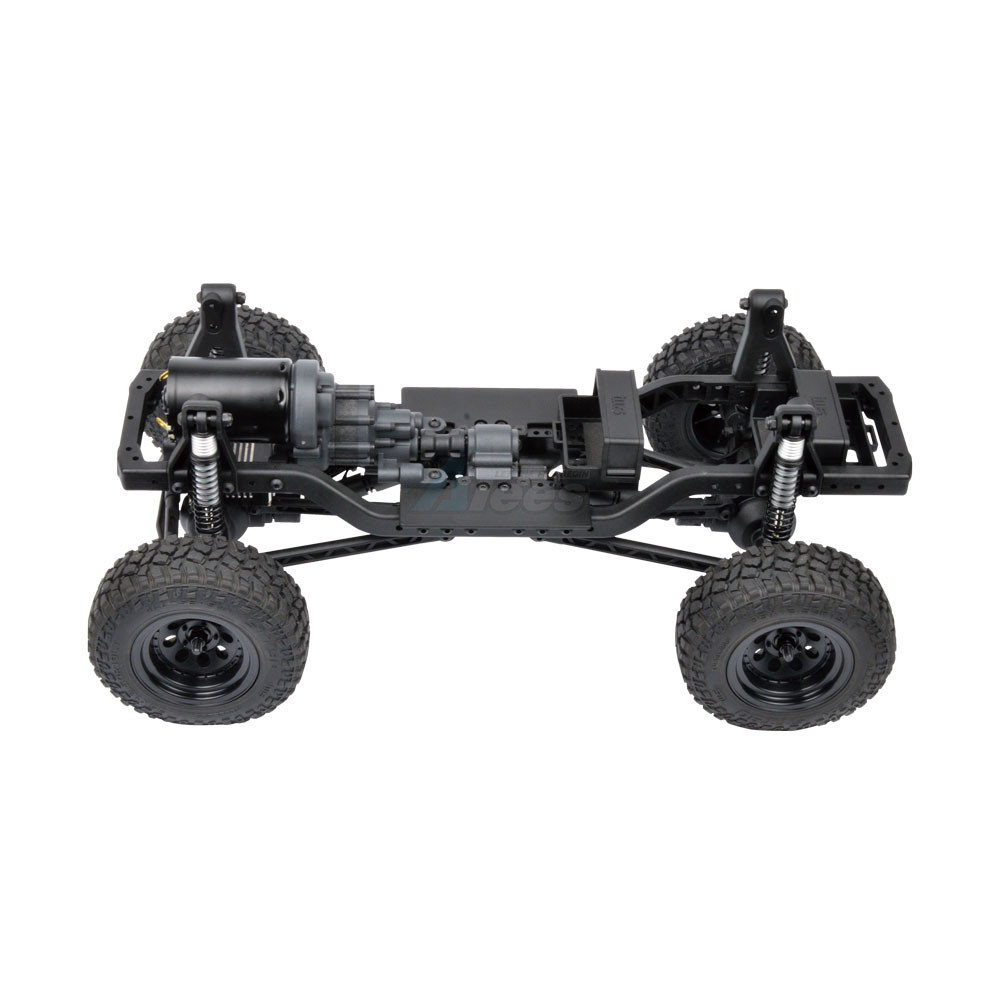

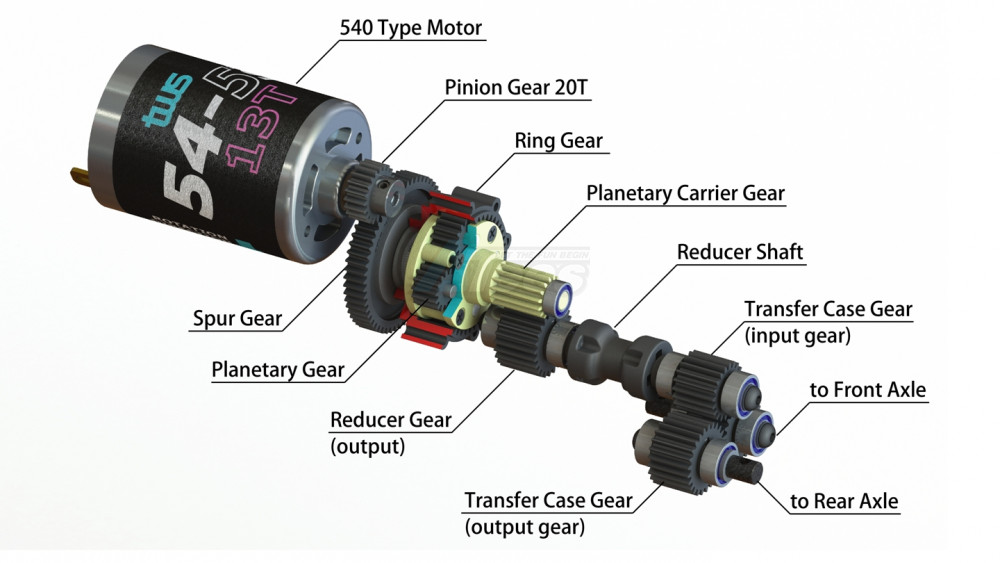

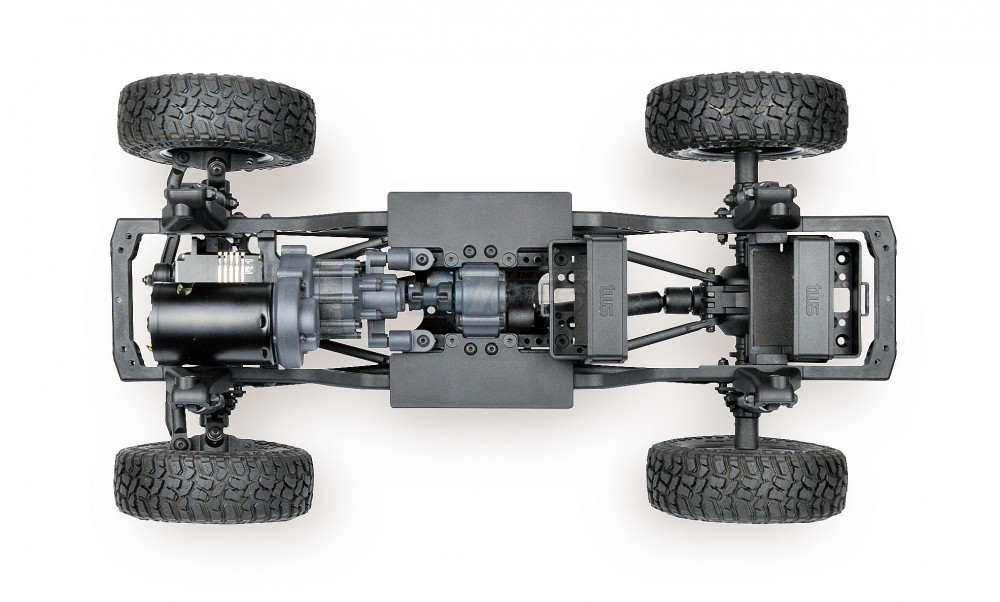

- The all-new TWS CTS chassis was designed for off-road terrains. The front motor placement is the same configuration as the full-scale vehicles. The torque is increased through the planetary gear reduction box, and then output to the front and rear axles by the transfer box. The strong bevel gears in the axles give promising durability and instant power output. Convertible steering system: AMS (default, an advanced configuration for further modification) and CMS (more scale look) Two types of springs are included, which can be matched according to the weight of the car body. Adjustable battery box can be adjusted according to battery dimensions. The final transmission ratio ranging from 40 to 62.5 (default 50) corresponding to higher speed motors achieves excellent throttle controllability.
Features:
- AMS/CMS STEERING SYSTEM

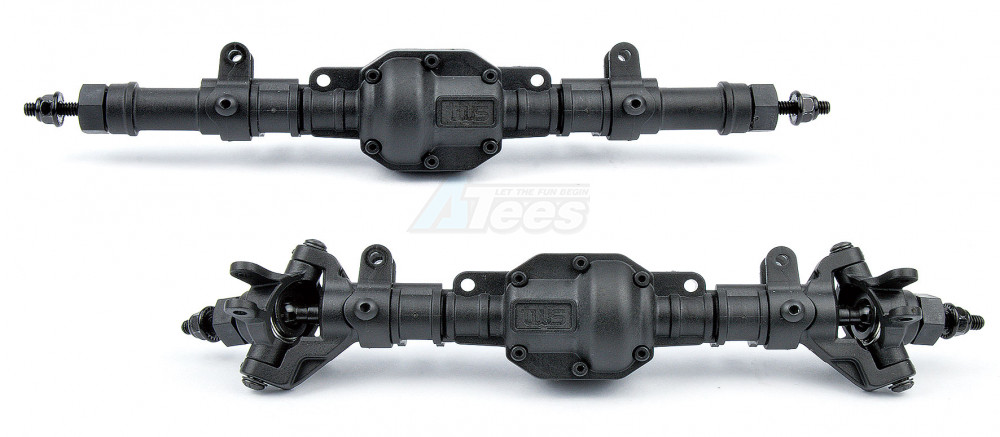

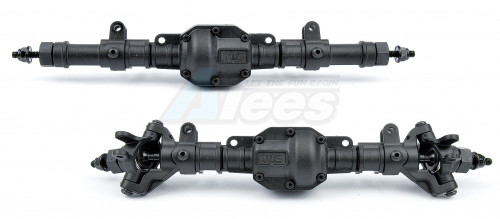

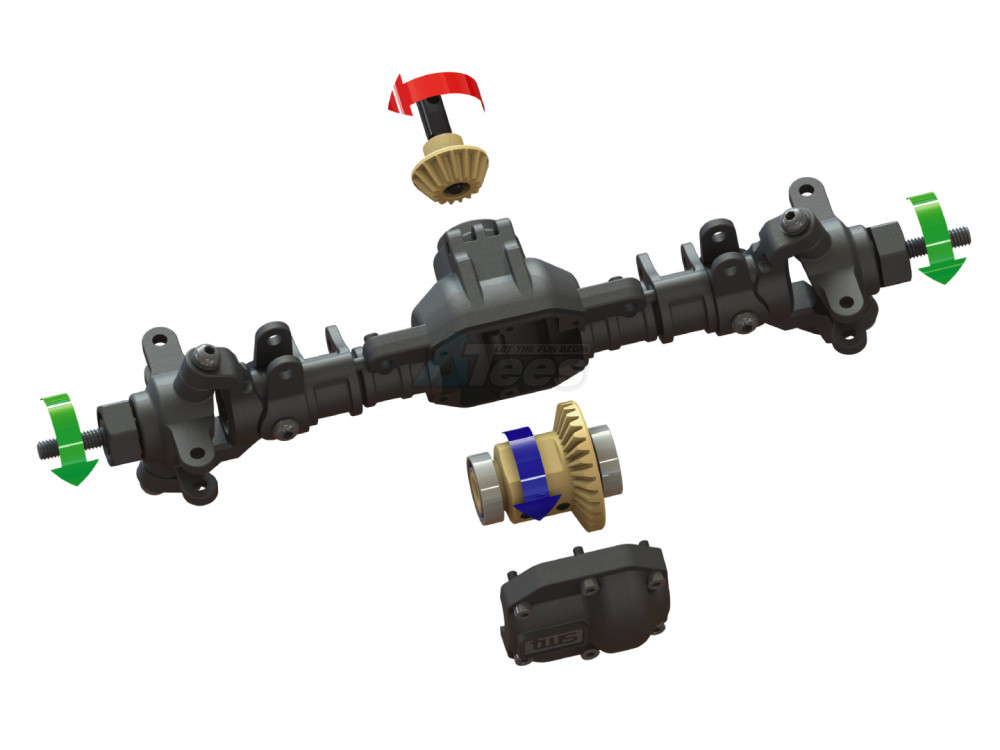

- A162 front and rear axle sets

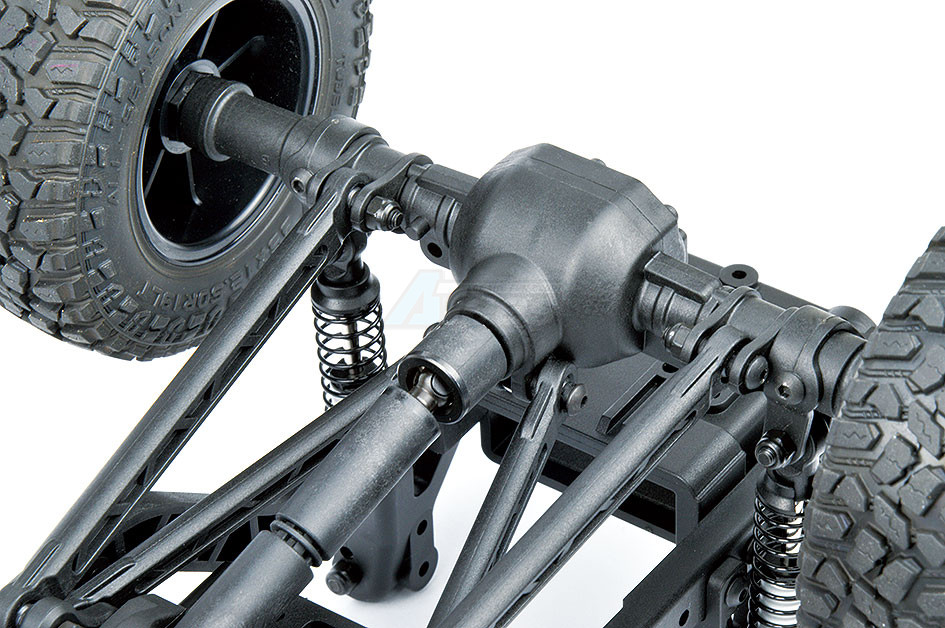

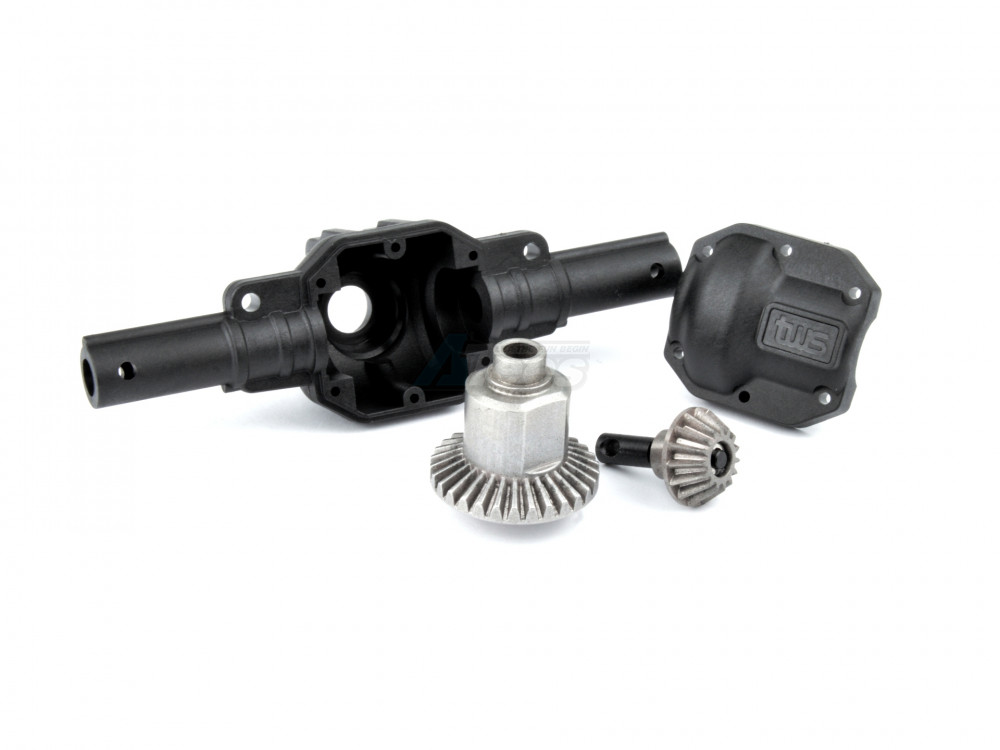

- High-precision powder metallurgy bevel gear
- High-efficiency planetary gearbox

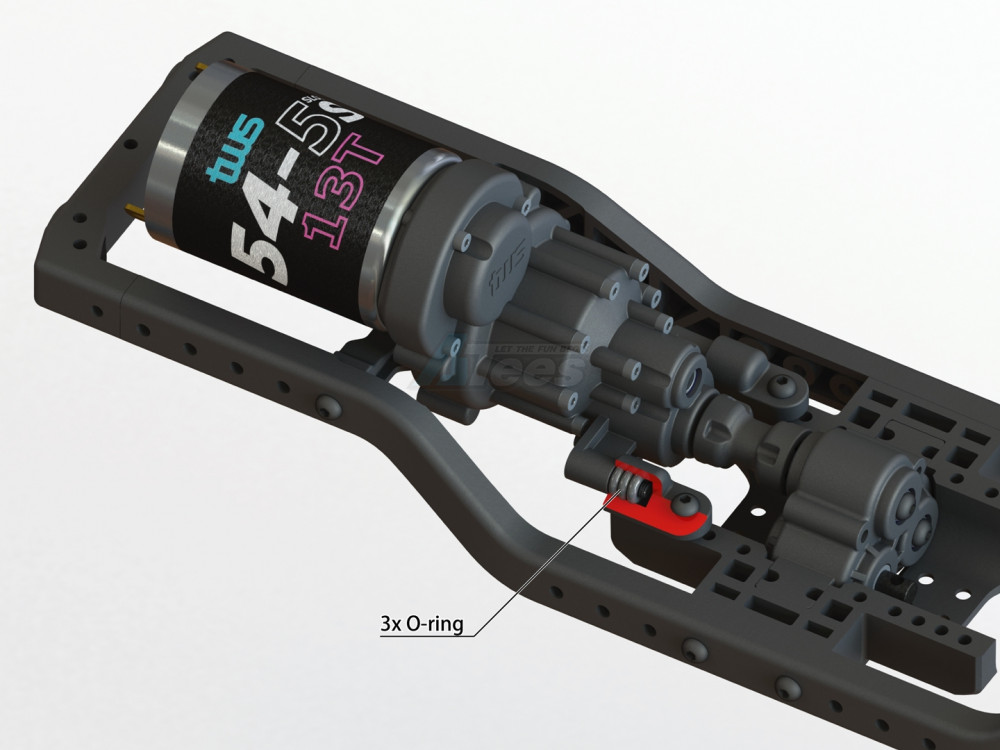

- Floating motor mount

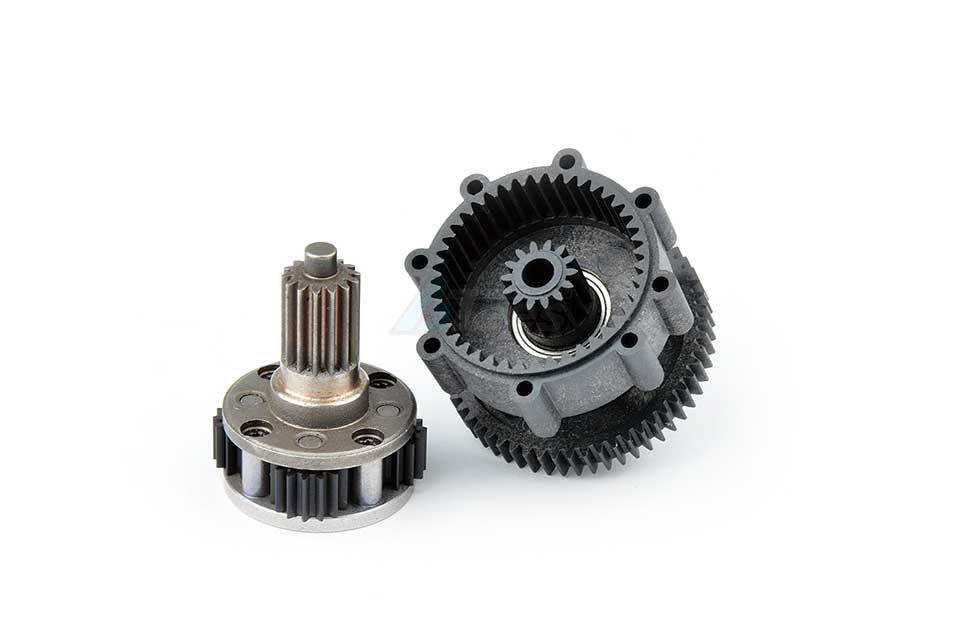

- Metal planetary gear set ready

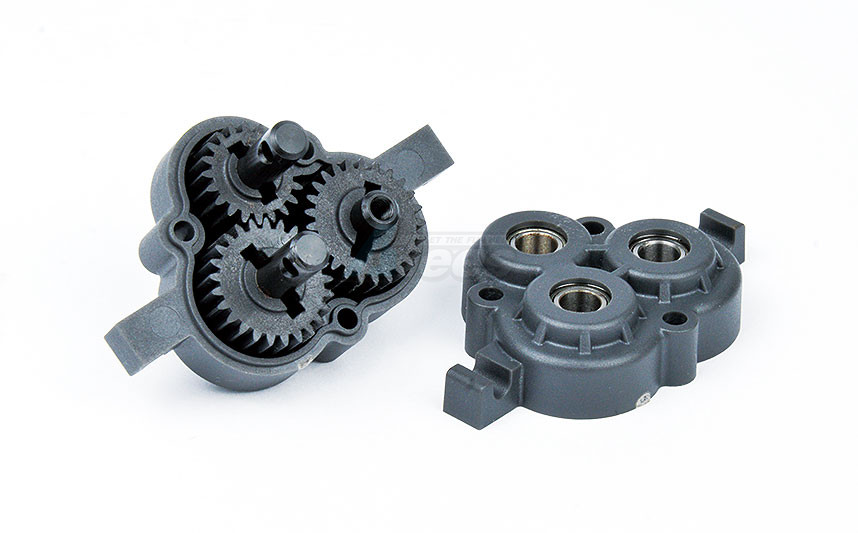

- Reverse rotation transfer case
- Full ball bearing ready

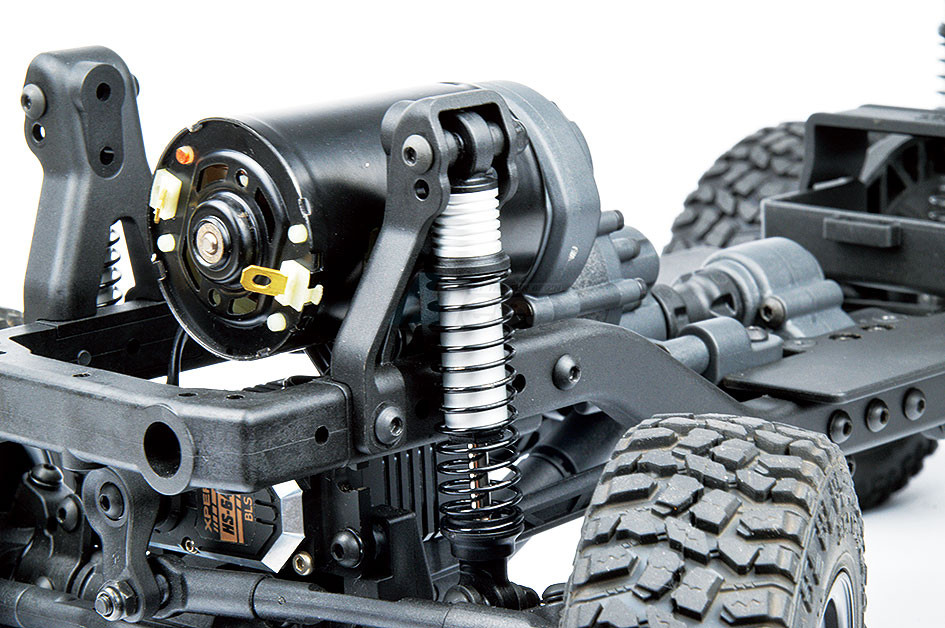

- Aluminum alloy shock absorber and piston rod with low friction coating
- Two types of springs are included
- Realistic tire tread & Inner foam
- Steel shaft coupler
- Steering large kingpin inclination
- Caster angle of the steering system
Specification:
- Chassis length: 335mm
- Overall width: 200mm
- Ground clearance: 50mm
- Gear ratio: 40~62.5 (default 50)
- Pinion gear: module M0.6 (20T included)
- Wheelbase: 242/252mm (adjustable)
- High-efficiency planetary gearbox
- Metal planetary gear carrier
- The reverse rotation transfer case
- Two-mode steering system

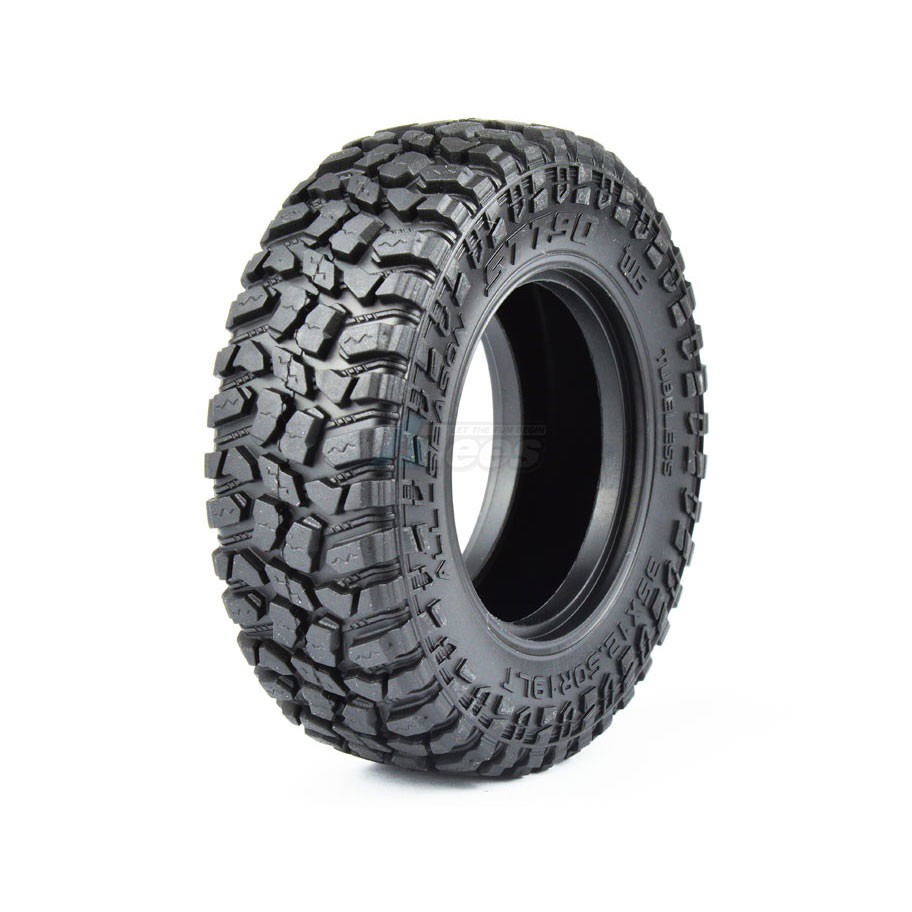

- STT90 tire (Realistic tire tread)
- Aluminum shocks set
- Two sets of shock springs (Stiff & Soft)
- Full ball bearing
- Pre-built F&R Axle set
- Pre-built Reducer box set
- Pre-built Transfer box set
- Package total weight: 1852.00 grams (incl. packaging)
- Package size: 23.00 x 42.00 x 12.00cm
- Factory description: TWS CTS CTS Chassis Kit V2
- Manufactured by TWS
- Manufacturer number: TWS/60200101
