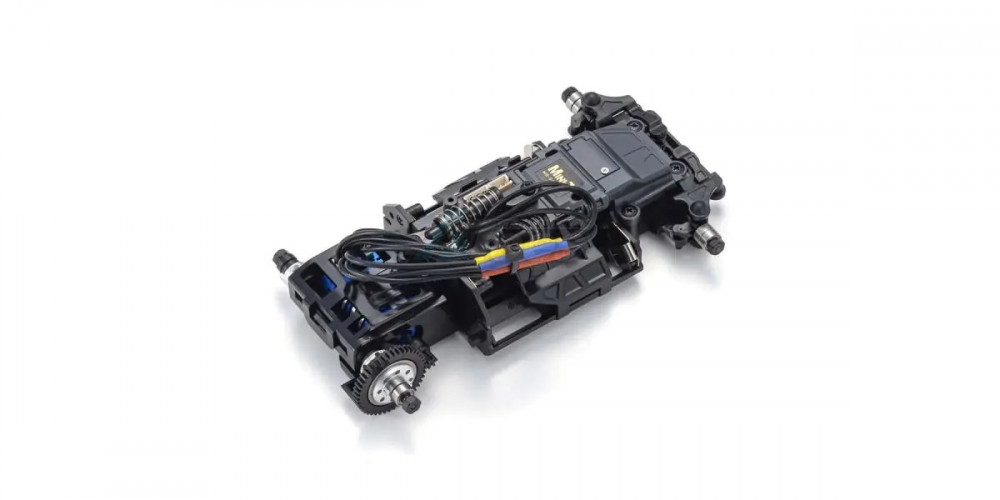

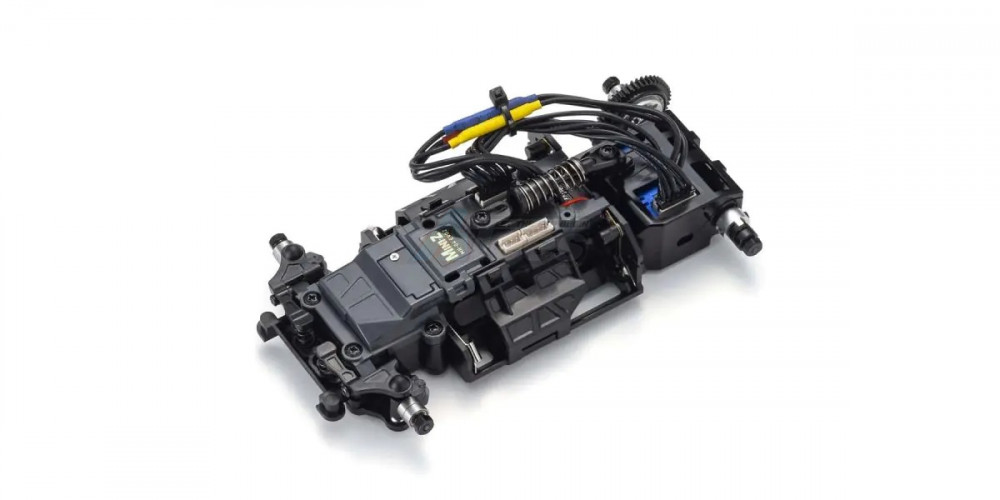

While retaining elements of the excellent MR-03 layout, the new MR-04EVO2 chassis achieves significant performance improvements with changes to the front suspension and a lower C of G that work in synergy with a sensored brushless motor. Both narrow and wide tread settings are available by changing the lower and upper plates on the front as well as the steering tie rod. Adjustable wheelbase allows chassis setting according to body type.
While camber angle is optimized during cornering with the swing of the current upper arm design, the front suspension uses the new kingpin-integrated knuckle to further improve camber stability. Geometric revision of caster and trail etc. delivers more linear maneuverability. New spec front springs for the MR-04 with different hardness are available as options.
Front knuckle design features integrated kingpin with optimized clearance with the kingpin ball for smoother operation. Ball bearings have been changed to 3mm internal diameter for lower rotational resistance.
All 7 ball bearings are 3mm internal diameter for lower rotational resistance to minimize friction loss.
New potentiometer delivers precision and durability with a completely redesigned steering program to realize the best response and accuracy in the history of the MINI-Z. The more precise steering control program allows various settings using the MR-04’s exclusive I.C.S. software.
Ball differential included as standard optimizes the rotational differences between left and right rear wheels when turning. Also provides moderate slip action to improve traction when excessive load is applied. Silver clear anodized finish to aluminum parts creates a formidable style to match performance.
The new unit also supports high-speed communication with various high-end transmitters and receivers to realize unprecedented control response. Achieves transmission speeds of 0.99ms with KO units (ADV mode) and 0.9ms with Futaba units (EVO2 mode). *Previously 2.6ms ~ 3.0ms*
While retaining elements of the excellent MR-03 layout, the new MR-04EVO2 chassis achieves significant performance improvements with changes to the front suspension and a lower C of G that work in synergy with a sensored brushless motor. Both narrow and wide tread settings are available by changing the lower and upper plates on the front as well as the steering tie rod. Adjustable wheelbase allows chassis setting according to body type.
While camber angle is optimized during cornering with the swing of the current upper arm design, the front suspension uses the new kingpin-integrated knuckle to further improve camber stability. Geometric revision of caster and trail etc. delivers more linear maneuverability. New spec front springs for the MR-04 with different hardness are available as options.
Front knuckle design features integrated kingpin with optimized clearance with the kingpin ball for smoother operation. Ball bearings have been changed to 3mm internal diameter for lower rotational resistance.
All 7 ball bearings are 3mm internal diameter for lower rotational resistance to minimize friction loss.
New potentiometer delivers precision and durability with a completely redesigned steering program to realize the best response and accuracy in the history of the MINI-Z. The more precise steering control program allows various settings using the MR-04’s exclusive I.C.S. software.
Ball differential included as standard optimizes the rotational differences between left and right rear wheels when turning. Also provides moderate slip action to improve traction when excessive load is applied. Silver clear anodized finish to aluminum parts creates a formidable style to match performance.
The new unit also supports high-speed communication with various high-end transmitters and receivers to realize unprecedented control response. Achieves transmission speeds of 0.99ms with KO units (ADV mode) and 0.9ms with Futaba units (EVO2 mode). *Previously 2.6ms ~ 3.0ms*
The Finest Radio Control Models Kyosho is one of the oldest model rc car makers in Japan, it was created in October, 1963. Kyosho produces a wide variety of products, including radio-controlled cars, planes, helicopters, and boats.
Kyosho has avoided direct competition against their biggest competitor, Tamiya, in the hobby grade RC cars market since the 1980s, where Tamiya was the most active brand, instead, Kyosho were focusing on designing professional 1/8 scale racing buggies, Mini-Z series, and RC helicopters; areas in which Kyosho dominates today. The company is best known for its 1/8 scale competition buggies, Mini-Z series, and RC helicopters, but it also produces remote-controlled bipedal robots in the Manoi series.All the upgrade of their cars are available here at the largest online RC store.
The Finest Radio Control Models Kyosho is one of the oldest model rc car makers in Japan, it was created in October, 1963. Kyosho produces a wide variety of products, including radio-controlled cars, planes, helicopters, and boats.
Kyosho has avoided direct competition against their biggest competitor, Tamiya, in the hobby grade RC cars market since the 1980s, where Tamiya was the most active brand, instead, Kyosho were focusing on designing professional 1/8 scale racing buggies, Mini-Z series, and RC helicopters; areas in which Kyosho dominates today. The company is best known for its 1/8 scale competition buggies, Mini-Z series, and RC helicopters, but it also produces remote-controlled bipedal robots in the Manoi series.All the upgrade of their cars are available here at the largest online RC store.
