PART: #FT/FUR-2500
|
**Discount shipping applies to this item.
|
|
|||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
TAGGED CATEGORIES:
- Features:
- A smaller and lighter brushless motor VENOM for low C.G. setup is the same as the stock
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Bluetooth module for wireless connection
- Precision CNC brass pinion for long-lasting operation
- Powerful at low speed but also more powerful and fast at high speed
- High torque at low-speed crawling
- Super smooth without any cogging at both low and high-speed operation¬
- Compatible with stock battery
- Lifetime FREE firmware upgrade!
Motor Features and Specs
- Features:
-
- 12-pole hi-torque motor design.
- Super thin (0.2 mm) stator laminations---lower eddy losses--- maximize efficiency.
- Japanese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability, and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision-engineered for maximum energy conversion.
- High purity and higher temperature single copper windings, lower copper losses,
- Excellent heat dissipation maximizes efficiency.
- Specifications:
-
- KV (RPM/Motor) – 3450
- No-load current @10V – 0.7A
- Watt – 120W
- Battery – 2S
- Resistance – 0.16 Ohms
- Max Current – 10A
- Slot/Pole – 12
- Motor size (mm) – 15.5x20.6
- Shaft (mm) – 1.5x6
- Weight (g) – 17.5
ESC Features and Specs
- Features:
-
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for FMS FCX24 crawlers
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Bluetooth module required)
- Real-time telemetry up to 10Hz
- Specifications:
-
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
- Constant current: 30A
- Burst current: 50A
- Built-in power switch
- Built-in Bluetooth module
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 grams

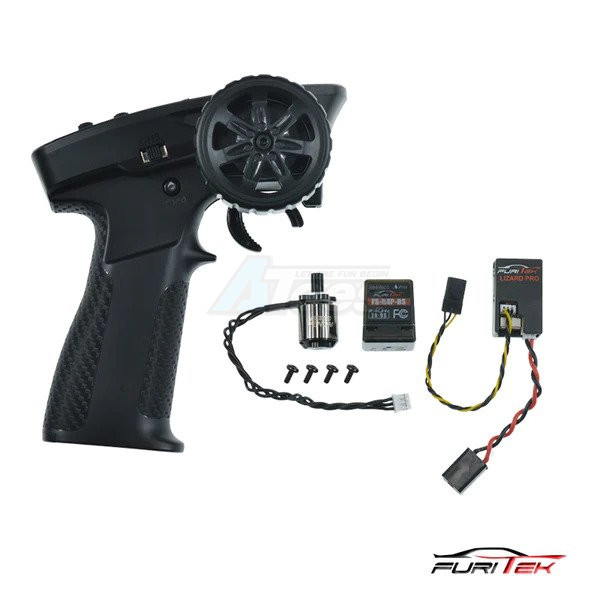

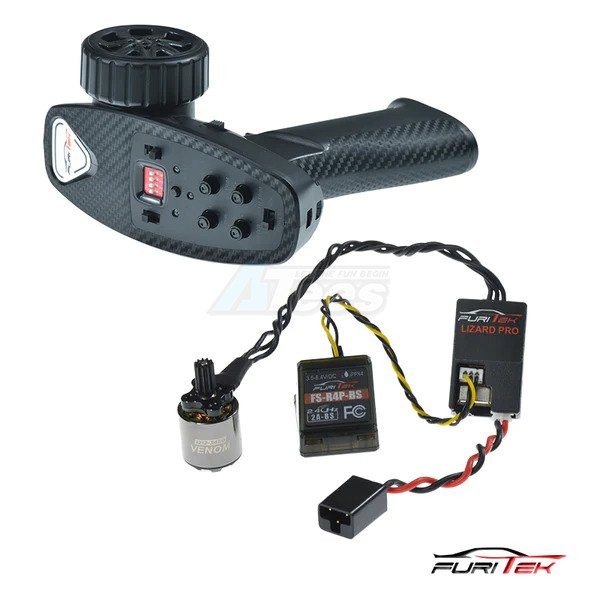

Package includes:
- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR FCX24 WITH FOC TECHNOLOGY with enclosing plastic case
- 1 x built-in Bluetooth module
- 1 x VENOM 1212 3450KV brushless motor
- 1 x 11T CNC Steel Pinion
- 1 x Furitek Transmiter 4CH
- 1 x Furitek Receiver 4CH
- Package total weight: 253.00 grams (incl. packaging)
- Package size: 14.00 x 18.00 x 10.50cm
- Factory description: Furitek Traxxas TRX-4M Starter With TX/RX Combo 118 2S Brushless Power System For Traxxas TRX-4M
- Manufactured by Furitek
- Manufacturer number: FT/FUR-2500
- This item is not eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error
