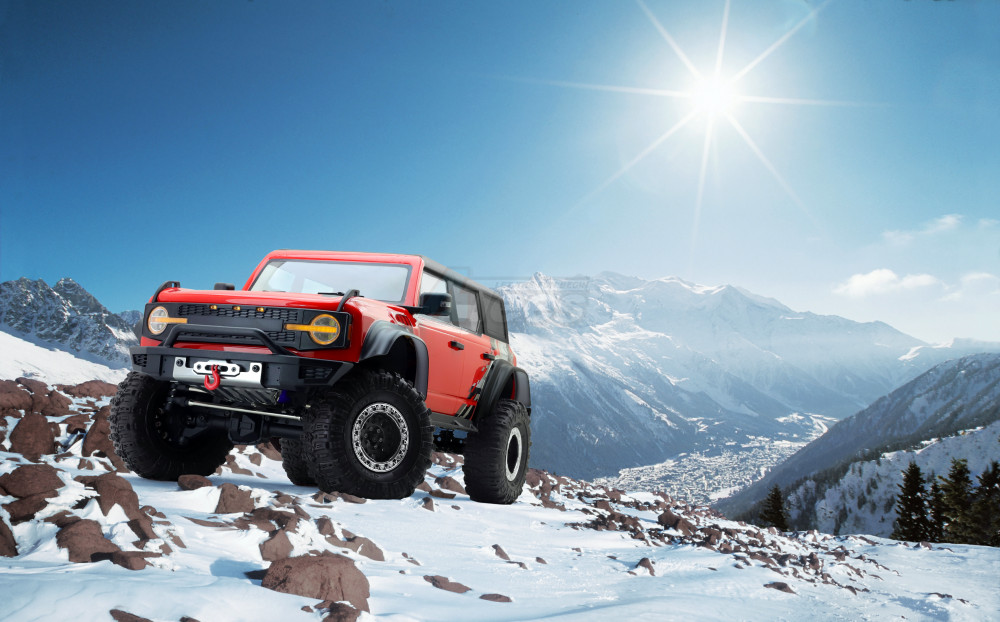

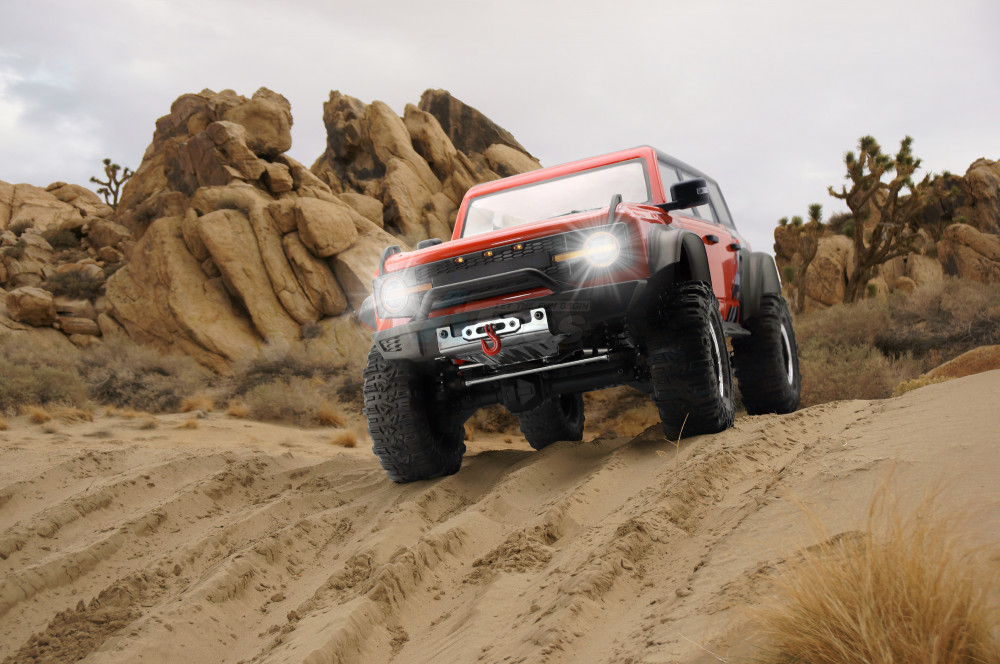

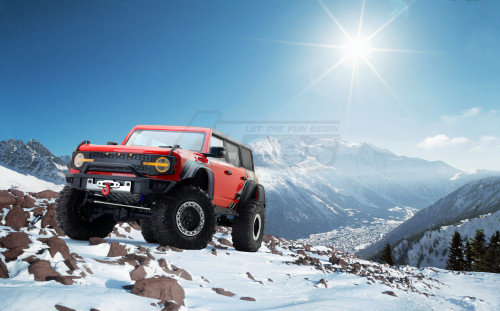

- EX86130 Pro Runner is a high-performance simulation crawler newly developed by RGT, especially its excellent mechanical properties and perfect appearance.
Specification:- Scale: 1/10
- Drive Mode: Front-Wheel Drive+4WD
- Ground Clearance: 73mm (chassis), 35mm(axle)
- Wheel(diameter/width): 110/40mm
- Wheelbase: 313mm
- Gear Ratio/Low speed: 53:1(F), 57:1(R)
- Gear Ratio/high speed: 28:1(F), 30:1(R)
- Front-Rear Speed Ratio: 6.00%
- Ramp Angle: 29°
- Approach Angle: 55°
- Departure Angle: 58°
- Motor/ pinion: 6235-RC550-35T, /17T
- Steering Servo: Digit Metal Gear-25KG
- Winch Servo: 360° Digit Metal Gear-25KG
- ESC: Hobbywing WP-1060/60A
- Radio/Rx: 2.4G/6CH
- Length 512mm x Width 240mm x Height 241mm
Features:
- Pro Runner is equipped with the following designs:
- Front and rear straight axles,
- Two-speed gearbox and DIG system.
- Rear axle lock function,
- Freely switch from the front-drive mode to the four-wheel drive mode
- 6% front-rear speed ratio,
- CNC steel spiral main gear
- Reverse transmission system
- The low axial effect, excellent crossing performance, and high durability
- Refer to the exterior design and interior decoration of the Ford Raptor Edition.

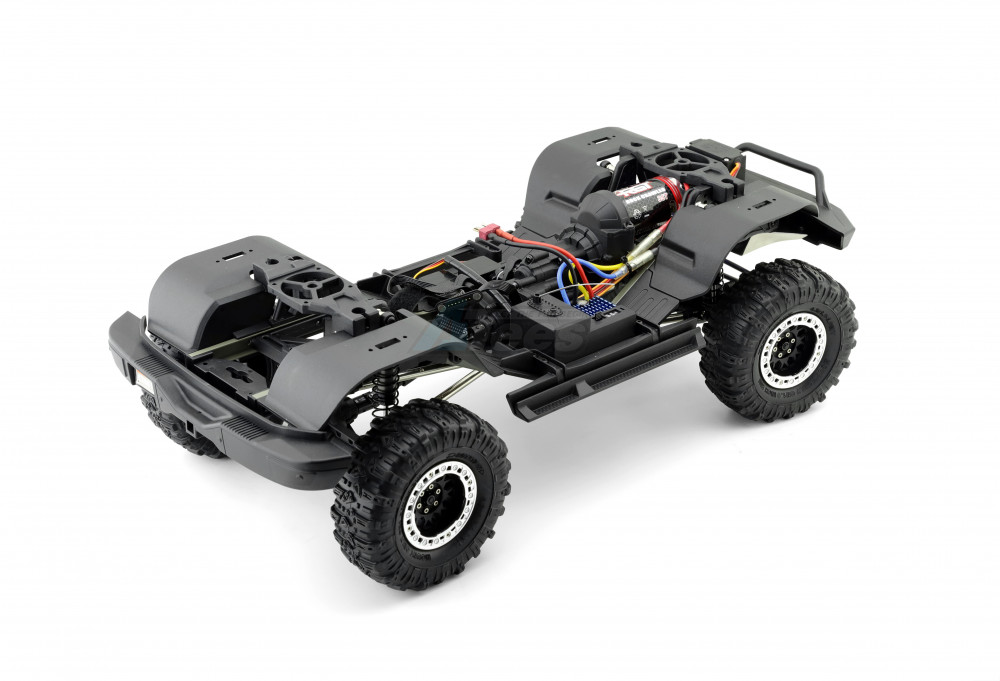

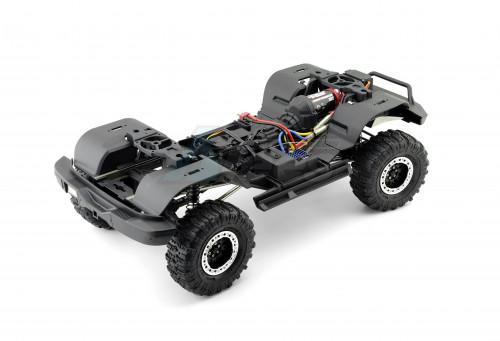

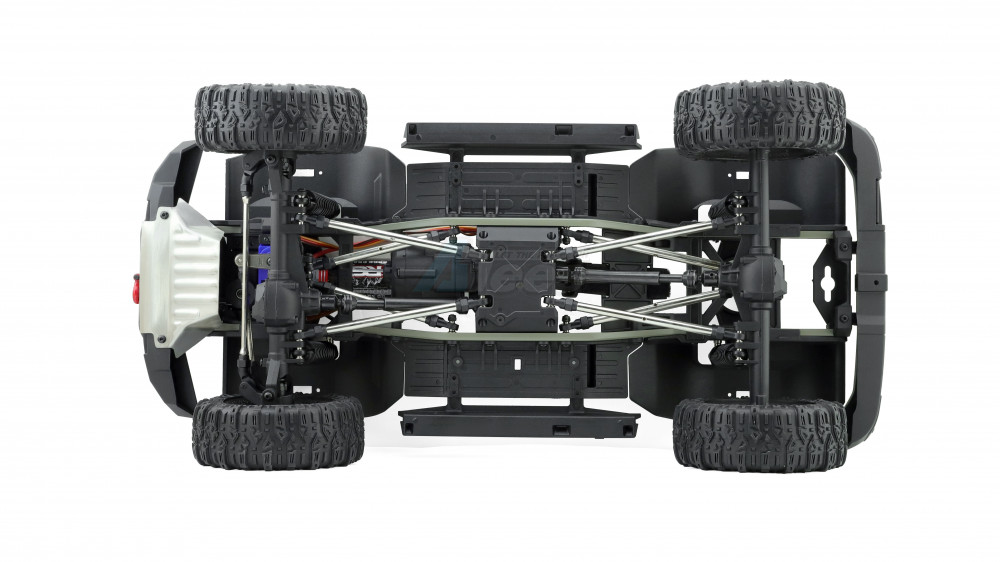

- Structure
- Main body adopts a hardened stainless-steel chassis beam.
- The integral straight axle comes with a caster angle.
- The front-drive steering driveshaft uses steel #1144CVA material.
- 46-degree steering angle and positive Ackerman angle.

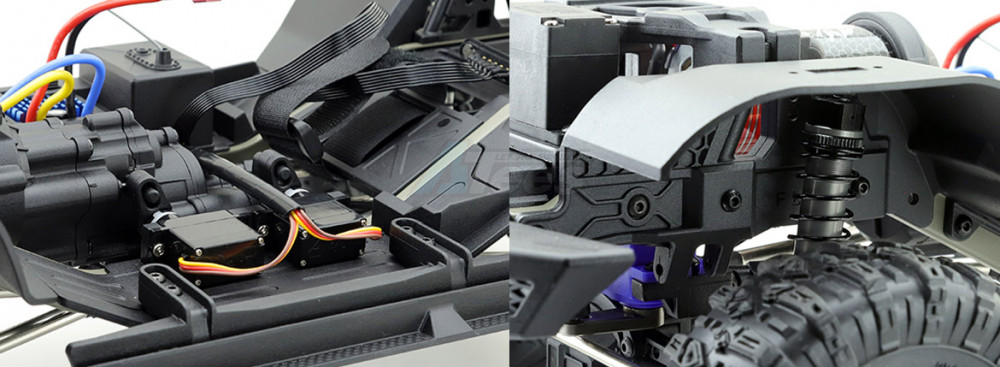

- Servo mounted on the axle, 25T metal servo arm.

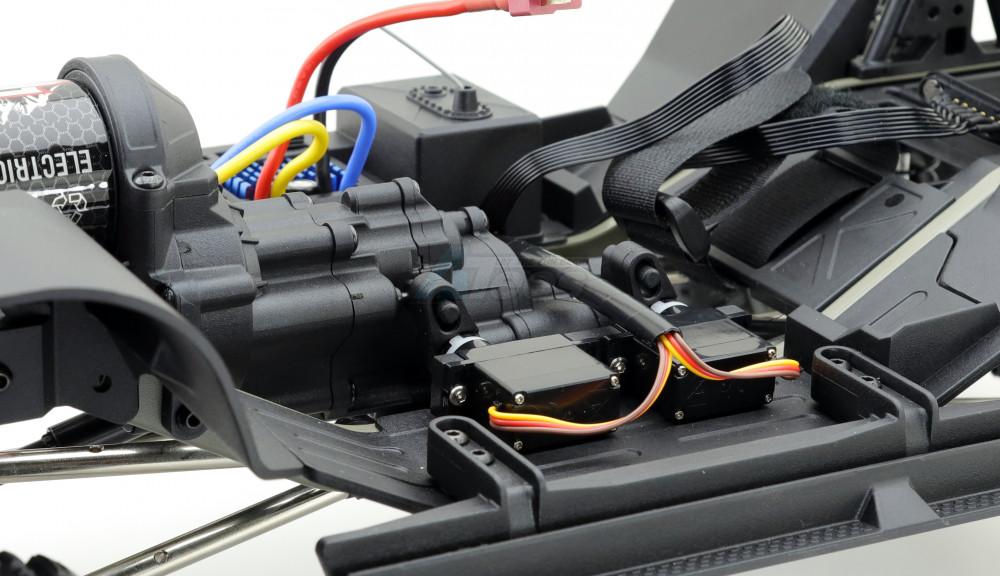

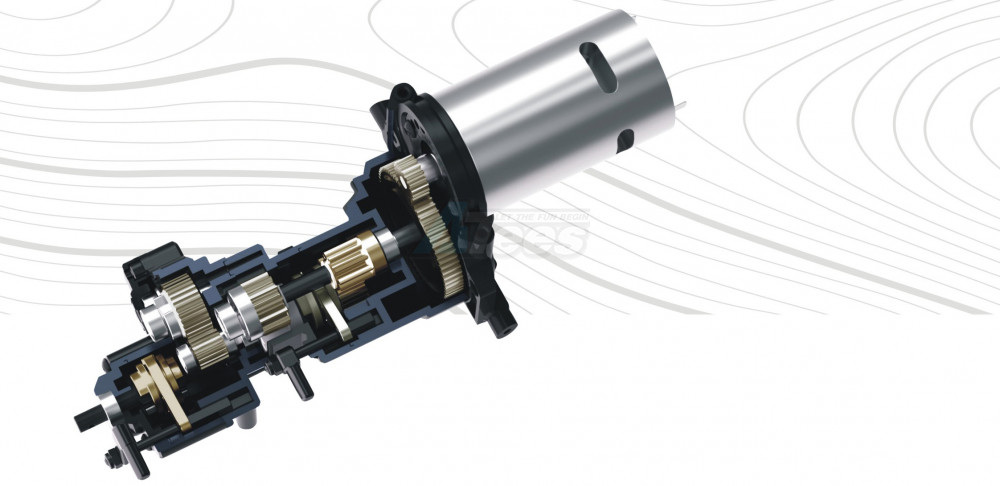

- Deceleration system
- Low center of gravity with limited-slip reducer, all metal gears with #45 steel reduction shaft.
- High-low speed 2 gears switching.
- Equipped with DIG rear axle locking function, which brings a smaller turning radius for the car and has a front-wheel drive function.
- Gear and transmission system
- The front and rear axles use CNC steel spiral gear, which can raise up the front and rear driveshaft and make the chassis of the car have better passability.

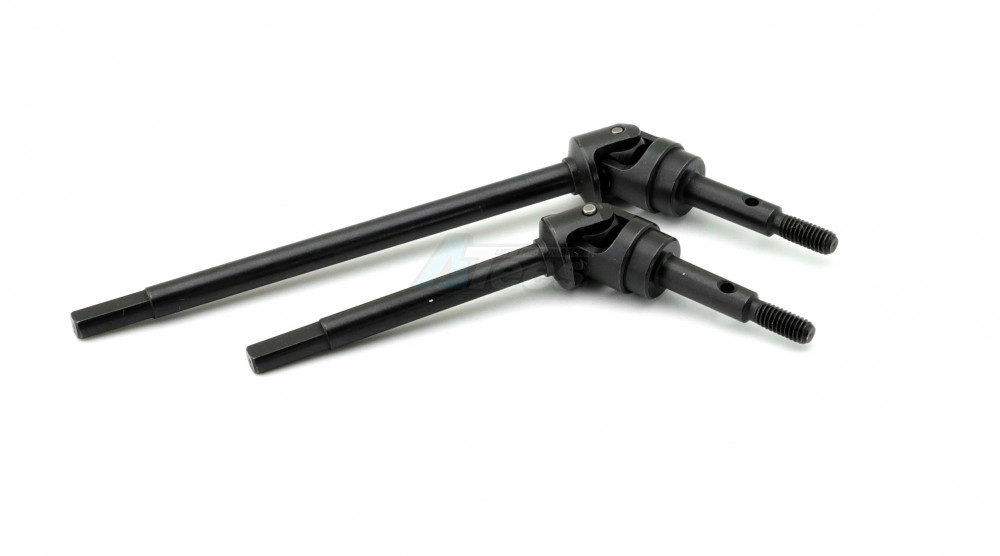

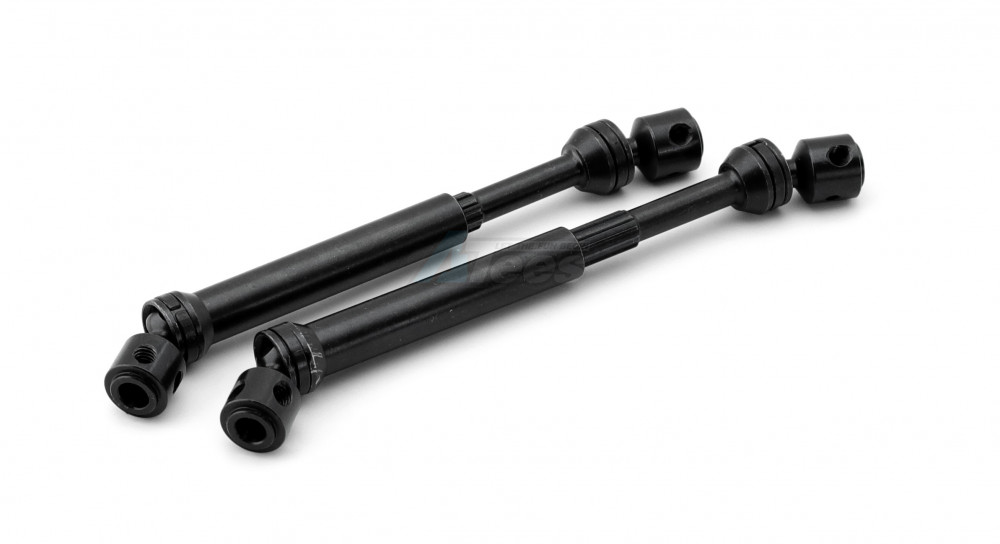

- The front and rear drive shafts are made of #1144 steel CVD structure, and the high-quality bearing with sealing cover is designed for reverse transmission, which can better reduce the shaft transmission effect and the shaft breakage problem under the condition of super resistance load.
- Linkage Rod:
- 6mm diameter solid metal 8 connecting rod structure.
- The ball joint of the linkage rod uses reinforced nylon material with a new formula, which is more resistant to friction and deformation.

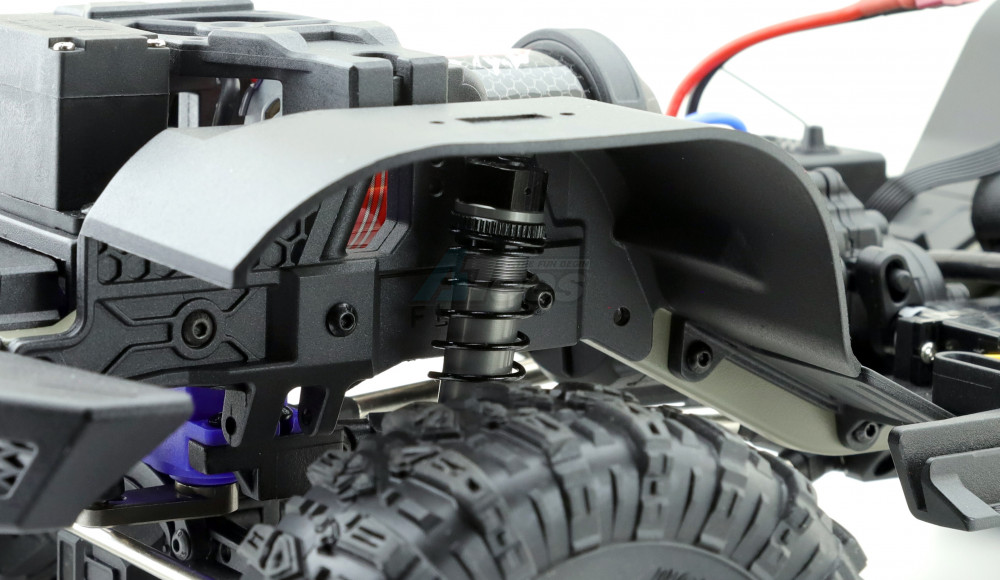

- Suspension and wheels:

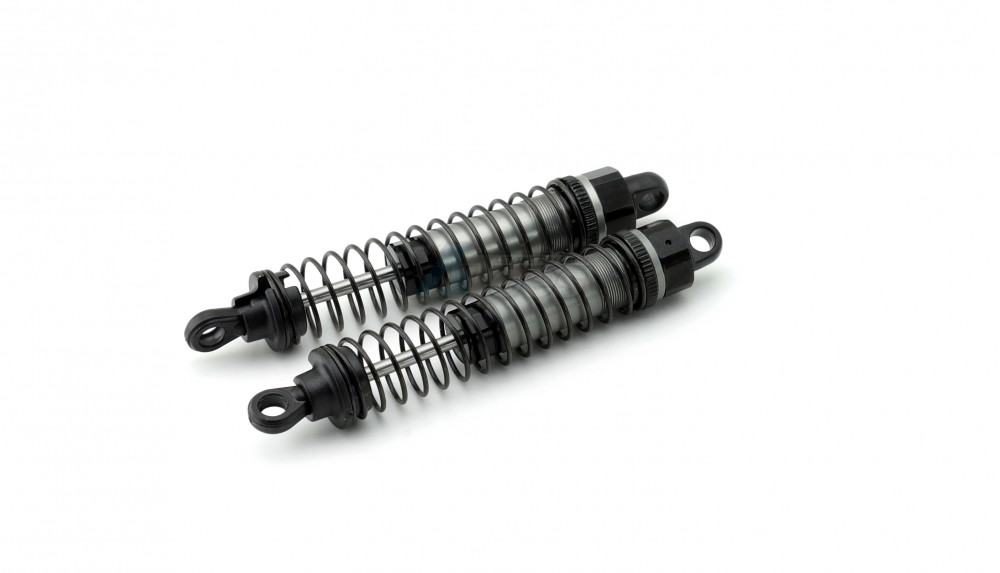

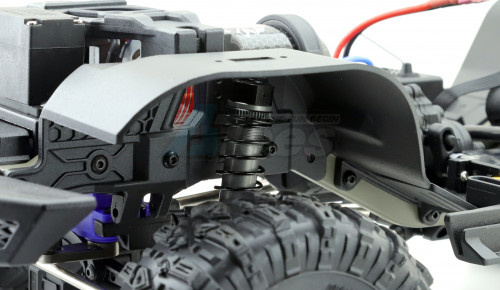

- The suspension system adopts a CNC aluminum alloy twisted hydraulic shock absorber, which brings more convenient damping adjustment.

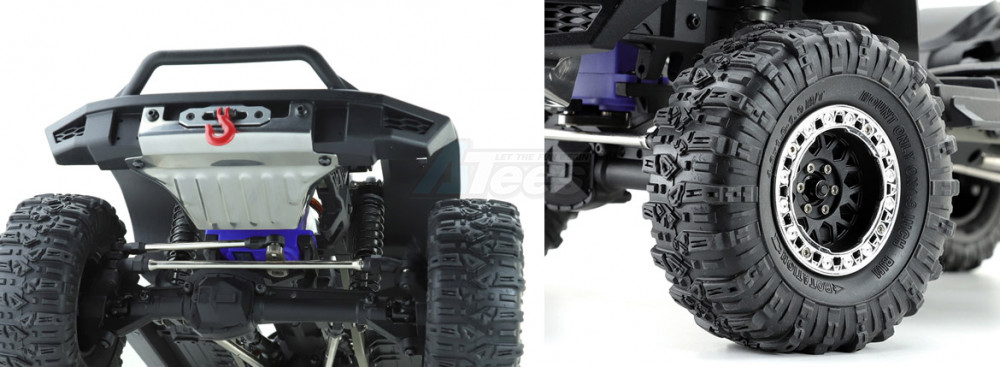

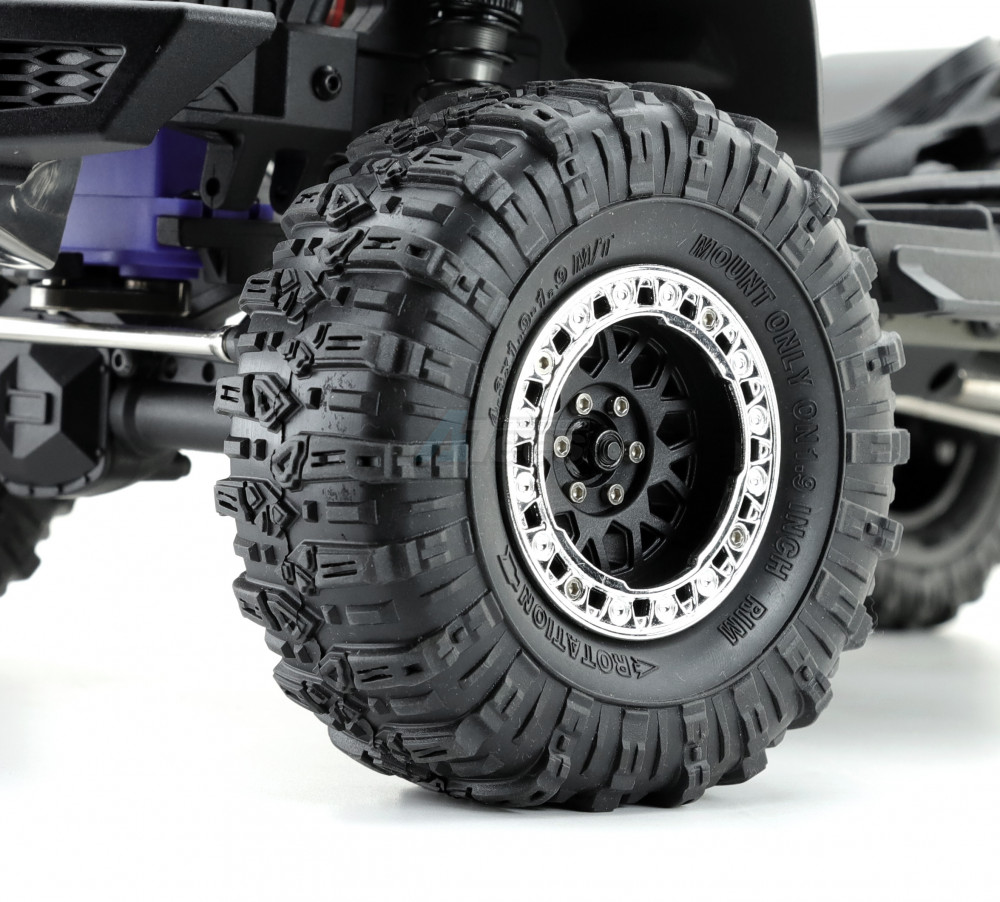

- The wheels are made of butyl rubber, which are 110mm diameter MT tires, coming with a two-piece multi-layer 1.9-inch wheel hub for better climbing grip and more realistic.
- Other highlights:

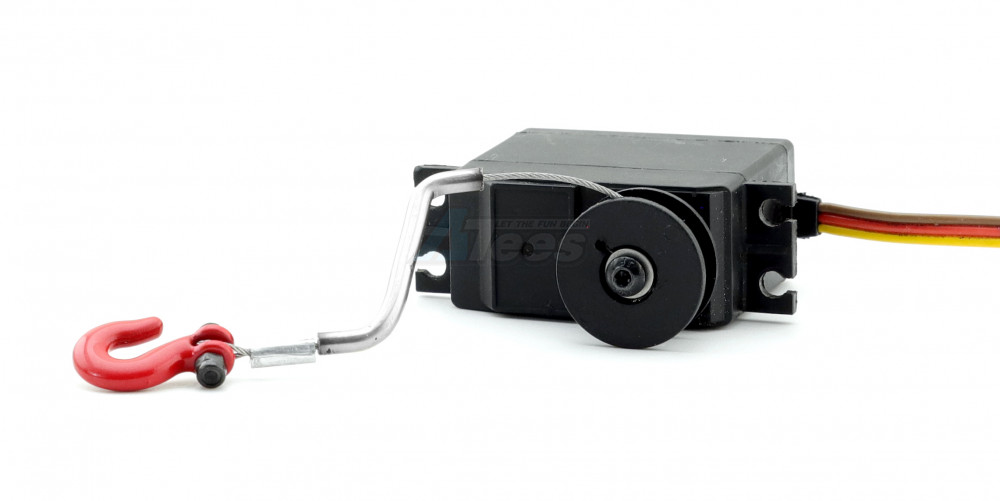

- CNC winch mount, 25KG, 360 degree metal winch servo, winch steel cable can be stretched up to 90CM, supporting the stretching weight up to 15KG.

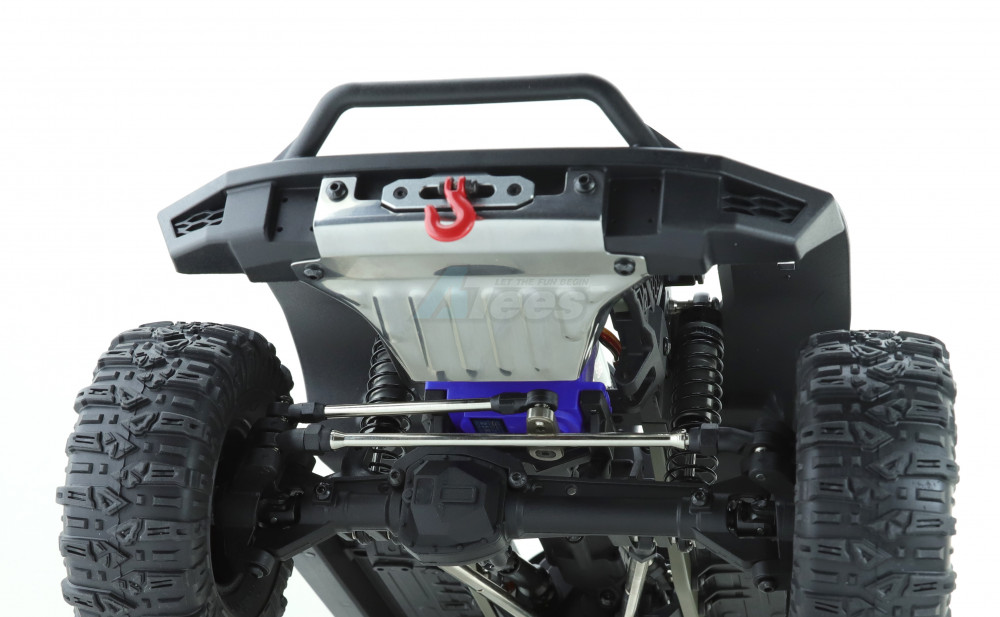

- The front bumper adds a stainless steel protective plate, which can be realistic and effectively protect the winch servo.

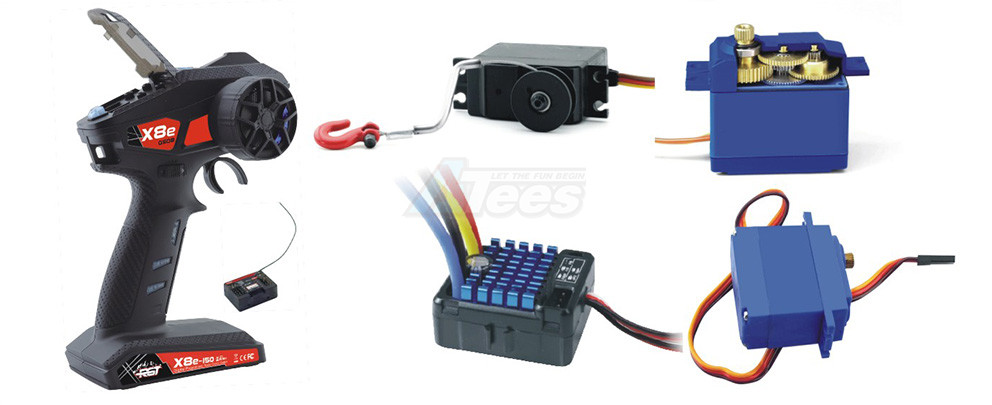

- Electronic Parts:
- The "Pro Runner" will be oriented to players in the form of an RTR version, equipped with a 35T RC550 super-strong torque motor, "Hobbywing" WP-1060 special waterproof electronic speed controller with metal gear for the crawler, 25KG all-metal gear waterproof steering servo, ESC can support 2-3S lithium battery mode, and a 6-channel 2.4G remote controller specially designed for this car.

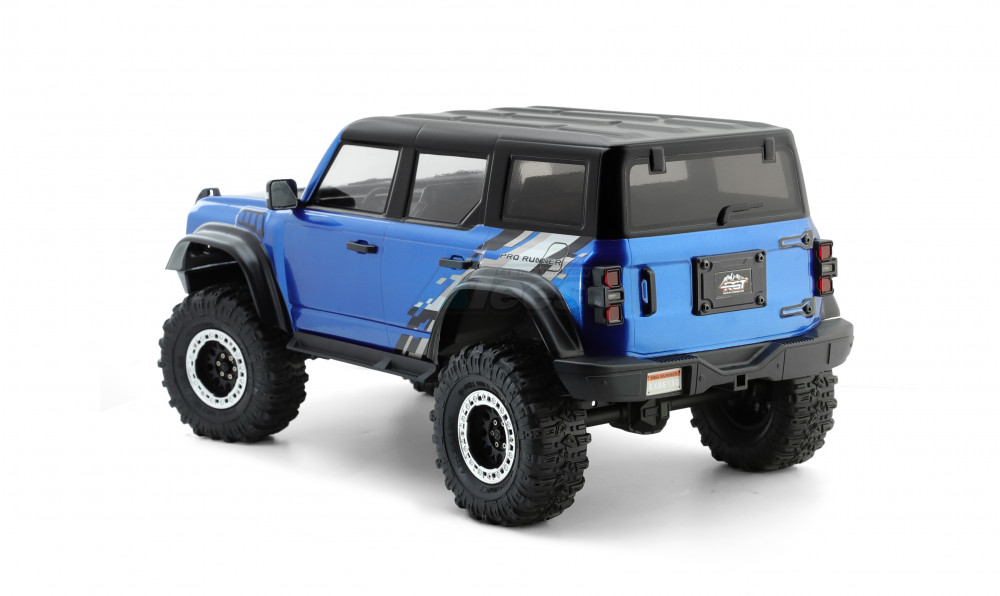

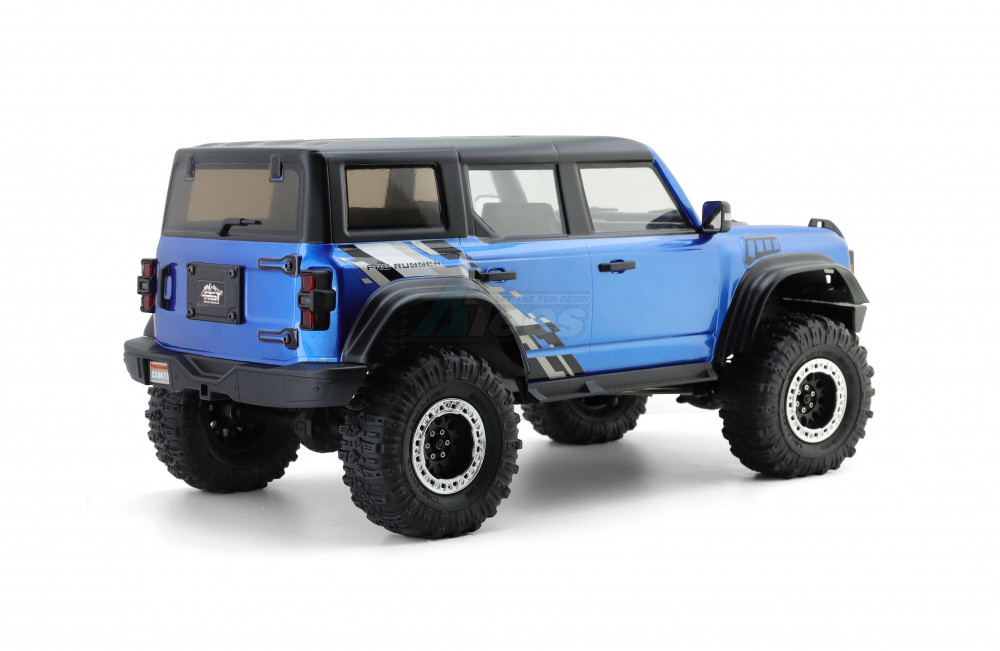

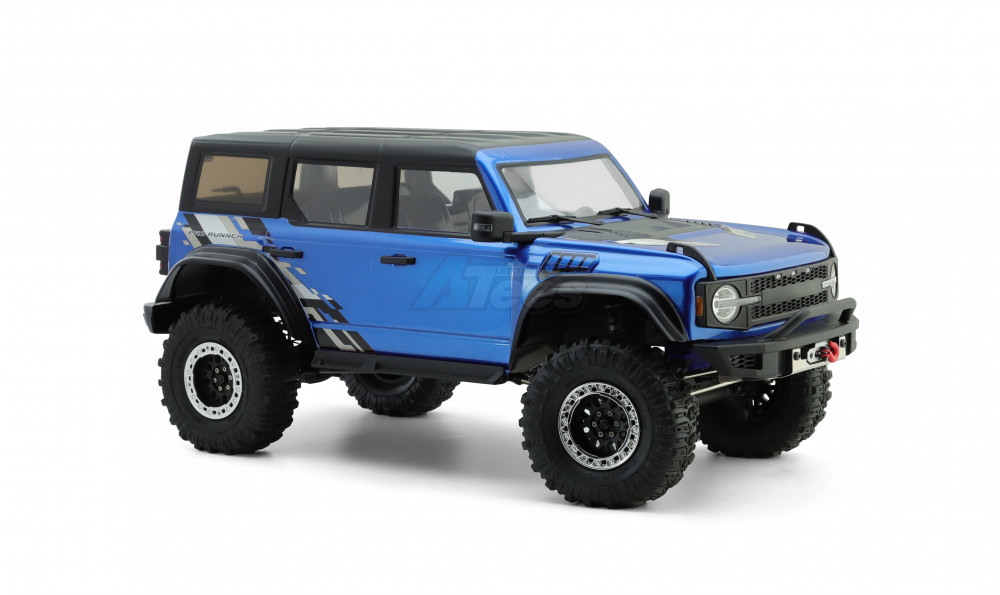

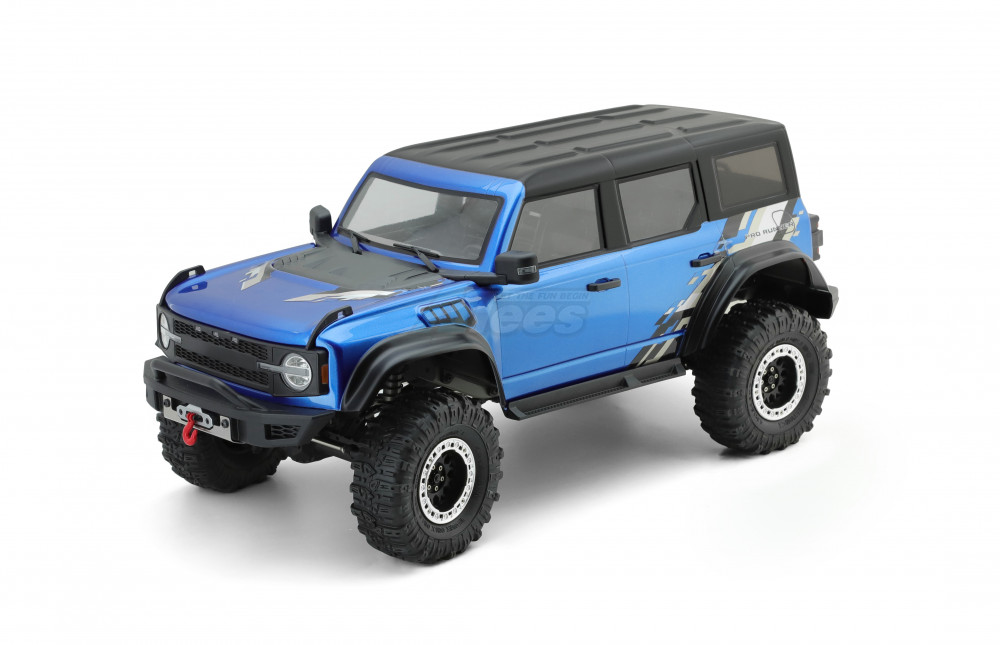

- Bodyshell:

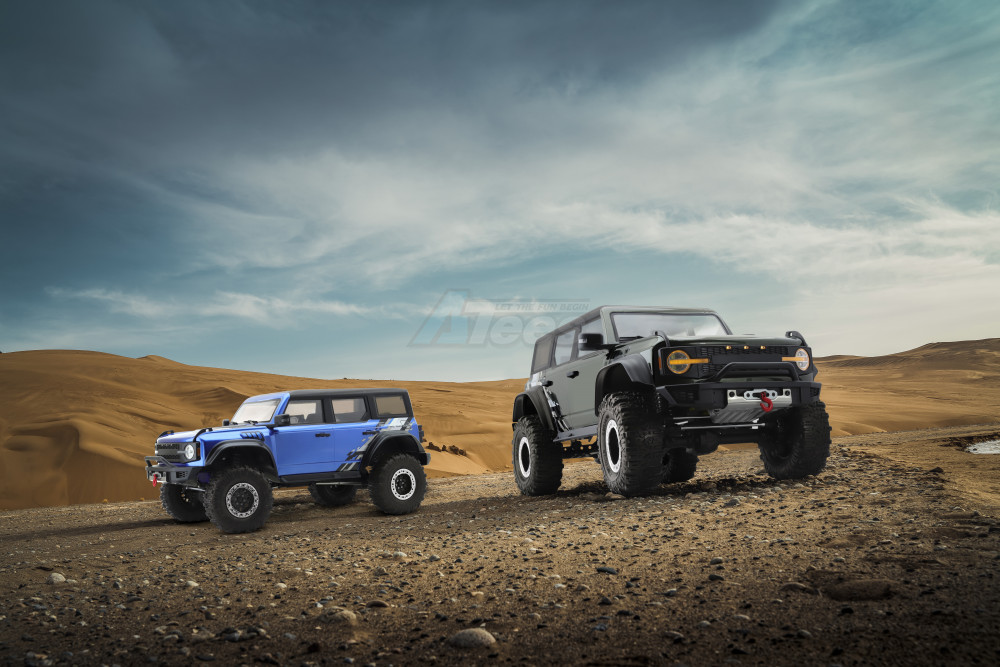

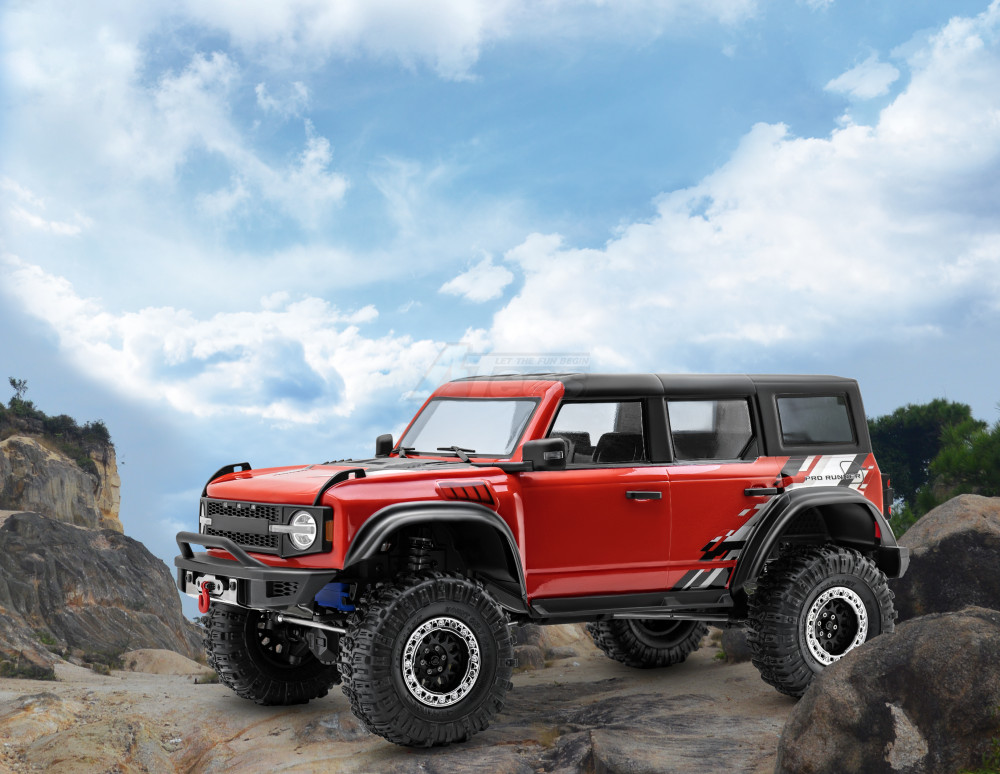

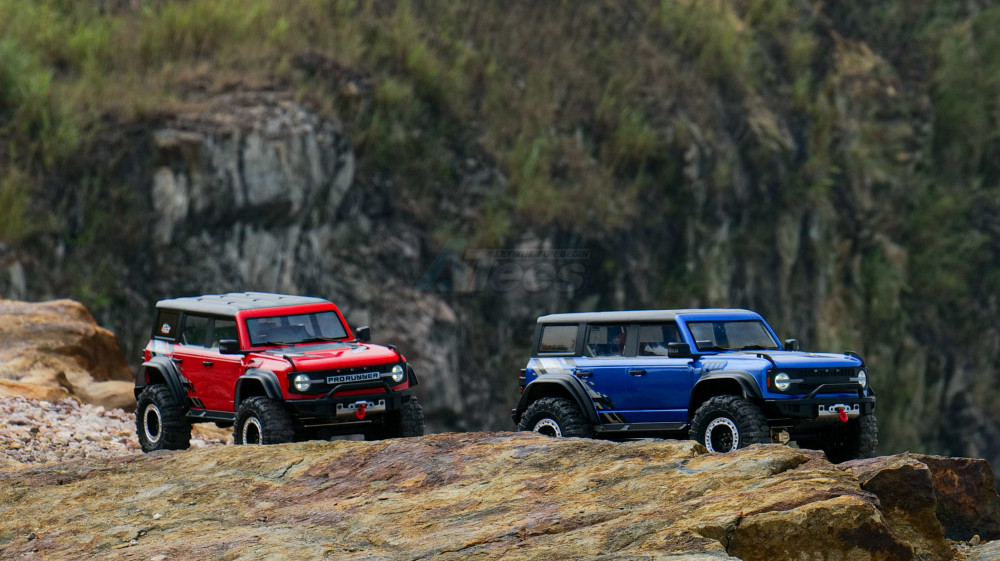

- The bodyshell uses PC soft shell material (Raptor version), environmental protection spray paint with transparent windows, a hidden body post design, and plastic decorative accessories such as realistic lights, rearview mirrors, and door handles. Three colors are available (flame orange, graphite green, and sapphire blue)

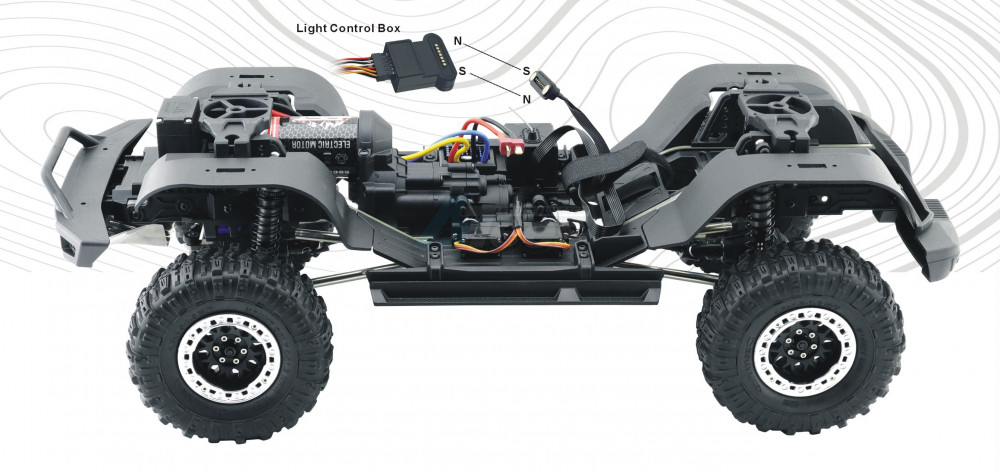

- Light control:
- The lamp control box with a magnet automatic adsorption function is more convenient to assemble and disassemble, which effectively prevents the positive and negative poles from being inserted backward.
- Standard multi-mode lighting effects, including high beam, low beam, turn signal, parking light, reversing light, flashing light, etc.
- The colors of car lamps include white light, yellow light, and red light.

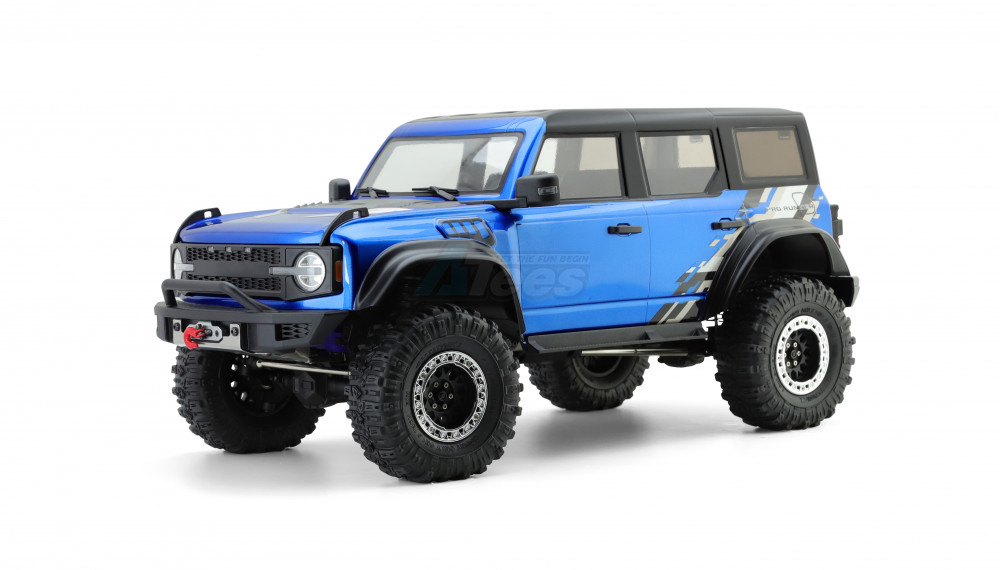

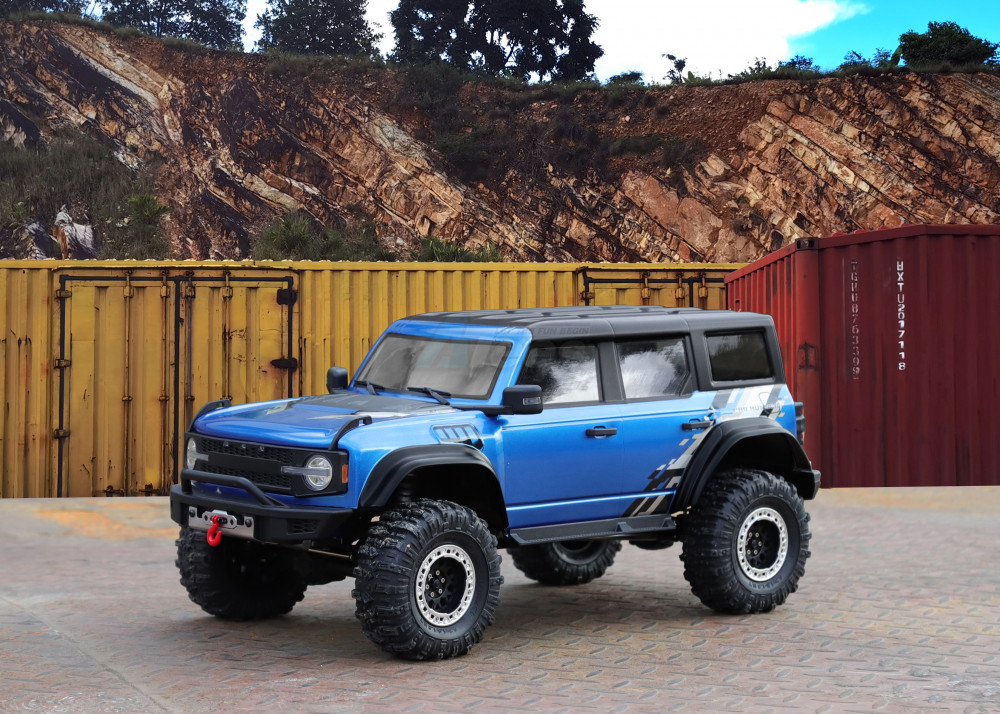

- Color: Blue
- Package total weight: 5140.00 grams (incl. packaging)
- Package size: 28.00 x 30.00 x 60.00cm
- Factory description: RGT EX86130 PRO RUNNER 1/10 Pro Runner 4WD/2WD Off-Road Rock Crawler RTR
- Manufactured by RGT
- Manufacturer number: RGT/EX86130
