PART: #FT/FUR-2352
|
**Discount shipping applies to this item.
|
|
|||||||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
TAGGED CATEGORIES:
- ESC Features:
- FOC (Field-Orientated control technology)
- Live tunning on Furicar app
- Super slow and ridiculously smooth throttle control
- New firmware algorithm to consistently smooth up the start-up to the FOC stage
- Work with Brushed/Brushless motors (config via app, default is brushless)
- Small size and lightweight
- Super easy programming via App on both Android and iOS
- Real-time telemetry up to 10Hz
- Bluetooth module controlled by Furicar App included
- Waterproof and dustproof with an enclosing CNC aluminum case
- Over-temperature and max current protection
- AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
- FREE lifetime firmware updates
Motor Features- High low-end torque
- A low KV rating provides more torques at low speeds.
- Efficiency cooling system
- High-quality material with reliable magnets and durable bearings
- High-end CNC aluminum case
- Special designed 10-Pole Inrunner brushless motor for high torque output
- Super quiet, high torque, powerful and super slow speed yet tons of wheel speeds when needed
- High purity and higher temperature copper windings -lower copper losses, excellent heat dissipating-maximizes efficiency.
- Super thin stator laminations---lower eddy losses--- maximize efficiency.
- High RPM ABEC-5 bearings.
- Precision balanced rotor, smoothness for best reliability, and maximum RPM.
- Waterproof IP67 and dustproof
ESC Specifications:- Supports 2-4S lipo batteries
- Selectable 5.5V/7.5V/8.4V (8A peak) BIG internal BEC (Battery Eliminator Circuit), (config via app)
- Constant current: 80A
- Burst current: 120A
- Removable ON/OF switch
- Dimensions: 1.7x 1x 0.4 (inch), 45x25x10 (mm)
- Weight: 41g (1.4oz)
Motor Specifications:- Motor type: Inrunner
- KV (RPM/V): 1950
- No-load current @7.4V : 4.0A
- Battery: 2-4S lipo
- Resistance: 0.7Ohm
- Max current: 120A
- Slot/Pole: 12S10P
- Motor size: 36x48mm diameter
- Shaft/Extended length: 3.175mm/16mm
- Weight: 180g (6.34oz)
Extra requirements:- The new FURITEK brushless system needs a channel 2 from the receiver to connect to the external ESC. The stock TX/RX does not have a channel 2 so it is required to have a new at least 2-channel TX/RX
- Package total weight: 309.00 grams (incl. packaging)
- Package size: 10.00 x 18.00 x 7.00cm

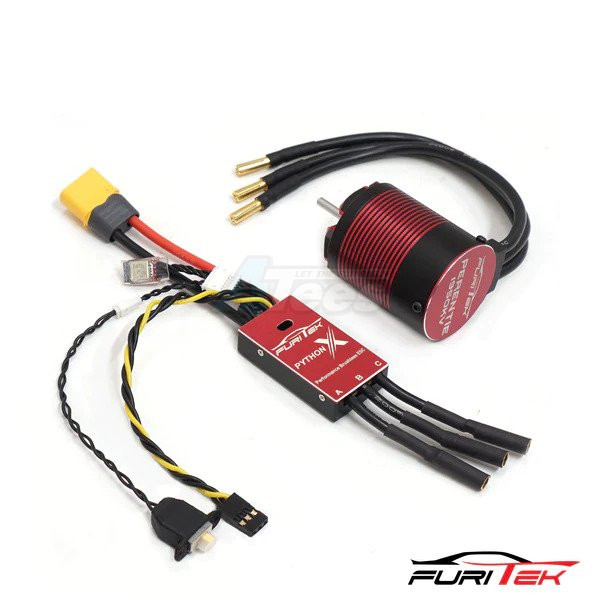

- Factory description: Furitek PYTHON X Brushed/Brushless ESC With Perentie Motor For 1/10 RC Crawlers
- Manufactured by Furitek
- Manufacturer number: FT/FUR-2352
- This item is not eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
