Showing #18 of 1:24 FCX24 Power Wagon Parts
LOADING IMAGES
|
PART: #FT/FUR-2346
|
This item ships Free WORLDWIDE. Details
|
|
|||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
| Quantity Discount | |||
|---|---|---|---|
| Units at this Price | ATees' Low Price (Per Unit) |
You Save | Click To Order |
TAGGED CATEGORIES:
- Introducing the Furitek MONSTER brushless power system for FMS FCX24 SMASHER. The system includes the FURITEK Greyhound 1410 7500kv with a small size yet very powerful and fast and a Lizard Pro esc. The motor is designed with high power for the monster truck with special firmware from the Lizard Pro ESC. This power system is a complete drop-in combo for FMS FCX24 SMASHER.
With the Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for their favorite settings.
Features:
- A small yet powerful GREYHOUND 1410 7500KV
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Bluetooth module built-in for wireless connection
- Precision CNC steel pinion for long-lasting operation
- Lifetime FREE firmware upgrade!

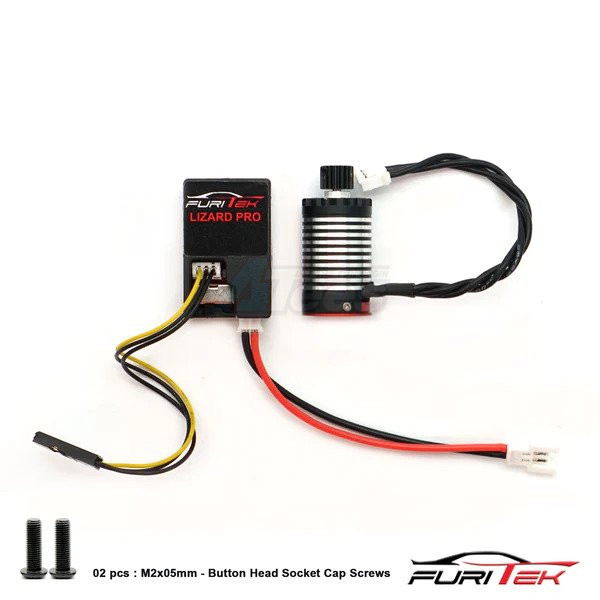

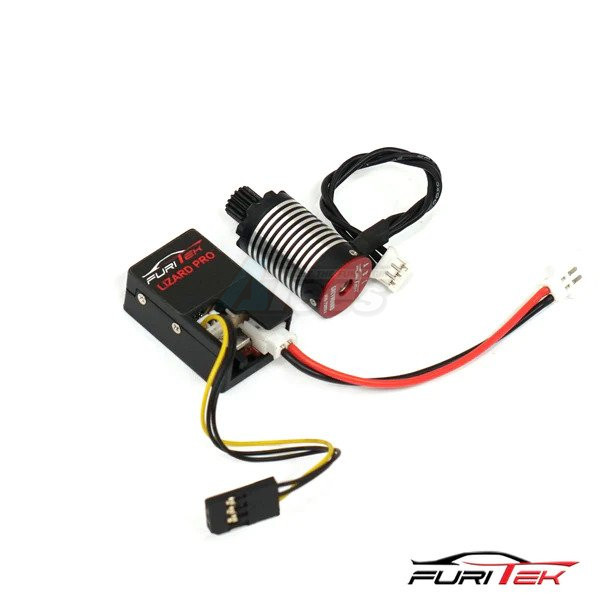

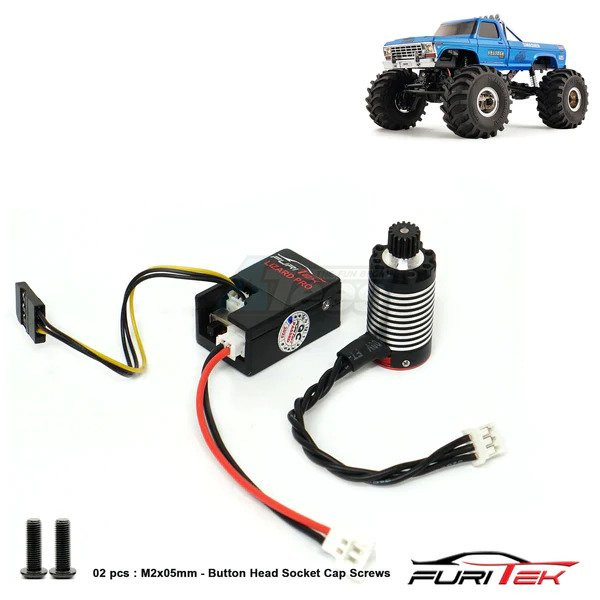

Package includes:
- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR FCX24 SMASHER WITH FOC TECHNOLOGY with enclosing plastic case
- 1 x built-in Bluetooth module
- 1 x GREYHOUND 1410 7500KV brushless motor
- 1 x CNC Steel Pinion
- 1 x micro receiver, which is compatible with the stock FMS FCX24 radio
Motor Features and Specs
Features:
- Super thin (0.2 mm) stator laminations---lower eddy losses--- maximize efficiency.
- Japanese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability, and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision-engineered for maximum energy conversion.
- High purity and higher temperature single copper windings, lower copper losses, very good heat dissipating, maximize efficiency.
Specifications:
- KV (RPM/Motor) – 7500
- No-load current @7.4V – 0.3A
- Watt – 80W
- Battery – 2-3S
- Resistance – 0.7 Ohms
- Max Current – 9A
- Slot/Pole – 2P
- Motor size (mm) – 15.5x25
- Weight (g) – 17g
ESC Features and Specs
Features:
- Support sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for FMS FCX24 SMASHER monster truck
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery
- Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available
- Real-time telemetry up to 10Hz
Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
- Constant current: 30A
- Burst current: 50A
- Built-in power switch
- Built-in Bluetooth module
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 grams
Extra requirements:
- A new two-channel radio system is required
- Package total weight: 52.00 grams (incl. packaging)
- Factory description: Furitek FMS 1:24 FCX24 Power Wagon Furitek Monster Brushless Power System For FCX24 Smasher
- Manufactured by Furitek
- Manufacturer number: FT/FUR-2346
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error
FMS
1:24 FCX24 Power Wagon Parts & Upgrades
Furitek Monster Brushless Power System For FCX24 Smasher [Without Receiver]
by Furitek
LOADING IMAGES
|
|
|
Tagged Categories
- Introducing the Furitek MONSTER brushless power system for FMS FCX24 SMASHER. The system includes the FURITEK Greyhound 1410 7500kv with a small size yet very powerful and fast and a Lizard Pro esc. The motor is designed with high power for the monster truck with special firmware from the Lizard Pro ESC. This power system is a complete drop-in combo for FMS FCX24 SMASHER.
With the Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for their favorite settings.
Features:
- A small yet powerful GREYHOUND 1410 7500KV
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Bluetooth module built-in for wireless connection
- Precision CNC steel pinion for long-lasting operation
- Lifetime FREE firmware upgrade!
Package includes:
- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR FCX24 SMASHER WITH FOC TECHNOLOGY with enclosing plastic case
- 1 x built-in Bluetooth module
- 1 x GREYHOUND 1410 7500KV brushless motor
- 1 x CNC Steel Pinion
- 1 x micro receiver, which is compatible with the stock FMS FCX24 radio
Motor Features and Specs
Features:
- Super thin (0.2 mm) stator laminations---lower eddy losses--- maximize efficiency.
- Japanese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability, and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision-engineered for maximum energy conversion.
- High purity and higher temperature single copper windings, lower copper losses, very good heat dissipating, maximize efficiency.
Specifications:
- KV (RPM/Motor) – 7500
- No-load current @7.4V – 0.3A
- Watt – 80W
- Battery – 2-3S
- Resistance – 0.7 Ohms
- Max Current – 9A
- Slot/Pole – 2P
- Motor size (mm) – 15.5x25
- Weight (g) – 17g
ESC Features and Specs
Features:
- Support sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for FMS FCX24 SMASHER monster truck
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery
- Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available
- Real-time telemetry up to 10Hz
Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
- Constant current: 30A
- Burst current: 50A
- Built-in power switch
- Built-in Bluetooth module
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 grams
Extra requirements:
- A new two-channel radio system is required
- Product weight: 52.00 grams
- Factory description: Furitek FMS 1:24 FCX24 Power Wagon Furitek Monster Brushless Power System For FCX24 Smasher
- Manufactured by Furitek
- Manufacturer number: FT/FUR-2346
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
