Showing #134 of TRX-4M Parts
LOADING IMAGES
|
PART: #FT/FUR-2337
|
This item ships Free WORLDWIDE. Details
|
|
||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
TAGGED CATEGORIES:
- Features:
- A small yet powerful GREYHOUND 1410 7500KV
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Bluetooth module built-in for wireless connection
- Precision CNC steel pinion for long-lasting operation
- Lifetime FREE firmware upgrade!
Motor Features and Specs:- Features:
- Super thin (0.2 mm) stator laminations---lower eddy losses--- maximize efficiency.
- Japanese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability, and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision-engineered for maximum energy conversion.
- High purity and higher temperature single copper windings, lower copper losses, very good heat dissipating, maximize efficiency.
- Specifications:
- KV (RPM/Motor) – 7500
- No-load current @7.4V – 0.3A
- Watt – 80W
- Battery – 2-3S
- Resistance – 0.7 Ohms
- Max Current – 9A
- Slot/Pole – 2P
- Motor size (mm) – 15.5x25
- Weight (g) – 17g
ESC Features and Specs:- Features:
- Support sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for TRX-4M monster truck
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery
- Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available
- Real-time telemetry up to 10Hz
- Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
- Constant current: 30A
- Burst current: 50A
- Built-in power switch
- Built-in Bluetooth module
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 grams

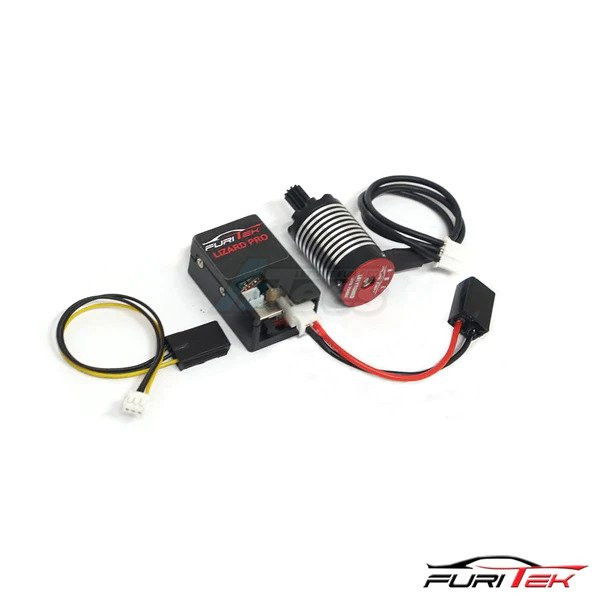

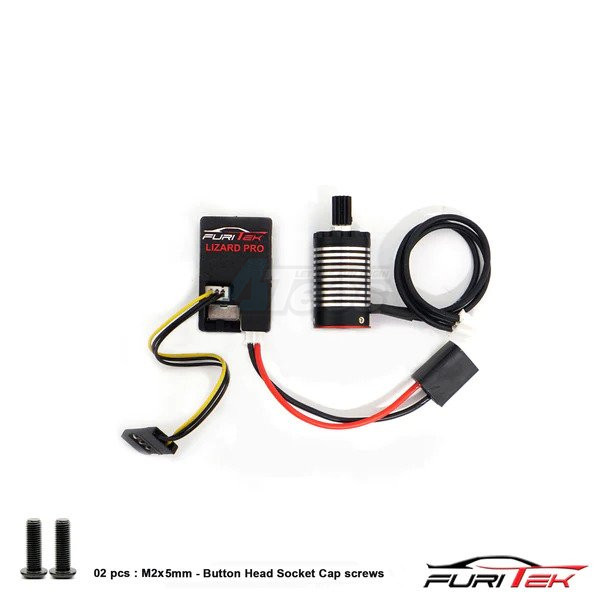

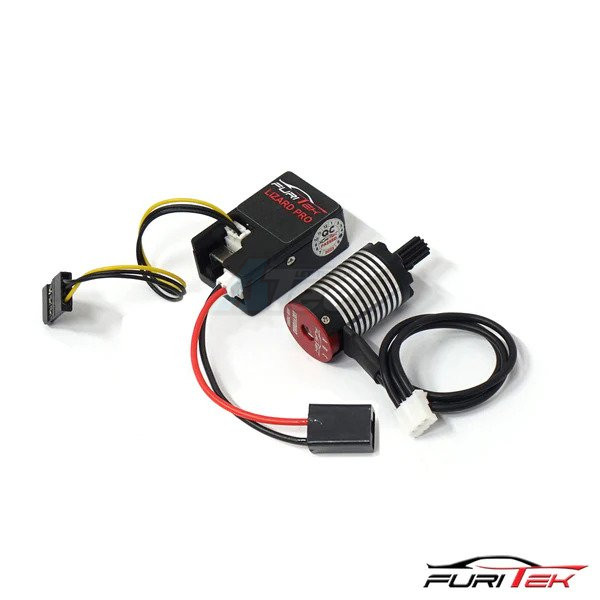

Package includes:- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR TRX-4M WITH FOC TECHNOLOGY with enclosing plastic case
- 1 x built-in Bluetooth module
- 1 x GREYHOUND 1410 7500KV brushless motor
- 1 x CNC Steel Pinion
- A new 3-4 channel radio system is required
- Package total weight: 54.00 grams (incl. packaging)
- Factory description: Furitek Traxxas TRX-4M Furitek Monster Brushless Power System
- Manufactured by Furitek
- Manufacturer number: FT/FUR-2337
- This item is not eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error
