PART: #PH/GTS-5
|
**Discount shipping applies to this item.
|
|
|||||||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
| Quantity Discount | |||
|---|---|---|---|
| Units at this Price | ATees' Low Price (Per Unit) |
You Save | Click To Order |
TAGGED CATEGORIES:
- Features:
- Support Flysky radio’s i-BUS2 protocol
- Servo parameter setup/data logging/ warning / and other functions
- Support the high-speed mode of brand's radio
- Noble NB4 Pro modes: NOR /SR/SFR
- Futaba modes: NOR /SR/UP
- SANWA modes: NOR/SHR/SSR/SUR/SXR
- Support the Power HD program box PG-CB63
- 4-pole brushless motor
- High performance / long lifespan
- Heat-resistant / faster response
- Data monitoring function:
- Monitor and record the voltage, temperature, and signal of multiple servos for up to 1 hour, for drivers to check the date after racing.
Specifications:
- Torque (6.0V): 36.0 kg-cm / (499.9 oz/in)
- Torque (7.4V): 42.0 kg-cm / (583.3 oz/in)
- Torque (8.4V): 50.0 kg-cm / (694.4 oz/in)
- Speed: 0.11 sec (6.0V) / 0.09 sec (7.4V)
- Speed: 0.08 sec (8.4V)
- Operating Voltage: 6.0 ~ 8.4 DC Volts
- Weight: 63 g (2.75 oz)
- Bearing Type: Ball Bearing x 2
- Motor Type: Brushless Motor

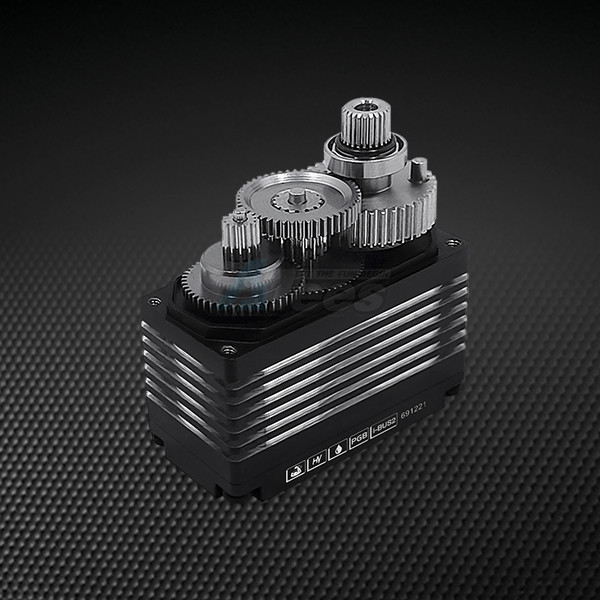

- Gear Type: 7075+Steel
- Max current: 7.5A
- Operating Temperature: -20?c ~ 60?C
- Working frequency: 1520μs / 1666hz
- Size: 41.0 x 20.0 x 29.0 mm (1.61 x 0.79 x 1.14 in)
- Application:
- 1/10 EP Nitro on-road / E buggy / Crawlers
- 1/8 Crawler / Nitro GP
- Support Flysky radio’s i-BUS2 protocol
- Color: Black
- Package total weight: 142.00 grams (incl. packaging)
- Package size: 8.00 x 11.00 x 3.00cm
- Factory description: Power HD 4-pole HV Brushless GTS Digital Servo 50Kg/0.08 @8.4V
- Manufactured by Power HD
- Manufacturer number: PH/GTS-5
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error

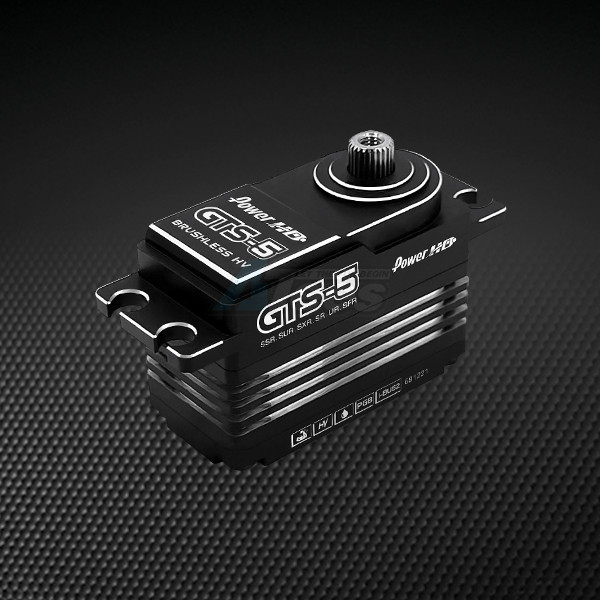

4-pole HV Brushless GTS Digital Servo 50Kg/0.08 @8.4V by Power HD
