PART: #FT/FUR-2342
|
This item ships Free WORLDWIDE. Details
|
|
||||||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
| Quantity Discount | |||
|---|---|---|---|
| Units at this Price | ATees' Low Price (Per Unit) |
You Save | Click To Order |
TAGGED CATEGORIES:

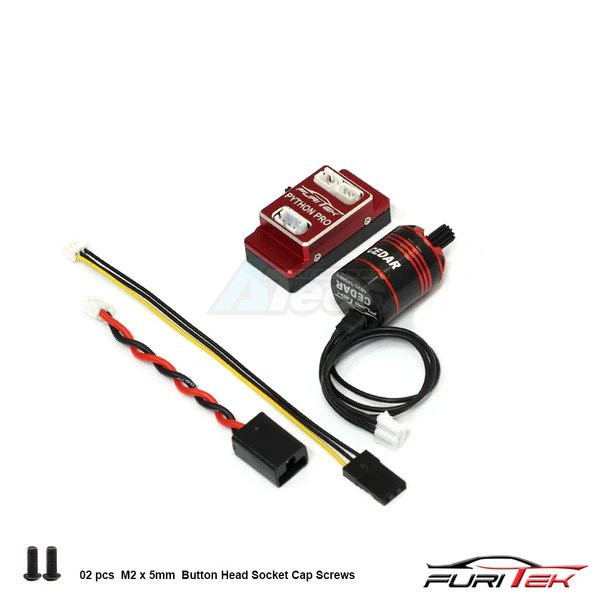

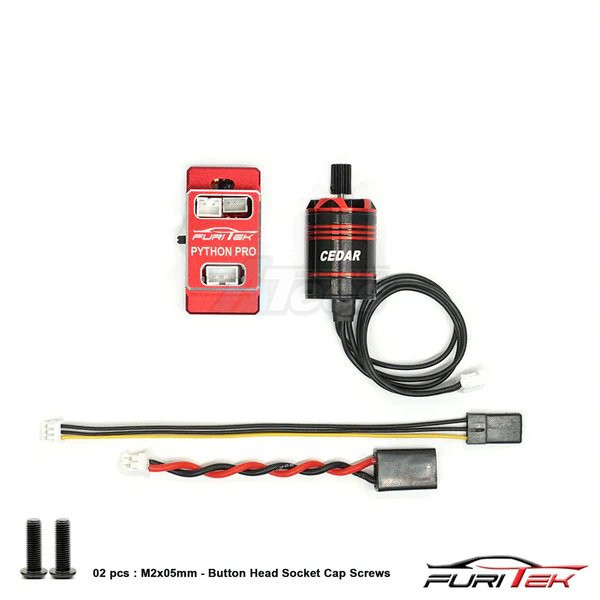

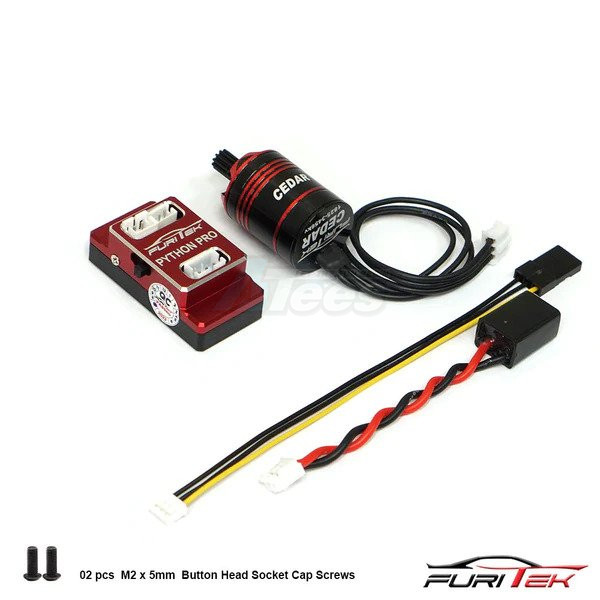

- FURITEK TORPEDO brushless system for TRX4M is the powerful and top-of-the-line combo of the CEDAR motor and PYTHON PRO esc. It offers nothing but the best on the market for TRX4M.
PYTHON PRO ESC Features:
- FOC (Field-Orientated control) technology
- Live tunning on the Furicar app
- Super slow and ridiculously smooth throttle control
- New firmware algorithm to consistently smooth up the start-up to the FOC stage
- Work with Brushed/Brushless motors (config via the app, default is brushless)
- BIG BEC for power-hungry servos
- Mini size and lightweight
- Super easy programming via App on both Android and iOS
- Realtime telemetry up to 10Hz
- Bluetooth module built-in so no longer separate wires and Bluetooth module controlled by Furicar App
- Waterproof and dustproof with an enclosing CNC aluminum case
- Circuit protection
- FREE lifetime firmware updates
PYTHON PRO Specifications:
- Supports 2-4S lipo batteries.
- BEC: 5.5V/7.4V/8.4V 5A
- Constant current: 40A
- Burst current: 70A
- Built-in power switch
- Dimensions: 1.57x 0.78x 0.6 (inch), 40x20x15 (mm)
- Weight: 5.7g (0.2oz)
CEDAR motor Features:
- Special designed 12-Pole Inrunner brushless motor for the most efficiency
- Waterproof design
- Dustproof design
- Small, compact, easy to be installed in tight spaces
- Stylish with an aluminum case, anodized with red and black
- Super quiet, high torque, powerful and super slow speed yet tons of wheel speeds when needed
- Steel pinion included for TRX-4M crawlers
- High purity and higher temperature copper windings-lower copper losses, very good heat dissipating-maximizes efficiency.
- Super thin (0.2mm) stator laminations--lower eddy losses--maximize efficiency. High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability, and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can.
- Precision-engineered for maximum energy conversion
- All hardware included
CEDAR motor Specifications:
- Motor type: Inrunner
- KV: 3456KV
- No-load current @10V: 07A
- Power: 120W
- Battery: 23S Lipo
- Resistance: 0.17Ohm
- Slot/Pole: 12-Pole
- Motor size: 18x25mm diameter (0.7 x 1inch)
- Weight: 20g (0.7oz)
Extra requirements:
- A new 3-4 channel radio system is required
- Package total weight: 69.00 grams (incl. packaging)
- Package size: 8.00 x 10.00 x 4.00cm
- Factory description: Furitek Traxxas TRX-4M Furitek Torpedo Brushless Power System
- Manufactured by Furitek
- Manufacturer number: FT/FUR-2342
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
