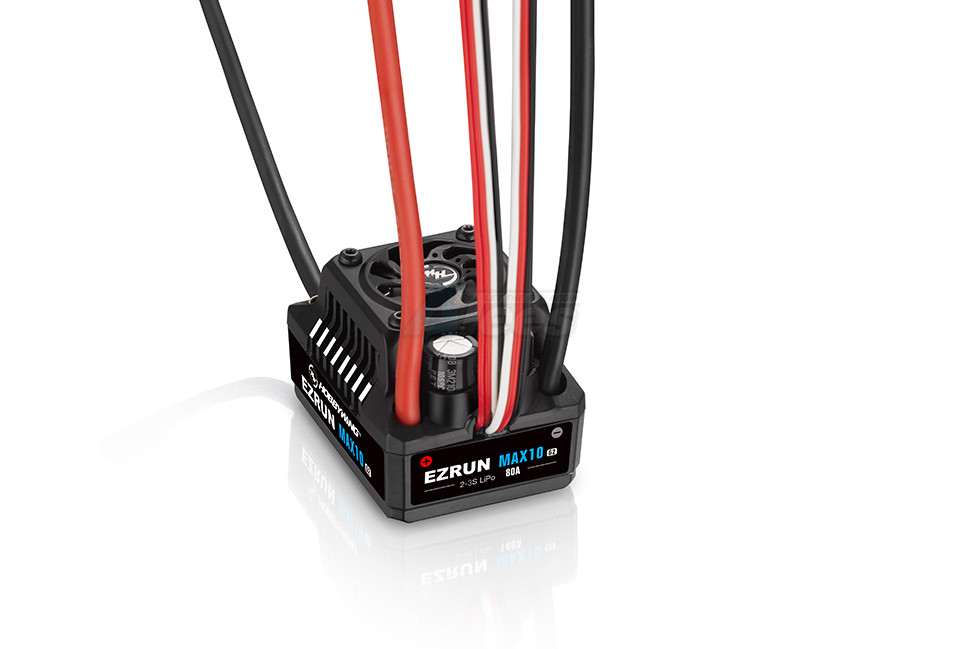

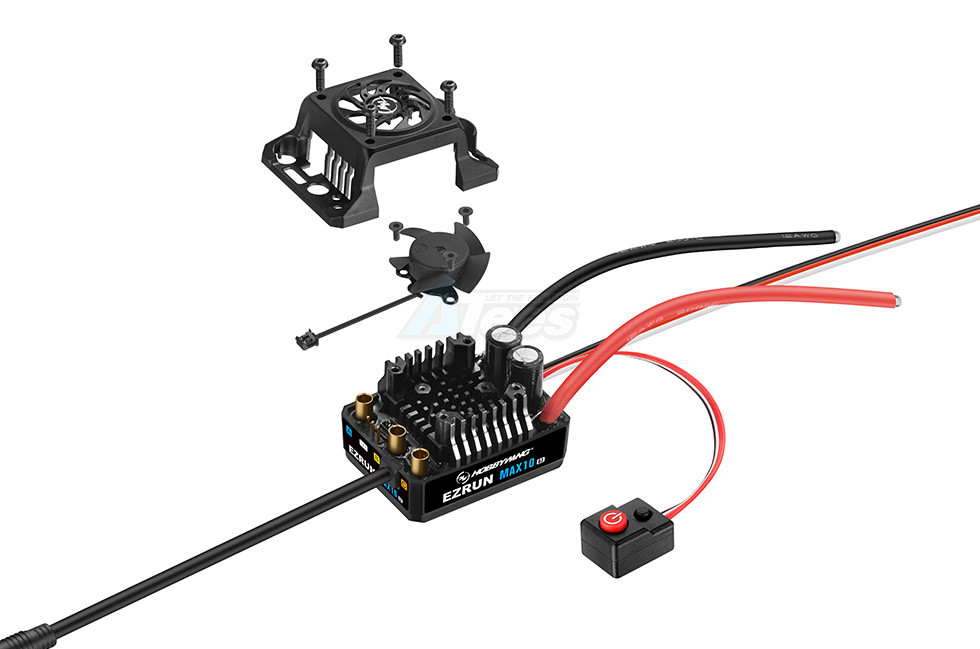

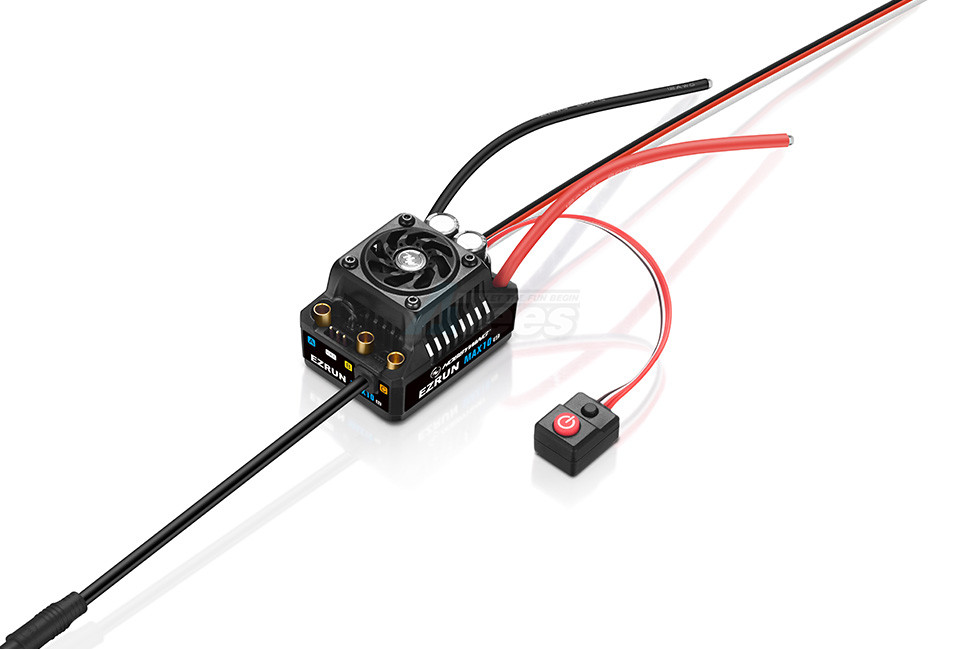

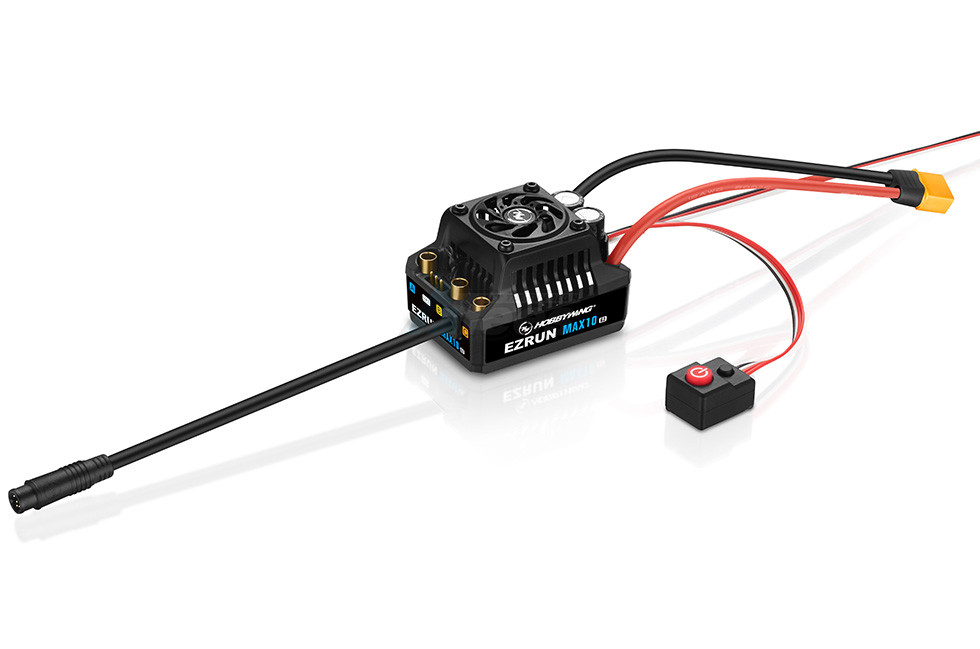

 Hobbywing EZRUN MAX10 G2-140A ESC
All
Prev
Next
Showing #8935 of All Parts


LOADING IMAGES

Request Additional Photos
Innovation Powered By Passion
PART: #HW/30102603
**Discount shipping applies to this item.
OUR INVENTORY:
In Stock and Ready To Ship!
USD $84.99
Best Price Guarantee

Add To Cart
Shipping Options

Request a Video Intro
CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

Quantity Discount
Units at this Price ATees' Low Price
(Per Unit)		 You Save Click To Order
2 USD $82.44 USD $5.10 ADD
TAGGED CATEGORIES:
ESC (Brushless)
PRODUCT INFORMATION:
  • Features:
    • Upgraded sensor mode, great throttle response
    • Smart technology increases heat dissipation effectiveness
    • Large capacitor built-in, double explosion-proof
    • Smart freewheeling technology, higher ef?ciency
    • Data logging, convenient
    • IP67 protection, all-weather operational

    Specifications:

    • Scale: 1/10th
    • Brushed/Brushless: BL
    • Sensored/Sensorless: SD
    • Waterproof: Waterproof
    • /Peak Current: 140A/880A
    • Input Voltage: 2-4S Lipo
    • BEC Output: 6/7.4V,5A
      • Note: 7.4V voltage can be output only when input ≥ 3S Lipo
    • Wires & Connectors:
      • Input Wires: Red-12AWG-150mm*1 Black-12AWG-150mm*1
      • Input Connectors: XT60
      • Output Connectors: 4.0mm Gold (female)
    • ESC Programing via:
      • SET Button on ESC: No
      • LED Program Box: Supported
      • LCD Program Box: Support (G2)
      • OTA Programmer: Supported
      • Program Port: Separate
    • Fan
      • Size: 30x30x10mm
      • Voltage Range: 5-7.4V
      • Powered by: Powered by BEC
    • Firmware Upgrade: Supported
    • Size & Weight:
      • Size: 53mm*39.5mm*37.2mm
      • Weight: 120g(w/Wires)
    • Applications:
      • Motors: SL BL Motors / SD BL Motors
      • Vehicles: 1/10th Short Course Truck, Truck and Monster Truck
      • KV Rating/T Count:
        • With 3S Lipo : KV ≤ 4000 3665 size motor;
        • With 4S Lipo: KV ≤ 2600 4268 size motor
  • Package total weight: 181.00 grams (incl. packaging)
  • Package size: 9.00 x 12.00 x 7.00cm
  • Factory description: Hobbywing EZRUN MAX10 G2-140A ESC
  • Manufactured by Hobbywing
  • Manufacturer number: HW/30102603
  • This item is eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
View ATees.com Glossary of Terms

Find something wrong in this description?
Help us fix it! Report An Error
