BRX02 109 Parts & Upgrades

 Boom Racing KUDU™ LED Light Module System for BRX02 Series Land Rover for BRX02 109
BRX02 109
Prev
Next
Showing #45 of BRX02 109 Parts


LOADING IMAGES

Request Additional Photos
Your Radio Control Car Specialist
PART: #BRTLB001
This item ships Free WORLDWIDE. Details
OUR INVENTORY:
In Stock and Ready To Ship!
USD $58
SALE!
USD $55
Best Price Guarantee

Add To Cart
Shipping Options

CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

RELATED BLOG POST

Upgrade Parts for Boom Racing BRX02 Land Rover Series

Boom Racing KUDU LED Light Module System for BRX02 Series III

Quantity Discount
Units at this Price ATees' Low Price
(Per Unit)		 You Save Click To Order
2 USD $53.35 USD $3.30 ADD
PRODUCT RESOURCES
PRODUCT INFORMATION:
  • Watch a video introduction about this product

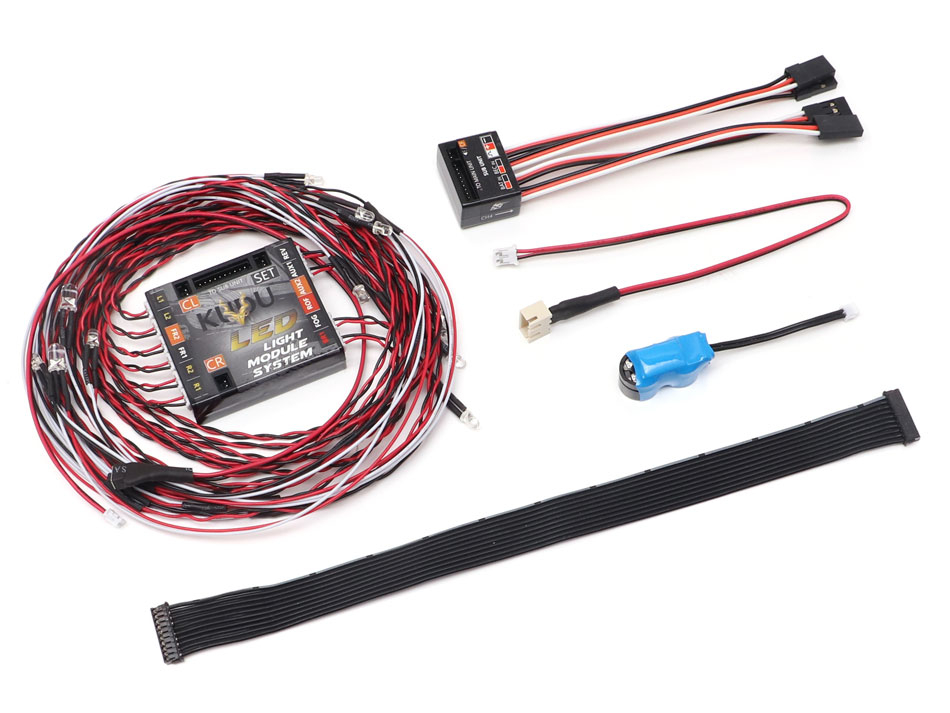

  • This is a complete LED light system for the Boom Racing BRX02 Land Rover Series III. This set includes a main LED light unit, a sub unit, a main connecting cable connecting the main and sub units, a set switch cable, a battery cable (2s), a buzzer (for reverse and low voltage detection), 10 LED light cables, and a user manual.

    The module has a default setting already installed. This is a highly adjustable LED light system, different lighting options can be accessed through the setup mode.

    Features:
    • Low-voltage detection capability
    • Includes one high-voltage module plug rated 7.4v-12.6v (e.g. for roof light)
    • Six high-power light plugs (up to 16 LEDs each) with power settings
    • Blinkers can be turned on and off, or use a toggle switch to operate
    • Brake light includes standard, drag, and crawler modes
    • Blinker and Hazard mode settings with flash rate options
    • Reverse beeper included
    • Ten flash mode toggle switch options
    • Auto hazard start time setting
    • Channel 2 and 4 polarity setup

    Included LED Lights:
    • 4x Left & Right - 3mm Yellow (1x parallel)
    • 1x Front 1 - 5mm Warm White (2x parallel)
    • 1x Front 2 - 3mm Warm White (2x parallel)
    • 1x Reverse - 3mm Warm White (2x parallel)
    • 1x License Plate - 3mm Warm White (2x parallel)
    • 1x Brake - 3mm Red (2x parallel)
    • 1x Fog - 3mm Red (2x parallel)

    Specifications:
    • Input Voltage: 5-7.4V (powered by BEC)
    • Battery Type for Low Voltage Detection: LiPo 2S (user define max 12.6V)
    • Size (LxWxH):
      • Main Unit: 45x41.3x11.7mm
      • Sub Unit: 24.5x18.5x12mm
    • Weight:
      • Main Unit: 14g
      • Sub Unit: 10g

    Fits:
    • BRX02 88
    • BRX02 109

    Spares:
    • Main Cable for KUDU™ LED Light Kit #BRTLB005
  • Package total weight: 75.00 grams (incl. packaging)
  • Factory description: Boom Racing BRX02 109 KUDU™ LED Light Module System for BRX02 Series Land Rover
  • Manufactured by Boom Racing
  • Manufacturer number: BRTLB001
  • This item is eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
View ATees.com Glossary of Terms

Find something wrong in this description?
Help us fix it! Report An Error
