 ob1-RC V4 Type MFC / V4 Type ST Professional LED System For Tamiya MFC-01 /MFC-03
All


LOADING IMAGES

Request Additional Photos
PART: #OB1/BL-V4MFC
OUR INVENTORY:
Out Of Stock
USD $99.93
Best Price Guarantee

Temporarily Unavailable for Checkout

Notify me when this item is in stock



Request a Video Intro
CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

TAGGED CATEGORIES:
LED Light Set
PRODUCT INFORMATION:

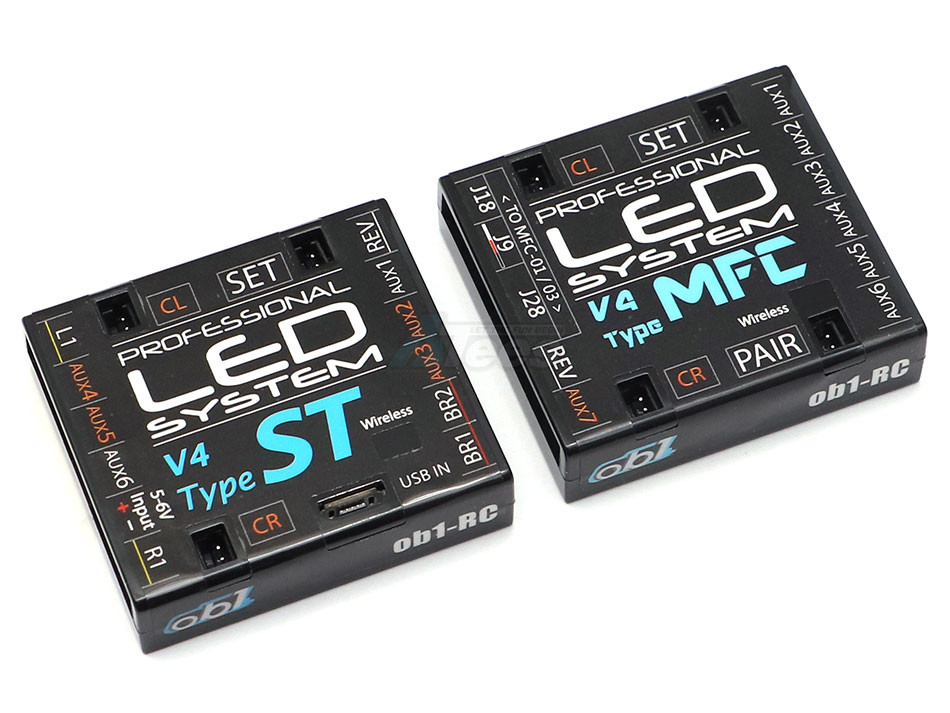

  • This is an ob1-RC wireless Professional LED System V4 Type MFC / V4 Type ST Combo set. Successor of V3.1MFC / V3.1S fits Tamiya MFC-01 / MFC-03.

    Functions:
    • Installs V4 Type MFC on Tractor Truck, Tamiya MFC-01 (56511) / MFC-03 (56523), Plug & Play
    • Installs V4 Type ST on Semi Trailer, wirelessly connects V4 Type MFC
    • V4 upgrades Bluetooth to V4.0 BLE, press "PAIR" once to connect Tractor Truck and Semi Trailer
    • V4 Type MFC has a Support leg UP / DOWN Detect function (Tamiya Support Legs #56505)
    • V4 adds SET plug, and Setup mode
    • Flash mode (All LED) Toggle by pressing the [SET] switch anytime after power on
      • V4 Type MFC adds 3 more, a total of 6 flashing styles
      • V4 Type ST adds 3 more, a total of 10 flashing styles
    • This kit not only just replaces Tamiya Semi-Trailer Light Set (#56502), but V4 adds the following additional features

    Features:
    • AUX1 - 7 LED, works together with MFC-01 / 03's AUX LED
    • V4 adds AUX7, CL, and CR Chassis lamp (High power plug), each can drive 2-16 LED
    • Fine-tune your system by entering Setup Mode, for example:
    • Power Options (Low/ Mid/ High / Extra High) for all High power plugs, each driving 2-16 LED
      • V4 Type MFC adds 3 HP plugs
      • V4 Type ST adds 3 more HP plugs, a total of 6
    • REV plug for Back lamp, support both 2S (Tamiya) or 2P (ob1-RC) LED cable
    • External BEC may be required if using high-power options

    V4 Type ST:
    • Dual power supply: AAA battery, V4 adds Micro USB plug for USB power bank (5V)
    • LED driving Max 112 pcs, 50 pcs more than V3
      • 13 LED plugs:
      • BR1-2 (Brake lamp)
      • L1, R1 (Left & Right winker lamps)
      • AUX1 - 6 (AUX lamp)
      • REV (Reverse lamp)
      • V4 adds CL / CR (Chassis lamp)

    Specifications:
    • V4 Type MFC Input Voltage: 5 - 6V (Powered by MFC-01 / 03)
    • Support RC System:
      • All Normal Response RC Systems: PCM/ PPM (FM)/ AM
      • Some High Response RC Systems, for example:
      • Futaba: FASST-C1, C2 / S-FHSS / T-FHSS (SR)
      • Sanwa: NOR / SHR Mode
    • V4 Type ST Input Voltage: 5 - 6V (AAA size battery x 4) / USB Power Bank (5V)
    • Main Unit Dimension:  45mm (L), 41.3mm (W), 11.7mm (H)
    • Weight (MAIN Unit): 16g (Excludes cables)

    Specification Wireless:
    • Bluetooth Protocol: Bluetooth Specification V4.0 BLE
    • Frequency: 2.4GHz ISM band
    • Modulation: GFSK
    • TX Power: -4 - >4dBm, Class 2
    • Sensitivity: -93dBm

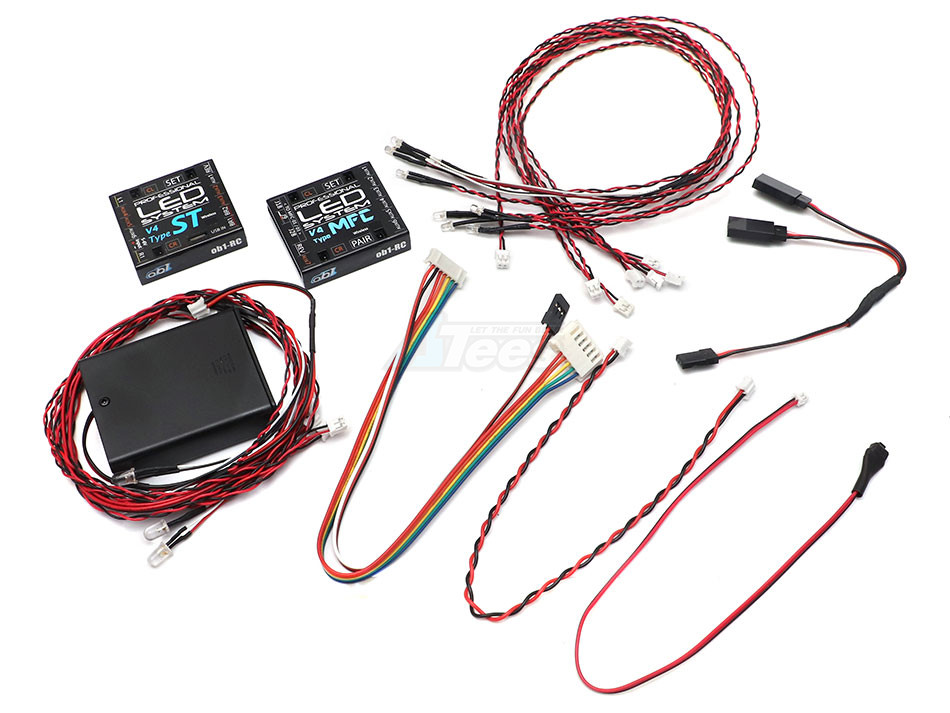

    The Kit Includes:
    V4 Type MFC:
    • Main unit x 1
    • MFC Main Harness (J9, J28) x 1
    • REV Harness (J18) x 1
    • SET / PAIR switch Harness x 1
    • Y-Harness x 1
    • User Manual x 1
    • 3mm WHITE LED cable x 1
    • 3mm WHITE LED cable x 6

    V4 Type ST:
    • Main unit x 1
    • SET Switch cable x 1
    • Extend LED cable x 2
    • Reverse LED cable x 1 (5mm WHITE LED 2P)
    • Brake LED cable x 1 (5mm RED LED 2P)
    • Left / Right Winker LED cable x 2 (5mm YELLOW LED 1P)

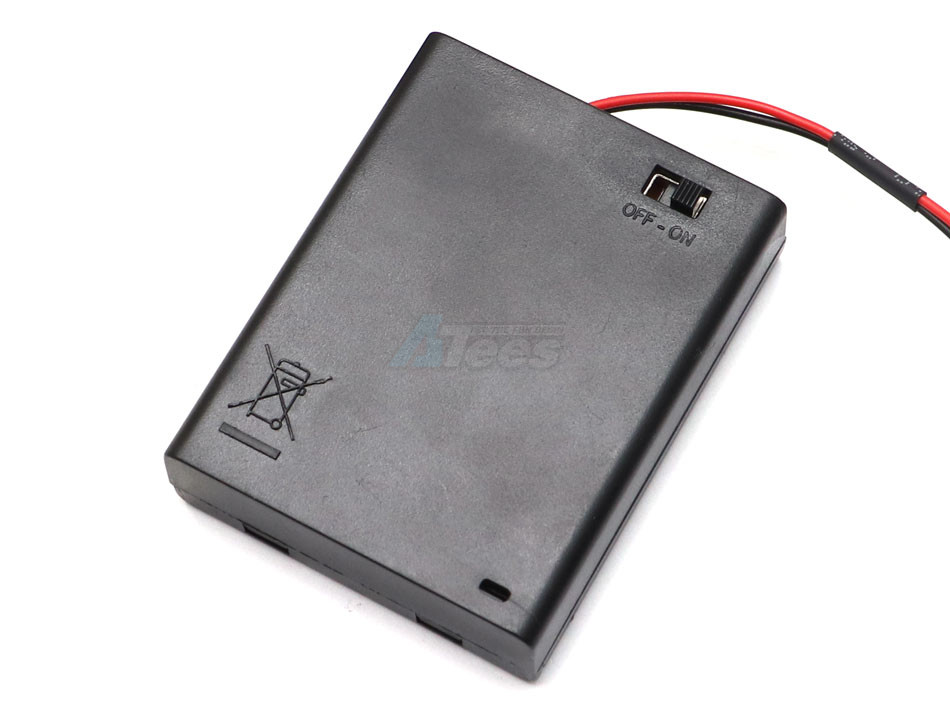

    • Battery Box x 1
    • User Manual x 1
  • This item replaced these previous versions:
    OB1/BL-V31MFC
  • Package total weight: 115.00 grams (incl. packaging)
  • Factory description: ob1-RC V4 Type MFC / V4 Type ST Professional LED System For Tamiya MFC-01 /MFC-03
  • Manufactured by ob1-RC
  • Manufacturer number: OB1/BL-V4MFC
  • This item is not eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
