- With the incredibly successful release of the Komodo brushless motor and Lizard Pro brushless ESC for SCX24 in 2021, the Furitek team has listened to customers’ feedback. It has developed a smaller motor that is powerful and smooth to improve the performance of the SCX24 further.
Introducing the Furitek STINGER brushless power system for SCX24, the method includes the Micro Komodo 1212 3450kv with lighter and smaller size yet very powerful at low speed but also more powerful and fast at high speed. The motor is designed with high torque at low-speed crawling, and with a special firmware from the Lizard Pro ESC, this motor is super smooth without any cogging at both low and high-speed operation.
With the Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for their favorite settings.
Features:
A smaller and lighter brushless motor Micro Komodo for low C.G. setup, same like stock
High performance and powerful 30A/50A brushless ESC with FOC technology
Bluetooth module for wireless connection
Precision CNC aluminum motor mount for better-holding motor in place.
Precision CNC brass pinion for long-lasting operation
Powerful at low speed but also more powerful and fast at high speed
High torque at low-speed crawling
Super smooth without any cogging at both low and high speed operation
Lifetime FREE firmware upgrade!

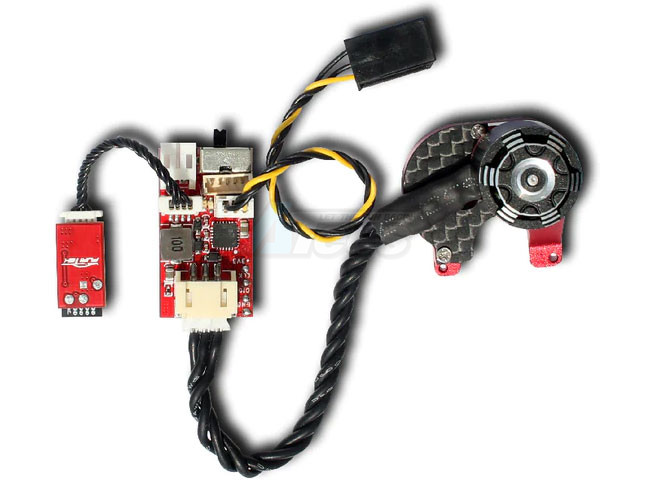

Package includes:

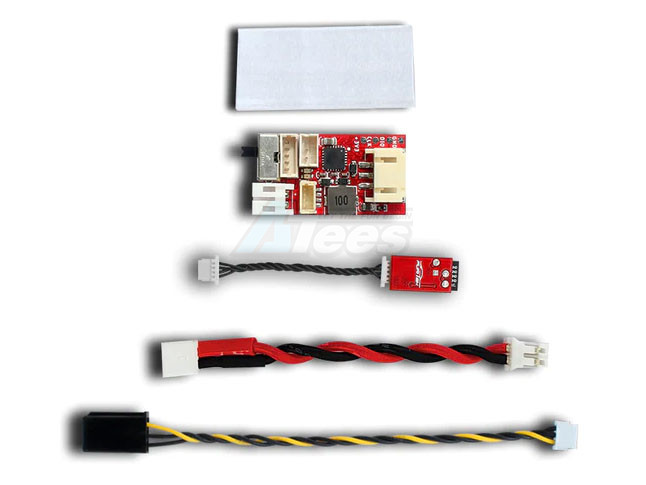

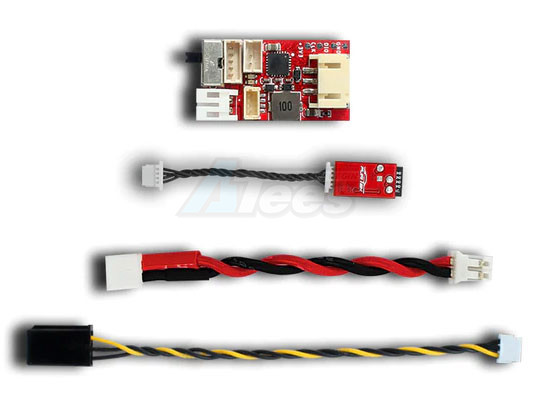

- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR AXIAL SCX24 WITH FOC TECHNOLOGY
- 1 x Bluetooth module

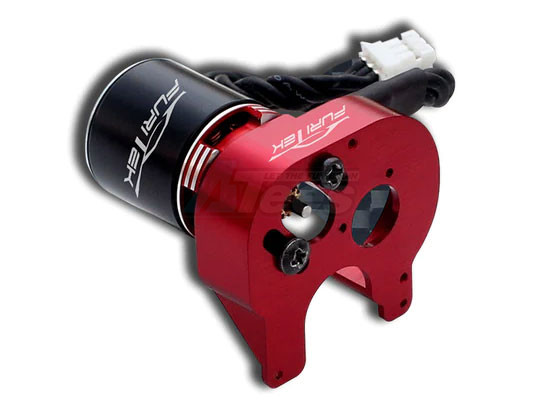

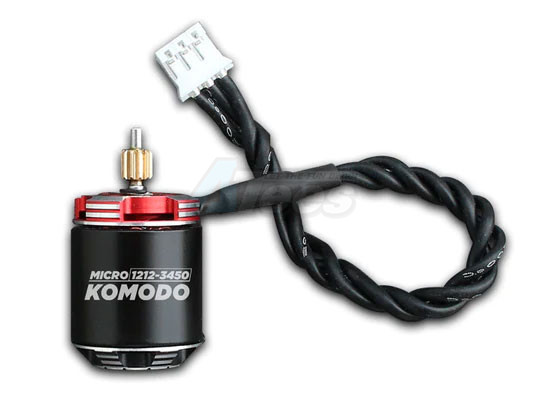

- 1 x Micro Komodo 1212 3450KV brushless motor
- 1 x 11T 0.3M CNC Brass Pinion

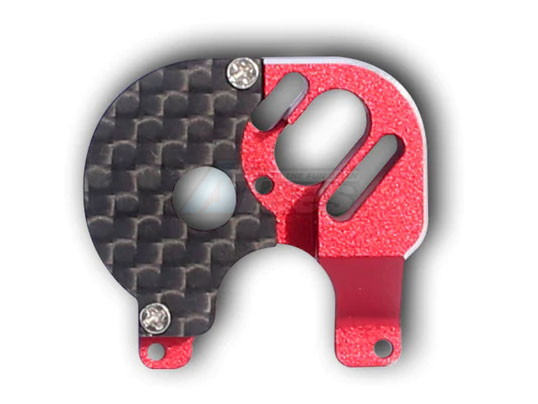

- 1 x CNC aluminum motor mount
Motor Features and Specs
Features:
- 12-pole hi-torque motor design.
- Super thin (0.2 mm) stator laminations---lower eddy losses--- maximize efficiency.
- Japanese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability, and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision-engineered for maximum energy conversion.
- High purity and higher temperature single copper windings ---lower copper losses,
- Very good heat dissipating--maximizes efficiency.
Specifications:
- KV (RPM/Motor) – 3450
- No-load current @10V – 0.7A
- Watt – 120W
- Battery – 2-3S
- Resistance – 0.16 Ohms
- Max Current – 10A
- Slot/Pole – 12
- Motor size (mm) – 15.5x20.6
- Shaft (mm) – 1.5x6
- Weight (g) – 17.5
ESC Features and Specs
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for AXIAL SCX24 crawlers
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Bluetooth module required)
- Real-time telemetry up to 10Hz - Ability to run with stock TX/RX or any other TX/RX
Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (Don’t need external BEC if using big Servo)
- Constant current: 30A
- Burst current: 50A
- Built-in Switch power
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 grams
- Package total weight: 60.00 grams (incl. packaging)
- Package size: 8.00 x 11.00 x 5.00cm
- Factory description: Furitek Axial SCX24 Stinger Brushless Power System For SCX24
- Manufactured by Furitek
- Manufacturer number: FT/FUR-2102
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
