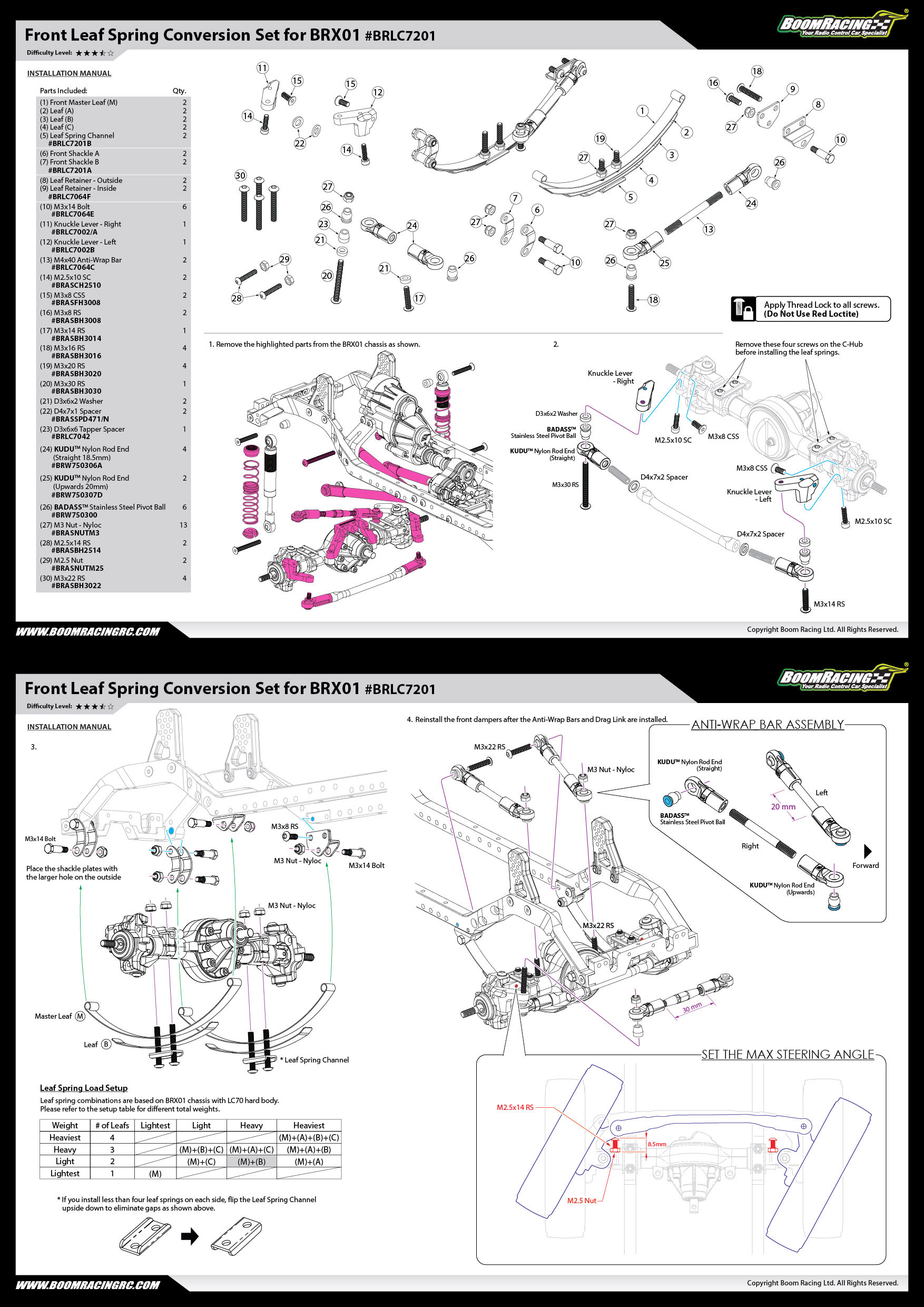

This is a complete front leaf spring conversion kit for the BRX01. Convert the original link suspension geometry into leaf spring suspension.
The leaf spring unit has a master leaf and three graduated leaves for adjustability. The leaves have an all-new shape design and use new proprietary steel material for durability and strength. You may use up to four leaves for adjusting the rebound strength.
The original shocks on the BRX01 can be used with this leaf spring conversion kit.
Two Aluminum Anti-wrap Bars are included. Axle wrap is a problem that plagues leaf sprung vehicles, even tiny trucks. It is unwanted suspension movement that allows the pinion angle to change, which can cause drivelines to bind and break. The bars will prevent this.
Realistic shackle bolts for ultimate scale realism, are included.
The steering link moves to the front of the axle with the aluminum knuckle levers provided.
Specification:
116mm eye-to-eye
Fits:
BRX01 (Front Only). Note: front leaf springs will not work with optional front bumpers
Includes:
2x Front Master Leaf
2x each Leaf A/B/C
2x Leaf Spring Channel #BRLC7046A
2x each Front Shackle A & B #BRLC7021A
2x each Leaf Retainer - Outside and Inside #BRLC7046F
6x M3x14 Bolt #BRLC7064E
1x Knuckle Lever - Right #BRLC7002/A
1x Knuckle Lever - Left #BRLC7002B
2x M4x40 Anti-Wrap Bar #BRLC7064C
2x D3x6x2 Washer
2x D4x7x1 Spacer #BRASSPD471/N
1x D3x6x6 Tapper Spacer #BRLC7042
4x KUDU Nylon Rod End (Straight 18.5mm) #BRW750306A
2x KUDU Nylon Rod End (Upwards 20.0mm) #BRW750306D
6x BADASS Stainless Steel Pivot Ball XBRW750300
13x M3 Nyloc Nut #BRASNUTM3
2x M2.5 Nut #BRASNUTM25
Complete Hardware
Optional Parts:
Center Slider (Front) for BRX01 Center Skid Plate #BRLC7077
Center Slider (Front & Rear) for BRX01 with BRX02 #BRX020020LF High Clearance Skid Plate #BRLC7095 (6mm clearance gain)
Package total weight: 100.00 grams (incl. packaging)
Factory description: Boom Racing BRX01 Front Leave Spring Set for BRX01
This is a complete front leaf spring conversion kit for the BRX01. Convert the original link suspension geometry into leaf spring suspension.
The leaf spring unit has a master leaf and three graduated leaves for adjustability. The leaves have an all-new shape design and use new proprietary steel material for durability and strength. You may use up to four leaves for adjusting the rebound strength.
The original shocks on the BRX01 can be used with this leaf spring conversion kit.
Two Aluminum Anti-wrap Bars are included. Axle wrap is a problem that plagues leaf sprung vehicles, even tiny trucks. It is unwanted suspension movement that allows the pinion angle to change, which can cause drivelines to bind and break. The bars will prevent this.
Realistic shackle bolts for ultimate scale realism, are included.
The steering link moves to the front of the axle with the aluminum knuckle levers provided.
Specification:
116mm eye-to-eye
Fits:
BRX01 (Front Only). Note: front leaf springs will not work with optional front bumpers
Includes:
2x Front Master Leaf
2x each Leaf A/B/C
2x Leaf Spring Channel #BRLC7046A
2x each Front Shackle A & B #BRLC7021A
2x each Leaf Retainer - Outside and Inside #BRLC7046F
6x M3x14 Bolt #BRLC7064E
1x Knuckle Lever - Right #BRLC7002/A
1x Knuckle Lever - Left #BRLC7002B
2x M4x40 Anti-Wrap Bar #BRLC7064C
2x D3x6x2 Washer
2x D4x7x1 Spacer #BRASSPD471/N
1x D3x6x6 Tapper Spacer #BRLC7042
4x KUDU Nylon Rod End (Straight 18.5mm) #BRW750306A
2x KUDU Nylon Rod End (Upwards 20.0mm) #BRW750306D
6x BADASS Stainless Steel Pivot Ball XBRW750300
13x M3 Nyloc Nut #BRASNUTM3
2x M2.5 Nut #BRASNUTM25
Complete Hardware
Optional Parts:
Center Slider (Front) for BRX01 Center Skid Plate #BRLC7077
Center Slider (Front & Rear) for BRX01 with BRX02 #BRX020020LF High Clearance Skid Plate #BRLC7095 (6mm clearance gain)
Product weight: 100.00 grams
Factory description: Boom Racing Boom Racing BRX01 Front Leave Spring Set for BRX01
