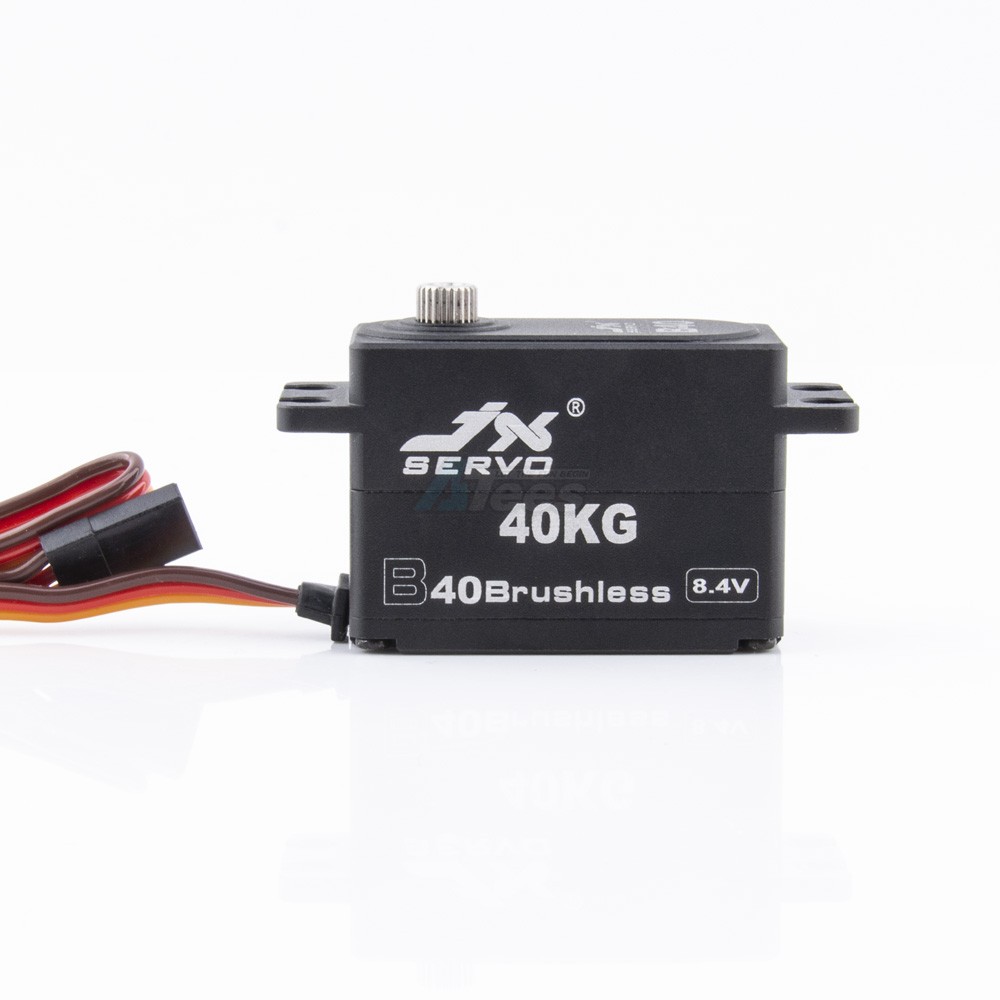

 JX Servo High Voltage Aluminum Case Low Profile 40Kg/ 0.07 Sec @ 8.4V Digital Servo Black
All
Prev
Next
Showing #6918 of All Parts


LOADING IMAGES

Request Additional Photos
PART: #JX/B40
This item ships Free WORLDWIDE. Details
OUR INVENTORY:
In Stock and Ready To Ship!
USD $71.8
SALE!
USD $69.9
Best Price Guarantee

Add To Cart
Shipping Options

Request a Video Intro
CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

Quantity Discount
Units at this Price ATees' Low Price
(Per Unit)		 You Save Click To Order
2 USD $67.80 USD $4.19 ADD
TAGGED CATEGORIES:
Servos Servos: Low Profile
PRODUCT INFORMATION:
  • Specifications:
    • Control system: PWM control (1500 usec is the central point)
    • Working voltage: 6V ~ 8.4V
    • Working temperature: -20C°~ +60C°
    • Torque: 22kg.cm @6V / 30kg.cm @7.4V / 40kg.cm @8.4v
    • Idle speed: 0.11sec/60 deg @6V / 0.09sec/60deg @7.4V / 0.07sec/60deg @8.4V
    • Idle current: 300mA @6V / 560Ma @7.4V / 660Ma @8.4V
    • Load current: 430mA @6V / 720Ma @7.4V / 820Ma @8.4V
    • Dead band: 2usec
    • Lifetime: >50000 times without load
    • Moving angle: 60°±10°
    • Drive Type: MOS drive
    • Motor type: Brushless Motor
    • Potentiometer type: Direct drive
    • Signal booster type: Digital
    • Size: 40 x 20 x 29.95 mm
    • Weight: 66g
    • Ball Bearing: 2BB
    • Gear material: Metal gear
    • Case Material: Aluminum case
    • Wire length: 260mm
    • Wire gauge No and plug type: 26AWG, JR plug
  • Color: Black
  • Package total weight: 114.00 grams (incl. packaging)
  • Package size: 9.00 x 11.00 x 5.00cm
  • Factory description: JX Servo High Voltage Aluminum Case Low Profile 40Kg/ 0.07 Sec @ 8.4V Digital Servo
  • Manufactured by JX Servo
  • Manufacturer number: JX/B40
  • This item is eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
View ATees.com Glossary of Terms

Find something wrong in this description?
Help us fix it! Report An Error

High Voltage Aluminum Case Low Profile 40Kg/ 0.07 Sec @ 8.4V Digital Servo Black by JX Servo


LOADING IMAGES

Part: #JX/B40
*Ships Free WORLDWIDE
USD $71.8
SALE!
USD $69.9

Add To Cart
In Stock and Ready To Ship!
Tagged Categories
Servos Servos: Low Profile
  • Extremely hard anodized aluminum. Stronger and lighter than equivalent standard cast or billet machined part.
  • Specifications:
    • Control system: PWM control (1500 usec is the central point)
    • Working voltage: 6V ~ 8.4V
    • Working temperature: -20C°~ +60C°
    • Torque: 22kg.cm @6V / 30kg.cm @7.4V / 40kg.cm @8.4v
    • Idle speed: 0.11sec/60 deg @6V / 0.09sec/60deg @7.4V / 0.07sec/60deg @8.4V
    • Idle current: 300mA @6V / 560Ma @7.4V / 660Ma @8.4V
    • Load current: 430mA @6V / 720Ma @7.4V / 820Ma @8.4V
    • Dead band: 2usec
    • Lifetime: >50000 times without load
    • Moving angle: 60°±10°
    • Drive Type: MOS drive
    • Motor type: Brushless Motor
    • Potentiometer type: Direct drive
    • Signal booster type: Digital
    • Size: 40 x 20 x 29.95 mm
    • Weight: 66g
    • Ball Bearing: 2BB
    • Gear material: Metal gear
    • Case Material: Aluminum case
    • Wire length: 260mm
    • Wire gauge No and plug type: 26AWG, JR plug
  • Color: Black
  • Product weight: 114.00 grams
  • Package size: 9.00 x 11.00 x 5.00cm
  • Factory description: JX Servo High Voltage Aluminum Case Low Profile 40Kg/ 0.07 Sec @ 8.4V Digital Servo
  • Manufactured by JX Servo
  • Manufacturer number: JX/B40
  • This item is eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
View ATees.com Glossary of Terms
Find something wrong in this description?
Help us fix it! Report An Error
Quantity Discount
Units at this Price ATees' Low Price
(Per Unit)		 You Save Click To Order
2 USD $67.80 USD $4.19 ADD

Founded in 2008, JX servo specializes in research, design and development of electronic model products. The company has been highly successful in inventing new high technology methods of designing and manufacturing Remote Control Servos, Micro-servos, Gyros, Head-locked Gyros, Mixers, Electronic Speed Controls, Receivers, Brushless motors plus other digital electronic model products.
Request a Video Intro

About JX Servo


Founded in 2008, JX servo specializes in research, design and development of electronic model products. The company has been highly successful in inventing new high technology methods of designing and manufacturing Remote Control Servos, Micro-servos, Gyros, Head-locked Gyros, Mixers, Electronic Speed Controls, Receivers, Brushless motors plus other digital electronic model products.
