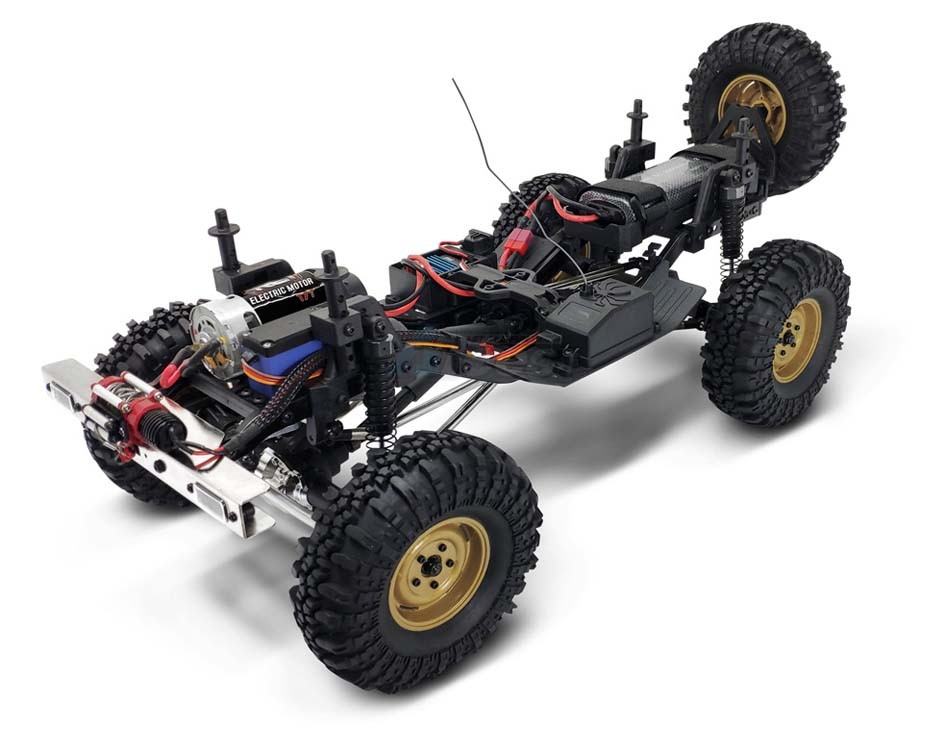

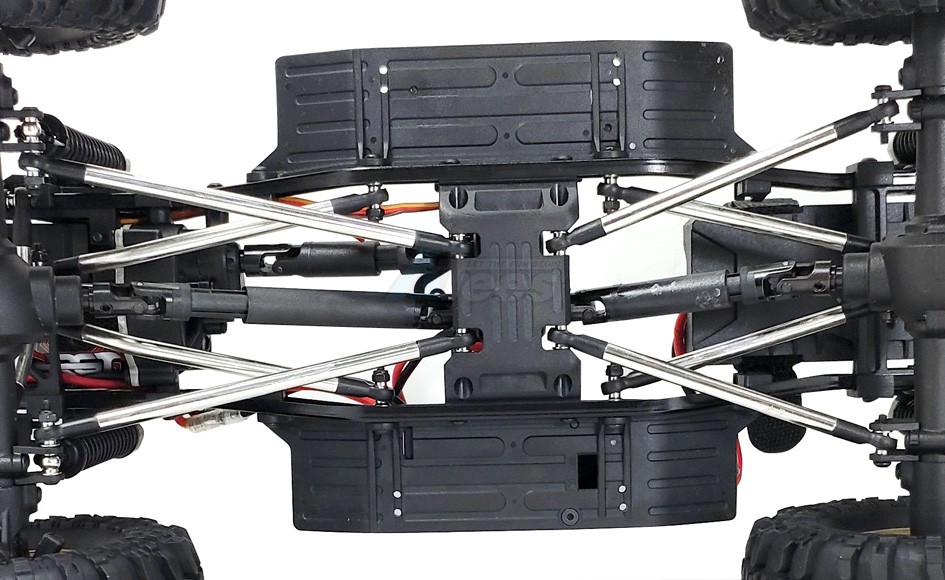

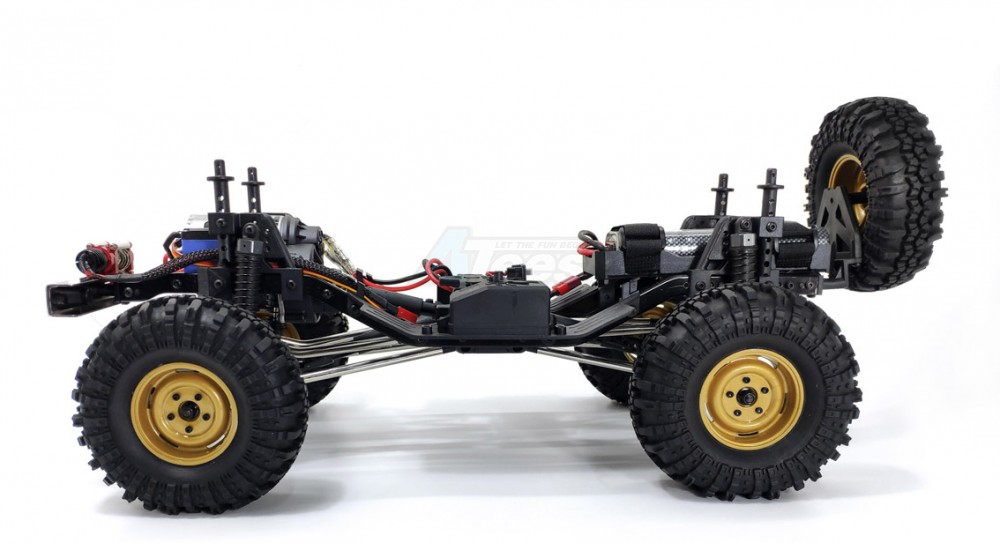

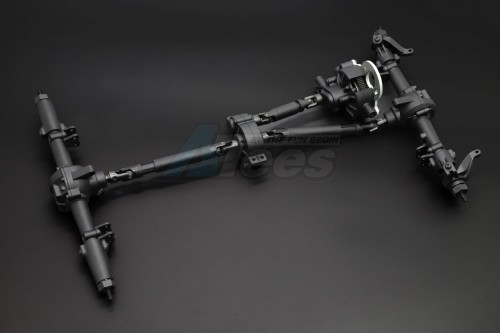

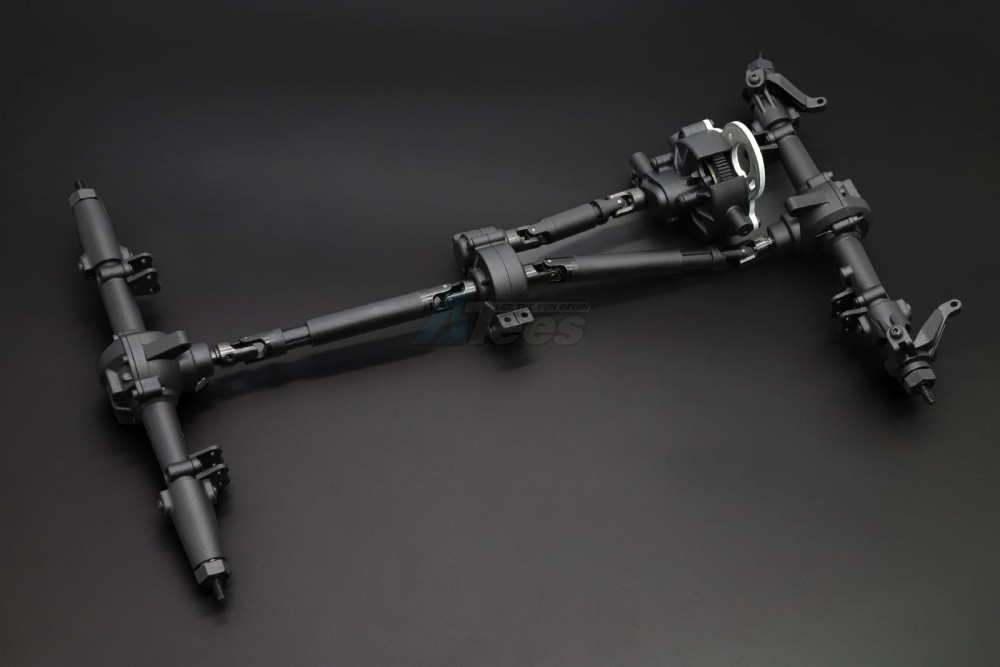

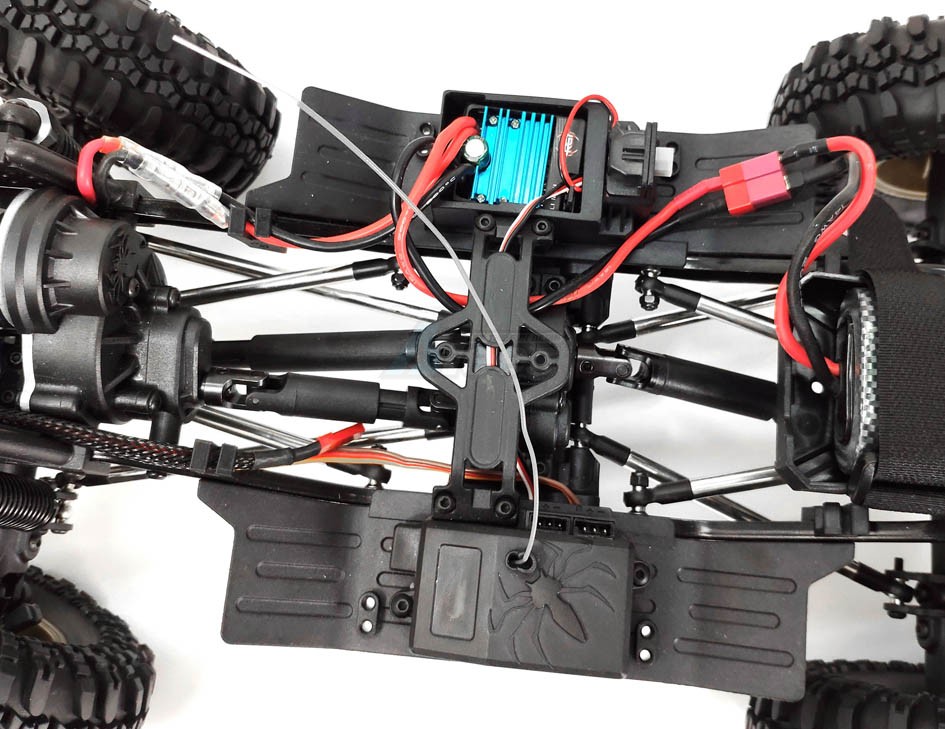

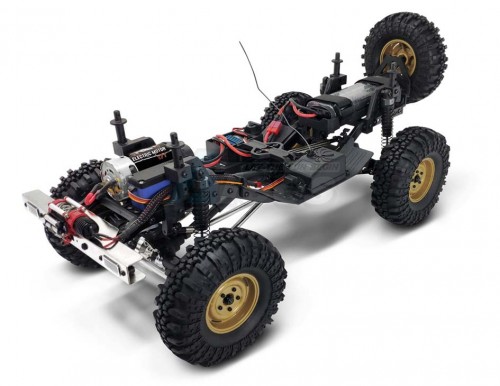

The CJ optimize and shorten the wheelbase on the Pioneer (EX86110) platform, with the chassis structure basically unchanged. The CJ wheelbase is adjusted to 285mm, and the front bumper adopts metal anti-crash design. The winch mounting hole is reserved, which could realize the non-destructive installation. The rear part of CJ is equipped with a full-size spare tire. The whole car employ ball bearings, C-shaped steel beam chassis, and front and rear axle locking spools. The steering arm is designed with a high-position tie rod, which is matched with CVA steering of a high-strength ball cage?and can achieve a super-large steering angle of 41 degrees. Later on, an aluminum alloy upgrade steering arm with a 45-degree steering angle will be introduced by the factory. The CJ have the motor front-mounted design, and split transmission and deceleration system. The main gear of the reducer comes with the slipper design, and the gears of the transmission system are all high-strength powder alloy gears, which solve the problem of teeth sweeping under the condition of super-strong resistance load. CJ is still in RTR version for the players, equipped with 17T RC550 super-strong torque motor, RGT-60A waterproof ESC, 15KG high-torque waterproof servo, and 7.2V 2000MAH NiMH battery. The 4-channel remote controller is specially designed for Crawler, supporting the third channel control the light switch, and the fourth channel control the winch retracting function. The biggest highlight of CJ is that the approach angle and the departure angle are nearly 90 degrees, not afraid of any road conditions. The design of the body shell is full of carefulness and attentiveness, as the simulated steering wheel, the seat, the handbrake, the shift lever, the windshield, and the rear-view mirror are all available.

Specification:

• Scale: 1/10
• Length: 465mm
• Width: 240mm
• Height: 255mm
• Weight: 2.78kg
• Wheelbase: 285mm
• Gear Ratio:56.6:1- 33.3:1"
• Motor: RC 550 17T with RGT motor sticker
• Servo: 15kg metal gear (waterproof)
• Transmitter: 2.4G - four channels
• ESC: RGT—60 (waterproof)
• NiMh Battery: 7.2V, 2000NAH (with RGT sticker)
• Body material: PC
