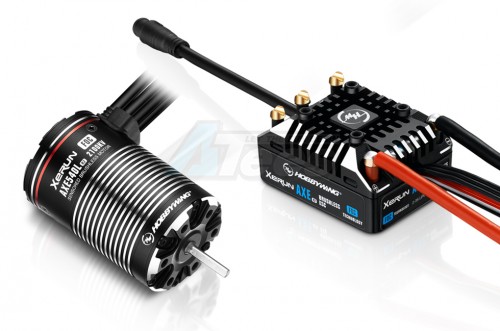

- This is a Hobbywing XeRun AXE R2 Rock Crawler Combo set with brushless ESC + 2800KV motor.

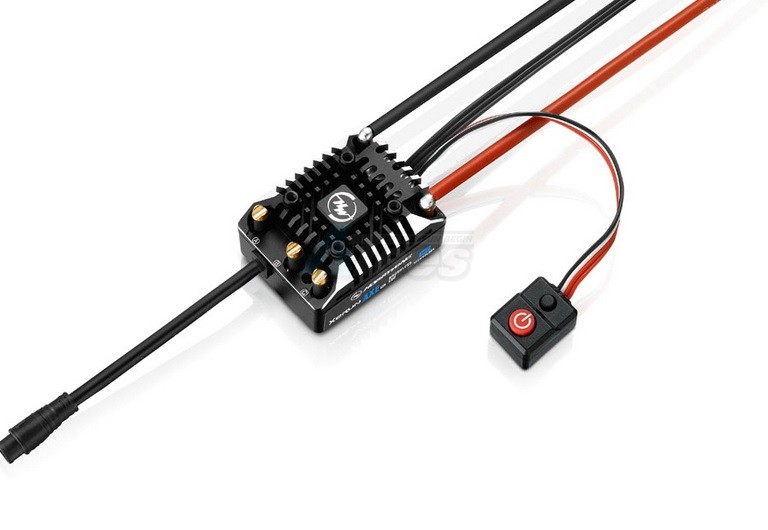

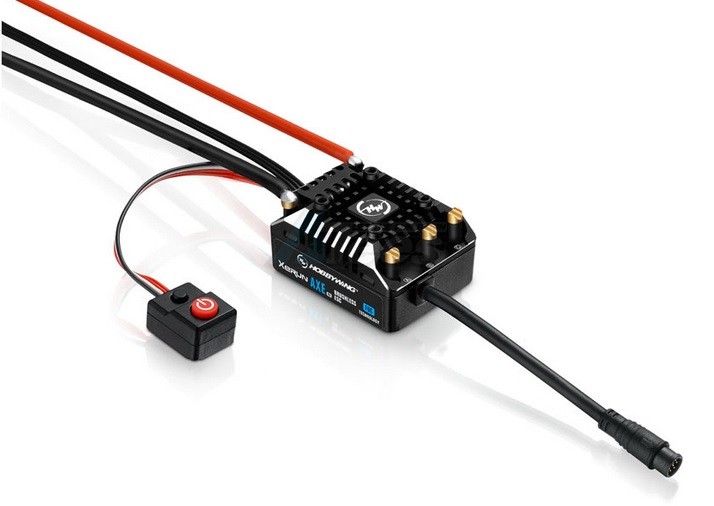

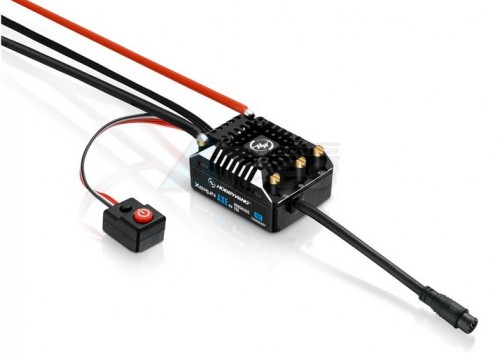

XeRun AXE R2 ESCFeatures:
- FOC (Field-oriented Control) for Super Linearity & High Torque & Extreme Slience
New sensor technology has changed the feel, performance, and overall tune-ability of the new Axe ESC and Motor in ways some have never experienced. Field-oriented Control is the name of this new tech and is something all new to the scale trail, rock racing, and RC world in-general. This new style of the sensor allows extremely accurate control and sensing of the motor while maintaining extreme performance and reliability. The motor and ESC are able to match the RPM of the motor to your throttle position under all driving conditions.This greatly improves downhill driving giving this system the ability to drive downhill under complete control. FOC technology also makes the whole system extremely silent, the motor doesn't create the annoying PWM noise when it is running.- Intelligent Torque Output & Speed Closed-loop Control for Easy Control
Not just a new ESC and motor, the new FOC sensors, combined with Intelligent Torque output and closed-loop speed control mean the ESC and motor will maintain the motor’s Torque level and RPM as the vehicles conditions change. Uphill, downhill, under load, you name it, your Axe system will do what you’re telling it to do.
- Battery Reverse Polarity Protection
Hobbywing's AXE FOC Crawler system has been designed with a very unique feature protecting your ESC from damage caused by Battery Reverse Polarity, so no matter how many times you reverse the battery connections the AXE ESC and the paired motor are safe from damage.
- Applicable to All Weather & Track Conditions
The IP-67 waterproof has been taken to a new level with the AXE System. Completely sealed ESC design with robust heatsink case design ensure the ESC is ready for anything you throw at it. The motor as well is sealed and combines a completely new sensor harness. No messy extra steps to make your system waterproof.
- Dual Running Mode
AXE FOC Crawler system supports dual running mode, not only classic “Forward and Reverse (rock crawler)” mode, but also “Forward/Reverse with brake (normal)” mode, to satisfy your application
- Professional Drag Brake Adjustments & Super Parking Capacity
Drag brake rate, and drag brake tuning allows scalers to adjust not only the hill/hold/drag brake but how quickly the brake applies.This allows high speed driving without sudden jerks or stops when releasing the throttle. The drag brake itself is supercharged and able to be run at extremely high levels.Compared to a standard crawling brushless setup, the drag brake in the Axe System can be rated at %200 in comparison- Built-in Bluetooth for Connecting the Mobile APP Directly
Built-in Bluetooth connectivity means exactly that. The ESC has Blue Tooth built right in! Nothing extra is needed to access the ESC’s complete onboard programming but your smartphone device and the Free Hobbywing App from your App Store. That’s right folks, the Bluetooth feature is BUILT INTO the ESC. No extra devices, wires or connections required!Please download the new version of V2 App. The old version of APP cannot support- Easy Obtain AXE Running Status with Real-time Data Recording Function
Connect the HW Link cellphone APP to the ESC and open the real-time data recording function, to check the throttle, voltage, current, temperature, RPM and other data in real-time. Easy obtain the running status of ESC and motor.Note: Due to the transmission distance of Bluetooth, the effective distance is about 3m!- Super Internal BEC
The built-in switch mode BEC with a maximum output of 13A and voltage adjustable between 6V and 7.4V allows the use of various standard servos, high voltage servos and other peripherals.
Specification:
- TYPE: Scale: 1/10th
- Brushed/Brushless: BL
- Sensored/Sensorless: SD
- Waterproof: YES
- Input Voltage: 2-3S Lipo / 6-9 Cell NiMH
- BEC Output: Switch Model: 6V/7.4V @ 6A
- Wires & Connectors:
- Wire & Connectors: Black -14 AWG-200mm *1; RED-14-200mm *1
- Output Wires: No
- Input Connectors: XT60
- Output Connectors: No
- ESC Programming via
- SET Button on ESC: Not Supported
- LED Program Box: Not Supported
- LCD Program Box: Not Supported
- WiFi Module: Not Supported
- Programming Port: Built-in Bluetooth
- Firmware Upgrade: Supported
- Size & Weight:
- Size: 47.4 x 36.2 x 26.5mm
- Weight: 108g (Including the weight of input line)
- Applications: Only support XERUN AXE R2 motor

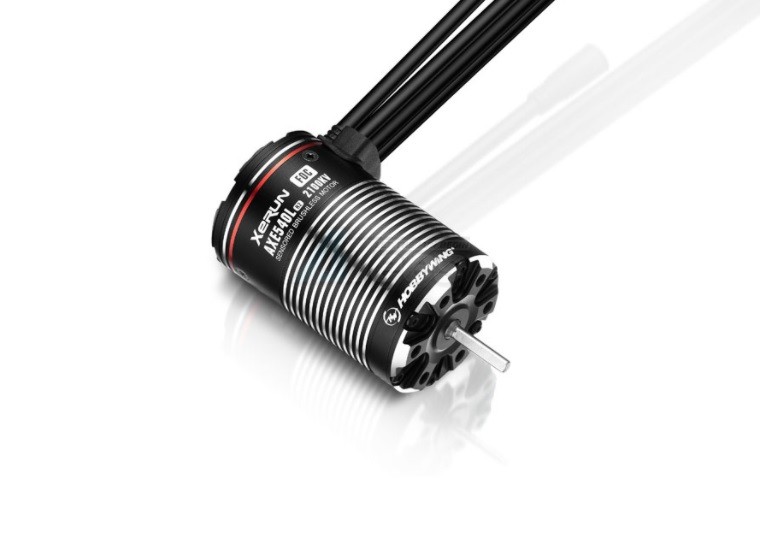

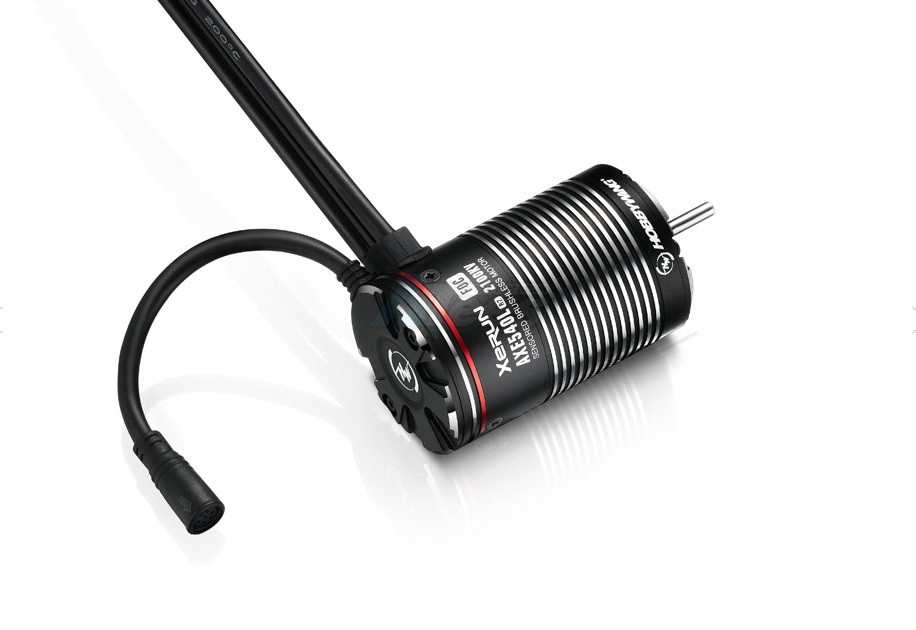

XeRun AXE R2 MotorFeatures:
- Applicable to All Weather & Track Conditions
Waterproof has been taken to a new level with the Axe System. Completely sealed ESC design with robust heatsink case design ensure the ESC is ready for anything you throw at it. The motor as well is sealed and combines a completely new sensor harness. No messy extra steps to make your system waterproof.(Note: please dismantle and clean the motor and put some lubricant onto the bearingsafter using it in some harsh conditions.)- Built-in High-precision Magnetic Encoder
A high precision magnetic encoder is used in the motor to ensure precision and consistent information is provided to the ESC. This allows the ESC to have more information from the motor than standard “hall” type sensors and provides improved performance and efficiency
- Low Cogging Torque
The AXE R2 Motors have an extremely low cogging effect and torque pulsation
- New Waterproof Sensor Port
The brand new design of the new waterproof sensor port has a smaller size. Its wiring is simpler and more beautiful than the AXR R1 system.
- Available in Different Sizes & KVs
Four AXE R2 motors, 540L R2-size 1400KV/2100KV/2800KV & 550-size 3300KV, are applicable to various rock crawlers.
XERUN AXE540L R2-2800KVSpecification:
- Scale: 1/10th
- Brushed/Brushless: BL
- Sensored/Sensorless: SD
- Pole Count:4
- KV Rating: 2800
- LiPo Cells: 2-3S
- No-load Current: 3.6A
- Size & Weight:
- O.D.: 36mm (1.42in)
- Length: 57.8mm (2.28in)
- Shaft Diameter: 3.175 (0.125in)
- Weight: 233g
- Application: 1/10 th Rock Crawler
- This item replaced these previous versions:
HW/38020250
- Package total weight: 488.00 grams (incl. packaging)
- Package size: 14.00 x 18.00 x 7.00cm
- Factory description: Hobbywing XERUN AXE R2 Rock Crawler Combo AXE540L R2-2100KV-FOC System
- Manufactured by Hobbywing
- Manufacturer number: HW/38020313
