PART: #JX/PDI-HV1151MG
|
This item ships Free WORLDWIDE. Details
|
|
|||||||||||||||||||||
CUSTOMER REVIEWS
This product currently has 15 reviews
Overall Rating:
|
 |
Customer Performance Survey:
Customers surveying this product said...
100%"Improves performance"
Currently all feedbacks are left by AsiaTees customers.
| Quantity Discount | |||
|---|---|---|---|
| Units at this Price | ATees' Low Price (Per Unit) |
You Save | Click To Order |
TAGGED CATEGORIES:
- Specifications:
- Control system:
- PWM control 1500 u-sec is the central point PWM control 1500 u-sec is the central point
- Max Angle:180°
Pulse width: 1000-2000μs=90°
Pulse width: 500-2500μs=180°
Dead band: 4μs 1520μs/330hz
- Working voltage: 6V~8.4V
- Working temperature: -20C°~ +60C°
- Torque: 6V 3.5Kg/cm; 8.4v 4.5Kg/cm
- Idle speed: 6V 0.12sec/60º; 8.4V 0.10sec/60º
- Idle current: 6V 150mA; 8.4V 180mA
- Load current: 6V 260mA; 8.4V 340mA
- Dead band: 4usec
- Lifetime: >15000 times without load
- Moving angle: 60º±2°
- Drive type: Mos drive
- Motor type: Cored motor
- Potentiameter type: Direct drive
- Signal booster type: Digital
- Size: 23.2x12.5x25.6mm
- Weight: 15g
- Ball bearing: no
- Gear material: Metal gear
- Case material: PA66+fiber40%
- Wire length:310mm
- Wire gauge No and plus type: 26AWG, JR plug
- Black: Negative Red: Positive White: Signal
- Control system:
- This item replaced these previous versions:
JX/PDI-1151MG
- Package total weight: 28.00 grams (incl. packaging)
- Factory description: JX Servo Waterproof Core Metal Gear Mini Servo 4.5KG 0.08s @ 8.4V for TRX4 BRX01
- Manufactured by JX Servo
- Manufacturer number: JX/PDI-HV1151MG
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error

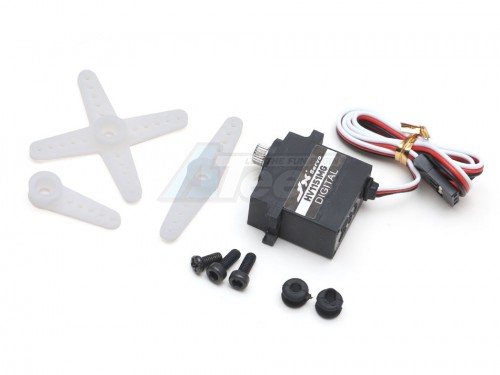

High Voltage Mini Servo Waterproof Core Metal Gear 4.5KG 0.08s @ 8.4V for TRX4 BRX01 by JX Servo
