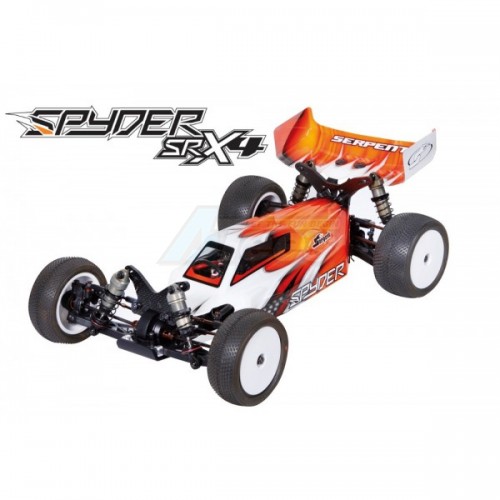

Spyder SRX4 Buggy 4wd 1/10

High end Race level 1/10 scale 4wd buggy.
Ready for the racetracks in dirt, clay, grass, astro or carpet.

Carbon fiber 2.5mm chassis with composite side plates. Big bore 12mm hard coated shock-absorbers. Dual belt-driven drive system, with captured long front belt and open side belt. Compact and light front and rear gear differentials with composite front pulley and rear hard anodized aluminum diff gear. Slipper clutch with friction pads and solid aluminum front locked clicker drive. Durable spring steel drive shafts, wheel axles and drive cups. Carbon fiber shock towers front and rear.

Design by Billy Easton, USA

Central spline
The composite central spline in which the front belt runs, creates a very strong chassis stiffener, right in the center of the car. It also protects the front belt very well against debris and insures no belt can skip.

Battery and stays
The saddle pack battery (not included) is kept in place by 2 easy to use composite battery-covers. Small machined aluminum nuts are included to keep them in place.

Electronics
The center of the car allows plenty of space to mount the most popular speedo and receivers, as well as the transponder. The car also allows enough space to enable nice routing of your cables. The shorty type servo is mounted on integrated composite stands. Various spacers and horns are included to suit the most popular servo brands.

Drivetrain
The dual belt system is very durable and light. The Kevlar reinforced front belt is fully captured, so well protected against debris which increases life. The Kevlar reinforced side belt is open due to its location, and the closely fitted body will prevent debris from coming in contact with the belt. The belts run on precision machined pulleys. The front belt tension can be changed with eccentric inserts.

Gear-diffs
The 2 compact oil-filled gear differentials front and rear. These super smooth units are light and compact and very durable. The differentials are also very easy to build and are very low maintenance. The diff-inserts in the cases allow to you run a low, mid or high position which alters grip.
The rear gear diff has a hard coated aluminum gear for durability.

Drive shafts
Serpent spring steel CVD drive shafts and wheel axles for durability. Also the lightened differential drive cups are in spring steel.

Suspension pins
Made in durable and strong Serpent hardened steel. Captured units with rounded end which rotate in small ball-cups inside the suspension brackets, so it’s super free.

Shocks
Serpent hard coated shock bodies and shock tops for super smooth operation and durability. 3.2mm shafts with new X-ring package and molded pistons. The shocks can be used either emulsion or membrane configuration. The shock springs have ground ends, checked and matched for perfect equal operation. Ride height can be easy set with the threaded collars which have o-rings inside to stay in position.

Shock towers
Very durable 4mm thick carbon fiber front and rear shock towers with 4 positions for shock angle.

Shock stays
Very durable aluminum shock stays combined with a small bushing and nylon flanged nuts.

Slipper clutch
This light slipper-clutch unit, is a spring loaded 3 pad version, allow to control the power distribution.

Clicker system
Standard in the car the “solid clicker” is used for permanent 4wd, which for high grip conditions is best to use. The optional clicker system requires few extra parts only and can be used well in medium and lower grip conditions, to allow the front wheels to spin more free and create more corner entry speed as needed.

Front suspension
Strong composite lower suspension arms with mounting spots for the optional anti-roll bar. Aluminum suspension brackets with inserts to change set-up. Small but effective composite front bumper to protect the front end. The angled front built in kick up allows for smoother landings. The composite front diff case is a very strong affair to mount the diffs, front shock tower, central spline and chassis too.

Steering blocks and c-hubs
The composite steering blocks and c-hubs offer a variety of set-ups with inserts and shaped changeable Ackermann plates of which all 3 composite ones are included.

Rear suspension
The rear end shares many parts with the 2wd MM Spyder, which is nice if you also run 2wd. Also here a very sturdy structure with the diff-case as base to mount diffs, shock tower, chassis and motor mount to. Strong composite lower arms. Suspension brackets in aluminum also here with inserts to play with set-up. The beefy composite uprights offer 3 setup position in the top and inserts in the bottom.

Rear wing and wing holder
The strong clear polycarbonate wing is mounted to the nylon rear wing holder. The wing angle can be changed by using the included wing angle spacers: 0, 2, 4, 6, and 8 angle are all included.

Anti-roll bar
Both the front and rear allow mounting anti-roll bars. As default Serpent only supplies the rear ball-raced anti-roll bar, as that is used more commonly.

Motor mount
The motor is mounted securely to the thick 3mm cnc machined 7075 T6 alu motor plate, which doubles as cooler. Machined slots allow movement of the motor to fine-tune the pinion/spur gap. The motor holder also holds the shafts of the side belt system, and allows mounting.

Body mounts
The strong composite body mounts are easily located in case used. As alternative velcro can be added to the side of the chassis stiffeners.

Body
The body is made in the same Avenger style as the 2wd buggy and shares its looks and compact shape. Top quality clear polycarbonate is used. The body comes with a masking sheet.

Rear wing and wing holder
The strong clear polycarbonate wing is mounted to the nylon rear wing holder. The wing angle can be changed by using the included wing angle spacers: 0, 2, 4, 6, and 8 angle are all included.

Rims
Durable Serpent designed wheel are included in white color for front and rear (tires and inserts are not included).

Steering
The fully ball raced angled dual axis steering system with integrated servo saver function, offers an almost perfect Ackermann effect. Ackermann can be set with small plates which mount to the steering arms. 3 types included to play with. The angled system will prevent bump steer.

Chassis
The light 2.5mm carbon fiber chassis has the right flex combined with the composite side-guards / chassis stiffeners and center spline. All holes are countersunk to have a fully flat bottom surface. Holes are centered and symmetrical for even flex.

The overall layout gives a 42/58 – 44/56 weight balance. Optional weights and brass parts can be used to influence that.

Manual / setup sheet / decals
The Spyder SRX4 comes with a printed full color manual which shows the assembly process in steps following the packed bags. The manual also encloses the exploded views and a ref-guide to make it easy to find the part numbers you may need of spares and optional parts. A latest version of the manual can always be found on our website as PDF.
A default set-up sheet is included, but more set-ups can be found on our product page under set-ups.
A Spyder decal sheet and a Serpent decal sheet are included.

Packing
The strong kit box includes the coded bags to assemble the car, as well as the body, rear wing and wheels, manual, set-up sheet and decals. Each kit is carefully packed and a checking decal can be found on the side of the box.
