PART: #MST/601013-1
|
This item ships Free WORLDWIDE. Details
|
|
|||||||||||||||||||||
CUSTOMER REVIEWS
This product currently has 1 reviews
Overall Rating:
|
 |
Customer Performance Survey:
Customers surveying this product said...
100%"Improves performance"
Currently all feedbacks are left by AsiaTees customers.
| Quantity Discount | |||
|---|---|---|---|
| Units at this Price | ATees' Low Price (Per Unit) |
You Save | Click To Order |
TAGGED CATEGORIES:
- The MST XB60 Brushed ESC is a great waterproof brushed motor ESC that can be used in a variety of applications, including 1/10 on road, off road and 1.9 crawlers. Download the instruction manual from the resources tab above.
Features:
- Water-resistant and dust-proof for all weather races.
- Small size with built-in capacitor module.
- Automatic throttle range calibration, easy to use.
- Multiple protections : Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection.
- Easily programmed with the jumpers.
Specification:
- Cont. / Burst Current: Forward : 60A / 360A ; Backward : 30A / 180A
- Input: 2-3S Lipo, 5-9 cells NiMH
- Applications: 1:10 on-road, off-road Buggy, Truggy, SCT, Crawler, Tank
- Motor Turns:
- 4-6cells NiMH or 2S Lipo: 540 or 550 size motor ? 8T or RPM , 45000 @ 7.2V
- 8-9cells NiMH or 3S Lipo: 540 or 550 size motor ? 8T or RPM , 30000 @ 7.2V
- Resistance: Fwd : 0.0008 Ohm, Bwd : 0.0016 Ohm
- Buit-in BEC: 5V / 2A ( Linear mode BEC )
- RWM Frequency: 1KHz
- Dimension & Weight: 36 X 30 X 18, 40g
- This item replaced these previous versions:
MST/601013
- Package total weight: 73.00 grams (incl. packaging)
- Factory description: MST XB60 Brushed ESC (Long-Wire)
- Manufactured by MST
- Manufacturer number: MST/601013-1
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error

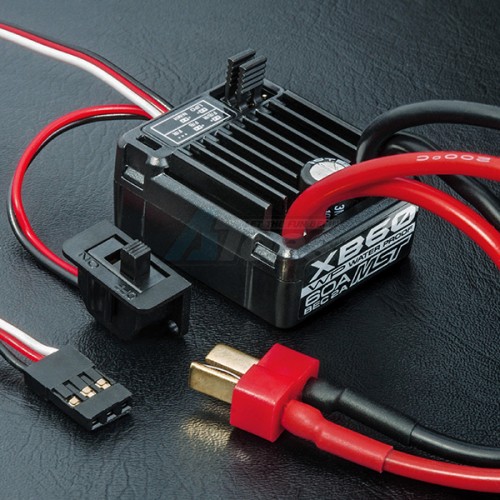

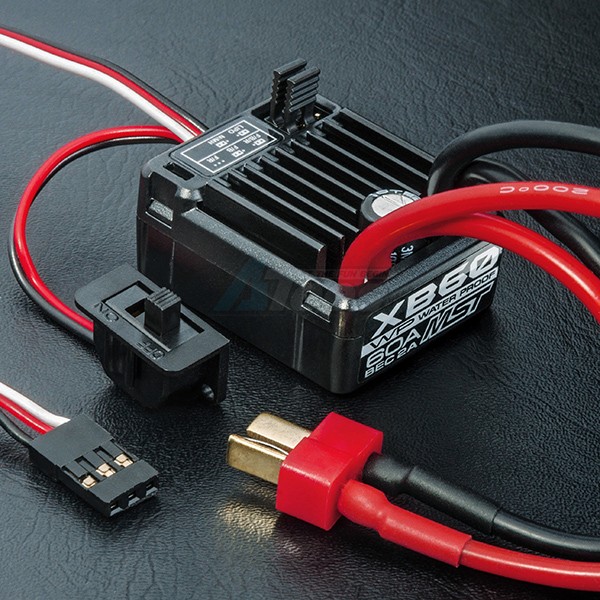

XB60 Brushed ESC (Long-Wire) by MST
