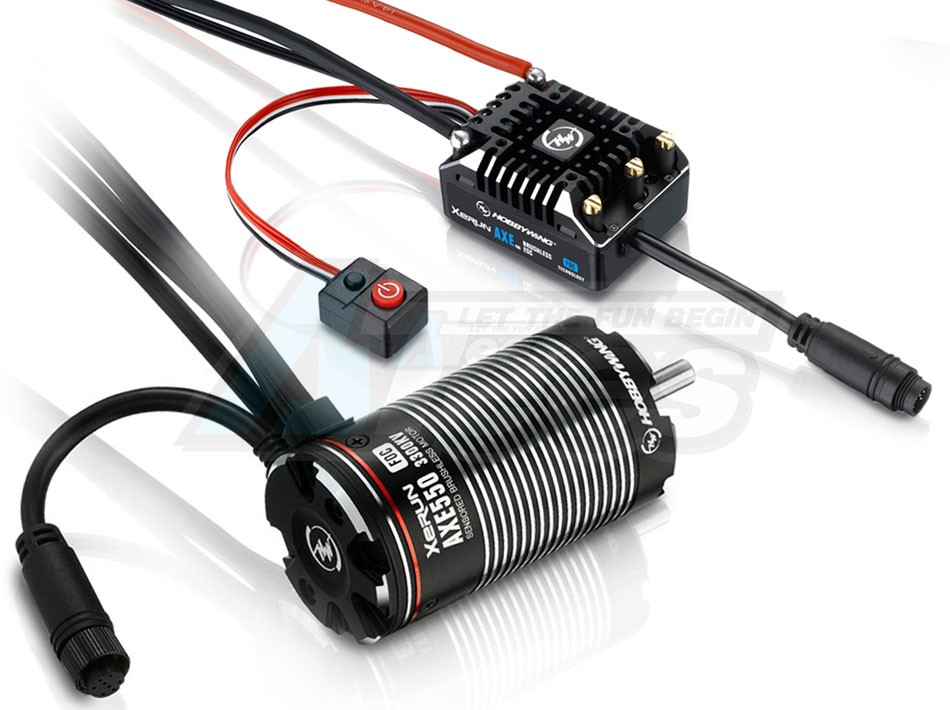

 Hobbywing XERUN AXE550 3300KV-FOC Sensored Brushless System for 1/10 Scale Rock Crawler
All

Request Additional Photos
Innovation Powered By Passion
PART: #HW/38020254
    OUR INVENTORY:
    Out Of Stock
    USD $229.99
    Best Price Guarantee

    Hobbywing XERUN AXE R2 Rock Crawler Combo AXE550 R2-3300KV-FOC System



    Request a Video Intro
    CUSTOMER REVIEWS

    This product currently has 5 reviews

    Overall Rating:
    100%
    0%
    0%
    0%
    0%

    Customer Performance Survey:

    Customers surveying this product said...

    100%"Improves performance"

    Currently all feedbacks are left by AsiaTees customers.

    RELATED BLOG POST

    Hobbywing XeRun AXE550 Scale FOC Rock Crawler Combo

    PRODUCT RESOURCES
    TAGGED CATEGORIES:
    Waterproof Electronic Combos
    PRODUCT INFORMATION:

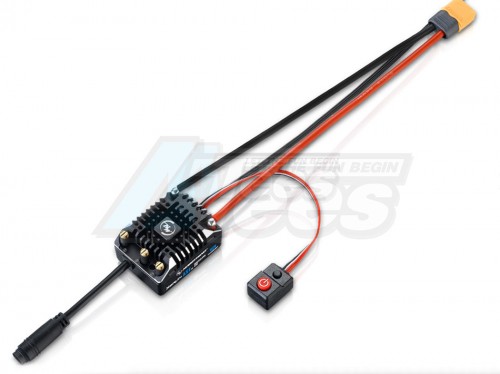

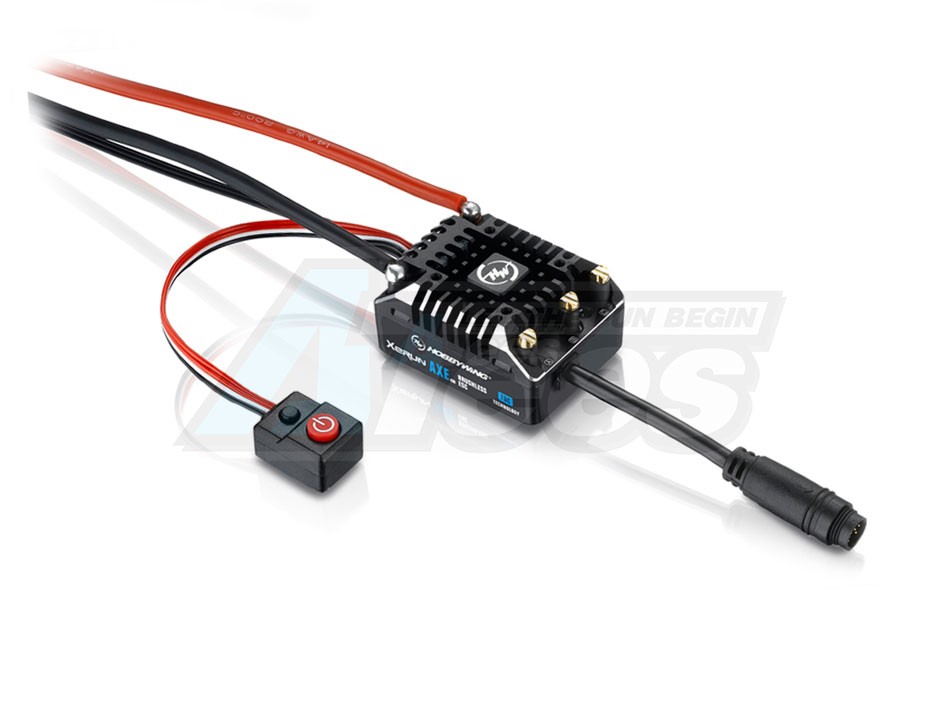

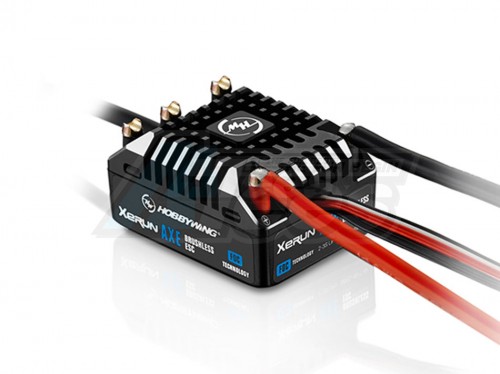

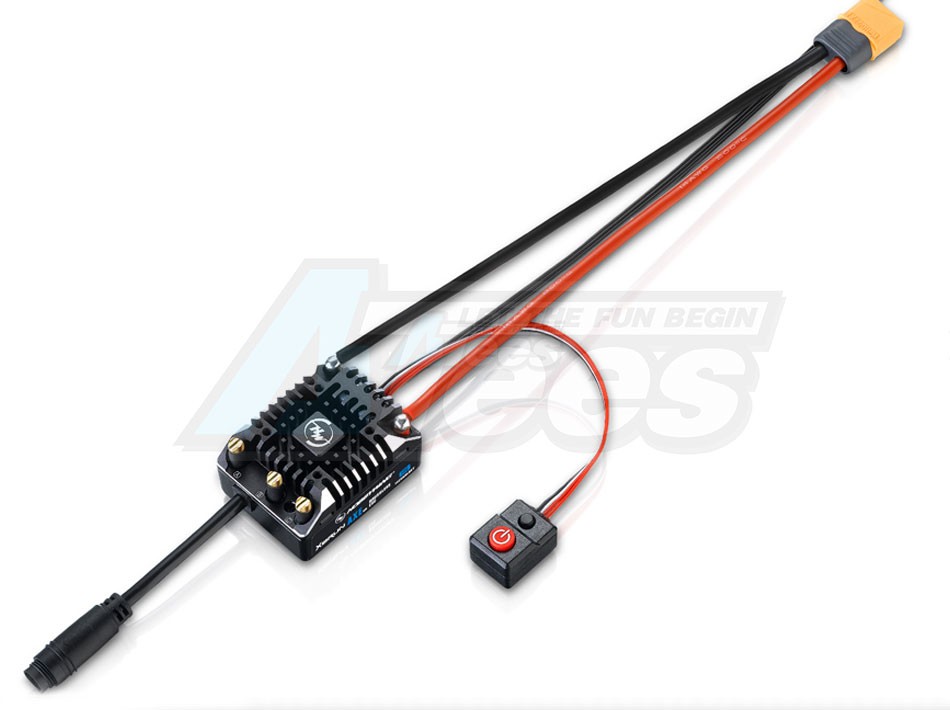

    • ESC: XeRun Axe Brushless ESC V1.1

      Features:
      • FOC (Field-oriented Control) for Super Linearity & High Torque & Extreme Slience
      • Intelligent Torque Output & Speed Closed-loop Control for Easy Control
      • Battery Reverse Polarity Protection
      • Applicable to All Weather & Track Conditions
      • High Driving Efficiency for Long Battery Life
      • Professional Drag Brake Adjustments & Super Parking Capacity
      • Built-in Bluetooth for Connecting the Mobile APP Directly
      • Advanced and Secure Electronic Switch
      • Multiple Programmable Items

      New firmware (01-00.2.01) for the XeRun AXE ESC has improved the following features:
      • New Feature Added - RPM/Throttle Matching - 3 Settings
      • New Setup Process - Automatic Motor Pairing Improved these Issues
      • Motor "punch" or instant start up –
      • Drag Brake
      • Motor Operation
      • More RPM
      • 550 Size Motor


      Note:

      To update the firmware version to 01-00.2.01, the AXE ESC must be connected AXE 540 motor.

      You must go through “automatic motor pairing” when updating the ESC firmware


      Specification:
      • Scale: 1/10
      • Brushed/Brushless: BL
      • Sensored/Sensorless: SD
      • Waterproof: Yes
      • Cont./Peak Current: 60A/360A
      • Input Voltage: 2-3S LiPo, 6-9S NiMH
      • BEC Output: 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode)
      • Input Wire: Red-Black-12AWG-200mm
      • Input Connectors: XT60
      • Programming Port: Bulit-in Bluetooth
      • Firmware Upgrade: Supported
      • Size: 47.4x36.2x24.6mm
      • Weigh: 82g
      • Motor: Only the XERUN AXE Series

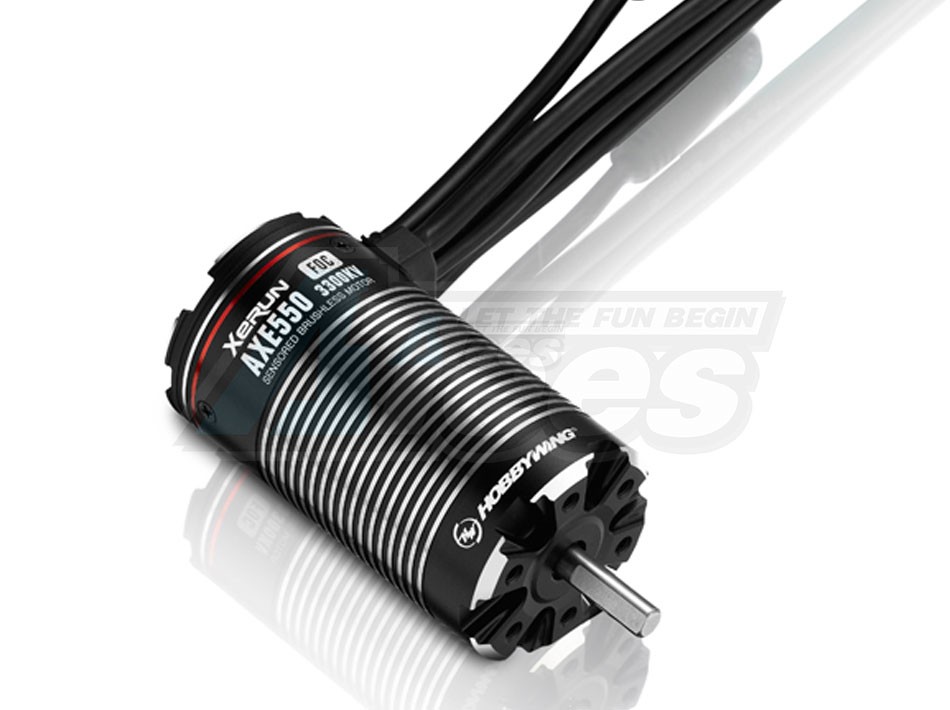

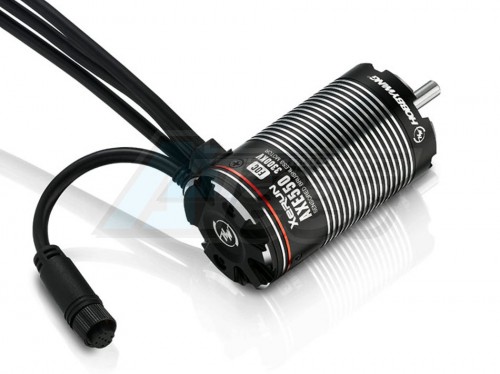

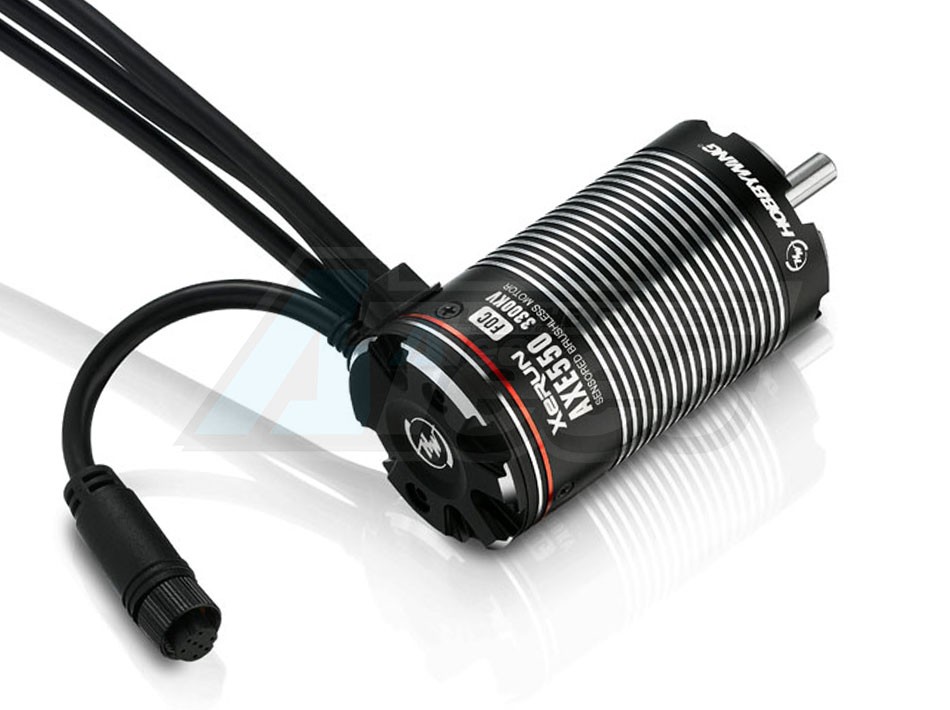

      Motor: XeRun AXE 550 Motor

      Features:
      • Patented “Staggered Pole” Rotor Design for Ultra-low Torque Ripple
      • Applicable to All Weather & Track Conditions
      • High Driving Efficiency for Long Battery Life
      • Innovative Sensor Port
      • Built-in High-precision Magnetic Encoder
      • Available in Different Sizes & KVs

      Specification:
      • Motor: XERUN AXE550-3300KV-FOC
      • Scale: 1/10
      • Brushed/Brushless: BL
      • Sensored/Sensorless: SD
      • Pole Count: 4
      • KV Rating: 3300
      • LiPo Cells: 2-3S
      • No-load Current(A): 2.7
      • (mm): 36.0(1.42in)
      • Length (mm): 66.2(2.61in)
      • Shaft Diameter (mm): 5(0.197in)
      • Weight (g): 289g



    • Package total weight: 616.00 grams (incl. packaging)
    • Package size: 13.00 x 17.00 x 6.00cm
    • Factory description: Hobbywing 1/10 Scale FOC Rock Crawler Combo: XERUN AXE550 -3300KV-FOC Sensored Brushless System
    • Manufactured by Hobbywing
    • Manufacturer number: HW/38020254
    • This item is not eligible for in-store promotions
    • Nobody beats our price! See our Best Price Guarantee, or your money back!
    • Questions about this product? Ask Our Technical Support
    • You may Request Additional Product Information for this product.
    • Looking for screws / bolts to assemble this product? Email Us
