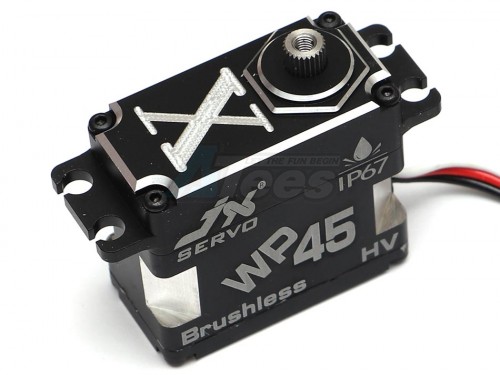

- The JX/WP45 is JX Servo's new flagship brushless high torque servo. It features an all aluminum case, full metal gears and is fully waterproof.
Specification:- Working voltage: 0V ~ 8.4V
- Working temperature: -20C°~ +60C°
- Torque (6.0V/8.4V): 37kg.cm/45kg.cm
- Idle speed (6.0V/8.4V): 0.13/0.11Sec/60°
- Idle current (6.0V/8.4V): 300mA/560mA
- Load current (6.0V/8.4V): 430mA/810mA
- Dead band: 2usec
- Lifetime: >60000 times without load
- Moving angle: 60°±10°
- Drive type: MOS drive
- Motor type: Brushless Motor
- Potentiometer type: Direct drive
- Signal booster type: Digital

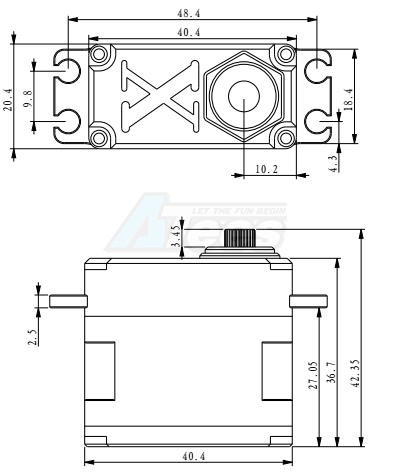

- Size: 40.4 x 20.4 x 36.7mm
- Weight: 75g
- Ball Bearing: 2BB
- Gear material: Full Metal
- Case material: Aluminum case
- Wire length: 260mm
- Wire gauge No and plug type: 26AWG, JR plug
- Black wire: Negative
- Red wire: Positive
- White wire: Singal
- IP67 Waterproof
Replacements:
Complete Rebuild Steel Gears for JX/WP-45 & JX/WP-43 Servo JX/WP4345-SG - Color: Black
- Package total weight: 120.00 grams (incl. packaging)
- Factory description: JX Servo 45KG Waterproof Aluminum Case Brushless Metal Gear Digital Servo 0.11S 45kg @8.4V
- Manufactured by JX Servo
- Manufacturer number: JX/WP45
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error
45KG Waterproof Aluminum Case Brushless Metal Gear Digital Servo 0.11S 45kg @8.4V by JX Servo
LOADING IMAGES
|
|
|
Tagged Categories
- Extremely hard anodized aluminum. Stronger and lighter than equivalent standard cast or billet machined part.
- The JX/WP45 is JX Servo's new flagship brushless high torque servo. It features an all aluminum case, full metal gears and is fully waterproof.
Specification:- Working voltage: 0V ~ 8.4V
- Working temperature: -20C°~ +60C°
- Torque (6.0V/8.4V): 37kg.cm/45kg.cm
- Idle speed (6.0V/8.4V): 0.13/0.11Sec/60°
- Idle current (6.0V/8.4V): 300mA/560mA
- Load current (6.0V/8.4V): 430mA/810mA
- Dead band: 2usec
- Lifetime: >60000 times without load
- Moving angle: 60°±10°
- Drive type: MOS drive
- Motor type: Brushless Motor
- Potentiometer type: Direct drive
- Signal booster type: Digital
- Size: 40.4 x 20.4 x 36.7mm
- Weight: 75g
- Ball Bearing: 2BB
- Gear material: Full Metal
- Case material: Aluminum case
- Wire length: 260mm
- Wire gauge No and plug type: 26AWG, JR plug
- Black wire: Negative
- Red wire: Positive
- White wire: Singal
- IP67 Waterproof
Replacements:
Complete Rebuild Steel Gears for JX/WP-45 & JX/WP-43 Servo JX/WP4345-SG - Color: Black
- Product weight: 120.00 grams
- Factory description: JX Servo 45KG Waterproof Aluminum Case Brushless Metal Gear Digital Servo 0.11S 45kg @8.4V
- Manufactured by JX Servo
- Manufacturer number: JX/WP45
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error
| Quantity Discount | |||
|---|---|---|---|
| Units at this Price | ATees' Low Price (Per Unit) |
You Save | Click To Order |
This product currently has 7 reviews
Overall Rating:
|
|
Customer Performance Survey:
Customers surveying this product said...
86%"Improves performance"
Currently all feedbacks are left by AsiaTees customers.
The Miscellaneous All 45KG Waterproof Aluminum Case Brushless Metal Gear Digital Servo 0.11S 45kg @8.4V has an average rating of
stars based on 7 customer reviews.
Founded in 2008, JX servo specializes in research, design and development of electronic model products. The company has been highly successful in inventing new high technology methods of designing and manufacturing Remote Control Servos, Micro-servos, Gyros, Head-locked Gyros, Mixers, Electronic Speed Controls, Receivers, Brushless motors plus other digital electronic model products.
