Showing #5313 of All Parts
LOADING IMAGES
|
PART: #JX/BLS-HV7132MG
|
**Discount shipping applies to this item.
|
|
||||||||||||||||||||
BUNDLE UP & SAVE!
CUSTOMER REVIEWS
This product currently has 9 reviews
Overall Rating:
|
 |
Customer Performance Survey:
Customers surveying this product said...
100%"Improves performance"
Currently all feedbacks are left by AsiaTees customers.
TAGGED CATEGORIES:
- Features:
- Voltage range: 6.0-7.4V
- High performance programmable brushless standard servo
- High-precision Taiwan-made steel gears with hard anodizing
- Full CNC aluminium shell structure
- Dual ball bearings
- Splash proof
Specifications:
- Dead band: 1μs
- Working frequence: 1520μs / 330hz
- Motor: bushless motor
- Operating Speed (6.0V): 0.09 sec/60°
- Operating Speed (7.4V): 0.07 sec/60°
- Stall Torque (6.0V): .27.5 kg.cm
- Stall Torque (7.4V): 32.5 kg.cm
- Dimensions: 40.5X20.5X36mm
- Weight: 71 g
- Connector Wire Length: JR 265 mm
- Bearing: 2BB
- Spline: 25
Replacement Gear:
Complete Rebuild Gears for JX/BLS-HV7132MG Servo JX/BLS-HV7132MG-SG - Package total weight: 120.00 grams (incl. packaging)
- Factory description: JX Servo 32kg Aluminum Case Brushless Metal Gear Servo .07s 32.5kg @7.4v
- Manufactured by JX Servo
- Manufacturer number: JX/BLS-HV7132MG
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error

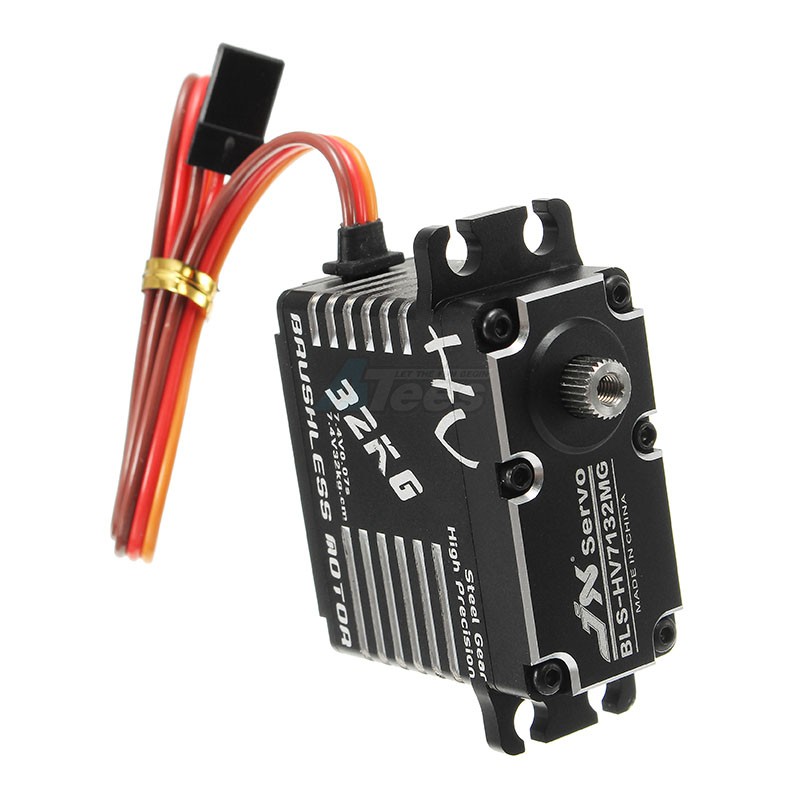

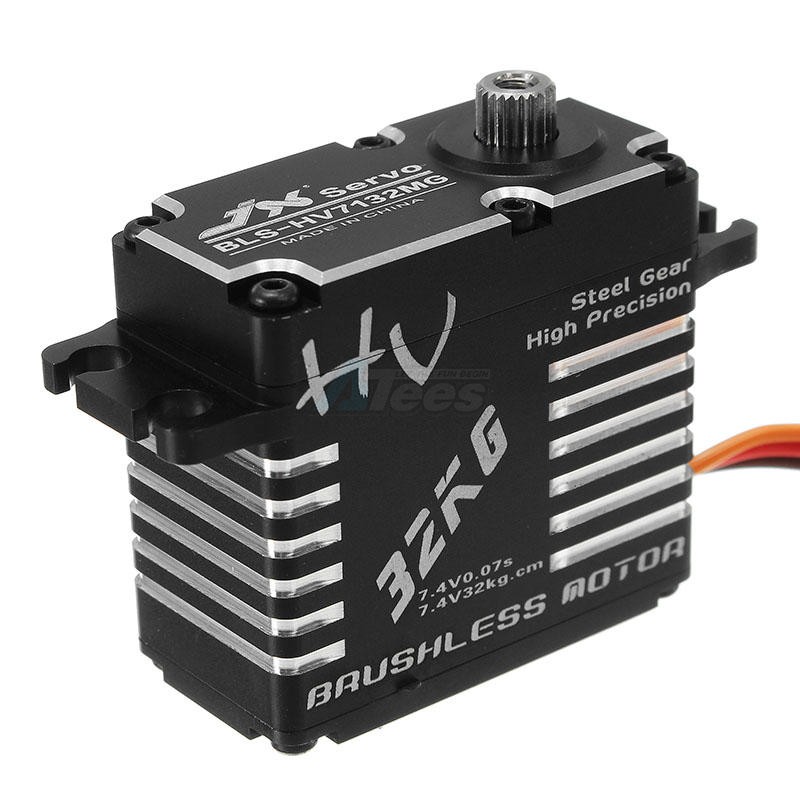

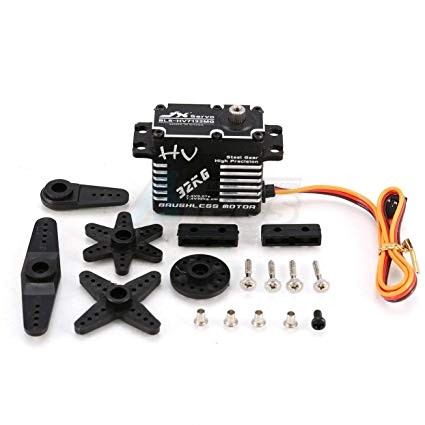

32kg Aluminum Case Brushless Metal Gear Servo .07s 32.5kg @7.4v by JX Servo
LOADING IMAGES
Tagged Categories
- Extremely hard anodized aluminum. Stronger and lighter than equivalent standard cast or billet machined part.
- Features:
- Voltage range: 6.0-7.4V
- High performance programmable brushless standard servo
- High-precision Taiwan-made steel gears with hard anodizing
- Full CNC aluminium shell structure
- Dual ball bearings
- Splash proof
Specifications:
- Dead band: 1μs
- Working frequence: 1520μs / 330hz
- Motor: bushless motor
- Operating Speed (6.0V): 0.09 sec/60°
- Operating Speed (7.4V): 0.07 sec/60°
- Stall Torque (6.0V): .27.5 kg.cm
- Stall Torque (7.4V): 32.5 kg.cm
- Dimensions: 40.5X20.5X36mm
- Weight: 71 g
- Connector Wire Length: JR 265 mm
- Bearing: 2BB
- Spline: 25
Replacement Gear:
Complete Rebuild Gears for JX/BLS-HV7132MG Servo JX/BLS-HV7132MG-SG - Product weight: 120.00 grams
- Factory description: JX Servo 32kg Aluminum Case Brushless Metal Gear Servo .07s 32.5kg @7.4v
- Manufactured by JX Servo
- Manufacturer number: JX/BLS-HV7132MG
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error
This product currently has 9 reviews
Overall Rating:
|
|
Customer Performance Survey:
Customers surveying this product said...
100%"Improves performance"
Currently all feedbacks are left by AsiaTees customers.
The Miscellaneous All 32kg Aluminum Case Brushless Metal Gear Servo .07s 32.5kg @7.4v has an average rating of
stars based on 9 customer reviews.
Founded in 2008, JX servo specializes in research, design and development of electronic model products. The company has been highly successful in inventing new high technology methods of designing and manufacturing Remote Control Servos, Micro-servos, Gyros, Head-locked Gyros, Mixers, Electronic Speed Controls, Receivers, Brushless motors plus other digital electronic model products.
