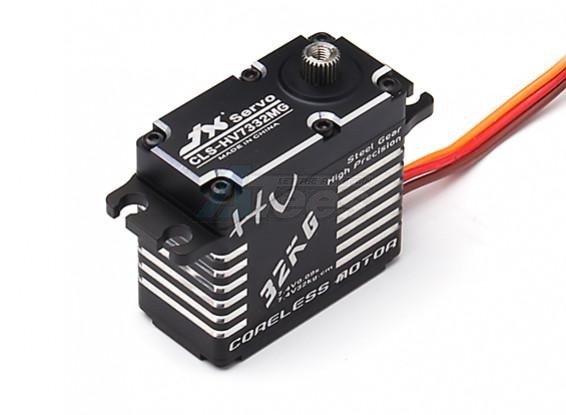

 JX Servo 32kg Aluminum Case Coreless Metal Gear Servo .09s 32.3kg @7.4v
All
Prev
Next
Showing #5312 of All Parts


LOADING IMAGES

Request Additional Photos
PART: #JX/CLS-HV7332MG
This item ships Free WORLDWIDE. Details
OUR INVENTORY:
In Stock and Ready To Ship!
USD $58.19
SALE!
USD $40.5
Best Price Guarantee

Add To Cart
Shipping Options

BUNDLE UP & SAVE!


Request a Video Intro
CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

Quantity Discount
Units at this Price ATees' Low Price
(Per Unit)		 You Save Click To Order
3 USD $38.88 USD $4.86 ADD
TAGGED CATEGORIES:
Servos: Torque
PRODUCT INFORMATION:
  • Features:
    • Voltage range: 6.0-7.4V
    • High performance programmable coreless standard servo
    • High-precision Taiwan-made steel gears with hard anodizing
    • Full CNC aluminium shell structure
    • Dual ball bearings
    • Splash proof

    Specifications:
    • Dead band: 1μs
    • Working frequence: 1520μs / 330hz
    • Motor: coreless motor
    • Operating Speed (6.0V): 0.12 sec/60°
    • Operating Speed (7.4V): 0.09sec/60°
    • Stall Torque (6.0V): .27.1 kg.cm
    • Stall Torque (7.4V): 32.3 kg.cm
    • Dimensions: 40.5X20.5X36mm
    • Weight:  73 g
    • Connector Wire Length: JR  265 mm
    • Bearing: 2BB
    • Spline: 25
  • Package total weight: 120.00 grams (incl. packaging)
  • Package size: 9.00 x 12.00 x 5.00cm
  • Factory description: JX Servo 32kg Aluminum Case Coreless Metal Gear Servo .09s 32.3kg @7.4v
  • Manufactured by JX Servo
  • Manufacturer number: JX/CLS-HV7332MG
  • This item is eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
View ATees.com Glossary of Terms

Find something wrong in this description?
Help us fix it! Report An Error

32kg Aluminum Case Coreless Metal Gear Servo .09s 32.3kg @7.4v by JX Servo


LOADING IMAGES

Part: #JX/CLS-HV7332MG
*Ships Free WORLDWIDE
USD $58.19
SALE!
USD $40.5

Add To Cart
In Stock and Ready To Ship!
Tagged Categories
Servos: Torque
  • Extremely hard anodized aluminum. Stronger and lighter than equivalent standard cast or billet machined part.
  • Features:
    • Voltage range: 6.0-7.4V
    • High performance programmable coreless standard servo
    • High-precision Taiwan-made steel gears with hard anodizing
    • Full CNC aluminium shell structure
    • Dual ball bearings
    • Splash proof

    Specifications:
    • Dead band: 1μs
    • Working frequence: 1520μs / 330hz
    • Motor: coreless motor
    • Operating Speed (6.0V): 0.12 sec/60°
    • Operating Speed (7.4V): 0.09sec/60°
    • Stall Torque (6.0V): .27.1 kg.cm
    • Stall Torque (7.4V): 32.3 kg.cm
    • Dimensions: 40.5X20.5X36mm
    • Weight:  73 g
    • Connector Wire Length: JR  265 mm
    • Bearing: 2BB
    • Spline: 25
  • Product weight: 120.00 grams
  • Package size: 9.00 x 12.00 x 5.00cm
  • Factory description: JX Servo 32kg Aluminum Case Coreless Metal Gear Servo .09s 32.3kg @7.4v
  • Manufactured by JX Servo
  • Manufacturer number: JX/CLS-HV7332MG
  • This item is eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
View ATees.com Glossary of Terms
Find something wrong in this description?
Help us fix it! Report An Error
Quantity Discount
Units at this Price ATees' Low Price
(Per Unit)		 You Save Click To Order
3 USD $38.88 USD $4.86 ADD

Founded in 2008, JX servo specializes in research, design and development of electronic model products. The company has been highly successful in inventing new high technology methods of designing and manufacturing Remote Control Servos, Micro-servos, Gyros, Head-locked Gyros, Mixers, Electronic Speed Controls, Receivers, Brushless motors plus other digital electronic model products.
Request a Video Intro

About JX Servo


Founded in 2008, JX servo specializes in research, design and development of electronic model products. The company has been highly successful in inventing new high technology methods of designing and manufacturing Remote Control Servos, Micro-servos, Gyros, Head-locked Gyros, Mixers, Electronic Speed Controls, Receivers, Brushless motors plus other digital electronic model products.
