 Boom Racing Complete BRX Anti Torque Twist Conversion Kit for Defender D90 Chassis for Team Raffee Co. TRC-D90
TRC-D90


LOADING IMAGES

Request Additional Photos
Your Radio Control Car Specialist
PART: #BRQ763072
OUR INVENTORY:
Out Of Stock
USD $85
SALE!
USD $72.25
Best Price Guarantee


Request a Video Intro
CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

RELATED BLOG POST

Boom Racing D90/D110 Chassis High Clearance Skid Plate Conversion Kit

Installing Boom Racing D90 High Clearance Skid Plate Conversion Kit

Boom Racing High Clearance Motor Mount For Defender D90/D110

Boom Racing BRX Anti Torque Twist Conversion Kit For D90

PRODUCT RESOURCES
PRODUCT INFORMATION:

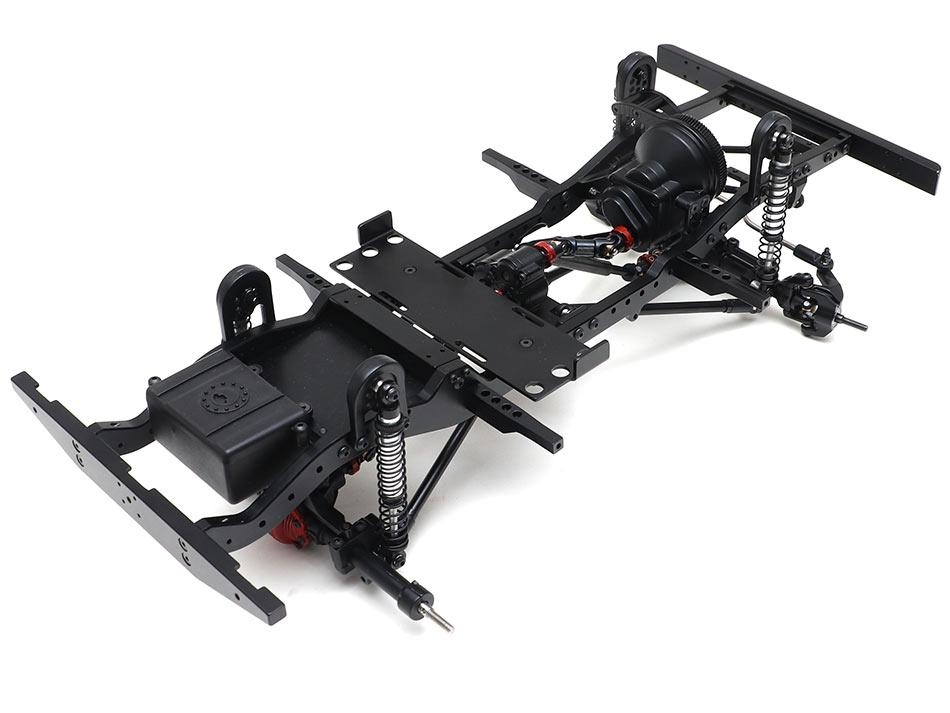

  • Imagine life without torque twist.  Is that a fantasy? Not anymore! Boom Racing releases a complete kit to eliminate torque twist in the D110 chassis kit.

    This Anti Torque Twist Conversion Kit has a few advantages over stock setup. It helps increase performance and better driving realism by eliminating torque twist. The truck is much more predictable especially in side-hill climbs with no torque twist so you can tackle more difficult side-hill slopes.

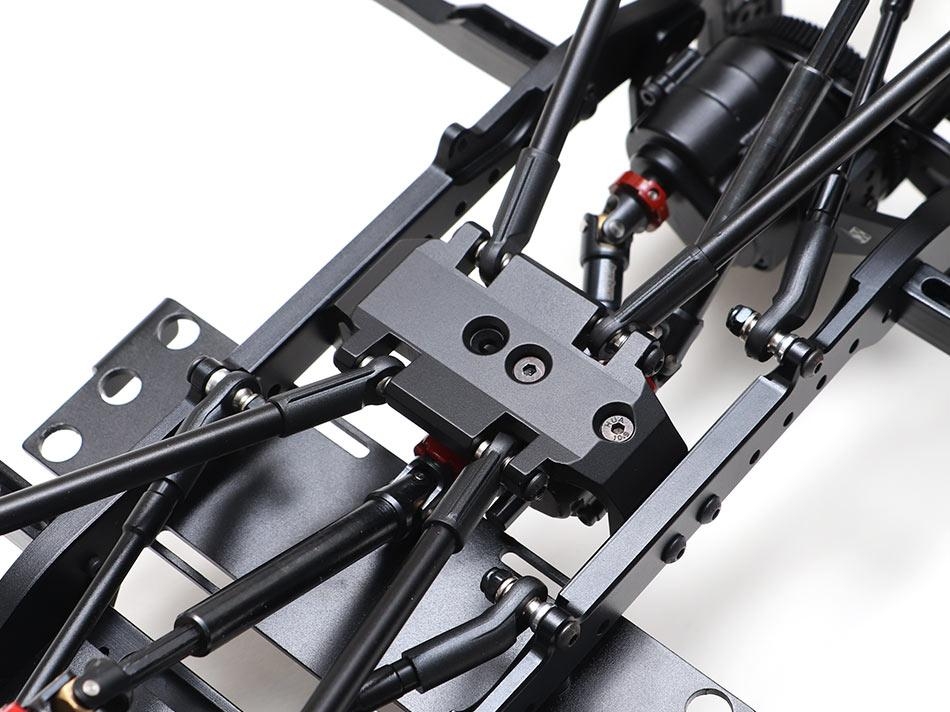

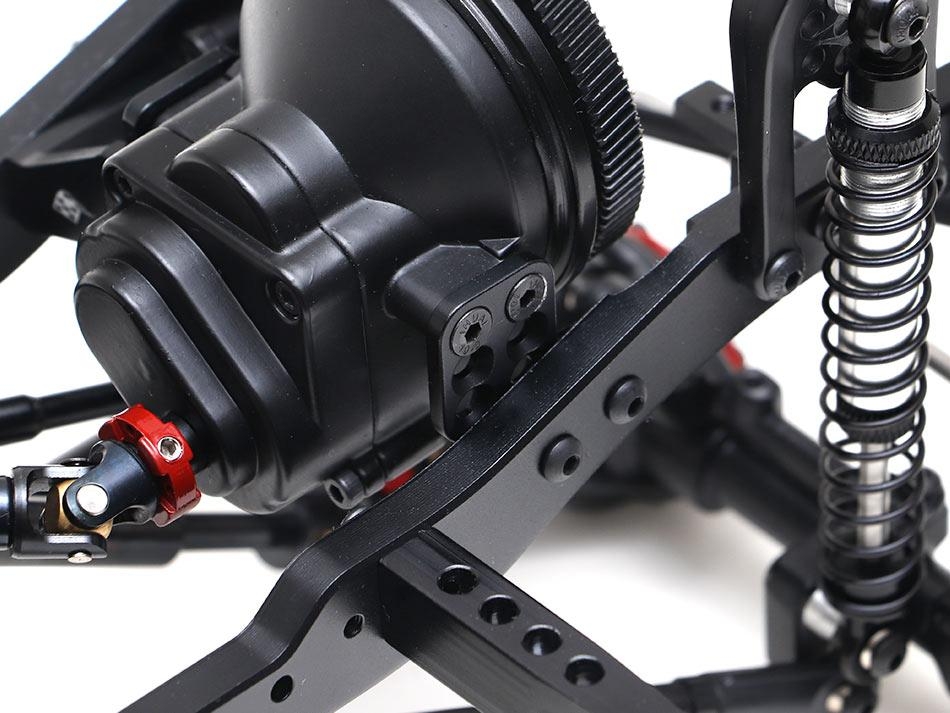

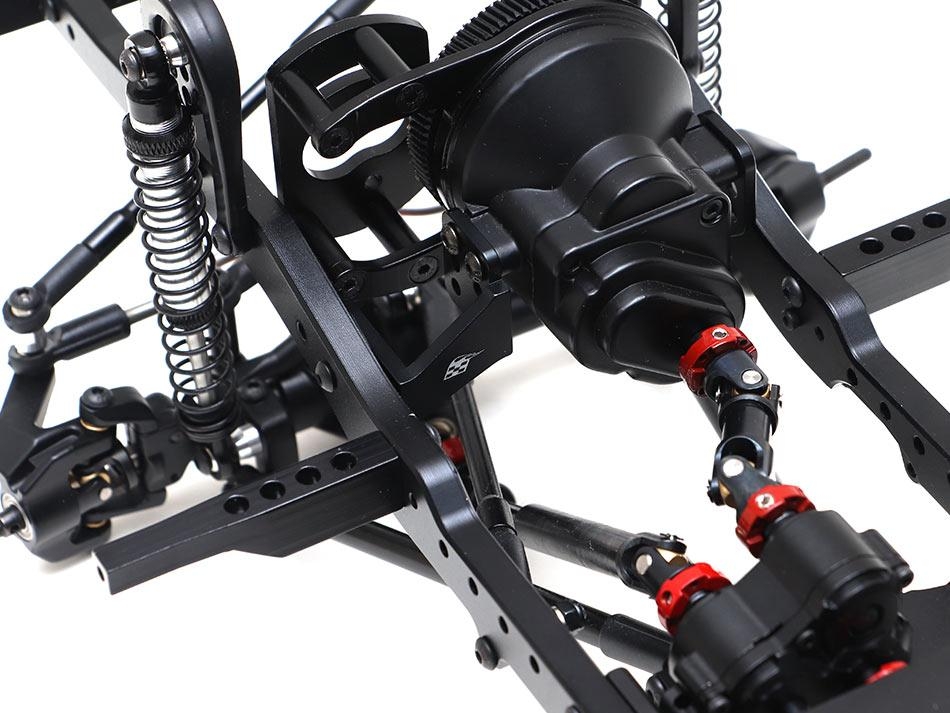

    The included adjustable gearbox mount raises the gearbox a little bit higher for more clearance of the upper link and the driveshaft. At the same time it allows you to lower the motor position so that the center of gravity is still in about the same position as the stock position.

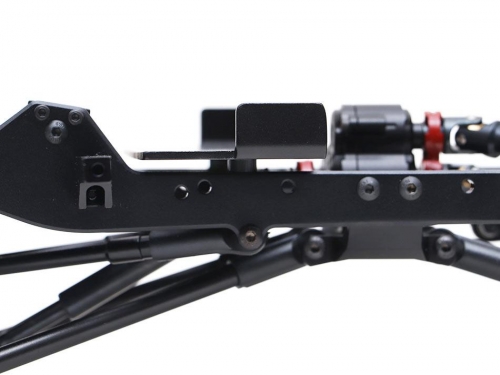

    Another feature of this system is the high clearance skid plate. It raises up the skid plate and creates more ground clearance so you don’t get hung up on rocks as easily.

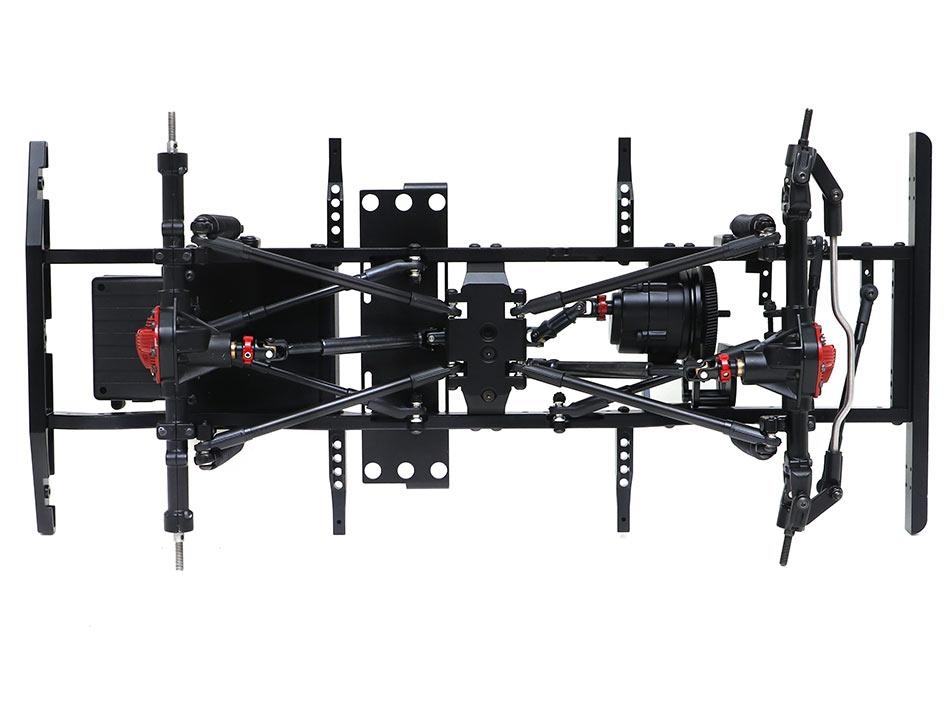

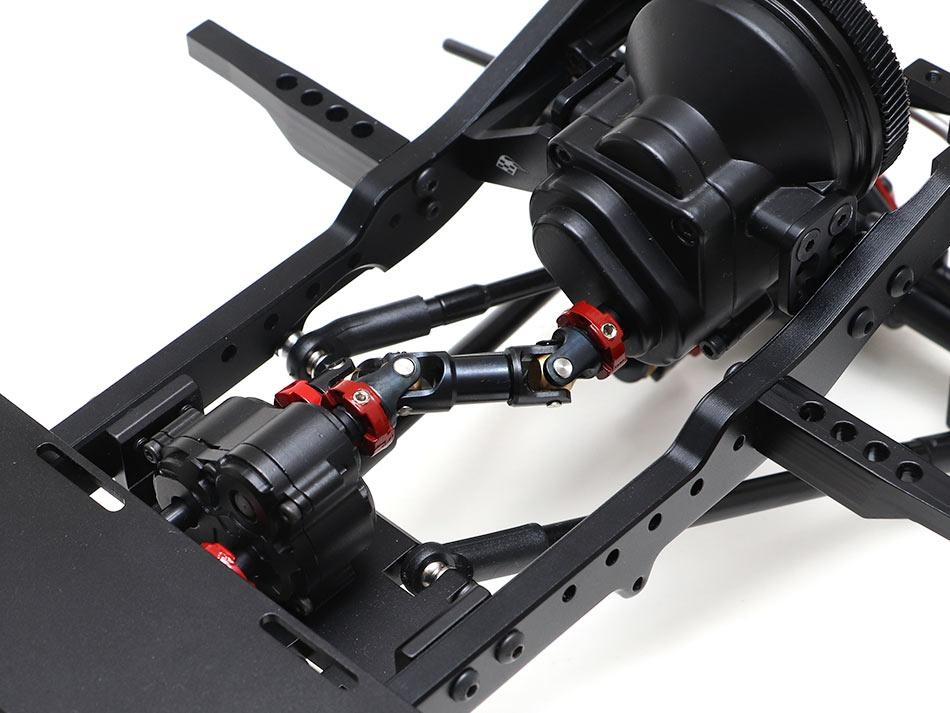

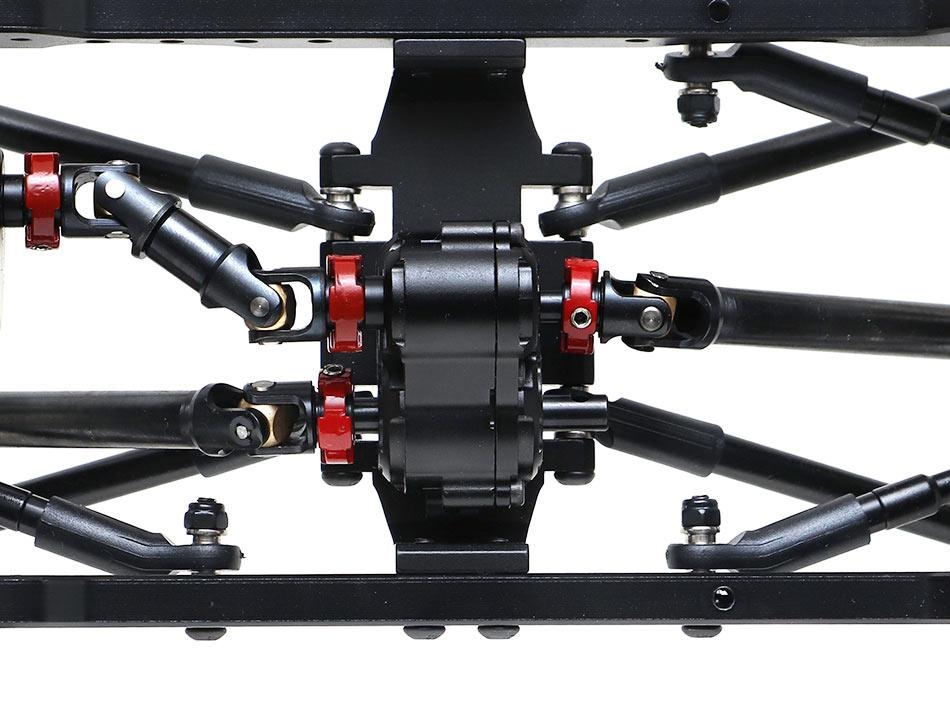

    The BRX Anti Torque Twist system reduces twisting of the vehicle when it accelerate. This is because as the two drive shafts rotate in opposite directions, the torques counteract each other. In normal RC crawler drivetrain systems both drive shafts rotate in the same direction making the vehicle twist in one direction. Thus creating a more scale looking vehicle movement.

    The Selective Rotational Drive™ (SRD) system enables the drivetrain to run counter rotation system OR normal direct drive rotation.

    Specification:

    • Input Gear: 20T
    • Output Gear: 29T (Normal & Reversed)
    • Gear Ratio: 1 : 1.45

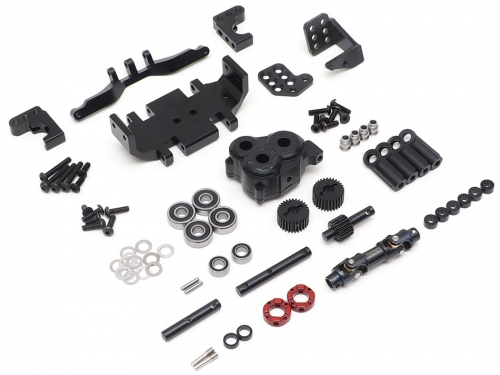

    Includes:

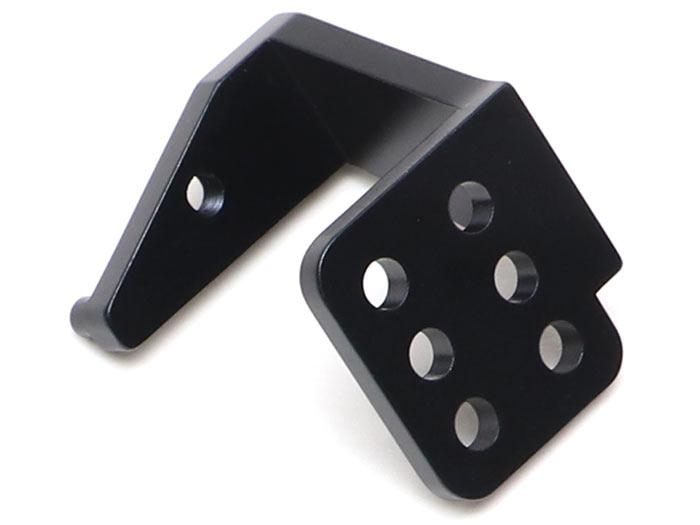

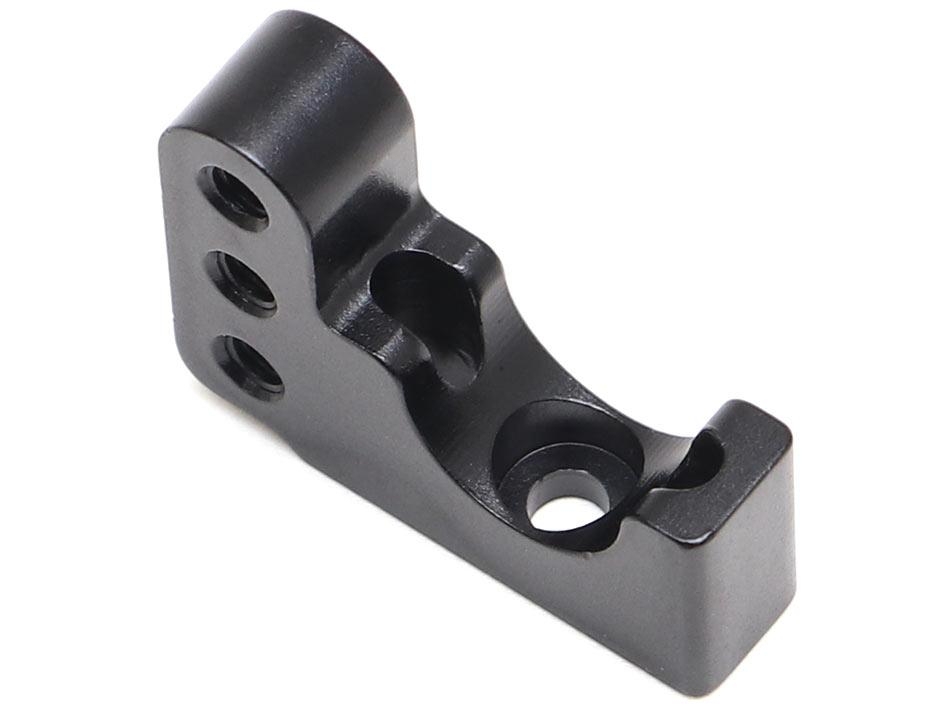

    • 1x High Clearance Alum. Motor Mount  #BR302010BK

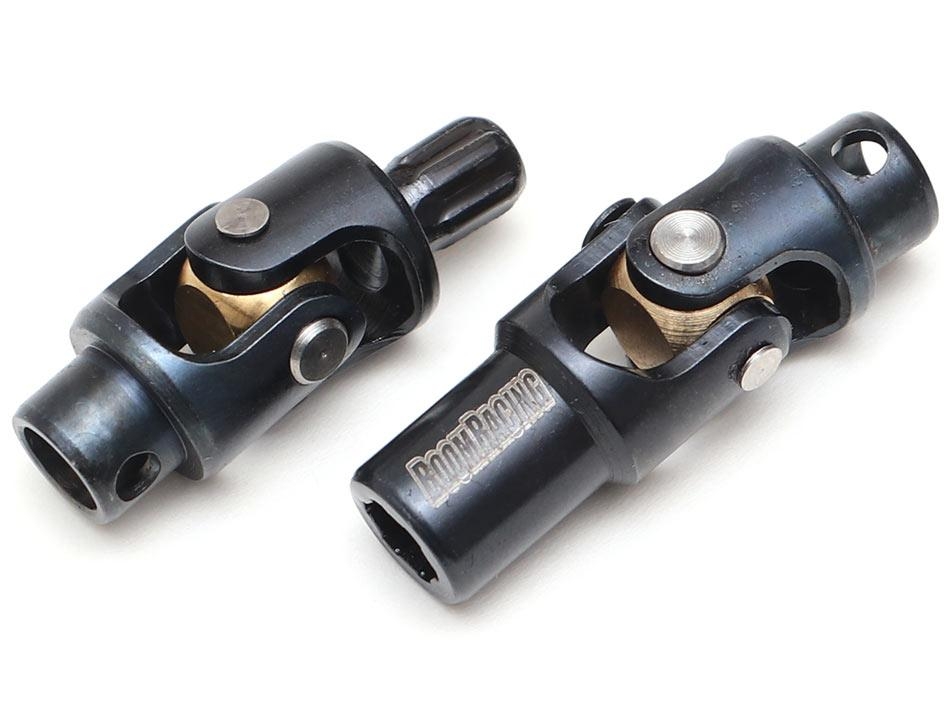

    • 1x Voodoo Steel HD Drive Shaft 49mm

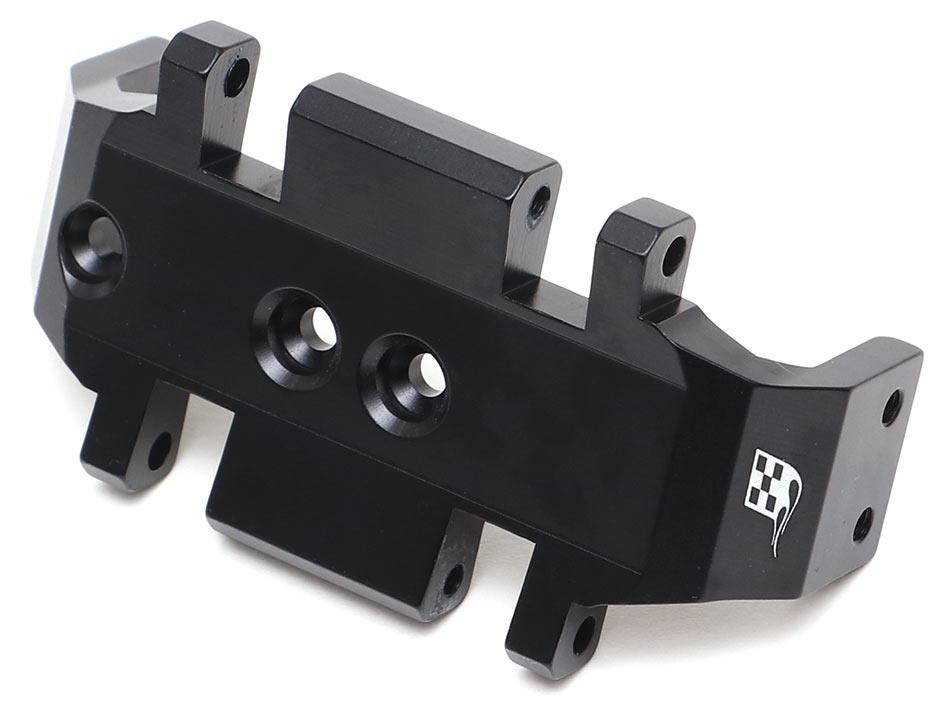

    • 1x High Clearance Skid Plate #BR302011

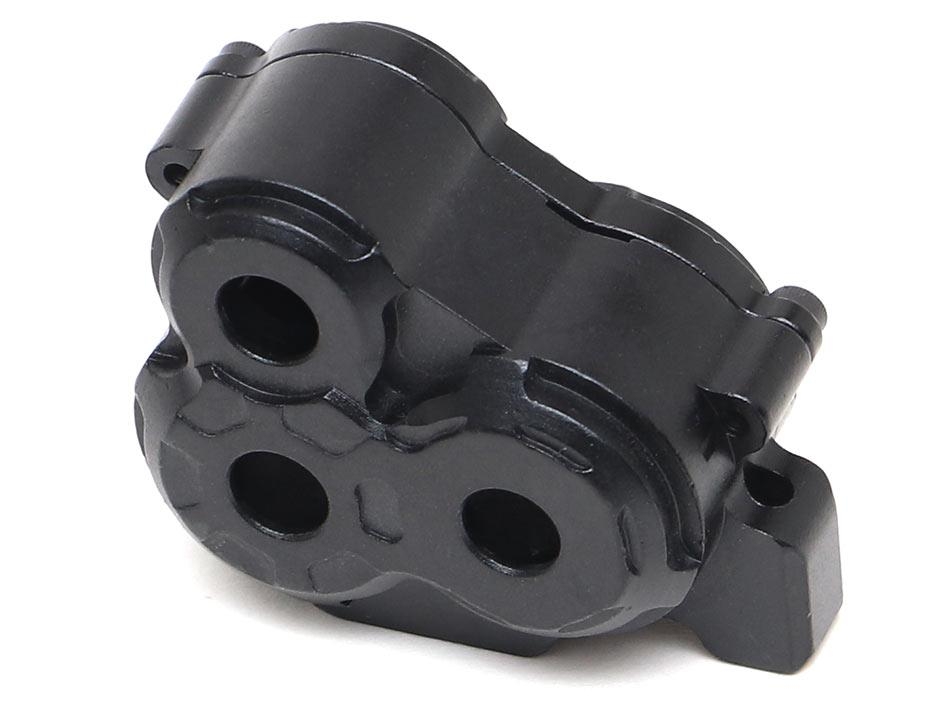

    • 1x BRX Anti Torque Twist Transfer Case #BRQ763069

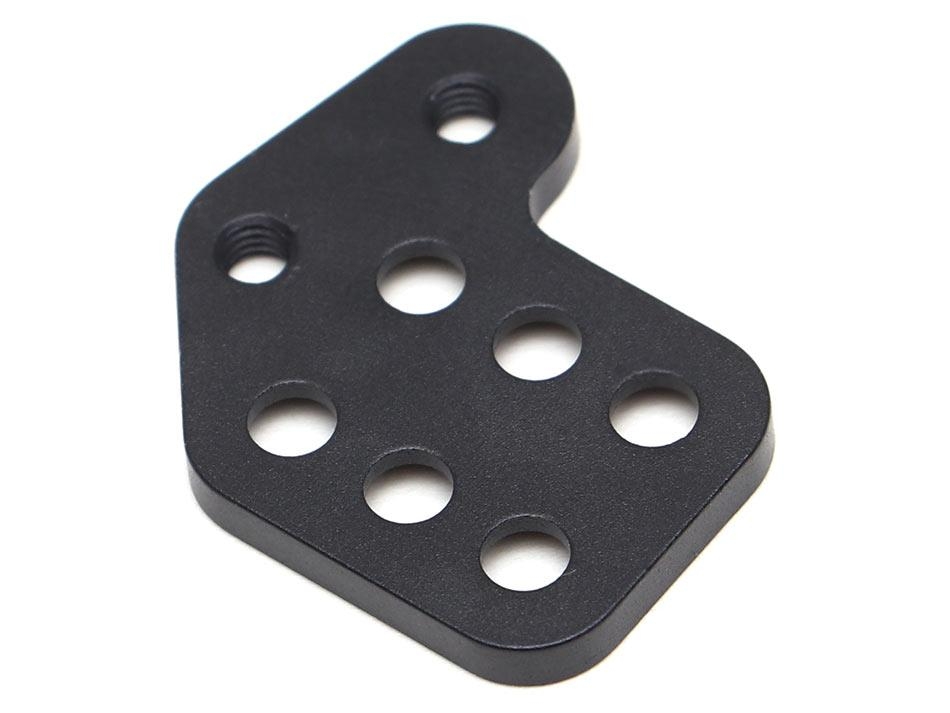

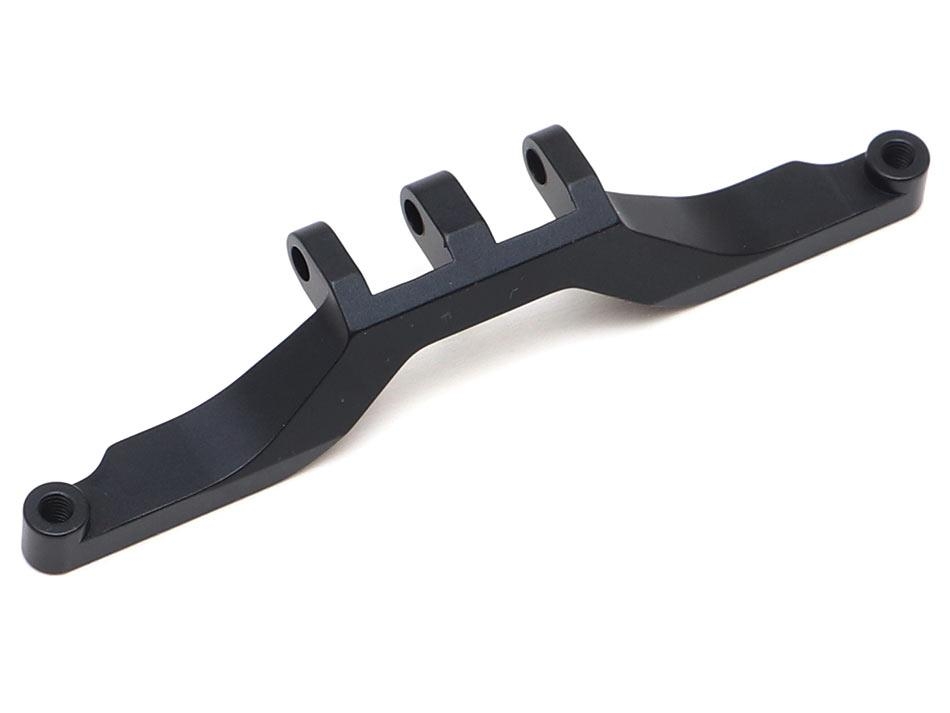

    • 1x  Counter Rotation Alum. Link Mounts with Rear Alum. Truss #BRQ763068
    • 6x  M3x3mm Spacers
    • 4x  M3 Long Straight Nylon Rod Ends

    Replacement Parts:
    High Clearance Skid Plate #BR302011
    BRX Anti Torque Twist SRD Transfer Case #BRQ763069
  • Package total weight: 210.00 grams (incl. packaging)
  • Factory description: Boom Racing Team Raffee Co. TRC-D90 Complete D90 BRX Anti Torque Twist Conversion Kit
  • Manufactured by Boom Racing
  • Manufacturer number: BRQ763072
  • This item is not eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
View ATees.com Glossary of Terms

Find something wrong in this description?
Help us fix it! Report An Error
