 Tamiya 1/14 MAN TGX 18.540 4x2 XLX French Blue Edition

 All
Prev
Next
Showing #4988 of All Parts

First In Quality Around the World
PART: #TAMIYA/56350
**Discount shipping applies to this item.
OUR INVENTORY:
In Stock and Ready To Ship!
USD $304.59
SALE!
USD $258.2
Best Price Guarantee

Add To Cart
Shipping Options

CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

TAGGED CATEGORIES:
PRODUCT INFORMATION:
  • Watch a video introduction about this product

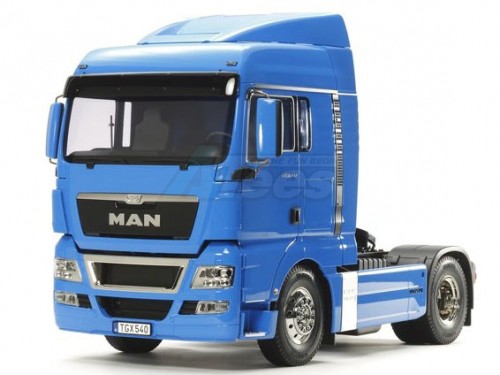

  • This is Tamiya 1/14 MAN TGX 18.540 4x2 XLX French Blue Edition.

    This is a special edition of the 1/14 R/C MAN TGX 18.540 4x2 XLX assembly kit. It comes with body components, which are beautifully pre-painted in Tamiya TS-10 French Blue (clear topcoat applied), with a durable coating applied to protect the paintwork from damage.

    The Tamiya rendition of the MAN TGX 18.540 4x2 XLX faithfully captures the truck's modern form with the use of ABS plastic body parts and a number of metal chassis components. One look at the detailed interior and auxiliary equipment, such as air tanks, will confirm that the body features replica-quality realism, which is further enhanced with metal transfers depicting emblems and numerous metal-plated parts.

    The chassis is built for durability as it uses aluminum side channels with resin cross members. Drivability is accomplished by power from the front-mounted motor and is transmitted via a propeller shaft to the rear axle; built-in differential gears guarantee smooth cornering. Gear changes can be made via a separately sold 4-channel transmitter.

    The model features a highly detailed body and a 2-axle chassis with durable ladder frame. When controlled with a separately available R/C system, the 3-speed transmission enables authentic gear changes while driving.

    Features:
    • Scale: 1/14
    • Construction Type: Assembly kit
    • Terrain Use: On-Road
    • Drive-train: 2-axle semi
    • Drive Type: 3-speed
    • Drive Line: Solid axle
    • Differential type: Gear
    • Suspension: Leaf Spring
    • Steering mechanism: bell-crank
    • Shock damper: friction damper
    • Shock Damper Material: Aluminum
    • Tire Type: Rubber
    • Tire tread: Radial
    • Body material: ABS Plastic
    • Chassis material: Aluminum
    • ESC: Not included
    • LED Light buckets: Yes
    • LED lights: No
    • Motor: 540-brushed type
    • Bearings: Metal and Plastic bushings
    • Adjustable camber: fixed
    • Adjustable toe angles: fixed
    • Adjustable ground clearance: fixed
    • Adjustable gear ratio: Fixed
    • Adjustable wheelbase: Fixed
    • Adjustable track width: Fixed
    • Adjustable shock angle: Fixed

    Specification:
    • Length: 526mm
    • Width: 193mm
    • Height: 301mm
    • Wheelbase: 237+103mmmm
    • Tread F/R: 156/138mm
    • Tire Width: F/R both 22mm
    • Tire Diameter: F/R both 83mm
    • Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1

    Includes:
    • Tamiya 1/14 MAN TGX 18.540 4x2 XLX French Blue Edition
    • Motor
    • Pre-painted Body
    • Tire
    • Wheel
    • Decals
    • Instruction

    Requires:
    • 4 Channel Radio
    • Servo x2
    • ESC
    • Charger
    • Batteries
    • AA Batteries (Radio)
    • TS Paints
    • Tools
  • Package total weight: 6860.00 grams (incl. packaging)
  • Package size: 47.00 x 73.00 x 21.00cm
  • Factory description: Tamiya 1/14 MAN TGX 18.540 4x2 XLX French Blue Edition
  • Manufactured by Tamiya
  • Manufacturer number: TAMIYA/56350
  • This item is not eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
