 Boom Racing 1/10 D90 Metal Chassis (Without Shocks Wheels Tires) for Defender D90 (non-opening door body)
All


LOADING IMAGES

Request Additional Photos
Your Radio Control Car Specialist
PART: #BRQ90347
OUR INVENTORY:
Out Of Stock
USD $249
SALE!
USD $247
Best Price Guarantee


Request a Video Intro
CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

TAGGED CATEGORIES:
Crawler/ Rock Racer KIT/RTR
PRODUCT INFORMATION:

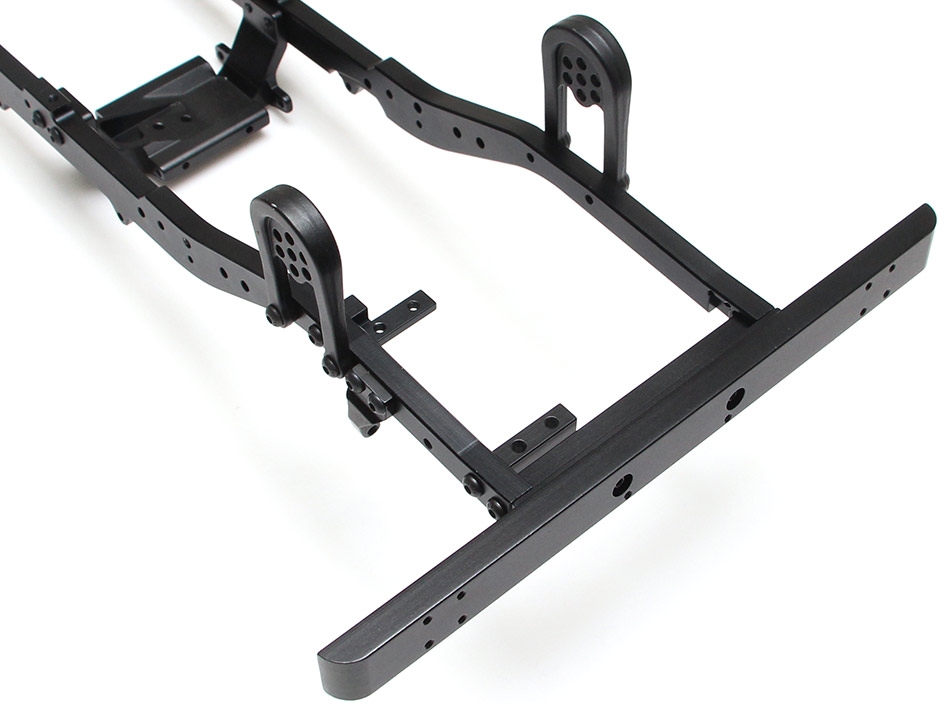

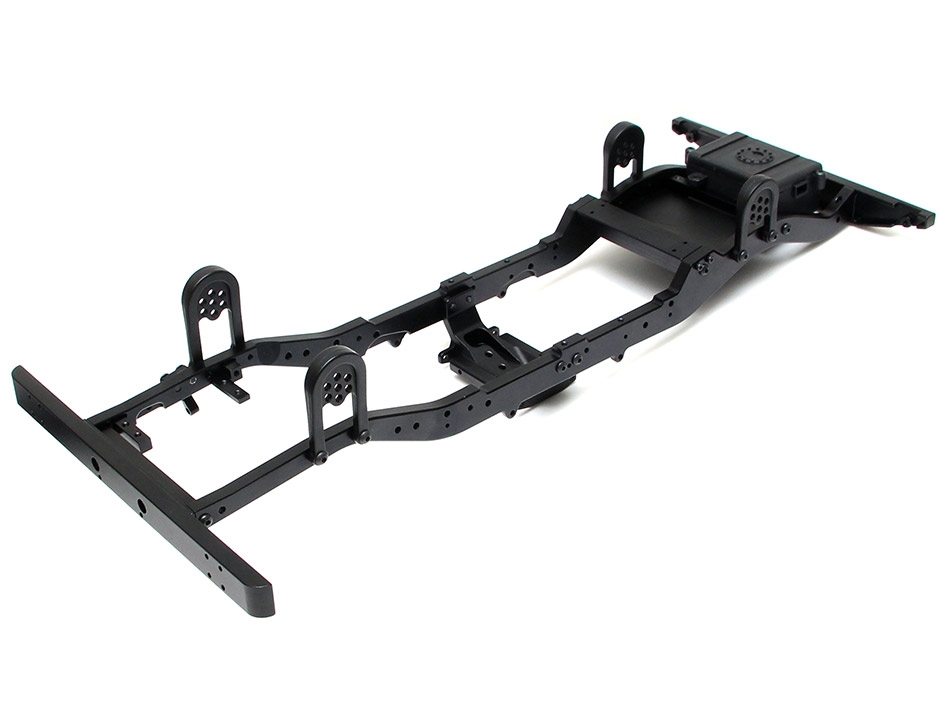

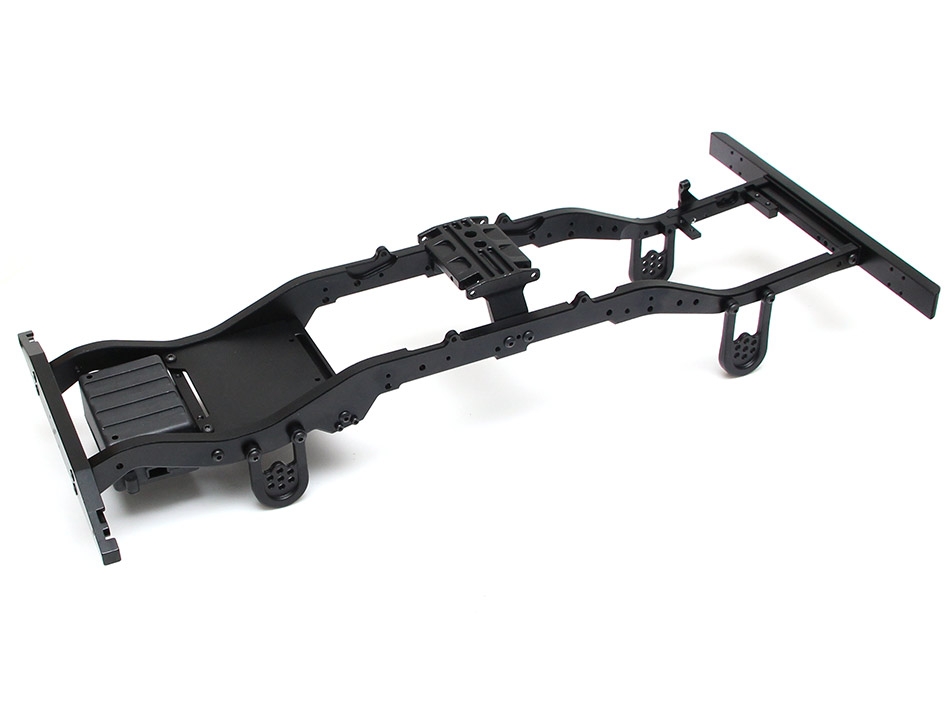

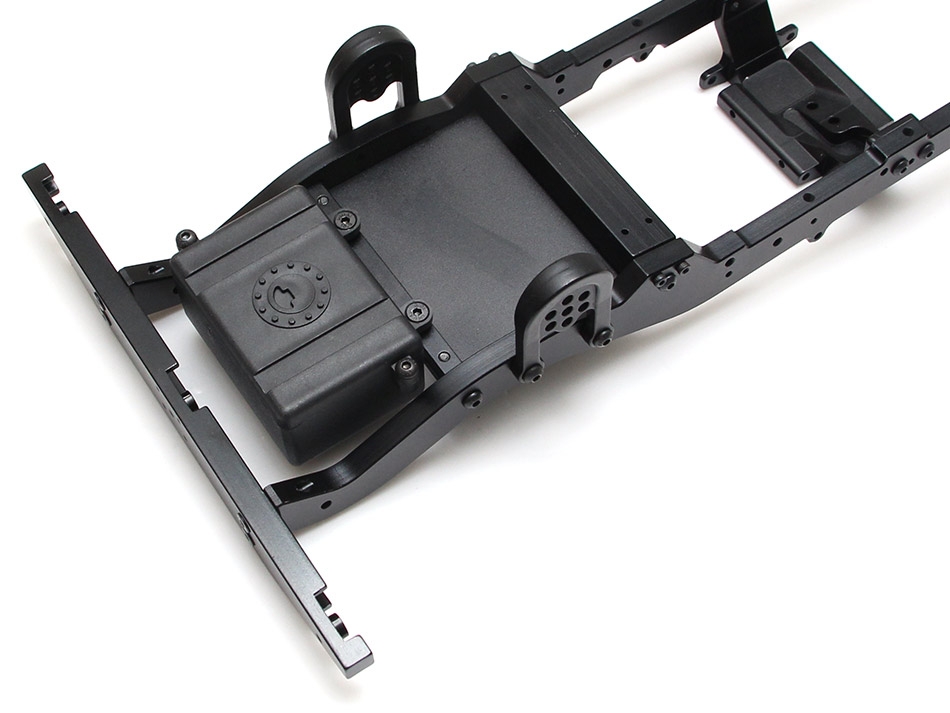

  • D90 Metal Chassis Kit. Front 3-link setup with CMS and Panhard mount. Rear runs links as well. These three new kits come unassembled.

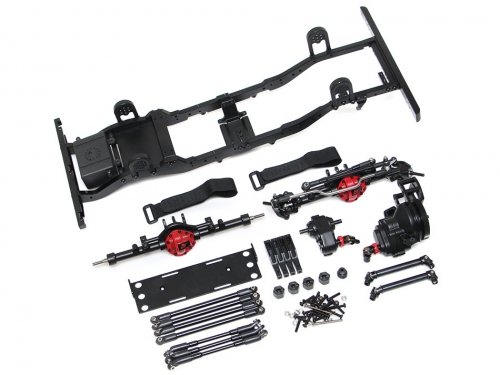

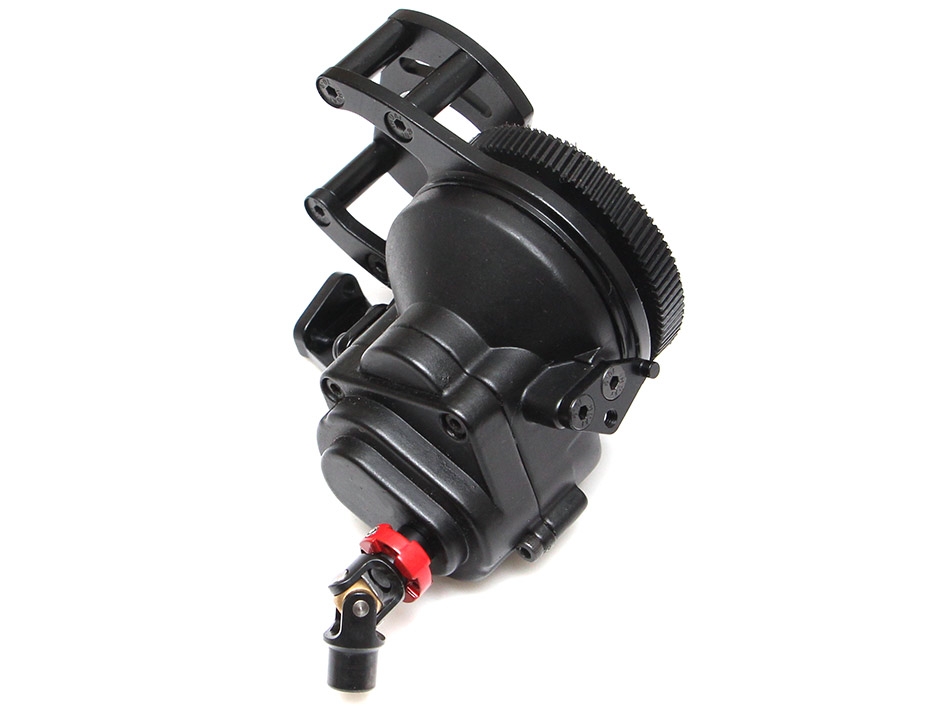

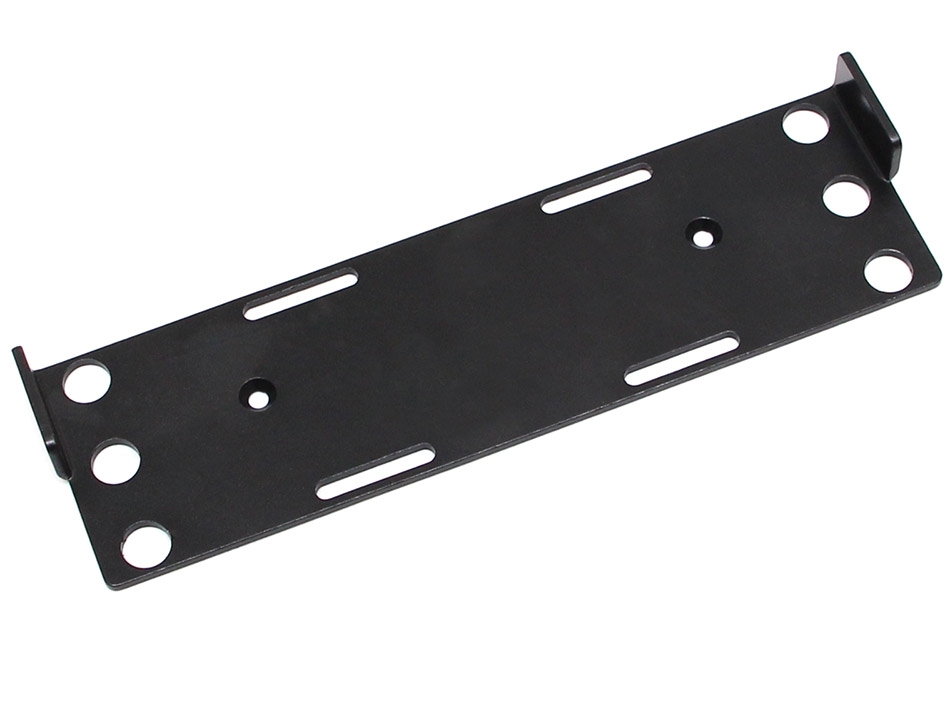

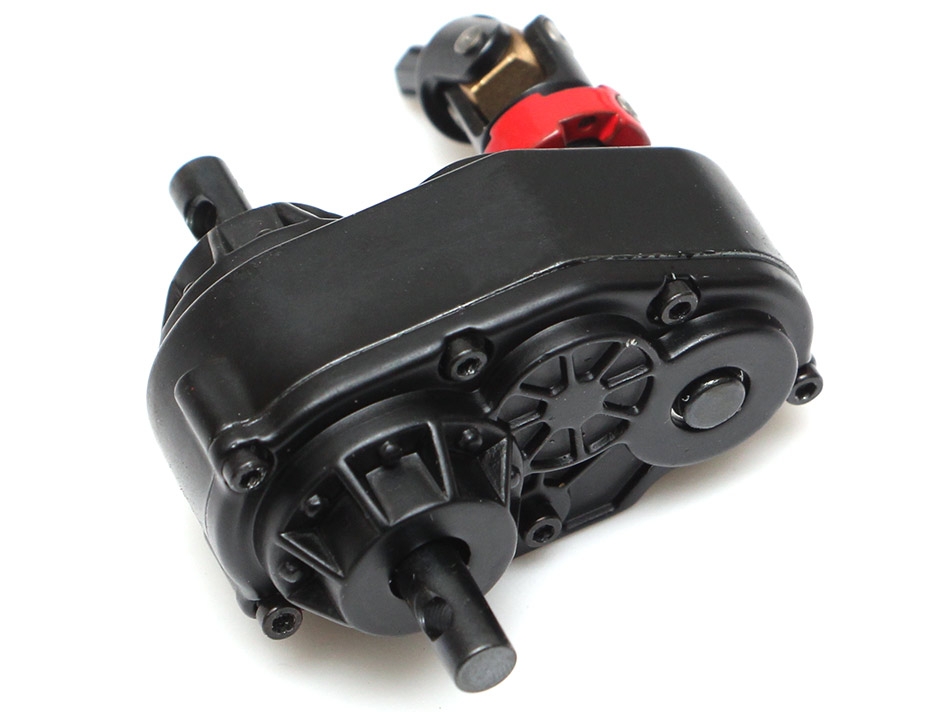

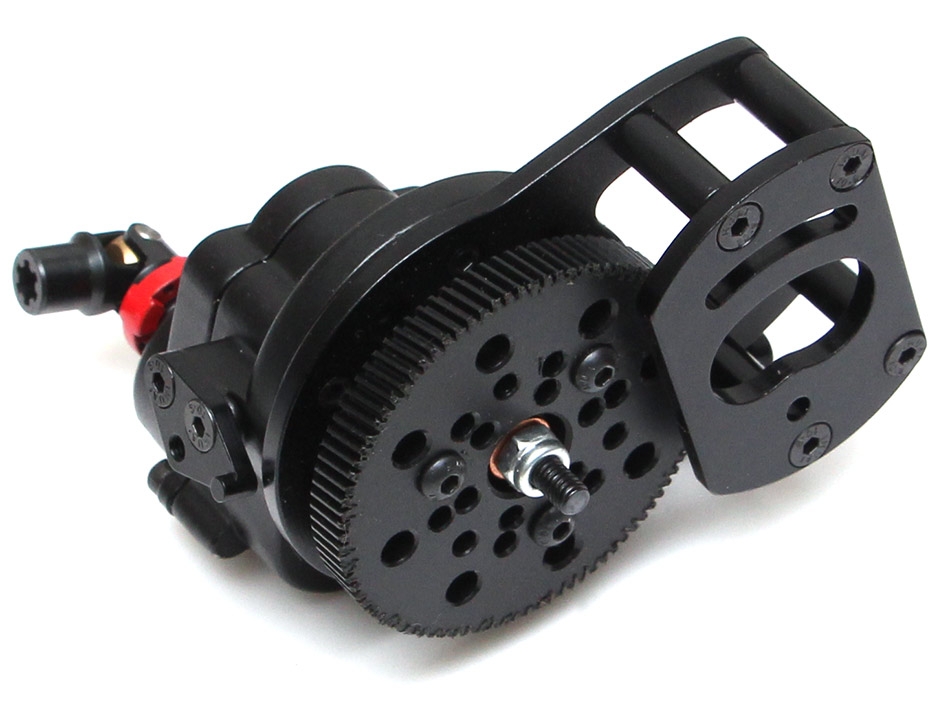

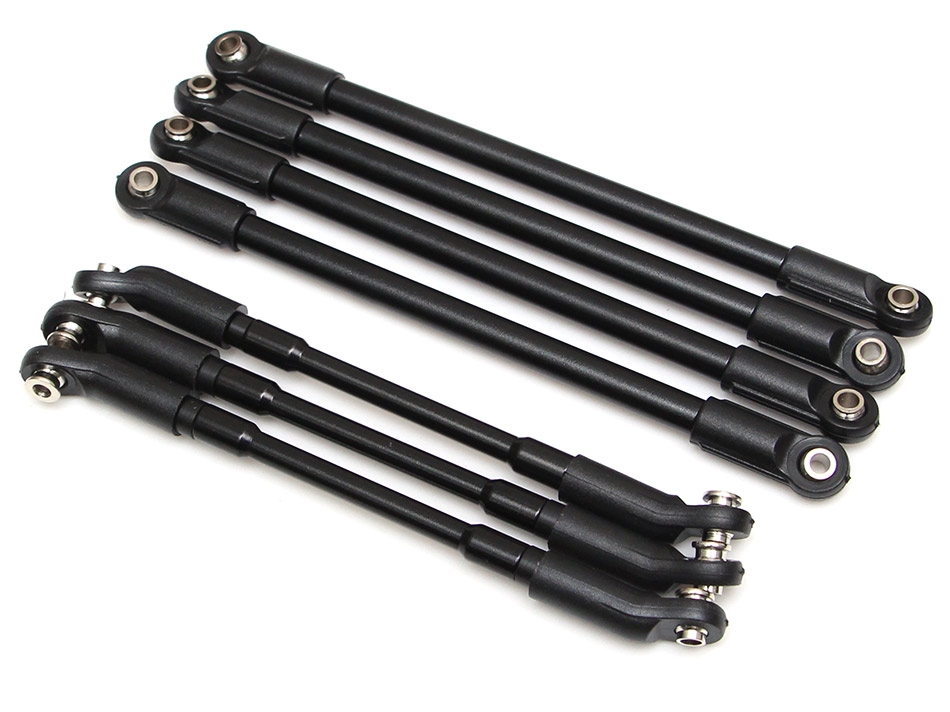

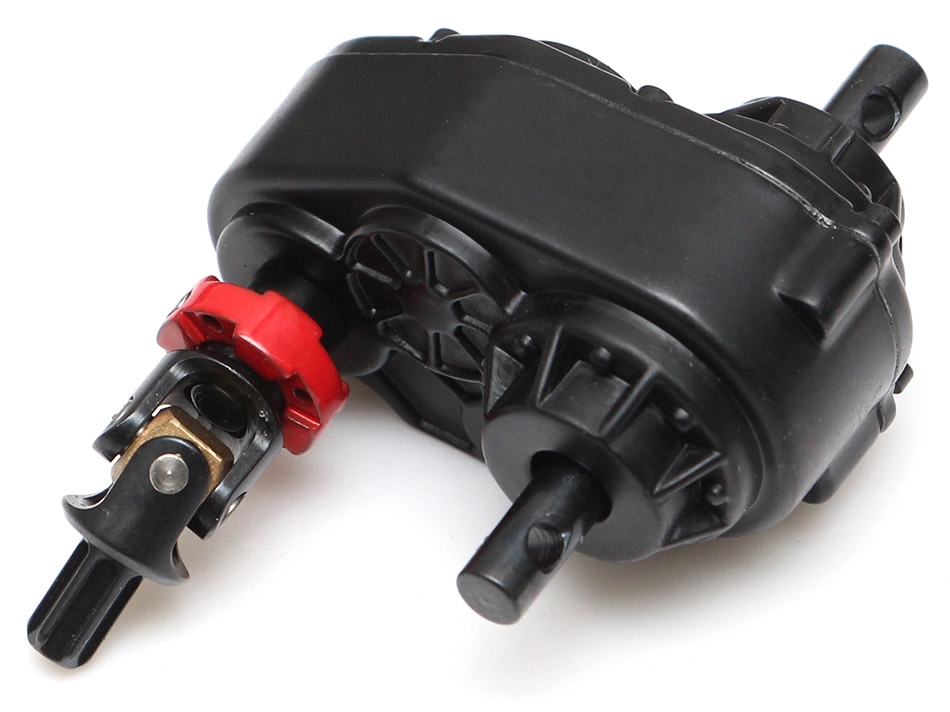

    Includes Boom Racing Scale PHAT Axles, Voodoo driveshafts, transmission, T-case, aluminum links, HD gears, battery plate, mounts, skid plate, bumpers, shock towers and receiver box. Does not come with shocks, wheels and tires. Limited quantity now available!

    Recommended shocks length 80mm to 85mm and 1.9 wheels with tires not exceeding 96mm.

    This D90 kit comes unassembled. This kit is the same as ARTR D90 kit, but without shocks, wheels and tires.


    Specification:

      • Scale 1:10
      • Comes with Boom Racing Phat Axles
      • Rails for RC4WD D90 Defender body
      • Overall length (bumper to bumper): 422mm
      • Frame width : 85mm
      • Overall width: 210mm
      • Wheelbase: variable 260-295mm
      • Mainly all parts in 6061 alloy Assembled
      • Full metal internal gears in axles
      • Full metal internal gears in transmission
      • Full metal internal gears in transfer case
      • HD universal drive axles
      • All metal steering rods
      • Steel shackle mounts

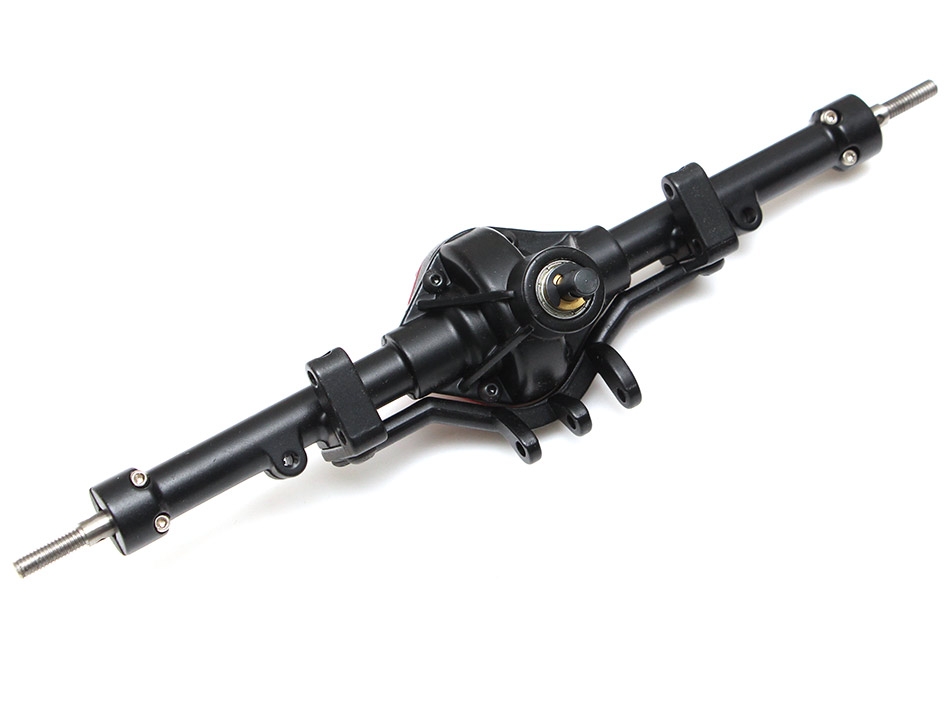

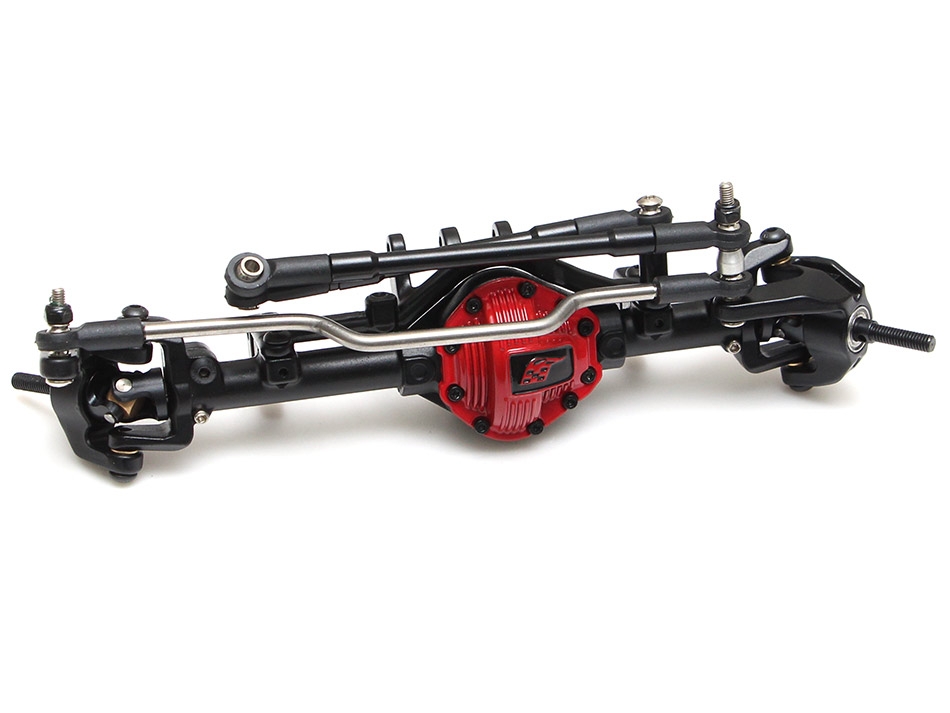

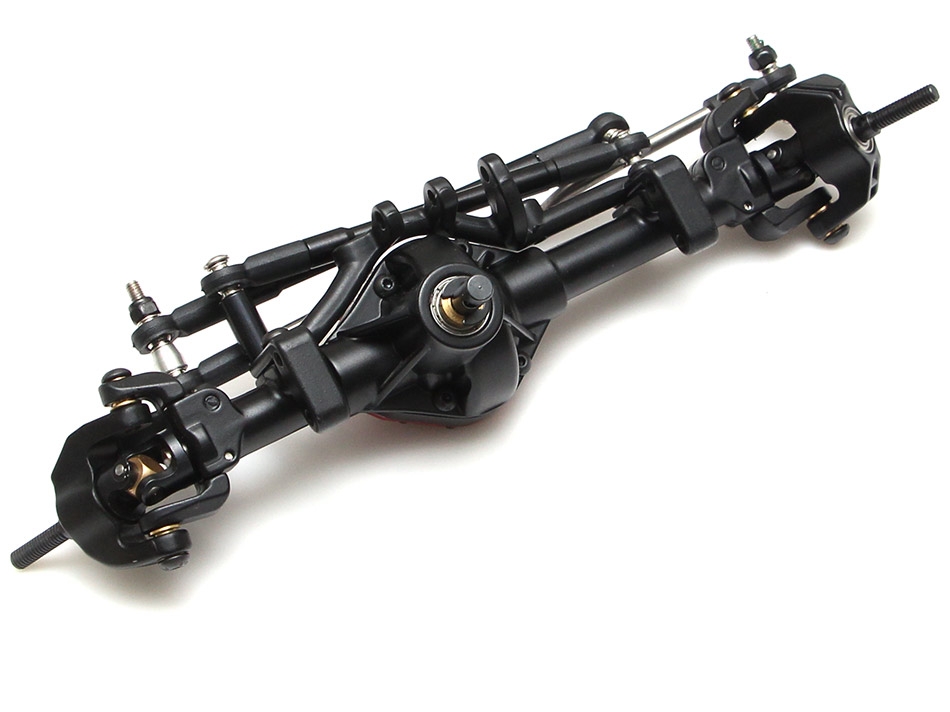

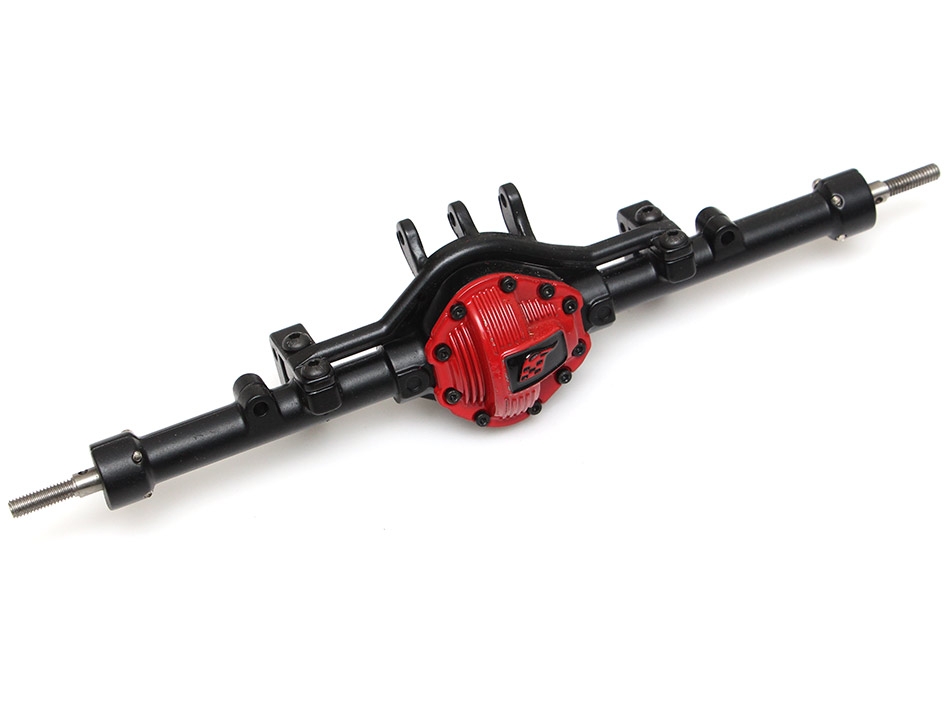

      • Scale PHAT Axles with 27/10T helical bevel gears
      • Low profile PHAT truss
      • One-piece knuckle


    Includes:

    • 1/10 D90 Chassis (without shocks/tires/wheels) for D90 non-opening door body


    To complete this chassis you will need:

    • 2-channel radio system
    • Steering servo
    • Electronic Speed Controller
    • Motor
    • Battery
    • Body
    • Shocks
    • Wheels and Tires


    Directions:
    When you receive the car, do not put electronics and battery on it immediately and run it immediately. Inspect the vehicle and take it apart, including the axles, which you need to shim them and grease them properly. Check all of the screws to make sure they are tightened and nothing is loose.

    Note:
    This chassis only fits the RC4WD D90 Defender body, if you want to fit the Team Raffee Co D90 Defender body you will need to purchase the Chassis Extension Rail part number TRC/302225.

  • Package total weight: 1500.00 grams (incl. packaging)
  • Factory description: Boom Racing 1/10th Alloy Crawler Kit (without shocks and wheels) Compatiable with RC4WD D90
  • Manufactured by Boom Racing
  • Manufacturer number: BRQ90347
  • This item is not eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
