- Complete kit of Team Raffee Co. D110 ARTR Chassis and D110 Pickup hard body.

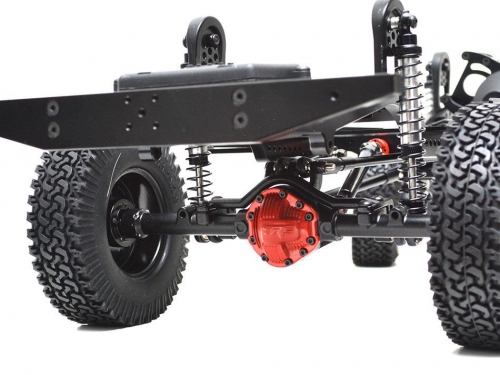

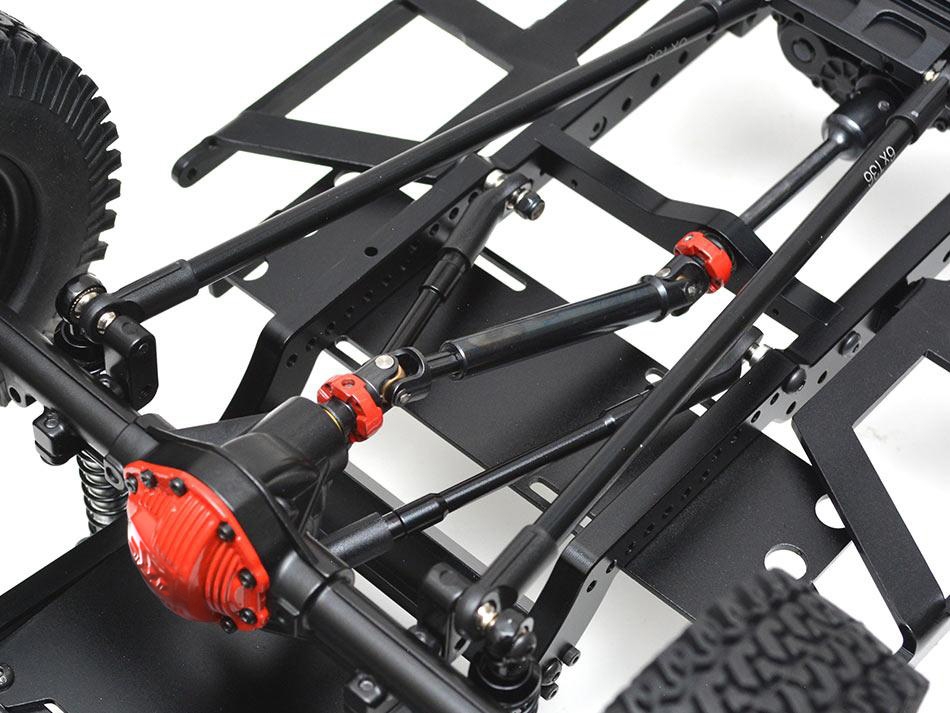

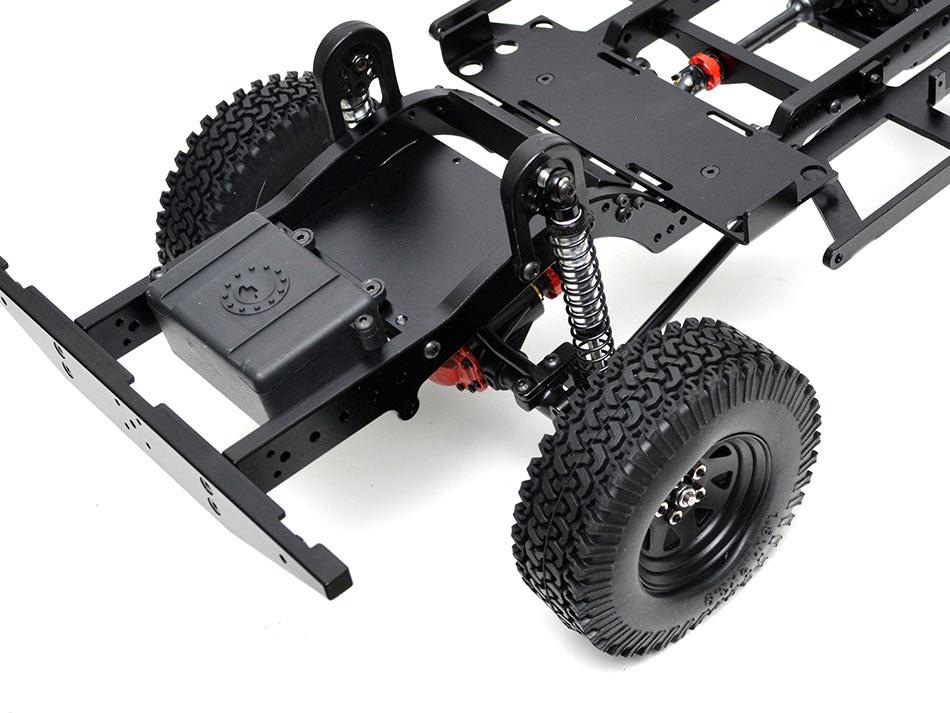

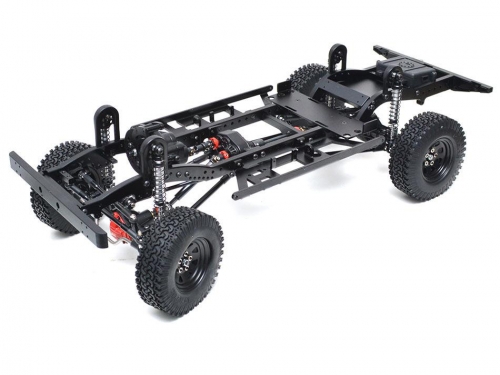

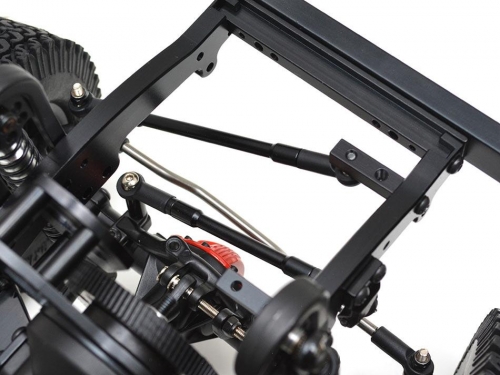

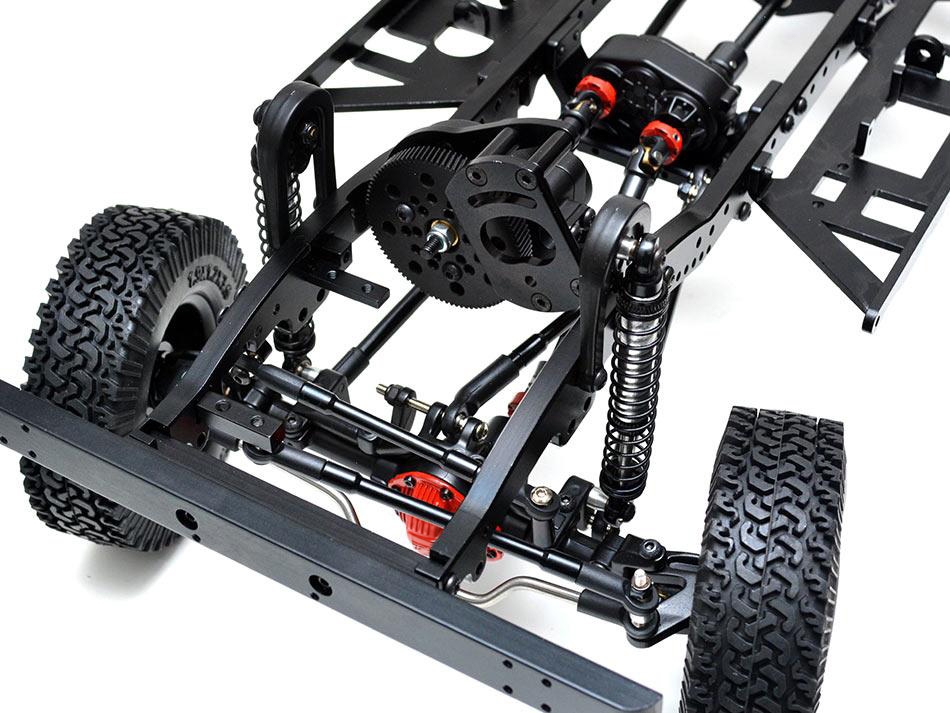

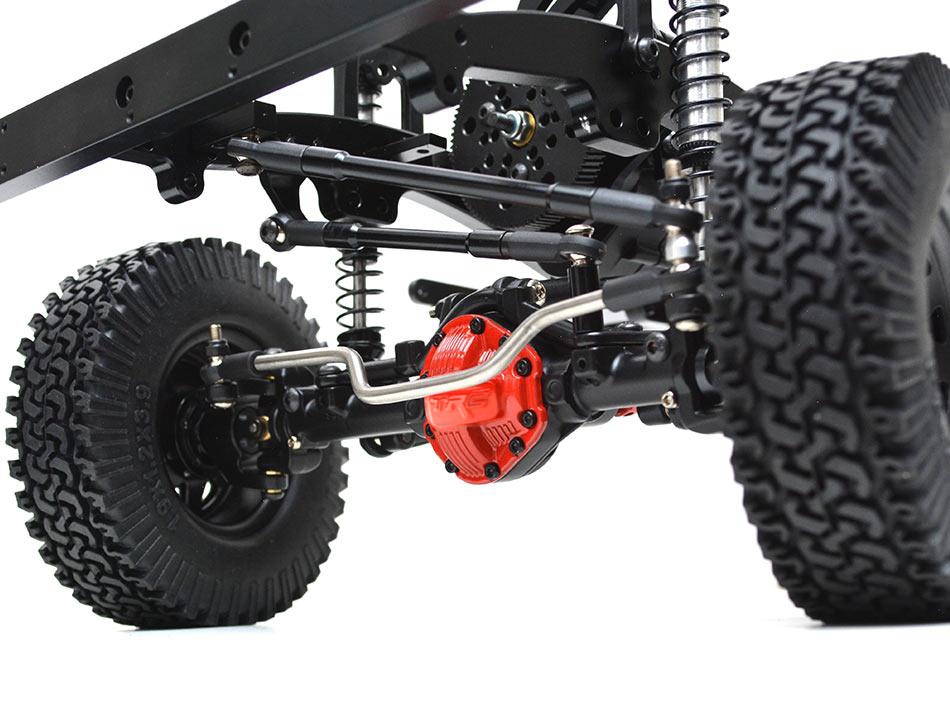

The Team Raffee Co. D110 Metal Chassis Kit has a front 3-link setup with chassis-mounted servo (CMS) and a Panhard mount. Rear runs links as well.

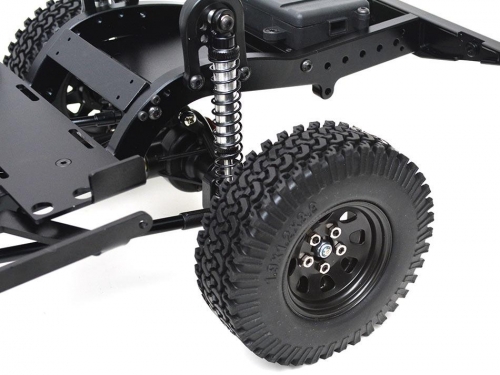

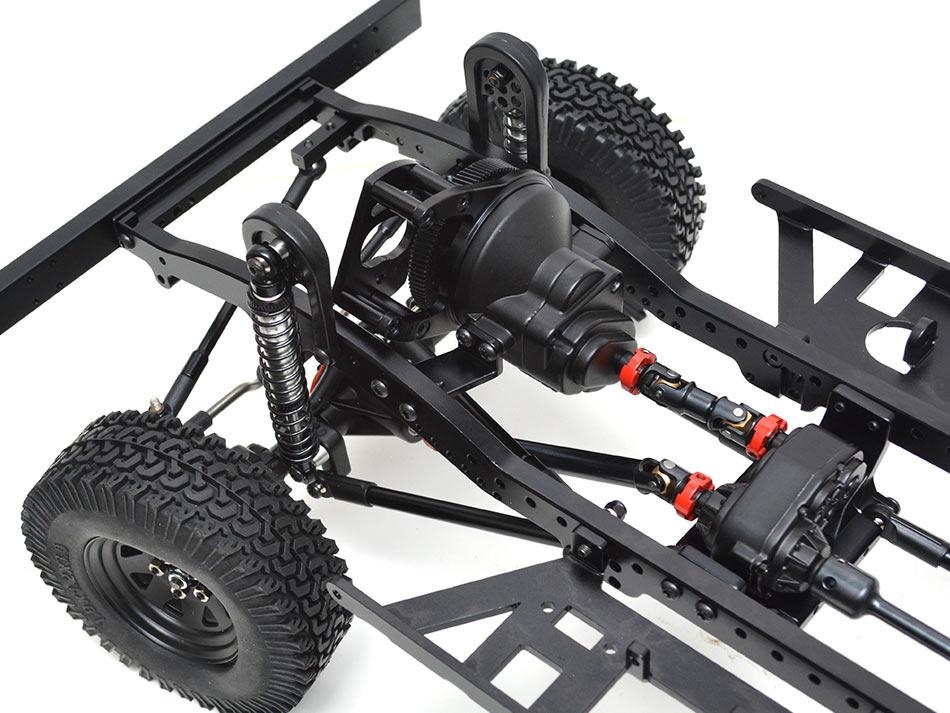

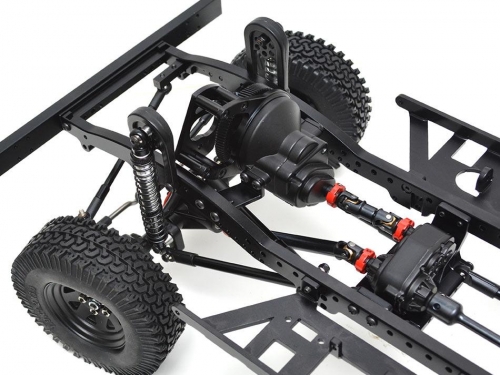

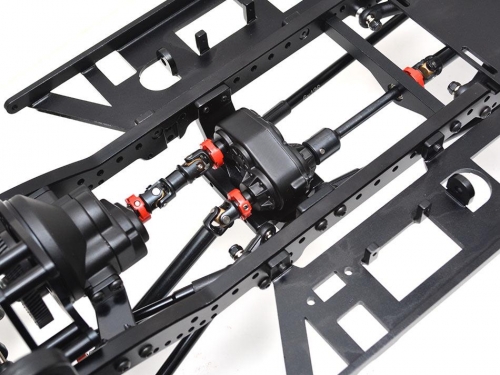

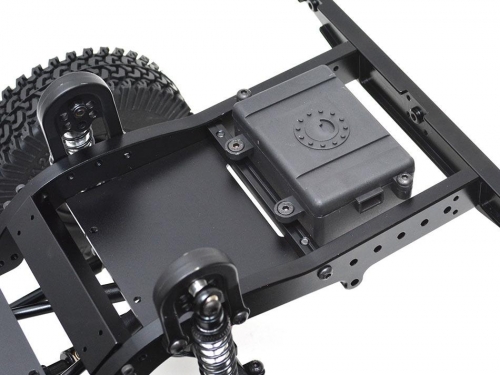

The chassis includes Team Raffee Co. Complete Scale Axles, steel front and rear driveshafts, driveshaft from the motor to transfer case, aluminum shocks, 1.9 Beadlock wheels and tires, transmission, T-case, aluminum links, HD gears, battery plate, body mounts, skid plate, aluminum links and plastic ball ends, rails and bumpers, shock towers and receiver box. The body is also included.
Specification:
- Scale 1:10
- Comes with new version Team Raffee Co.Scale Axles
- Direct fitment onto the Team Raffee D110 Defender bodies
- Overall length (bumper to bumper): 526mm
- Wheelbase: variable: 330-350mm
- Frame width: 85mm
- Front bumper width:196mm
- Rear bumper width: 190mm
- Body post width: 190mm
- Body post distance hole to hole: 198mm
- Mainly all parts in 6061 alloy Assembled
- Full metal internal gears in axles
- Full metal internal gears in the transmission
- Full metal internal gears in the transfer case
- HD universal drive axles
- All metal steering rods
- 4x Steel adjustable shock mounts
- 1x Pinion gear included
- 4x 12mm Hex
- 4x Metal 1.9 Beadlock wheels & tires
Includes:
- 1/10 ARTR D110 Chassis
- Defender Pickup Body 1/10
To complete this chassis you will need
- 2-channel radio system
- Steering servo
- Electronic Speed Controller (ESC)
- Motor
- Battery & Charger
- Paint & accessories
Opening Box:
After you take the car out of the box, do not put electronics and battery on it immediately and run it immediately. Inspect the vehicle and take it apart, including the axles. If need be, shim the axles. Grease the axles properly. Check all of the screws to make sure they are tightened and nothing is loose, loctite the screws if necessary.
Body:

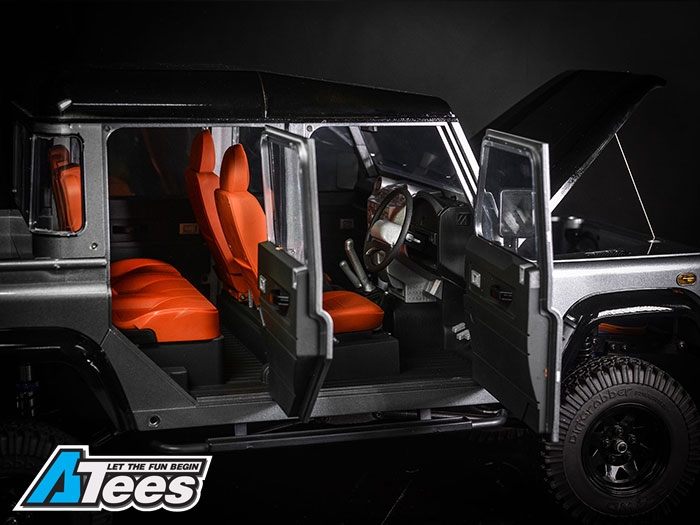

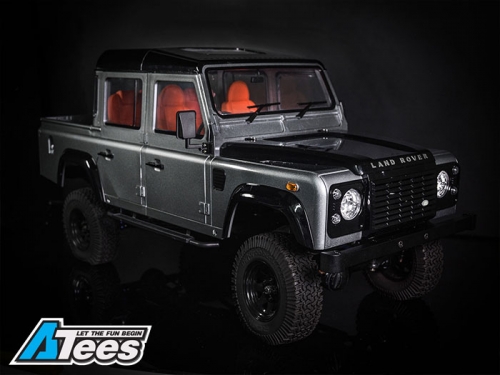

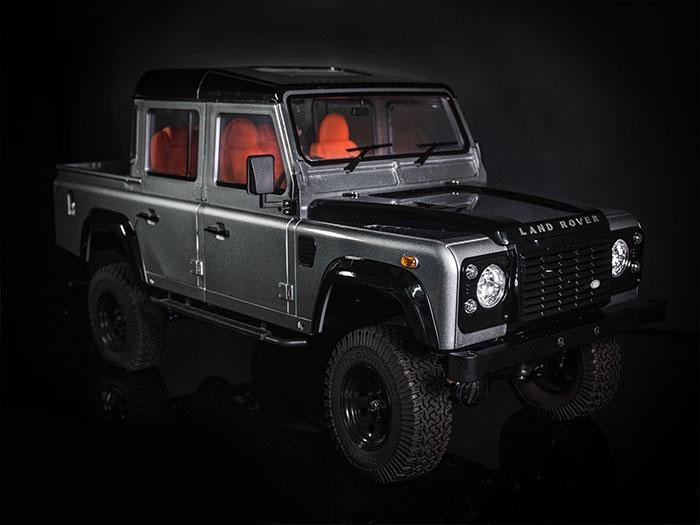

This kit comes with a D110 pickup body. It comes with a raised hood cover/bonnet. The pickup style of the hood (flat) is available separately as an option.
Note:

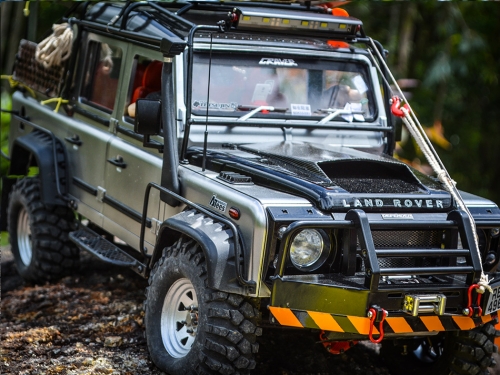

The photo is for reference only. Accessories are extra options. The body comes unpainted. Price includes body and chassis. Electronics are not included. - Package total weight: 5900.00 grams (incl. packaging)
- Package size: 26.00 x 58.00 x 43.00cm
- Factory description: Team Raffee Co. 1/10 ARTR Assembled Chassis w/Defender Pickup Truck Hard Body D110
- Manufactured by Team Raffee Co.
- Manufacturer number: BRD110COMBO2
- This item is not eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error
1/10 ARTR Assembled D110 Chassis w/ Defender D110 Pickup Truck Hard Body by Team Raffee Co.
