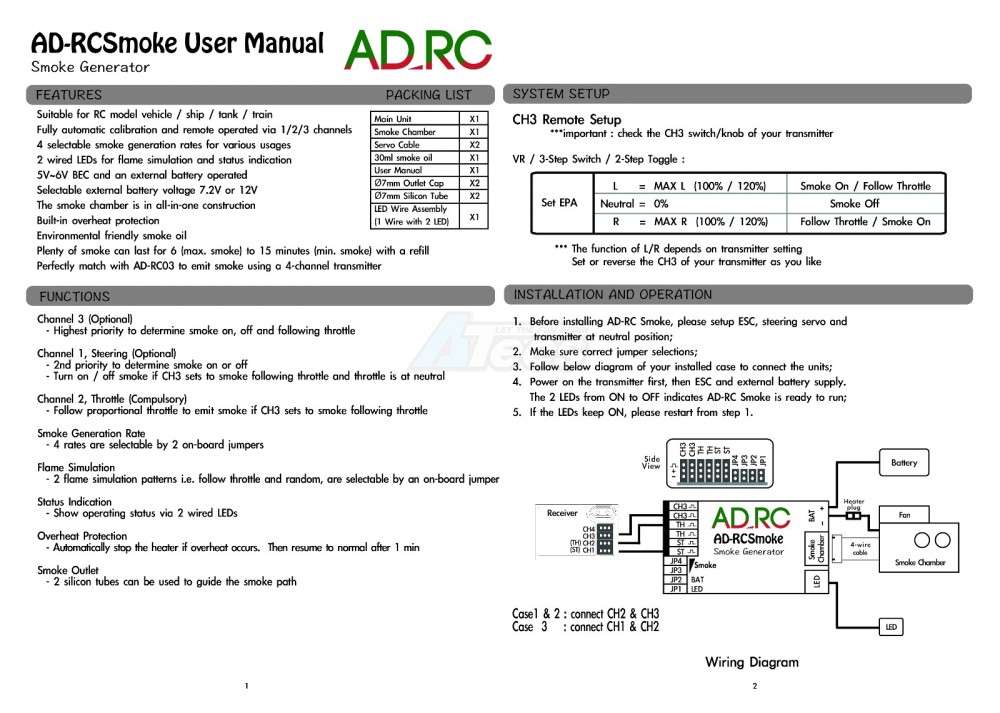

Suitable for RC model vehicle / ship / tank / train
Fully automatic calibration and remote operated via 1/2/3 channels
4 selectable smoke generation rates for various usages
2 wired LEDs for flame simulation and status indication
5V~6V BEC and an external battery operated
Selectable external battery voltage 7.2V or 12V

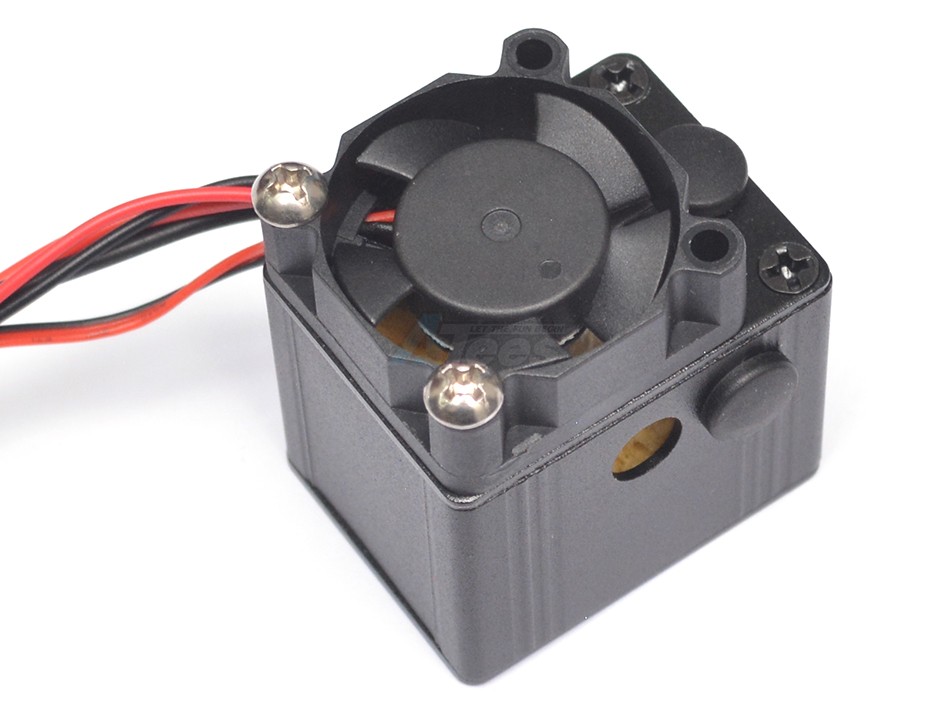

The smoke chamber is in all-in-one construction
Built-in overheat protection
Environmental friendly smoke oil
Plenty of smoke can last for 6 (max. smoke) to 15 minutes (min. smoke) with a refill
Perfectly match with AD-RC03 to emit smoke using a 4-channel transmitter

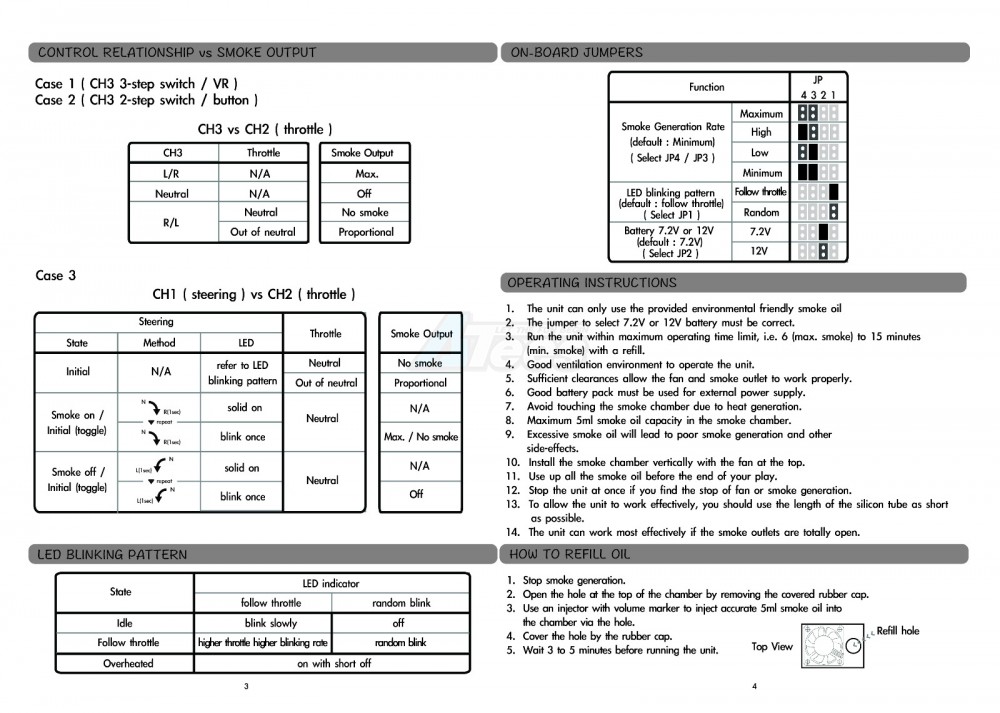

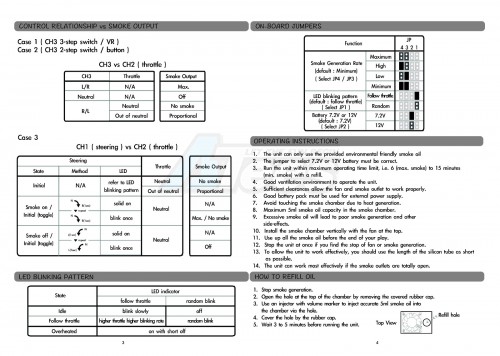

FUNCTIONS

Channel 3 (Optional)
  - Highest priority to determine smoke on, off and following throttle

Channel 1, Steering (Optional)
  - 2nd priority to determine smoke on or off
  - Turn on / off smoke if CH3 sets to smoke following throttle and throttle is at neutral

Channel 2, Throttle (Compulsory)
  - Follow proportional throttle to emit smoke if CH3 sets to smoke following throttle

Smoke Generation Rate
  - 4 rates are selectable by 2 on-board jumpers

Flame Simulation
  - 2 flame simulation patterns i.e. follow throttle and random, are selectable by an on-board jumper

Status Indication
  - Show operating status via 2 wired LEDs

Overheat Protection
  - Automatically stop the heater if overheat occurs.  Then resume to normal after 1 min

Smoke Outlet
  - 2 silicon tubes can be used to guide the smoke path

 Package Include;

- Main unit

-Smoke Chamber

-Servo Cable

-7mm Outlet Cap x 2

-7mm Silicon tube x 2

-LED Wire Assembly (1 Wire with 2 LED)

-User Manual

Dimensions;

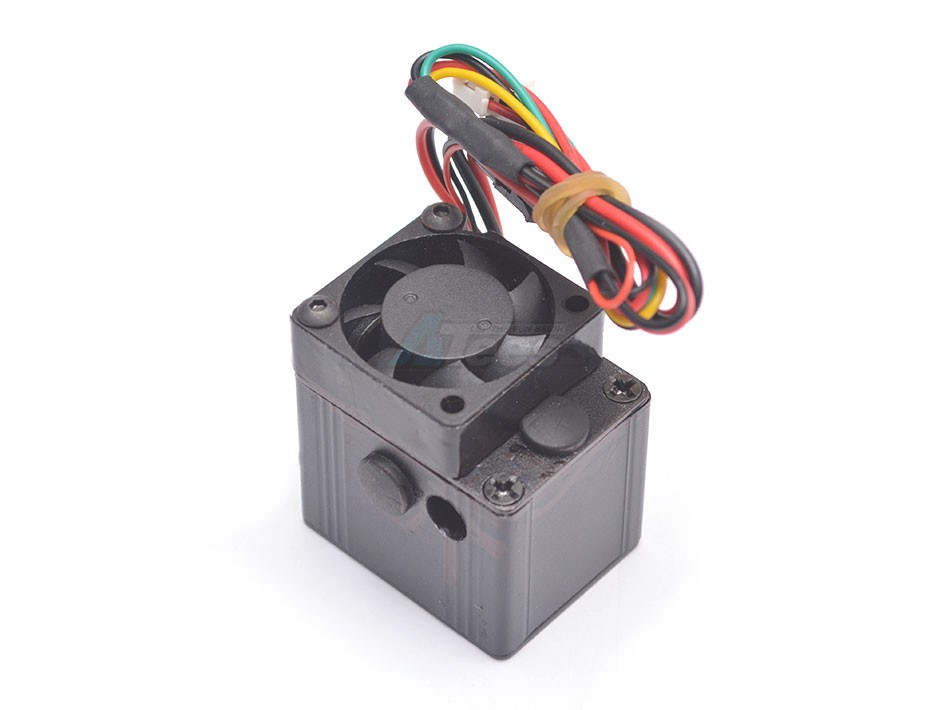

Smoke Unit: length 38.5mm width 30mm height 41mm

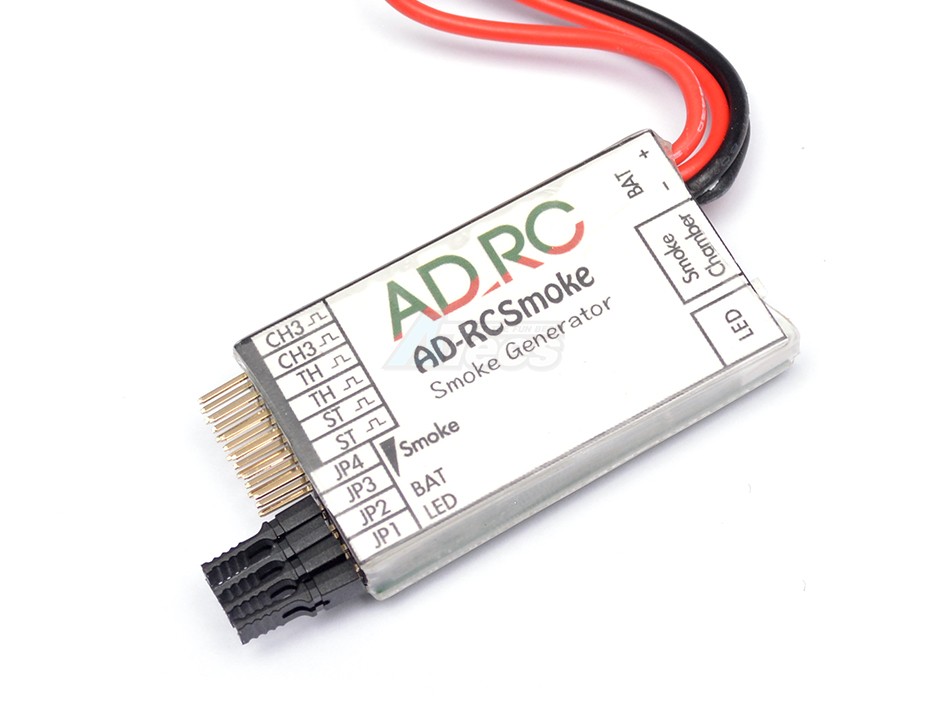

Control Unit: length 65mm width 30mm Height 11mm
