PART: #HW/QUICRUN-10BL60+3650SD17.5T
|
|
|
|||||||||||||||||
CUSTOMER REVIEWS
This product currently has 8 reviews
Overall Rating:
|
 |
Customer Performance Survey:
Customers surveying this product said...
100%"Improves performance"
Currently all feedbacks are left by AsiaTees customers.
TAGGED CATEGORIES:

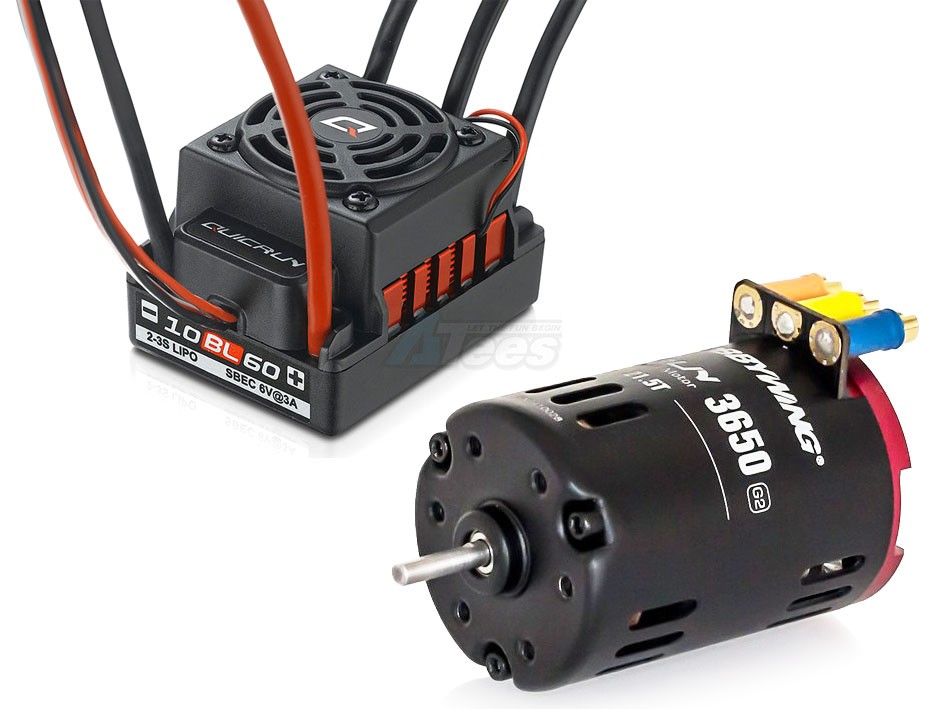

- This combo contains:
QuicRun-10BL60-SENSORED ESC + QUICRUN-3650-17.5T-SENSORED Motor.
ESC Features:- For: 1/10 & 1/12 On-road / Off-road / F1 / Drift car race / Street race for fun / Club racing / STOCK race with 0 timing / Drift car race
- High performance but low price, users can own this reliable race-ready ESC at an affordable cost.
- Compact size, suitable for various car chassis.
- Auto identification system can recognize sensored / sensorless brushless motors automatically.
- Excellent operating feelings and plentiful adjustment options, suitable for most kinds of competitions.
- 8 steps of timing adjustment greatly increase the output power of the motor, and unlock its maximum potential.
- Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment.
- 9 steps of acceleration (punch) adjustment, from “soft” to “very aggressive” to fit for different kinds of cars, tires and tracks.
- Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection / Motor Lock-up protection.
- One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
- Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.
Motor Features:- For: 1/10 ,1/12 On-Road Touring/Drift car/F1/M car, 1/10 Off-Road Buggy/2WD SCT/Truggy, STOCK/SPORT Race, Rock Crawler
- Built-in Hall sensor brings drivers the amazing sense of control.
- Top-quality components: heat-resistant magnet, heat-resistant wires and name-brand bearings.
- Dustproof design at the location where motor leads exit.
- Creative design, the gold-plated lockable connector, which can be fastened by screws, utterly eliminated all the potentialities that connectors may lose.
- Detachable structure, easy for clean and maintenance, greatly prolongs the service life of the motor
ESC Specification:- Model: QUICRUN-10BL60-SENSORED
- /Peak Current/ Resistance: 60A / 380A / 0.0008 Ohm
- Motor Type Supported: Sensored / Sensorless Brushless Motor
- Car Applicable: 1/10 & 1/12 On-road / Off-road / F1 / Drift car race / Street race for fun / Club racing / STOCK race with 0 timing / Drift car race
- Motor Limit:
- For 4-6 cells NiMH/2S Lipo
5T (1/10 On-road), ≥13.5T (1/10 Off-road) *"T" indicates the limit value of motor turns when the ESC timing is set to 0. The larger the timing, the more turns the motor needs. - 8-9 cells NiMH/3S Lipo
5T (1/10 On-road), ≥17.5T (1/10 Off-road) *"T" indicates the limit value of motor turns when the ESC timing is set to 0. The larger the timing, the more turns the motor needs.
- For 4-6 cells NiMH/2S Lipo
- Battery: 4-9 Cells NiMH / 2-3S Lipo
- BEC Output / Operating Voltage of the Cooling Fan: 6V@2A, Linear Mode / 6V (The cooling fan gets its power supply from the built-in BEC)
- Dimension / Weight: 33mm(L)*28mm(W)*31.5mm(H, with cooling fan) / 59g (with wires, without cooling Fan)

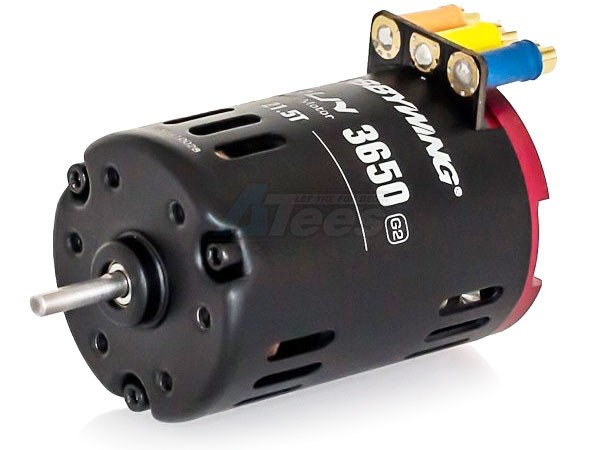

Motor Specification:- Model: QUICRUN-3650-17.5T
- KV: 2170
- LiPo Cells: 2~3S
- Outer Diameter/Length: 36mm / 52.8mm
- No-load Current: 1.1
- Shaft length: 15mm
- The diameter of the Shaft: 3.17 mm
- Poles: 2
Includes:- Hobbywing QuicRun 1/10 Brushless Sensored 60A ESC (1 Set)
- Hobbywing 1/10 QUICRUN-3650SD-17.5T 2170KV Brushless Sensored 540 Motor (1 pc)
- Manual (1 pc)
- Color: Black
- Package total weight: 590.00 grams (incl. packaging)
- Package size: 17.00 x 21.00 x 8.00cm
- Factory description: Hobbywing Hobbywing QuicRun Sensored Brushless System: WP-10BL60+3650-17.5T Combo For 1/10 & 1/12 RC Red
- Manufactured by Hobbywing
- Manufacturer number: HW/QUICRUN-10BL60+3650SD17.5T
- This item is not eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error
QuicRun 17.5T 2170KV 10BL60 Sensored ESC + 3650SD BLACK G2 Motor Combo by Hobbywing
