PRODUCT INFORMATION:
Find something wrong in this description?
Help us fix it! Report An Error
- Description:

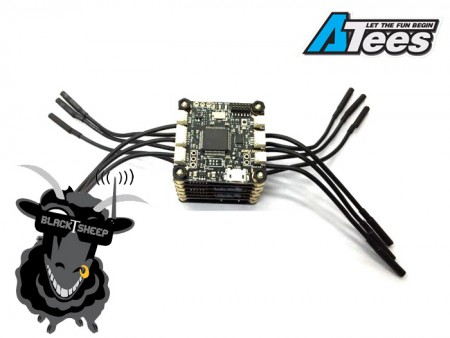

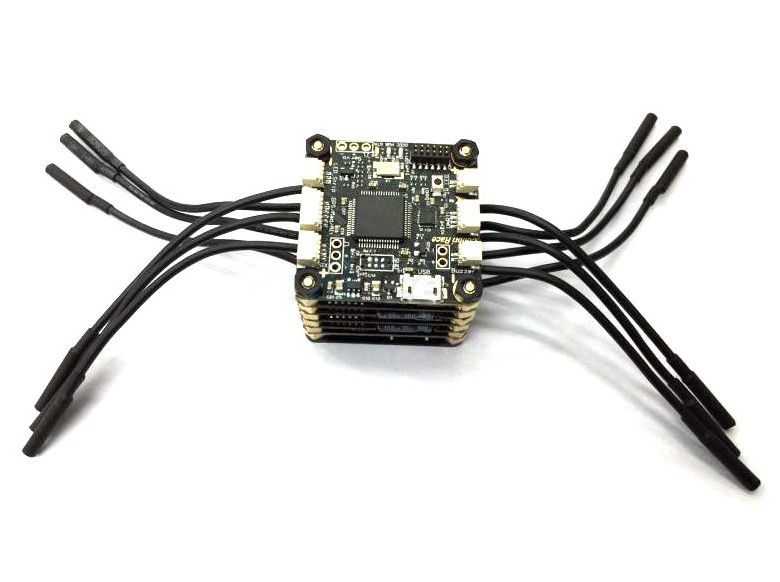

PowerCube plug and play multi rotor stack from Team BlackSheep. Includes FC, ESC and PDB. The stack consists of Team BlackSheep's own COLIBRI RACE Flight Control unit, BULLETPROOF 20A ESC 2-6s, and custom current sensor.
The Team BlackSheep PowerCube is the next generation plug & play RACE system. Design optimized for ultimate performance and reliability and compatible with nearly all multirotor frames, the ultra-lightweight and high performance multi rotor stack is specifically designed for use with 120–330mm size frames.
Performance is balanced with plug-and-play accessibility, with no soldering required. The revolutionary design uses stacked boards for extreme durability, an STM32F3-based flight controller and wire-free power distribution through stand-offs.
Tested, developed and flown by the world’s leading pilots, the PowerCube is cost-efficient and field-repairable, and utilizes high quality aluminum screws, brass standoffs and electronic components throughout the design.
Total Dimensions: 36x36x30mm
Total Weight: 62g (with PDB, wires and connectors)
For the Professionals:
Aluminum-gold spacers for additional 10g weight savings
Specialized tools for faster repair
TBS COLIBRI RACE FLIGHT CONTROL
STM32F303 based chipset for ultimate performance
PPM, SBUS, DSM, DSMX input (5V and 3.3V provided over internal BUS)
6 PWM ESC output channels (autoconnect, internal BUS)
Plug & play sockets or solder pads for R/C and buzzer
36x36mm standard size (30.5mm standard raster)
RGB LED strip support incl. power management
Extension port for GPS / external compass / pressure sensor
UART port for peripherals (Blackbox, FrSky telemetry etc.)
5V buzzer output
MPU6500 new generation accelerometer/gyro
Runs Cleanflight and Baseflight
3x status LED (DCDC pwr / 3.3V pwr / status)
Weight: 4.4g
BULLETPROOF 20A ESC 2-6S
Team BlackSheep have equipped the PowerCube with one of the most innovative, reliable and powerful ESCs. The first 6S capable BULLETPROOF ESC is forged and optimized for racing and built for maximum speed. Features include 960 step input resolution, OneShot auto detection, and fast regenerative braking.
The ESC is SimonK firmware and BLHeli compatible. It's also built for safe and reliable flight, with mechanical crash protection (no more fires!), optimized passive cooling, status LEDs and more.
Continuous Current: 20A
Burst Current: 45A
Voltage Range: 5.5 – 26V
Dimensions: 36mm x 36mm x 3mm
Weight: 4.8g without wires. 7.3g incl wires & 2mm bullet connectors
Input: PWM or OneShot
Connectors: 2.0mm bullet connectors, 80mm wire
Firmware: SimonK RACE (custom)
POWERCUBE CURRENT SENSOR
The current sensor measures current and controls power distribution across the entire PowerCube, providing regulated and filtered voltage for the ESC, Flight Control and FPV System (video transmitter and receiver). The current sensor uses digital current and voltage measurement for highest accuracy and provides up to 2A 5V & 600mAh 12V, with gold-plated contact points for best performance.
The sensor accepts TBS CORE PNP PRO for interactive flight control configuration and provides flight telemetry to the TBS CORE PNP PRO. It is compatible with all BST-capable equipment.
Continuous power: 100A
Peak power: 120A
Voltage Range: 5.5 – 26V
Dimensions: 36x36x3mm
Weight: 9.8g
Ports:
FPV Tx (5V, 12V or VBatt)
FPV Camera (5V or 12V)
BST (BlackSheep Telemetry) – PowerCube BUS
Include:
- 1x TBS COLIBRI flight control
- 4x TBS BULLETPROOF speed control w/2mm female bullet connector
- 1x TBS POWERCUBE DCDC and PDB w/ XT60 connector
- 1x Plastic isolation layer
- 1x PPM/SBUS cable
- 1x Spektrum cable
- 1x Piezo buzzer
- 1x LED pigtail
TBS POWERCUBE IS PATENT PENDING AND © TBS AVIONICS. - Package total weight: 125.00 grams (incl. packaging)
- Factory description: Team BlackSheep TBS PowerCube - Multi Rotor Stack
- Manufactured by Team BlackSheep
- Manufacturer number: TBS/Powercube
- This item is not eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error
TBS PowerCube - Multi Rotor Stack Patented by Team BlackSheep
