PART: #CA/010-0162-03
|
**Discount shipping applies to this item.
|
|
|||||||||||||||||||||
CUSTOMER REVIEWS
This product currently has 1 reviews
Overall Rating:
|
 |
Customer Performance Survey:
Customers surveying this product said...
100%"Improves performance"
Currently all feedbacks are left by AsiaTees customers.
PRODUCT RESOURCES
TAGGED CATEGORIES:
- The Mamba Micro X Crawler edition is our latest offering for the crawling crowd. We have taken our new 1406 low kv crawler motors and paired it with the lightweight, small footprint Mamba Micro X ESC.
This combo is ideal for low speed crawling or trail running in vehicles weighing up to 8lbs on 2s or 3s; it can also be used in slightly more aggressive setups like rock racing and extended hill climbing on vehicles up to 4lbs. If you're looking for a more aggressive setup in a heavier rig, like rock racing and extended hill climbing, we recommend you run the Mamba X ESC with the same motor. Your ESC will come with our new V2.02 firmware that has been enhanced for rock crawling and sensored operation.
Use of an external BEC is recommended if running a high power or digital servo.
This SPECIAL EDITION of the Mamba Micro X includes solder posts with 16 AWG wire for the motor connection; it also includes the matching 4mm female bullets to pair with the included 1406-2280kv sensored brushless motor.
The Auxiliary Advantage
Mamba Micro X features the addition of a new, programmable Auxiliary Wire that allows you to make “on-the-go” adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter. Try out the brand new Crawler Mode for incredible versatility!
Telemetry Capability
The Mamba Micro X is telemetry ready, which means owners of FutabaT4PX or 7PX Transmitters will be able to purchase the Castle Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
Package Includes:
- Crawler Edition Mamba Micro X w/solder posts
- 1406-2850kv sensored brushless motor
- 210mm length sensor wire (for sensored operation)
- Castle Sensor Harness adapter
- Coupon for free Castle Link USB adapter
- Driver's Ed and Quick Start Guides
- Castle decal sheet
Specification:
- Waterproof : Yes
- Telemetry Capable : Yes
- Data Logging : No
- Auxiliary Wire : Yes
- Minimum Input Voltage : 2S
- Maximum Input Voltage : 3S
- Sensored Capable : Yes
- Recon G6 Certified ESC : No
- ROAR Certified ESC : No
Features:
- Auto LiPo cutoff
- Motor direction
- Drag brake
- Reverse type
- Motor type
- Punch Control
- Brake curve
- And many more.
Additional Castle Link benefits include:- Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
- Intuitive Demo Mode capability
- Ability to save setup profiles for later use
Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.
This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.
Controller designed, manufactured and supported in Olathe, Kansas USA.
Motor designed and supported in Olathe, Kansas USA; Made in China.
Mamba Micro X ESC:
Designed for low speed crawling or trail running in vehicles weighing
up to 8lbs (3.6kg) on 2S or 3S LiPo, can also be used in vehicles
up to 4lbs (1.8kg) for extended hill climbing and rock racing
Fully programmable using the Castle Link USB Adapter (not included,
coupon for free link included in package) and free downloadable
Castle Link Windows software1406-2850Kv Sensored Brushless Motor:
4-pole 12-slot design for greater efficiency
High-strength 356F (180C) grade Neodymium sintered magnets
High-performance 0.2mm steel lamination stacked stator
Rebuildable
Crawler Edition Mamba Micro X w/ Motor Connectors
1406-2850Kv Sensored Brushless Motor
8.3 (210mm) Sensor Wire
Castle Sensor Harness Adapter
Quick Start Guides
Decal Sheet
Battery Connector: Castle 4mm Polarized Connectors, Deans Ultra
Plugs or Traxxas Power Connect are recommended
Mamba Micro X ESC
Input Voltage Range: 2S-3S LiPo (12.6V)
BEC: Adjustable, 5.5 or 7.5V (2A peak)
Operating Environment: Waterproof design allows usage in nearly any
environment
Brake: Proportional
Reversible: Yes, can be disabled for racing
Dimensions, L, W, H, 1.6 x 0.75 x 1.1 (41 x 19 x 28mm)
Weight: 1.20oz (34g) without wires
Motor Connectors: 4mm male Castle Bullet Connectors
1406-2850Kv Sensored Brushless Motor:
Input Voltage Range: 2S-3S LiPo
Kv: 2850
Max RPM: 100,000
Recon G6 Certified: Yes
ROAR Certified: No
Length: 1.9 (49.5mm)
Diameter: 1.4 (36mm)
Weight: 6.9oz (197g)
Shaft Length: 0.59 (15mm)
Shaft Diameter: 1.4 (36mm)
Connectors: 4mm male Castle Bullet Connectors attached to
replaceable 13 gauge wire
Mounting Hole Specifications: M3 25mm
Running Modes: SMARTSENSE, Sensored, Sensorless - Package total weight: 380.00 grams (incl. packaging)
- Package size: 12.00 x 16.00 x 8.00cm
- Factory description: Castle Creations Mamba Micro X Crawler Edition ESC With 1406-2850KV Sensored Motor Combo
- Manufactured by Castle Creations
- Manufacturer number: CA/010-0162-03
- This item is not eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error

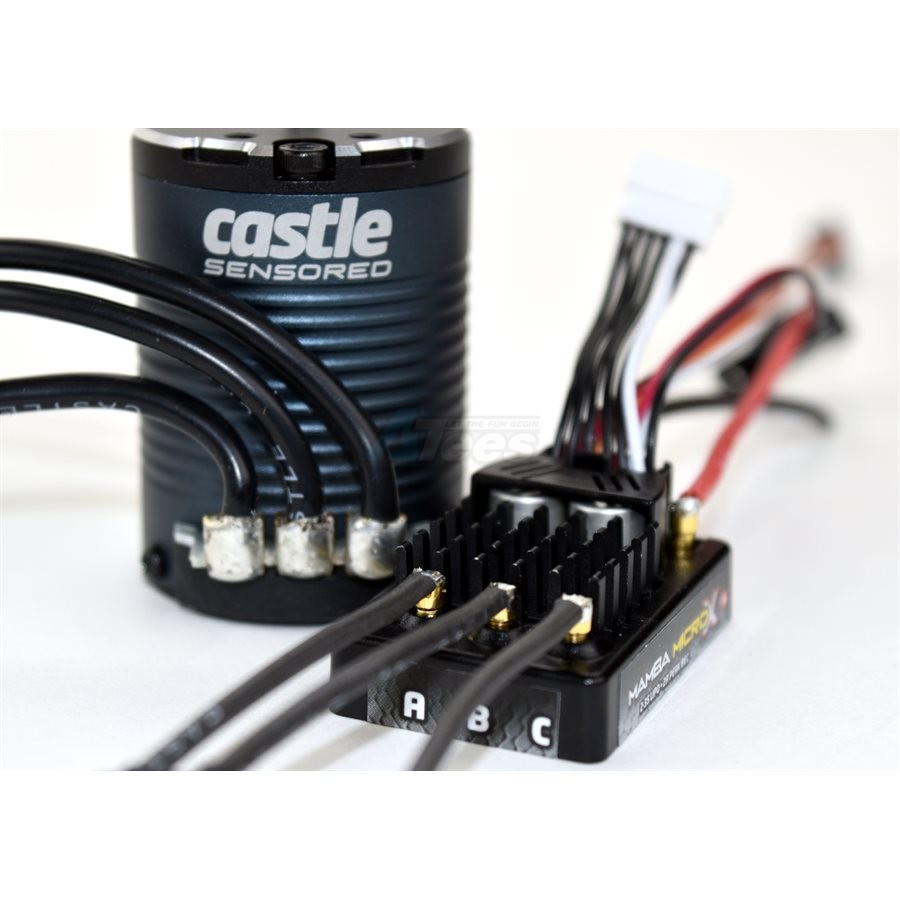

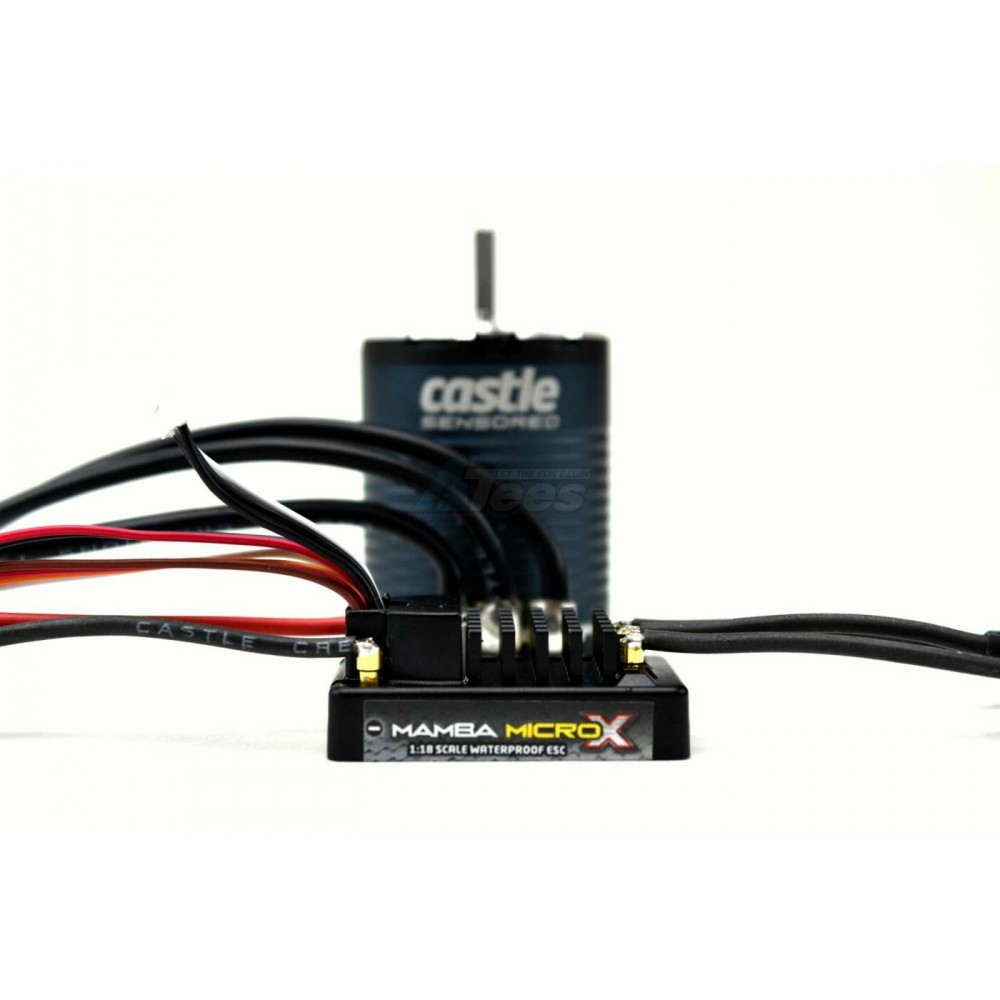

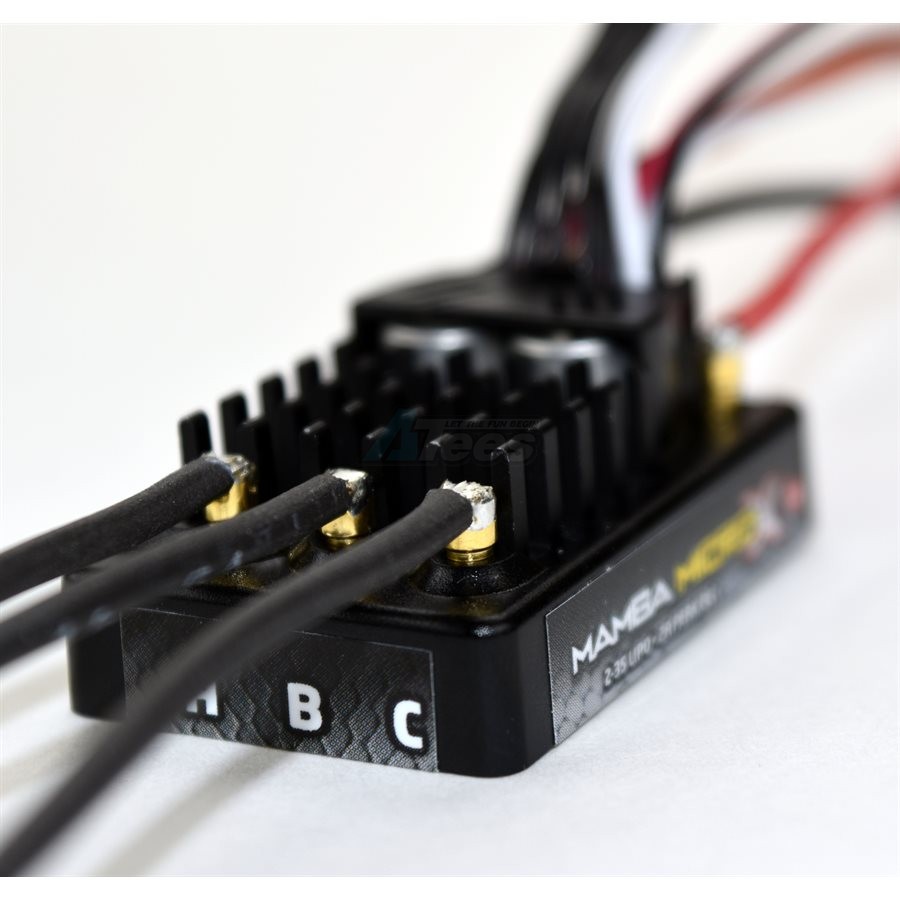

Mamba Micro X Crawler Edition ESC With 1406-2850KV Sensored Motor Combo by Castle Creations
